Agricultural Pe Film Plastic Recycling Machine Line 3T/H With Silt Sand Removing

Agricultural Pe Film Plastic Recycling Machine Line 3T/H With Silt Sand Removing
Features Gallery Product Description Request A Quote
Voltage: 380V,50HZ Or As Customer Request
Automatic Grade: Automatic
Application: Plastic Recycling,Multching Film Reycling, Cement Bag Recycling Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support
Product Name: Plastic Separator Machine,plastic Recycling Machine,waste Pp Pe Bags Washing Granulating Recycle Line Machine
Keywords: Cement Bag Recycling Machine, Mulch Film Recycling Washing Machine
Material: Plastic Bags , Mulching Films,
Motor: Wannan Motor,Siemens
Condition: New
High Light:

3T/H Pe Film Recycling Machine


3T/H Plastic Recycling Machine


3T/H Plastic Recycling Line

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,SGS,ISO9001
Model Number: LDFR
Payment & Shipping Terms
Packaging Details: export standard packaging
Delivery Time: 30 working days after get the deposit
Payment Terms: Western Union, MoneyGram
Supply Ability: 30 sets per months
Product Description



Waste plastic film silt sand removing machine, pe film recycling machine, agricultural film recycling machine line

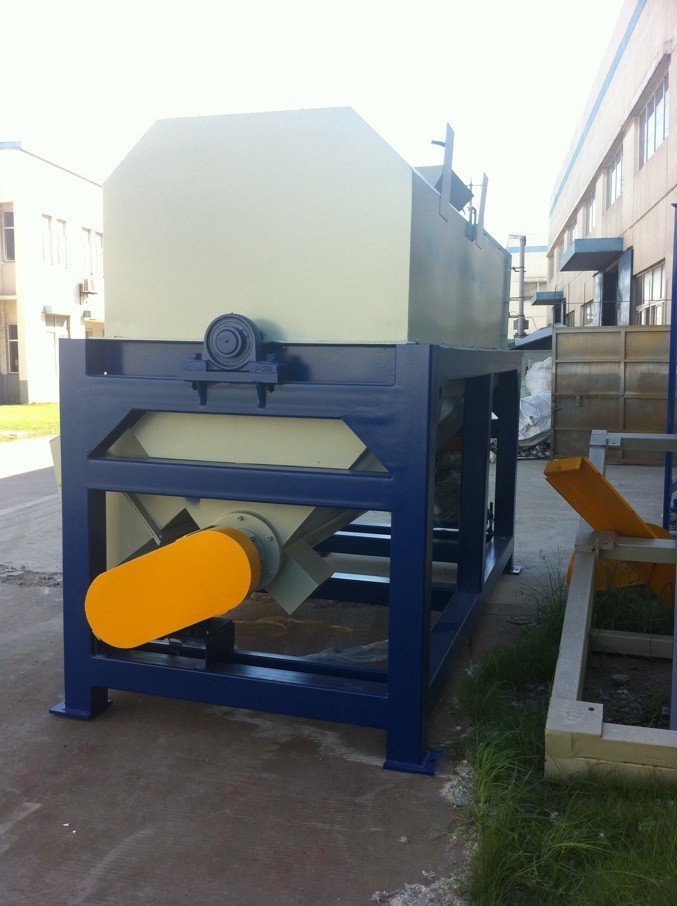

Agricultural Pe Film Plastic Recycling Machine Line 3T/H With Silt Sand Removing 0



>>Product introduction: PE agricultural film (mulch film, greenhouse film, tobacco film) and urban domestic waste are the most difficult projects in the recycling process of renewable resources.

>>The sand remover machine can quickly and effectively remove residual impurities in urban domestic garbage and agricultural film, such as mud, sand, small stones, glass, metal, wood chips, etc.

>>After the material enters through the feed port,The combined force distributes the main shaft blade structure, and the equipment is rotated at high speed to filter out the mud and sand attached to the film and the paper and debris in the material through the sieve at the bottom of the barrel.

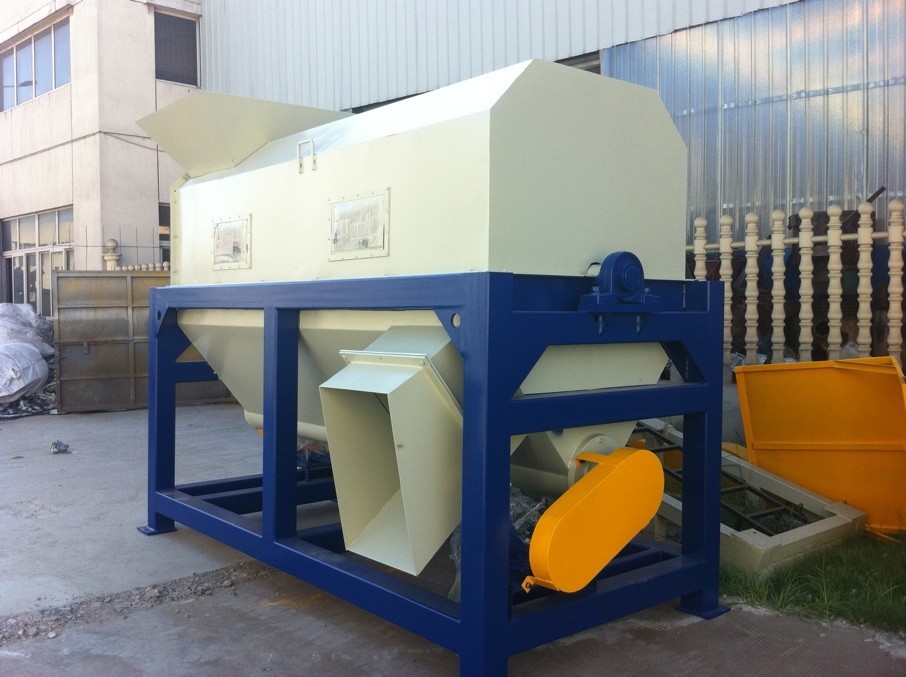

Agricultural Pe Film Plastic Recycling Machine Line 3T/H With Silt Sand Removing 1




High output: processing capacity (raw material) 2-3T/H


1 Good effect: It can effectively remove 55%-75% of impurities, such as sand, stones, broken cloth, paper materials, etc. (paper materials are more difficult to handle in subsequent recycling equipment)
2 Water saving: After being processed by the de-sanding machine, the removal rate of sediment and debris in the film reaches 55%-75%, which effectively saves the water consumption and waste water treatment energy consumption of subsequent equipment treatment.
3 Reduced cost: Effectively remove impurities in the front stage, reduce subsequent equipment pressure, reduce the wear rate of tools and other accessories, improve equipment efficiency and recycling purity, and save customer costs.

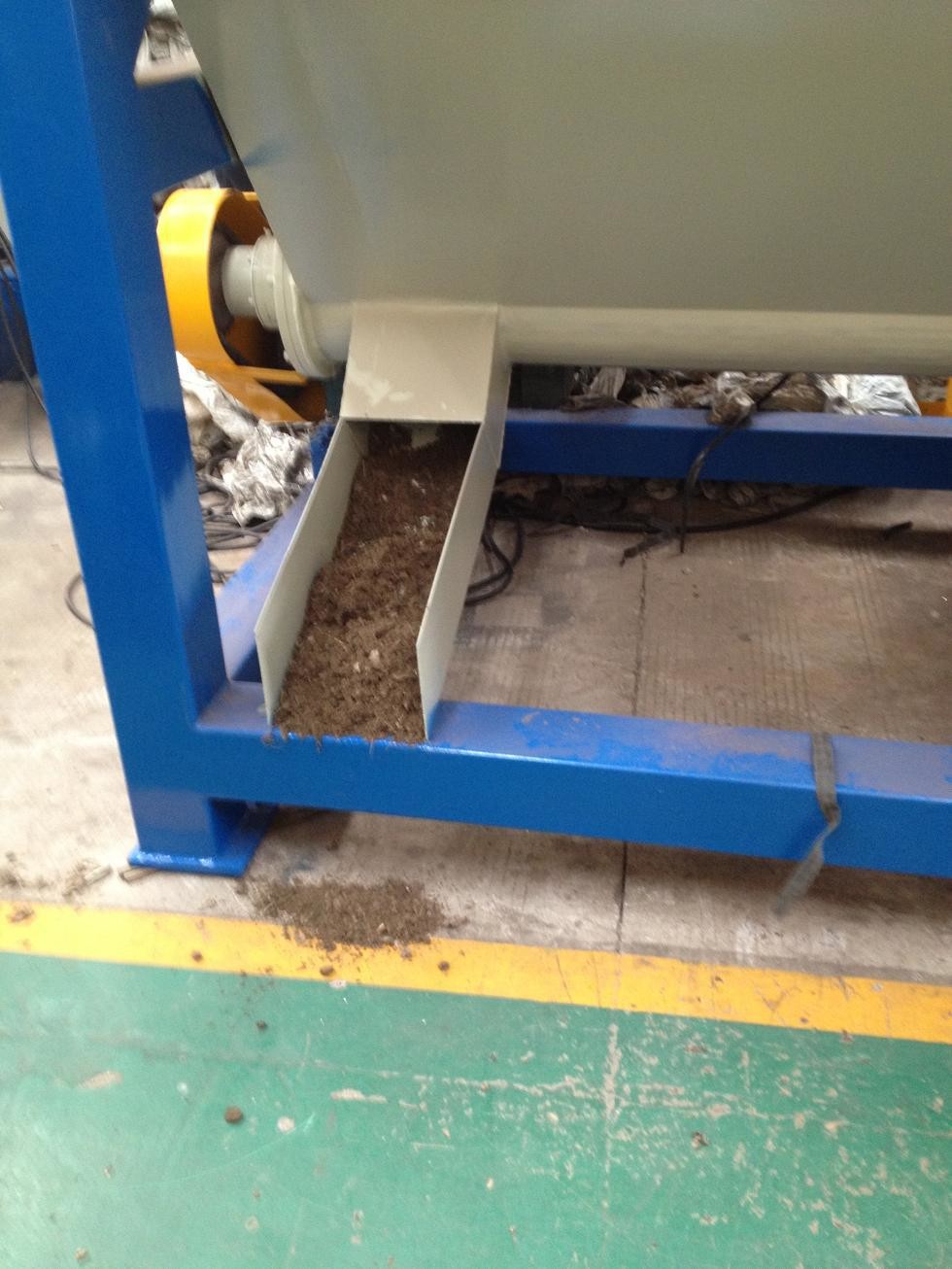

Labor saving: the impurities are screened out from below, and can be directly transported to a fixed place for storage by connecting the conveyor without manual cleaning.

The equipment can be equipped with a conveyor under the screen according to requirements to reduce the degree of cleaning debris.


5 No jamming: At the same time that the output is high and efficient, the second-generation sand remover has also upgraded and improved the main shaft, blade spacing, screw and barrel gap, and is aimed at more miscellaneous materials (such as waste clothes in municipal garbage or relatively Long agricultural film) will not appear winding, jamming, etc.

The length of the material processed by the equipment should not exceed 1200mm and 500mm wide. If there are a large number of materials with excessive length, special instructions should be given. The separate design according to the material size will not affect the function of the equipment.



Spherical roller bearings are used at both ends to effectively adjust the spindle rotation balance error and extend the life of the equipment.



The equipment can be equipped with a conveyor under the screen according to requirements to reduce the degree of cleaning debris.



Technical parameter

Model LD-CZJ1000 Note
Capacity 1000-3000kg/h
Drum diameter 1000mm
Length 4000mm
High speed friction motor power 22kw
Impurity removing screw motor 3kw
Impurity removing blower power 5.5kw x 2

Why choose us:

1. We are professional manufacturer of plastic recycling and have professional technical team, focus on provide high quality equipment and good service for customer.

2. Our plant with area of 7600 square meters, 62 employees. All skill workers have professional skills certificates.

3. We have professional production QC team to ensure the machine manufacturing quality.

4. All equipment are running test before shipment.

5. During customer visit, we can take customer to our customer ‘s factory to looking machine working.

Turnkey project service:

1.Pre-sale: we given client the details technician offer etc
2.In-sales: we supply the details layout, installation instruction, technician support for the clients
3.After sales: we arrange engineer to install the machinery and training the workers for client
4.We have 24 hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always up date the new technology to every customer



● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory

Our Service:

1. Provide Turn-Key solutions to customer’s requirement

    Flexible machine design to satisfy the customers’ requirement and factory layout

2. Technical assistance: overseas installations and training in customer’s factory

3. In-store spare parts for fast delivery

4. We have running machine line or working video for showing customer how our machine line work

5. Lianda doesn’t not only focus on making machine, but also listen to the sound from the customer. To make easy to operate, time-saving, labor-saving, high efficiency, low failure machines. Practical information, covering arrange of great value in actual operation

6. Lianda also has rich experience in Garbage film / Land fill film recycling. Tell Lianda what you want to do, then we will give you the value solution.

7. Once cooperate with each other, Lianda will not only sell the machine, but also introduce the customer to the business relation of buyer of the next step . For example : if you buy PET Bottle Recycling machine line from Lianda, we will put your information as PET Flake manufacture in Alibaba

8. Lianda has the customer in USA , UK , Saudi Arab , Lithuania, Africa , Sudan , Malaysia, Indonesia , Korea, Japan , Thailand , Singapore Colombia, Mexico, Somali , Canada, Australia and more


Agricultural Pe Film Plastic Recycling Machine Line 3T/H With Silt Sand Removing 2
