High efficiency high speed friction washer for PE PP film recycling
High speed friction washer is made up of high speed waterproof shaft, washing blades with wearing layer and cleaning room. With the design of the closing system of water inlet/outlet, Lianda High speed friction washer has the function of Friction washing and Dewatering.
There are three working zones. First working zone is sewage water dewatering, second working zone is clean water friction washing, third working zone is friction dewatering.
Machine details:
Specification:
| Model | LD-420 | LD-520 | LD-600 |
| Screw diameter | 420mm | 520mm | 600mm |
| Motor power | 22kw | 30kw | 37kw |
| Capacity | 500kg/h | 1000kg/h | 1500kg/h |
| Rotating speed | 800rpm | 800rpm | 800rpm |
| Blade | with wearing layer | with wearing layer | with wearing layer |
| Material | S.S304 | S.S304 | S.S304 |

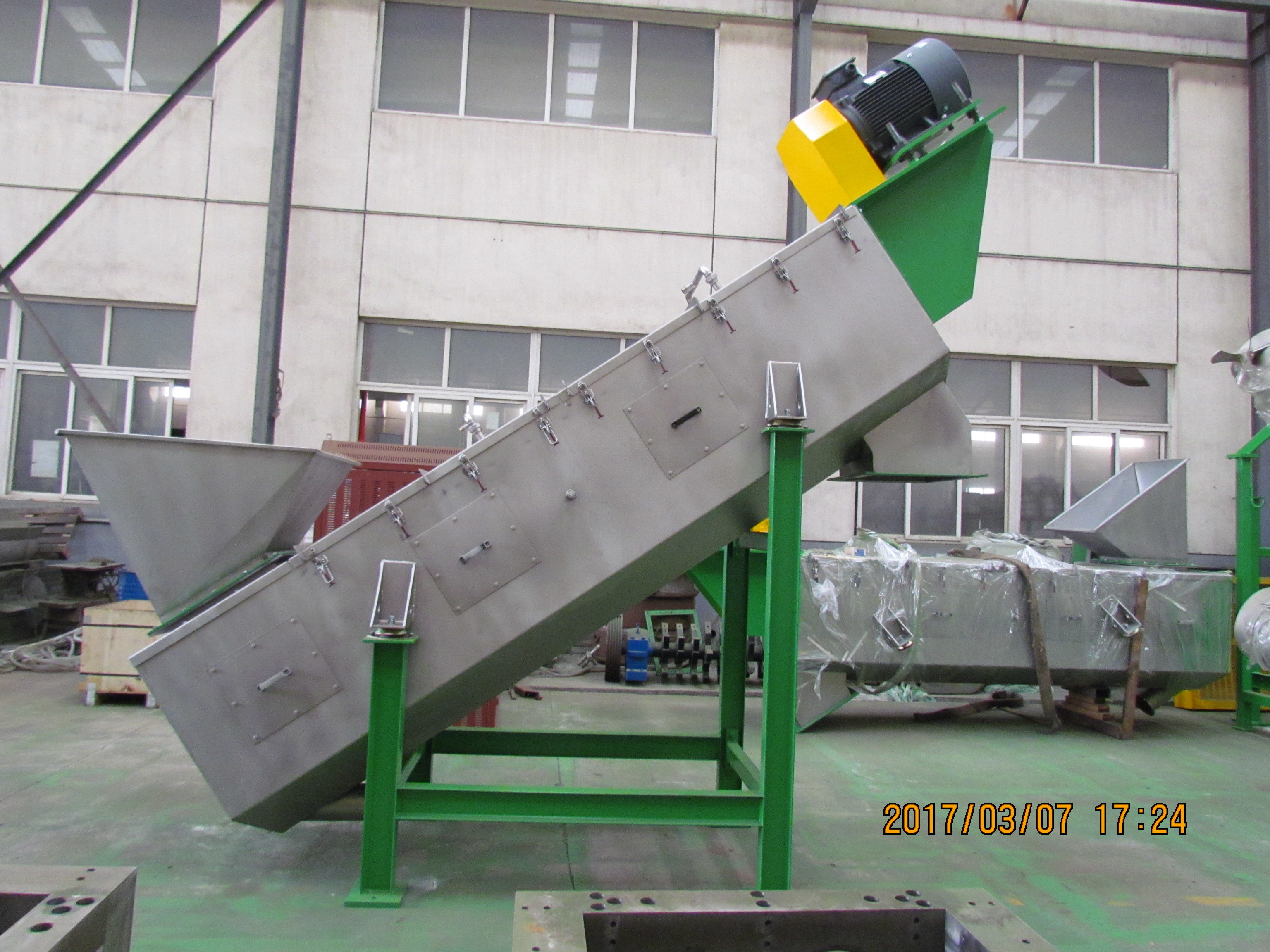

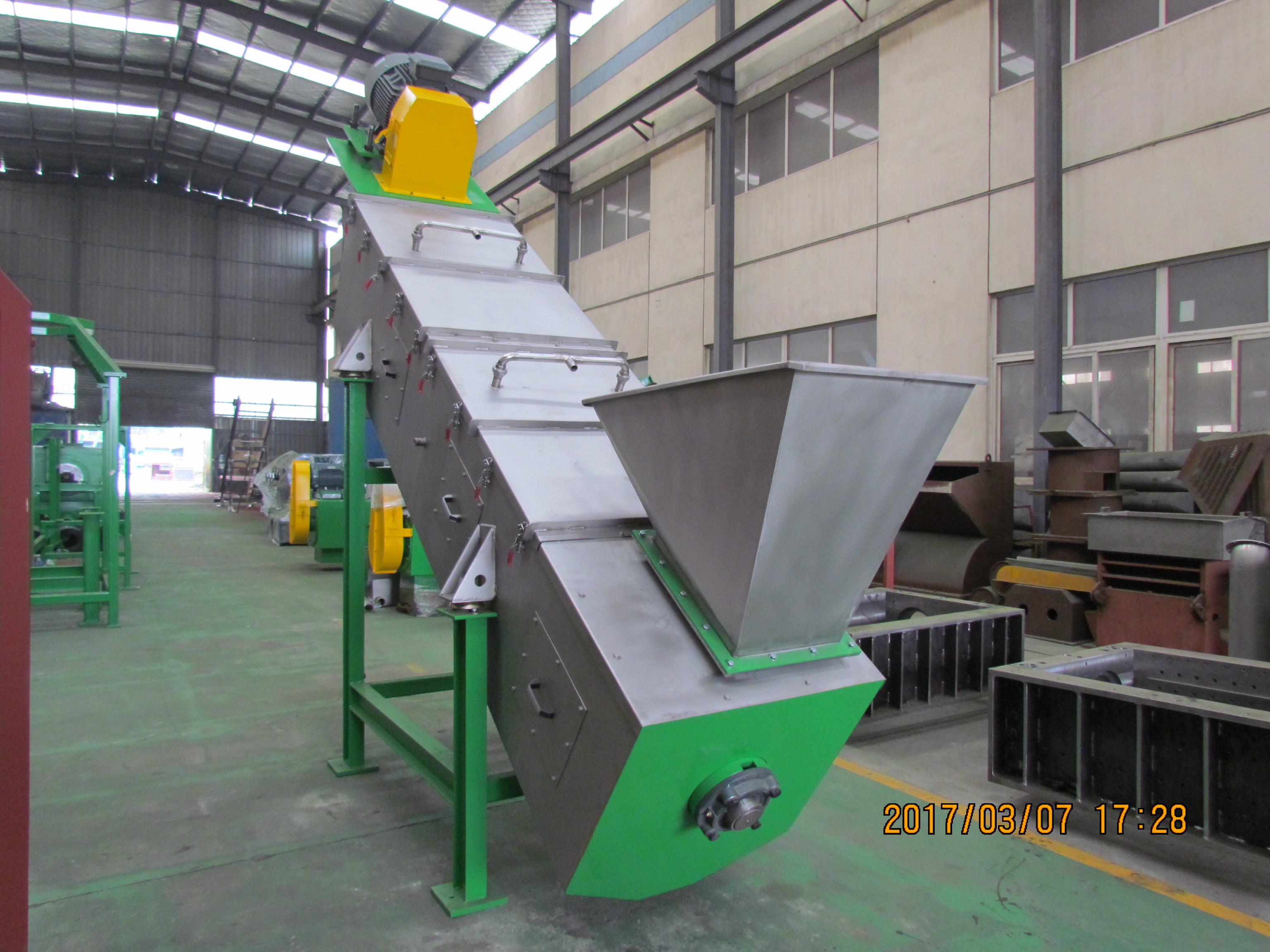

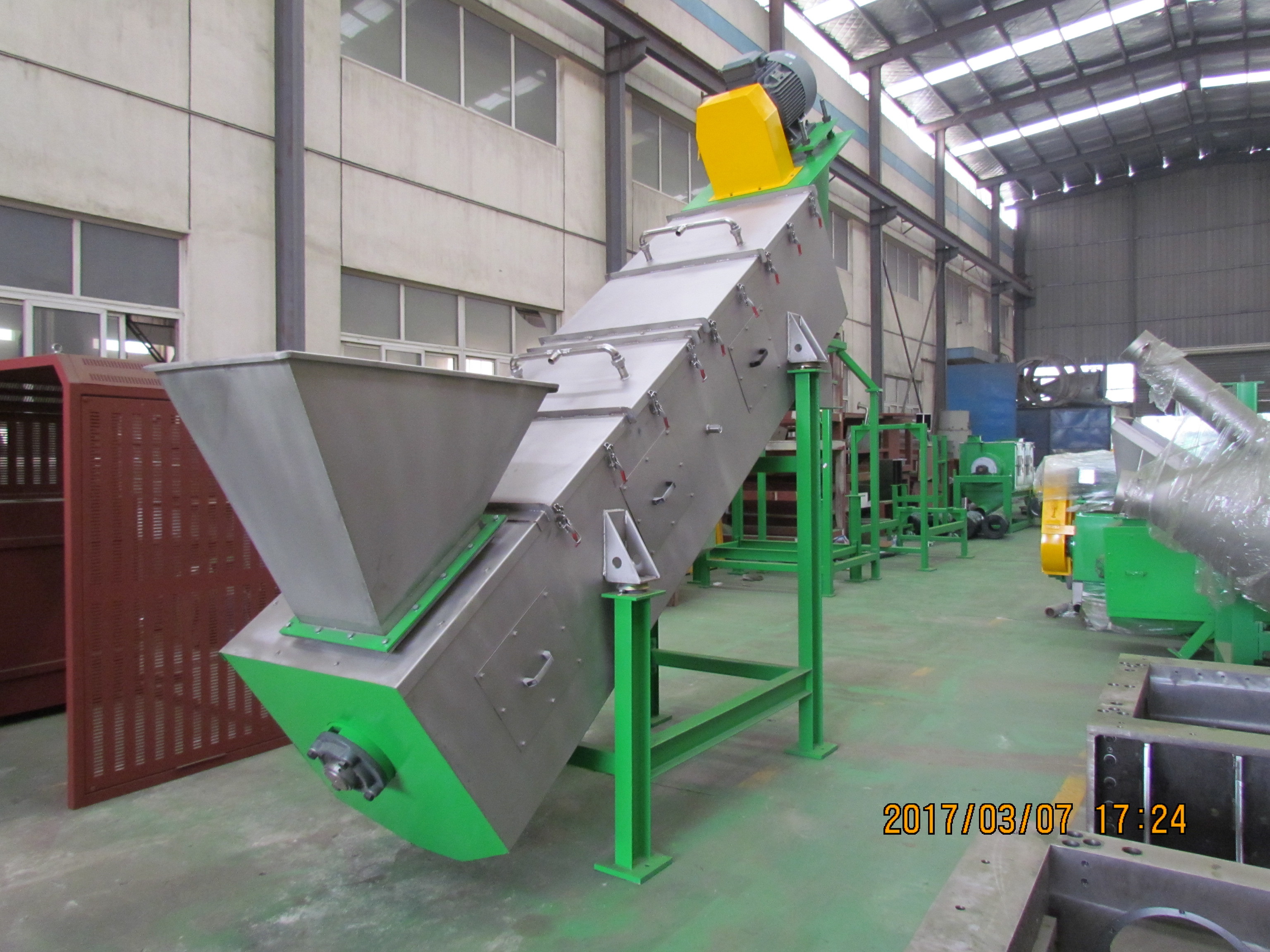

Machine pictures:
