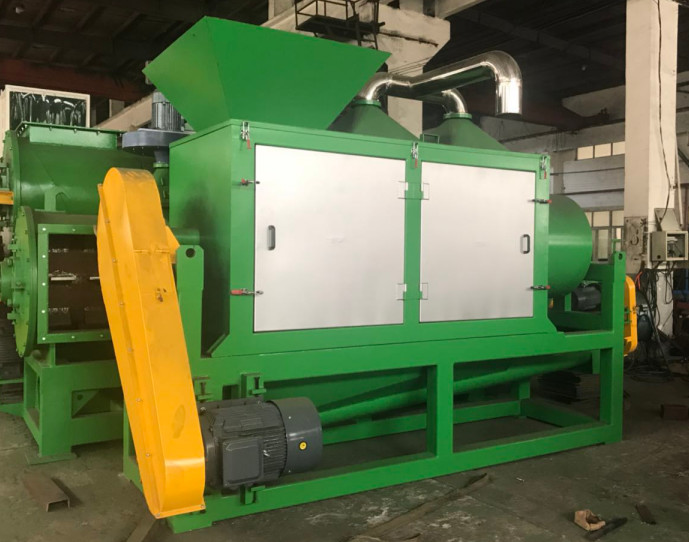

Film Desanding Machine Equipment
Advantage
|
High output: processing capacity (raw material) 2-3T/H
|
|
| 1 | Good effect: It can effectively remove 55%-75% of impurities, such as sand, stones, broken cloth, paper materials, etc. (paper materials are more difficult to handle in subsequent recycling equipment) |
| 2 | Water saving: After being processed by the de-sanding machine, the removal rate of sediment and debris in the film reaches 55%-75%, which effectively saves the water consumption and waste water treatment energy consumption of subsequent equipment treatment. |
| 3 | Reduced cost: Effectively remove impurities in the front stage, reduce subsequent equipment pressure, reduce the wear rate of tools and other accessories, improve equipment efficiency and recycling purity, and save customer costs. |
| 4 |
Labor saving: the impurities are screened out from below, and can be directly transported to a fixed place for storage by connecting the conveyor without manual cleaning. The equipment can be equipped with a conveyor under the screen according to requirements to reduce the degree of cleaning debris.
|
| 5 | No jamming: At the same time that the output is high and efficient, the second-generation sand remover has also upgraded and improved the main shaft, blade spacing, screw and barrel gap, and is aimed at more miscellaneous materials (such as waste clothes in municipal garbage or relatively Long agricultural film) will not appear winding, jamming, etc. |
| 6 |
The length of the material processed by the equipment should not exceed 1200mm and 500mm wide. If there are a large number of materials with excessive length, special instructions should be given. The separate design according to the material size will not affect the function of the equipment.
|
| 7 |
Spherical roller bearings are used at both ends to effectively adjust the spindle rotation balance error and extend the life of the equipment.
|
| 8 |
The equipment can be equipped with a conveyor under the screen according to requirements to reduce the degree of cleaning debris.
|
| Model | LD-CZJ1000 | Note |
| Capacity | 1000-3000kg/h | |
| Drum diameter | 1000mm | |
| Length | 4000mm | |
| High speed friction motor power | 22kw | |
| Impurity removing screw motor | 3kw | |
| Impurity removing blower power | 5.5kw x 2 |
