Impurities sand remover machine for PE PP agricultural films recycling
Working Principle of Impurities Sand Separator: The sands will be separated from the film by the action of the centrifugal force of the main shaft, and based on the friction between the bottom Screw-thread steel and dirty film. The film will be conveyed to the discharger with the main shaft rotating, the sand/ impurity will be collected on the top of the machine.Impurities sand separator greatly improving the productivity and reducing energy consumption. The running speed of the machine is controlled automatically through the built-in pressure transmitter of the device.
Technical Parameter
| Model | LD-1000 |
| Dimension Diameter* Length (mm) | Φ1000*4000 |
| Sands / impurity removing screw motor | 3kw |
| Sand / Impurity removing blower | 5.5kw x 2 |
Material details:
Advantages of Impurities Sand Separator:
1. Working efficiently: Can remove the impurity and sand at the rate of 55%-75%. Remove Sands, stone, cloth waste,paper etc.
2. Save energy: Improve the working life of crusher blades.
Improve the efficiency of washing processing.
Improve the quality of the washed film.
Save water after the next washing step.
3. No machine stuck: Special design for the main shaft, screw blades space, and also the space between screw blades and machine drum.
4. Certificate: Get China patent.

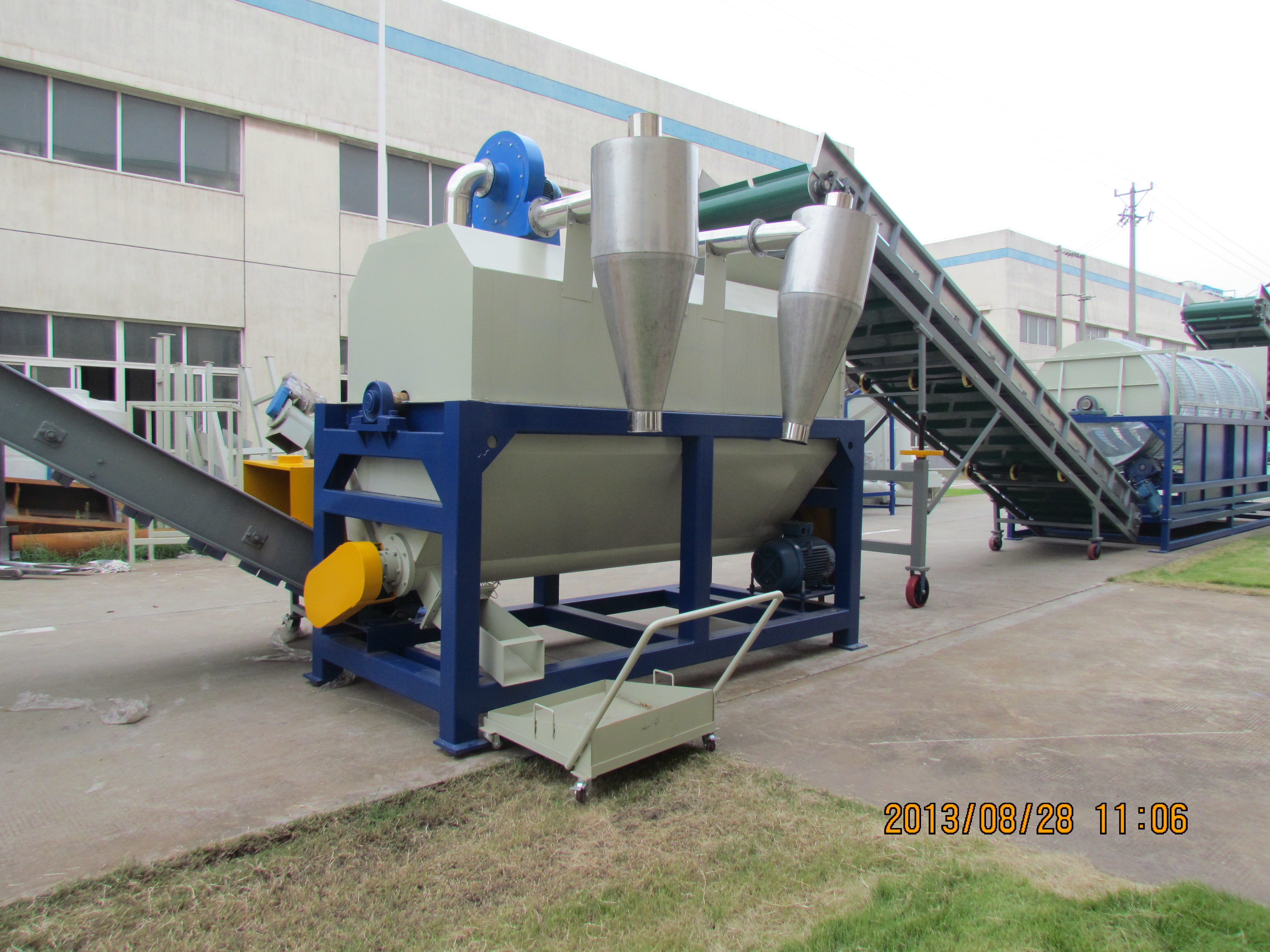

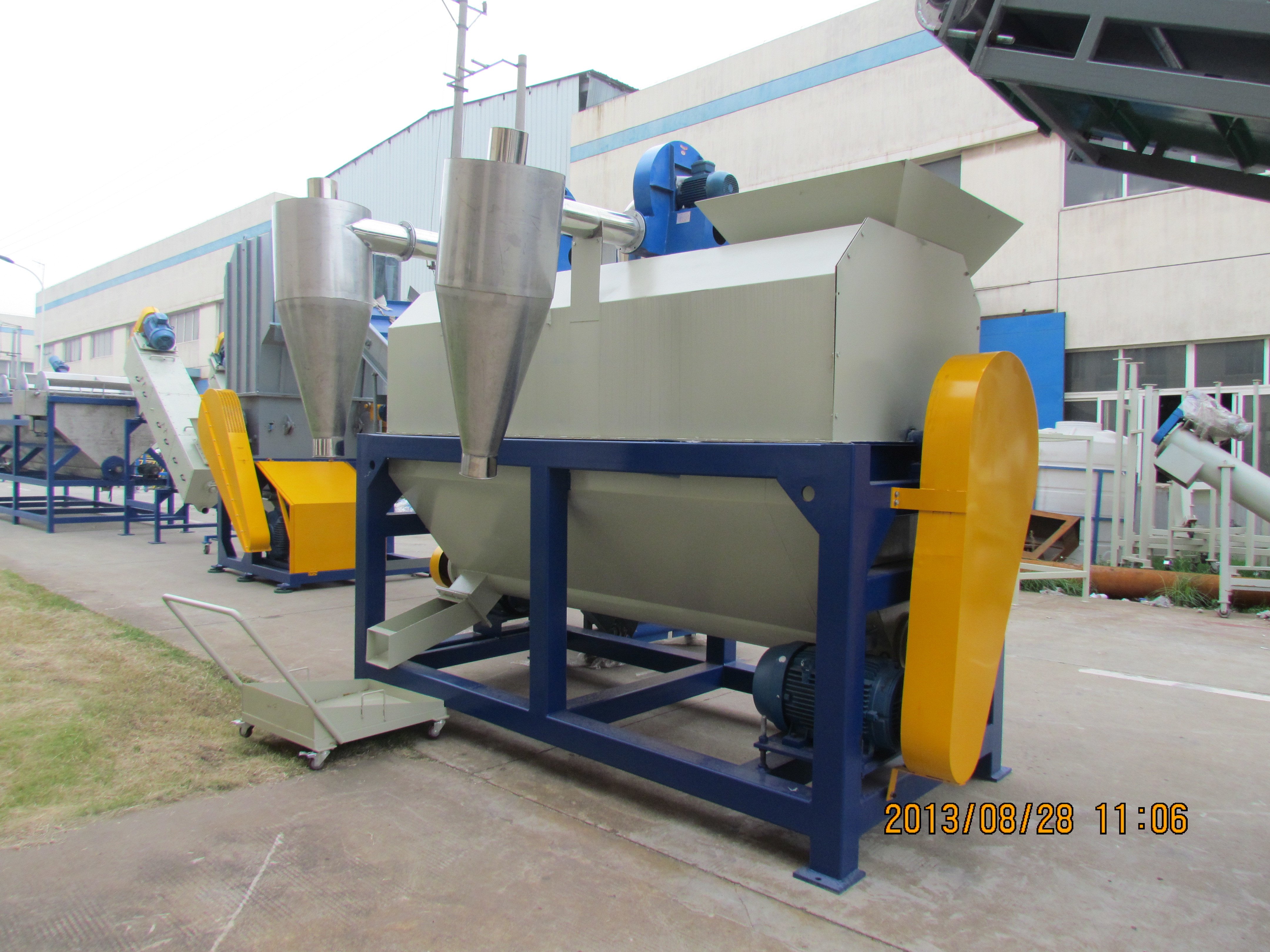

Machine pictures:
