Garbage film crushing washing and recycling machine

1set
MOQ
USD38000-USD185000 per set
Price
Garbage film crushing washing and recycling machine
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel
Color: Custom-made
Volt: 380V 3Phase 50Hz Or Custom-made
Function: Crushing, Washing And Drying
Capacity: 300kg/h, 500kg/h, 1000kg/h
Basic Infomation
Place of Origin: Zhangjiagang, China
Brand Name: Lianda
Certification: CE
Model Number: LDQX
Payment & Shipping Terms
Packaging Details: Export standard packaging.
Delivery Time: 30 working days after get the deposit.
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Product Description

Description:

Garbage film recycling line is designed for crushing, washing, drying garbage films.

The basic process as follow:

Belt conveyor – Plastic crusher - Friction washing dewater – High speed friction washer – Double V bottom floating washer – screw discharger – High speed dewater – Air conveying system – Hoper.

We give customer suggestion and device according to customer's materials. Different materials, device of recycling machines are different.



Specification:

Model Capacity Power
LD-QX300 300kg/h 75kw
LD-QX500 500kg/h 90kw
LD-QX1000 1000kg/h 120kw



Advantages:



Sand/grass remover: it can remove sand and impurities from garbage films and rate is 55%-75%.



Friction washing dewater: It is pre-friction washing garbage films from crusher and remove most dirty water in PE film.



PE film squeezer: Final moisture of PE film after high speed dewater is around 15%. It also can use PE film squeezing dryer instead of dewater and final moisture is 3-5%. Or use PE film squeezing pelletizer instead of dewater, final products like popcorns, final moisture content around 1%.



Floating washer: Floating washer bottom is designed as coned with dirty discharging valve. While cleaning the floating washer, just need to open the valve, no need manual cleaning

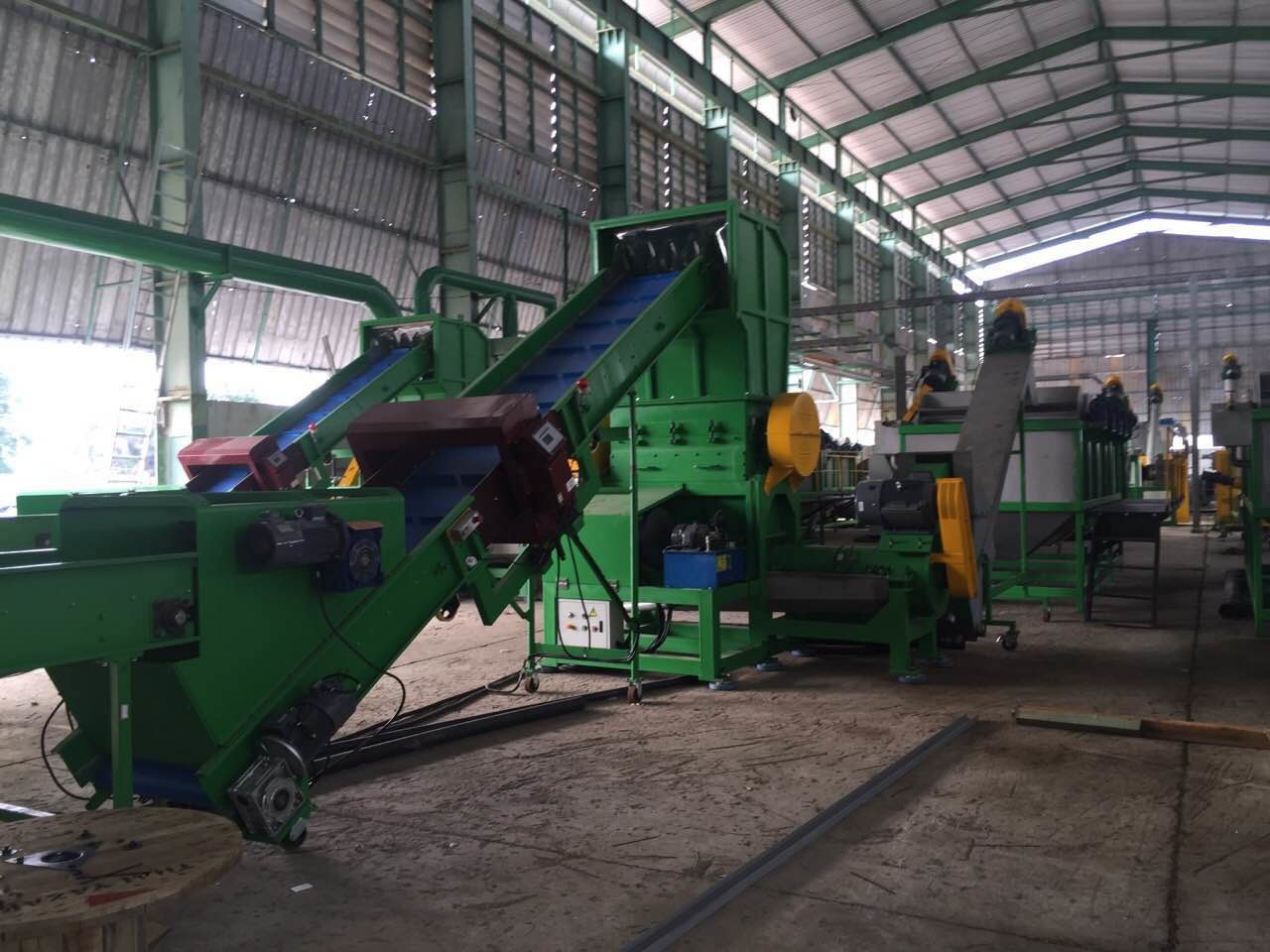

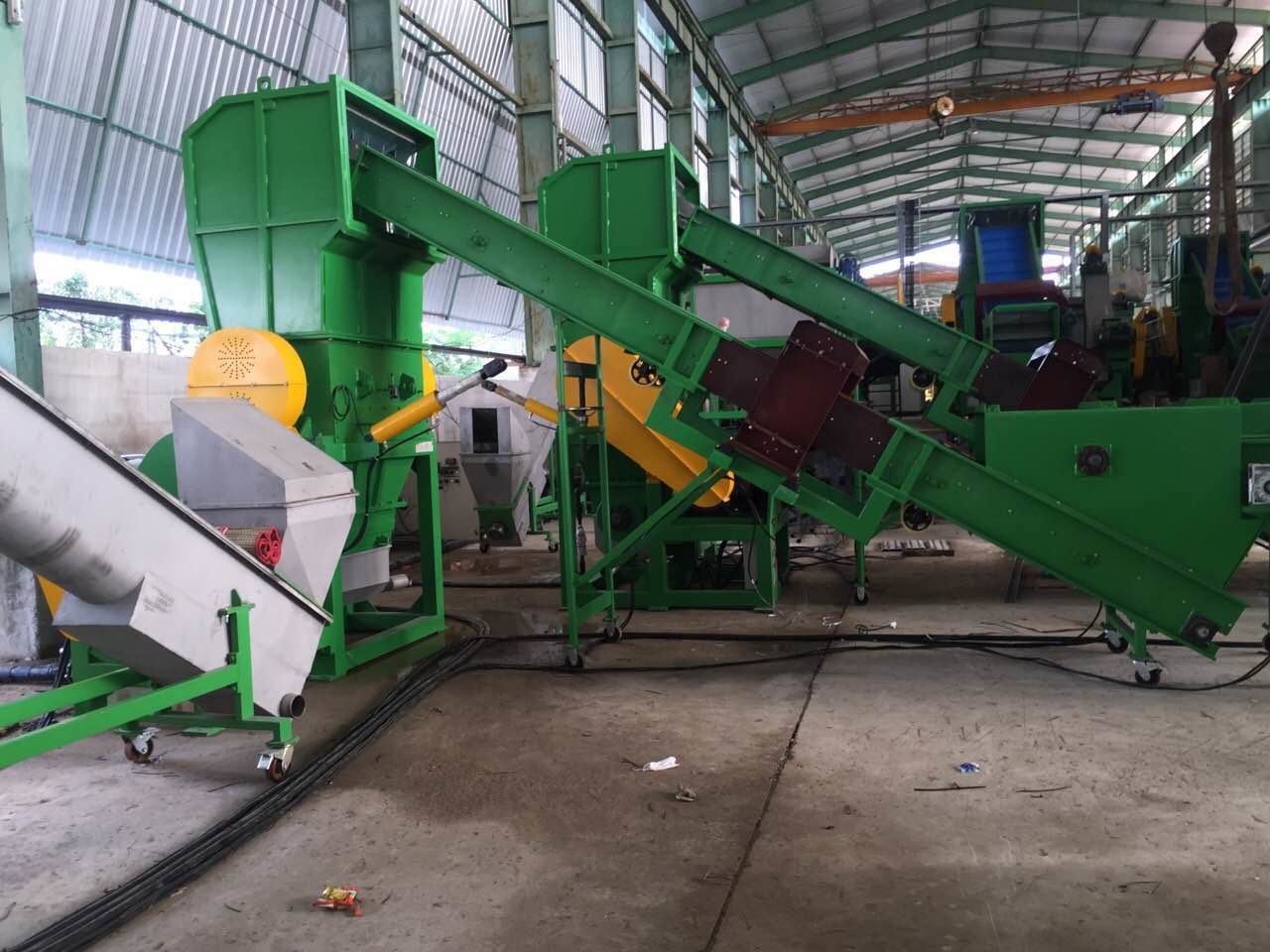

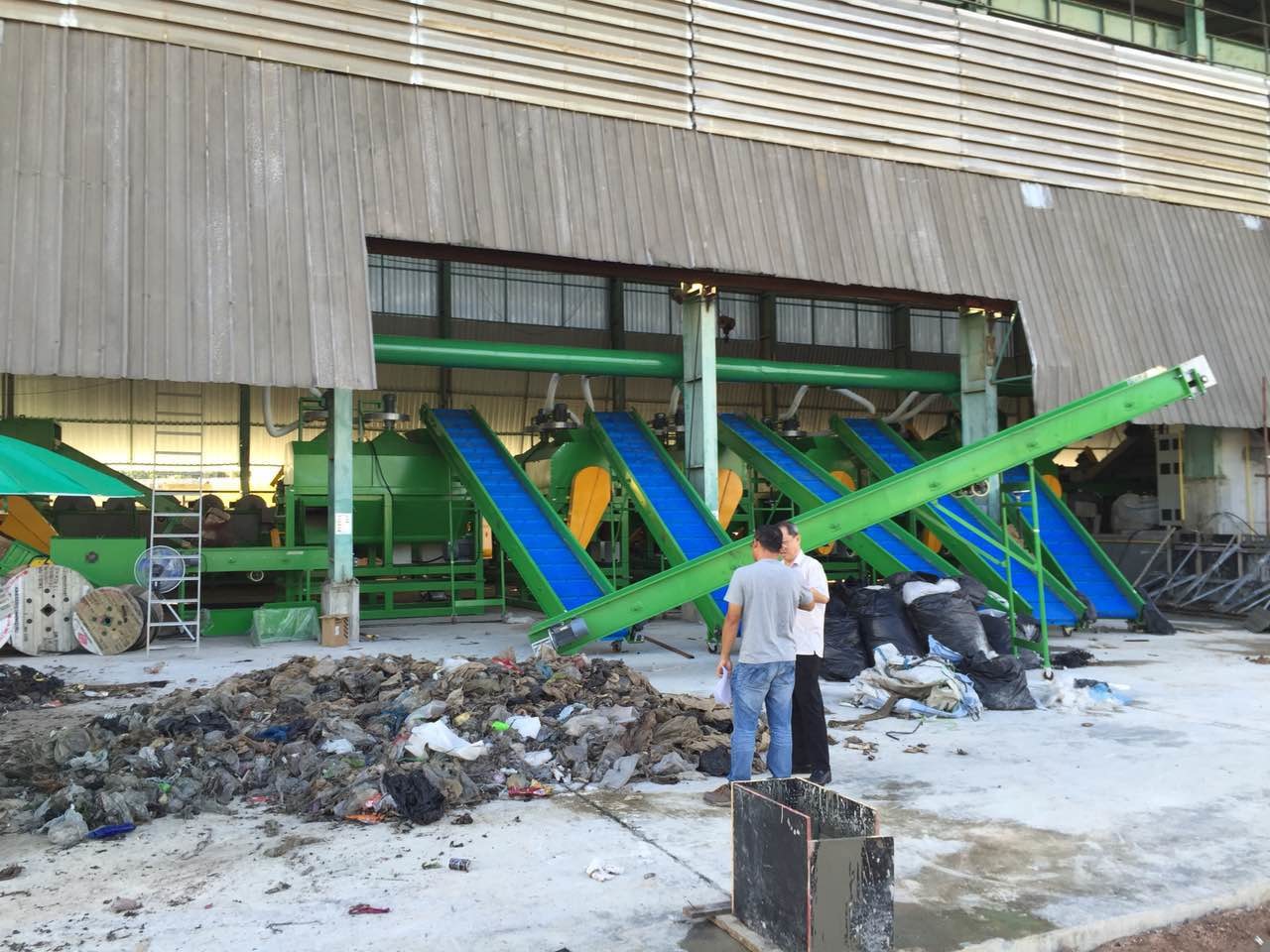

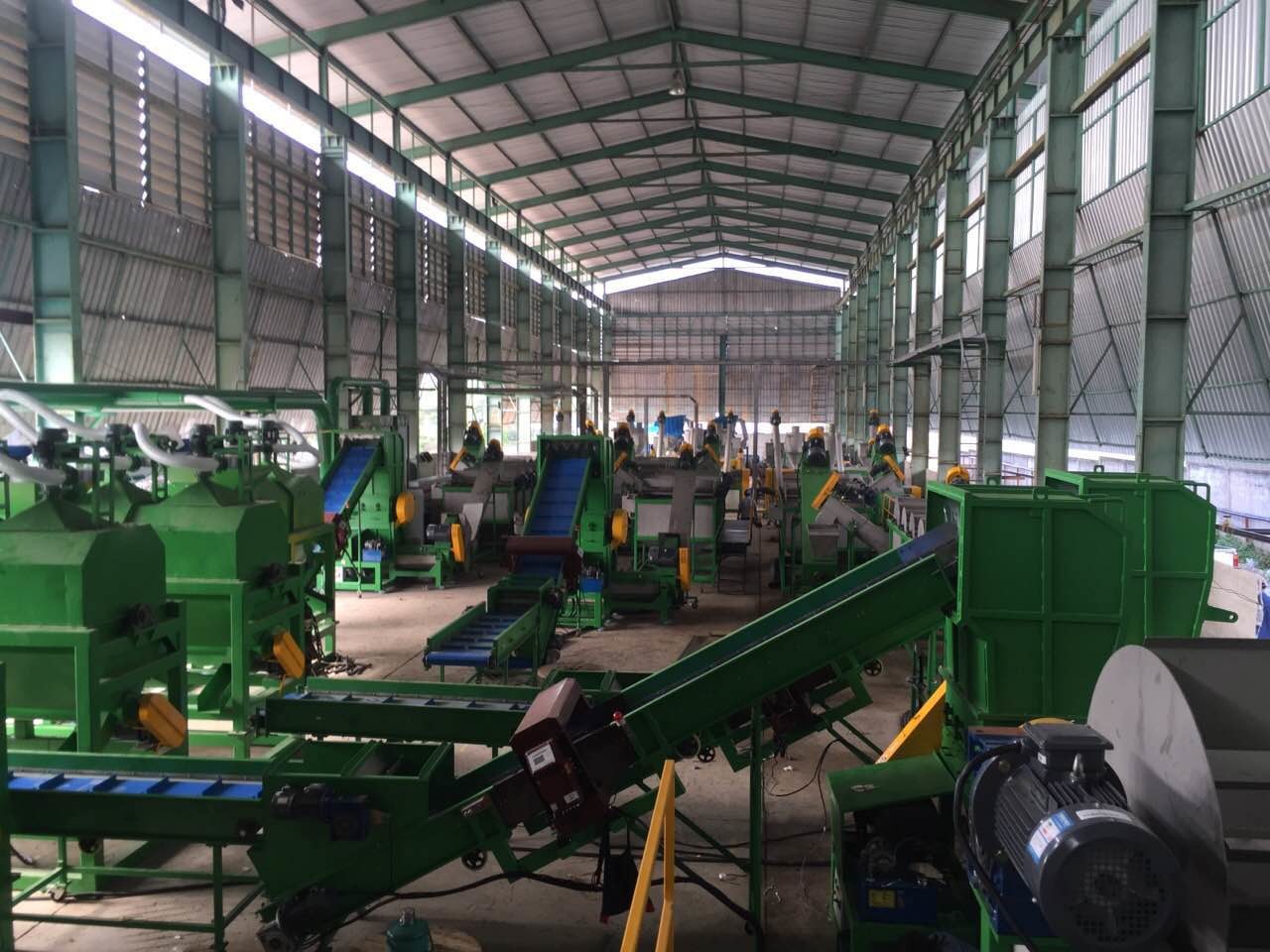

Pictures for reference:

Garbage film crushing washing and recycling machine 0Garbage film crushing washing and recycling machine 1Garbage film crushing washing and recycling machine 2Garbage film crushing washing and recycling machine 3Garbage film crushing washing and recycling machine 4
