Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins

1set
MOQ
USD 10,000-USD30,000
Price
Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins
Features Gallery Product Description Request A Quote
Features
Specifications
Applied For: PET Chips/ PET Recycled Flake
Processing: Feeding--Drying And Crystallization---Discharging
Drying Time: 20mins (can Be Adjustable By Moisture Need)
Power Consumpron: Only 45% Of Conventional Dehumidifier
Heater: Infrared Lamps
Power Source: 380V 50hz 3PHASE Or Customized
Control System: Siemens PLC
Delivery Time: 30 Working Days
Certificate: CE,IS09001, SGS
Motor Brand: Siemens Bade
Viscosity: Without Increasing Or Reducing
High Light:

Spunbond Nonwoven Fabric Machine

,

PET Nonwoven Fabric Machine

,

Polypropylene Nonwoven Fabric Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,SGS,ISO9001
Model Number: LDHW-100
Payment & Shipping Terms
Packaging Details: Factory standard package or customized package
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union
Product Description

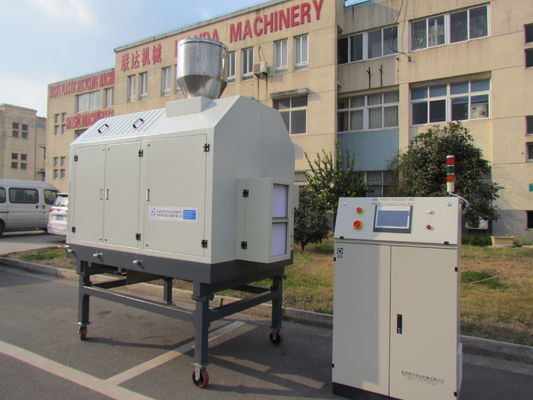

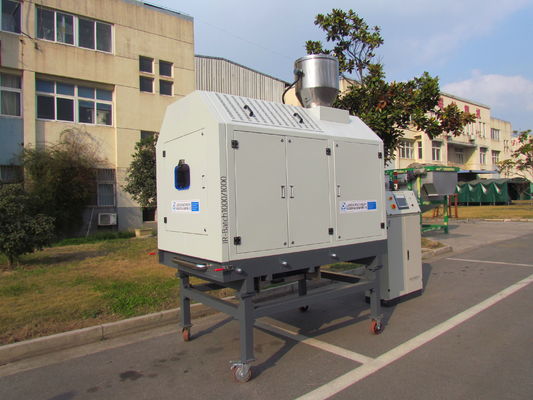

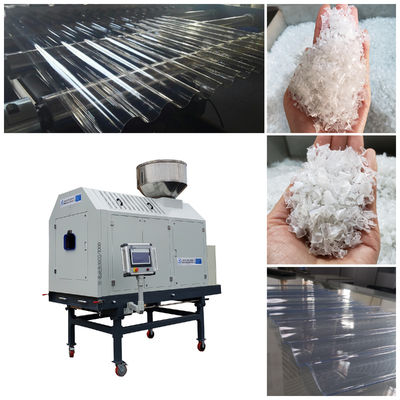

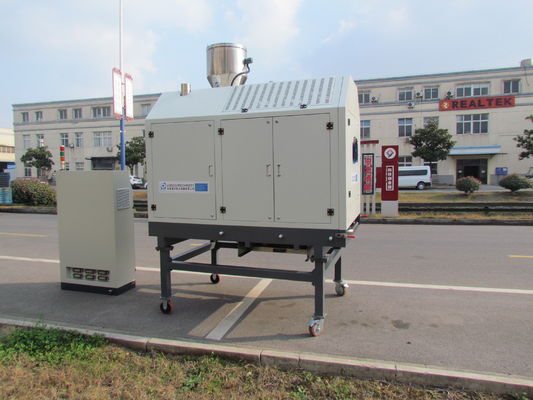

Infrared Rotary Dryer For PET Plastic Wave Corrugated Roof Tile Extrusion Machine



----- To Dry and Crystallized PET Chips/ Flake before fed to Extrusion Production Line



>> Crystallize and Drying PET Flakes at one step

>> Drying time 20mins

>> Final moisture can be 50-70ppm

>> Save 45-60% energy cost :

FLAKE 0.15 KW / KG,HR (Crystallization & drying)

Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins 0

Advantages for your process

Low energy consumption.Significantly lower energy consumption compared to conventional processes, through the direct introduction of infrared energy to the product.

Minutes instead of hours.The product remains for only a few minutes in the drying process and is then available for further production steps.

Instantly.The production run can start immediately upon startup. A warm-up phase of the machine is not required.

High efficiency.The energy is immediately brought into the core of the product.

Gently.The material is heated gently from the inside to the outside and not loaded from the outside for hours with heat, and thereby possibly damaged.

Easy cleaning.Good access to all components allows for easy and fast cleaning. Rapid product change-over.

In one step.Crystallization and drying in one step.

Increased throughput.Increase of plant throughput by means of reduced load on extruder.

Evenly.Ensures a constant discharge











How Infrared Crystal Dryer Dry?



Features of infrared dryer (IRD)



>>The infrared crystal dryer is the latest drying technology developed at present, and the infrared crystal dryer only needs 8-20 minutes, crystallization and drying are completed at one time, saving time, electricity, good drying effect, convenient maintenance and low cost, which is the highest efficiency at present , The best choice for low energy consumption drying method.



>>There are three P.I.D temperature control zones, and the crystal drying temperature can be set according to the characteristics of the raw materials.





Infrared principle

Infrared principle



The frequency of infrared is about 1012 C/S ~ 5x1014 C/S, which is part of electromagnetic wave. Near infrared wavelength is 0.75~2.5μ and travels straight at the speed of light, and it goes around the earth seven and a half times per second (about 300,000 Km/s). It can be seen from the light source It is directly transmitted to the material to be heated, causing physical phenomena of absorption, reflection, and transmission.





In addition, the infrared rays that penetrate and reflect from the material do not affect the organization of the material, but the absorbed tissue will be converted into heat energy due to molecular excitation, which causes the temperature of the material to rise. Taking PET as an example, crystallization and crystallization can be achieved in a very short time. The drying temperature can not only save energy, maintain the physical properties of liposomes and increase the IV value.



(The argument to increase the IV value (intrinsic viscosity) needs to be further verified by experiments.)





Infrared Crystal Dryer



Convective heating



1

Infrared drying(IR ) :Heat is adsorbed inside the pellets.Plastic and water are excellent IR adsorbents.

It takes about 15 to 20 seconds to heat a pellet entirely



Convecting Drying :Heat conducts into the pellet,plastic is a poor heat conductor.

It takes about 30-50 minutes to heat a pellet enturely





Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins 1

Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins 2


Water vapour moves to the coolest area,IR heating starts inside the pellets and immediately heat is conducted towards the cool ambient air.In this

phase the moisture is heated and vapourised immediately and is arracted out of the pellet into the cooler ambient air



Vapourised water moves to the coolest area,convective heating starts at the surface of the pellet and slowly heat is conducted towards the center.In this phase the moisture is attracted towards the cooler center of the pellets.Drying doesn't even start.What is more the moisture concentration inside the pellet increases







Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins 3





Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins 4


Heating difference principle explanation





The physical force for moisture diffusion is a difference in temperature and a difference in partical pressure

1)IR-provides a high vaporisationrate on moisture in the core

2)The driving force for diffusion is a difference in Temperature between the vaporised moisture and the

ambient air

3)IR used cool ambient air so a permanent difference in partical pressure is always avaliable

T particle > T ambient

P particle > P ambient

when the entire pellet has reached the same temperature as the hot ambient air drying starts:

1)vaporisation rate is low

2)Vaporised water is transported from the core of the pellet to the surface

3)The driving force for this diffusion is a difference is partial pressure of the ambient air

4)To ensure this process is effective desiccant air with a low dew-point is applied generally.





Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins 5

Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins 6



How To Work



Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins 7

         1. Material Feeding        2.Rotary drying system ---Drying & Crystallization     3.Discharging





Material Feeding

The flake or scrap will be fed to Rotary drum by Vacuum feeder or screw feeder



Rotary Drying System

Drying&Crystallization in one step. By rotation of the drum, the material is mixed by various mixing elements,optimized to your material. The material is thereby thermally treated. The thermal treatment is completed after a defined period or after a specified required temperature is reached.



Discharging

The thermal treatment is completed after a defined period or after a specified required temperature is reached. For discharge, the direction of rotation of the drum is reversed. Then the material will be discharged





Machine Video



Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins 8





Contact Information



Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins 9



Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins 10



HOW TO ENSURE THE QUALITY!

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory



Our Service
Infrared dryer for PET Plastic Wave Corrugated Roof Tile Extrusion Machine, final moisture 50ppm, drying time 20mins 11
1.We will provide testing if the customer comes to visit factory to see the machine.
2.We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents which customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty time,we will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole lifetime .
