High quality durable single shaft plastic shredder for waste PE PP ABS PVC lumps
Plastic shredder machine description:
Plastic shredder machine with horizontal single shaft design. Whole shaft is CNC machining with quenching treatment. High quality and long working life. Some parts of shredding room are made of copper which is more wear resistant.
Raw materials:
Advantages of Plastic shredder machine:
| 1 | Material of blade | SKD-11, D2,DC53 optional |
| 2 | Blade design | Knives are concave ground square design, the cutters can be turned after a side is worn out. It with high quality output, save time |
| 3 | Outer bearing | Bearing is installed outside of machines. The main shaft and the machine enclose is sealing by skeleton seal. It avoids the crushed materials come into the bearing effective. And improve the using life of bearing. |
| 4 | Hydraulic pushing system | Hydraulic pushing system to push materials into the shredding shaft and then shred materials. Improve the capacity |
| 5 | Control system | PLC system control |
Plastic shredder machine details
Specification of plastic shredder machine:
| Model | S650 | S800 | S1200 | S1500 |
| Fixed blade | 2pcs | 4pcs | 4pcs | 4pcs |
| Rotary blade | 26pcs | 45pcs | 69pcs | 87pcs |
| Motor power | 30kw | 45kw | 75kw | 55kw *2 |
| Output | 300-400kg/h | 600-700kg/h | 1500kg/h | 2000kg/h |
Why choose us
1. We are professional manufacturer of plastic recycling and have professional technical team, focus on provide high quality equipment and good service for customer.
2. Our plant with area of 7600 square meters, 62 employees. All skill workers have professional skills certificates.
3. We have professional production QC team to ensure the machine manufacturing quality.
4. All equipment are running test before shipment.
5. During customer visit, we can take customer to our customer ‘s factory to looking machine working.
Our service
1.We will provide testing if the customer comes to visit factory to see the machine.
2.We will provide detail machine technical specification, electric diagram,installation,operation manual and all the documents which customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed.Within warranty time,we we will provide spare parts free,and over warranty time,we will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole lifetime.
FAQ
1. Do you have engineer service to the customer factory?
Yes, engineer service is allowed.
2. How can I get the after service?
Arrange the experienced engineer to install and test the machine line in buyer’s factory
Supply systematic operation training for buyer’s worker
Supply the spare parts at cost price and life maintenance for the machine after the expiration of the warranty period
3. How long is the warranty period?
One year since date on bill of loading.
4. Do you have inspection procedure for the machine?
All equipment is 100% self-inspection before delivery.
5. Do you have practical factories for customer to visit?
Yes, we not only have practical factories in China, but also in Spain and Japan. Welcome to visit us!

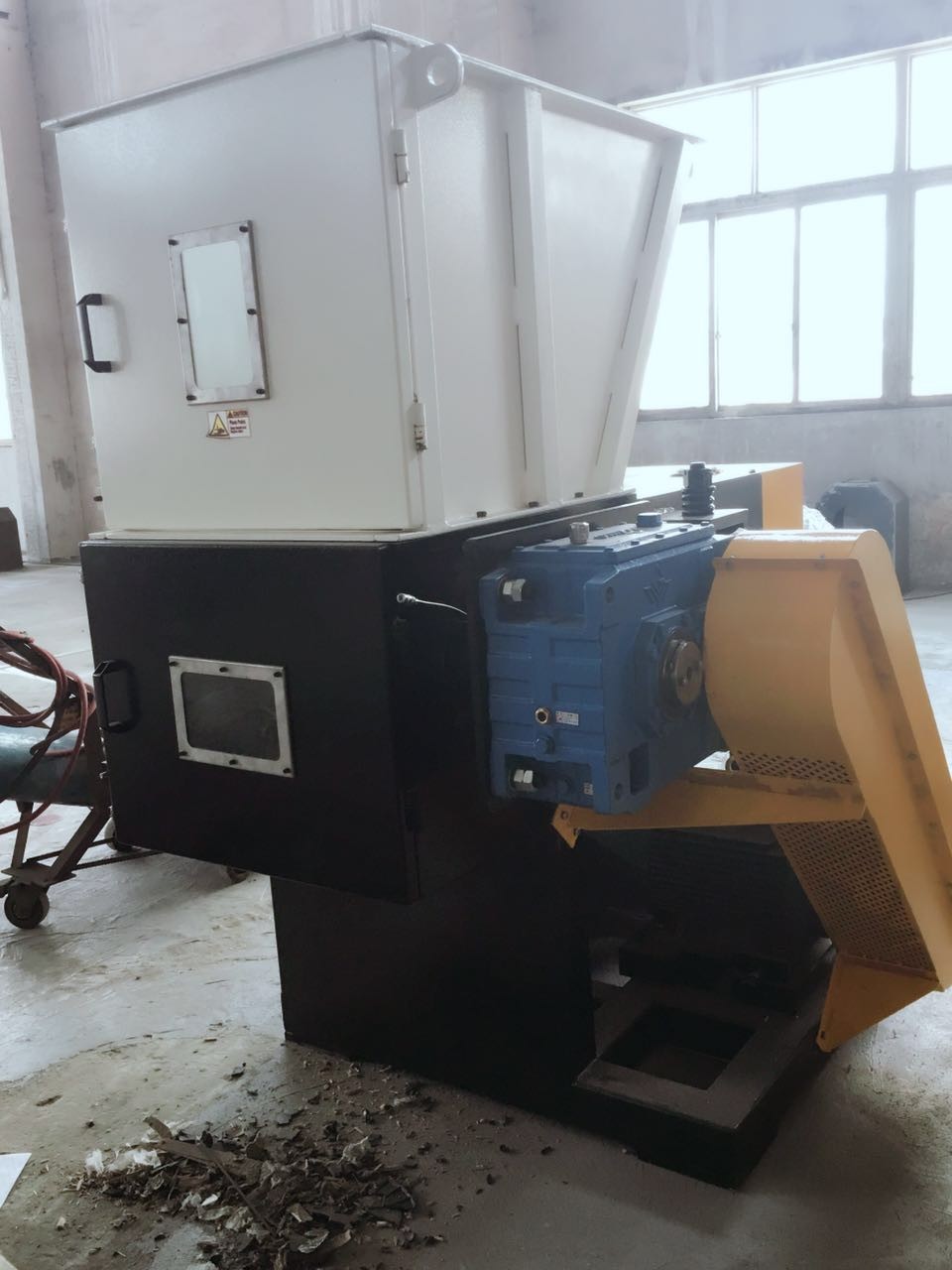

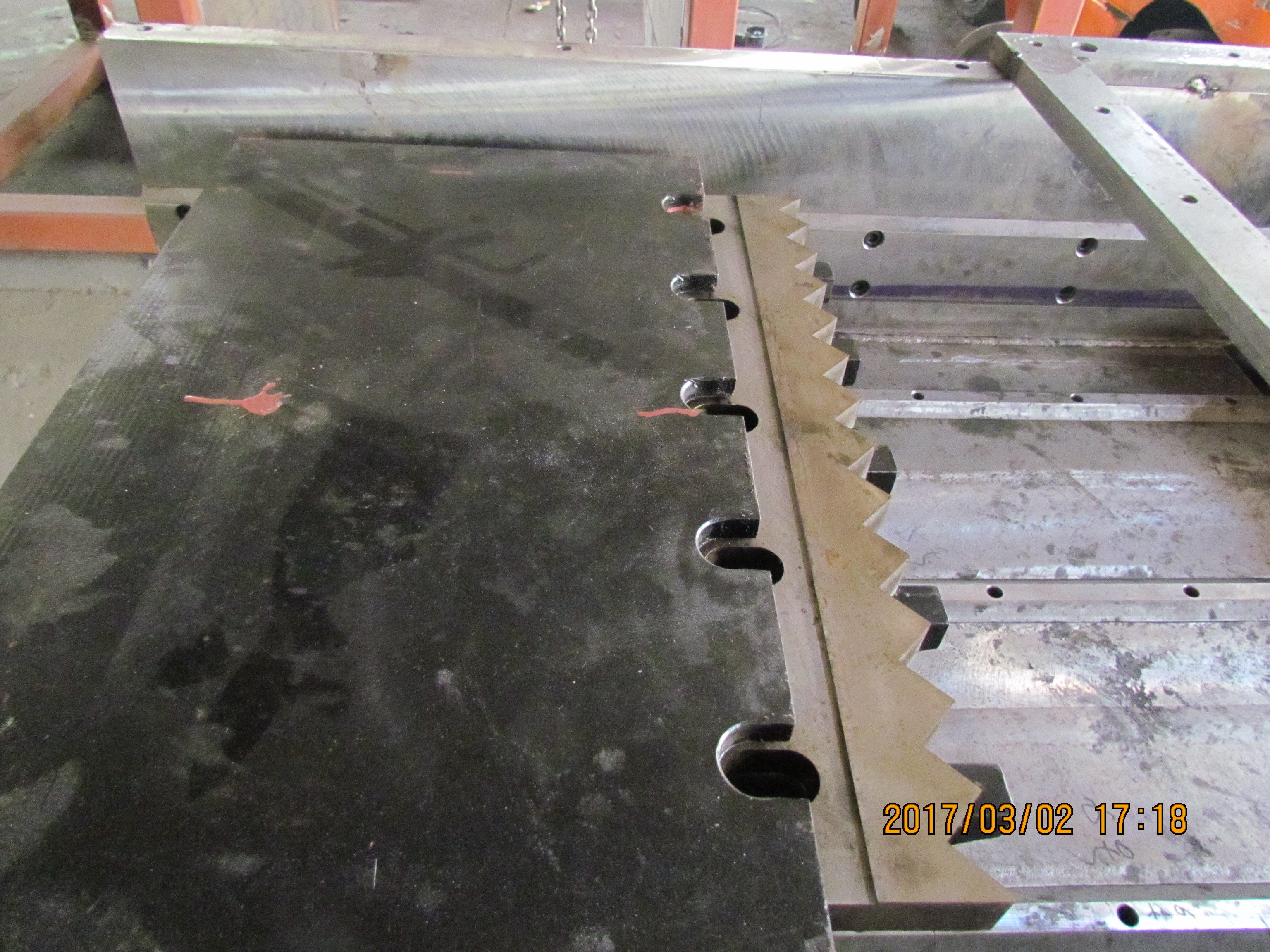

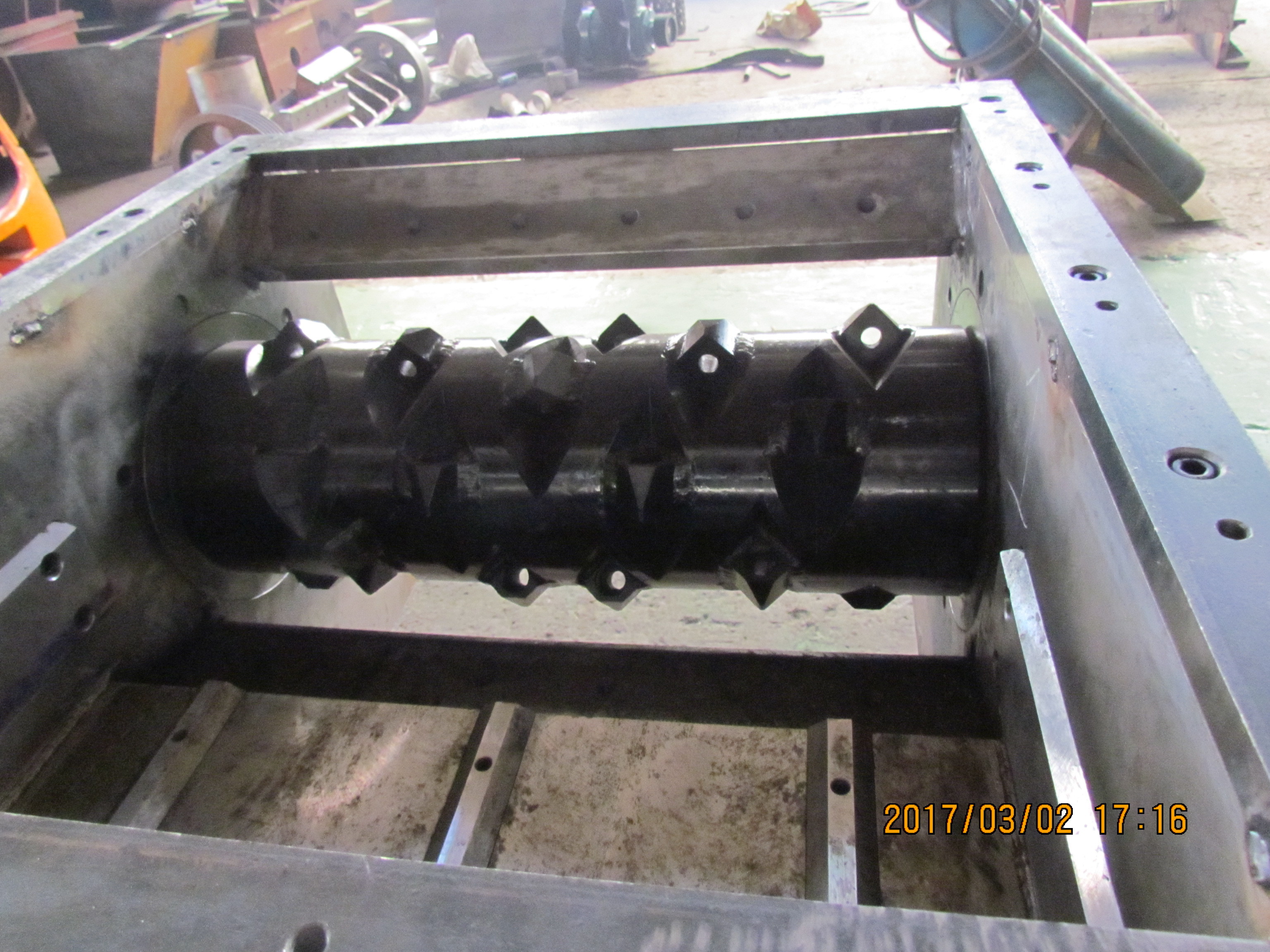

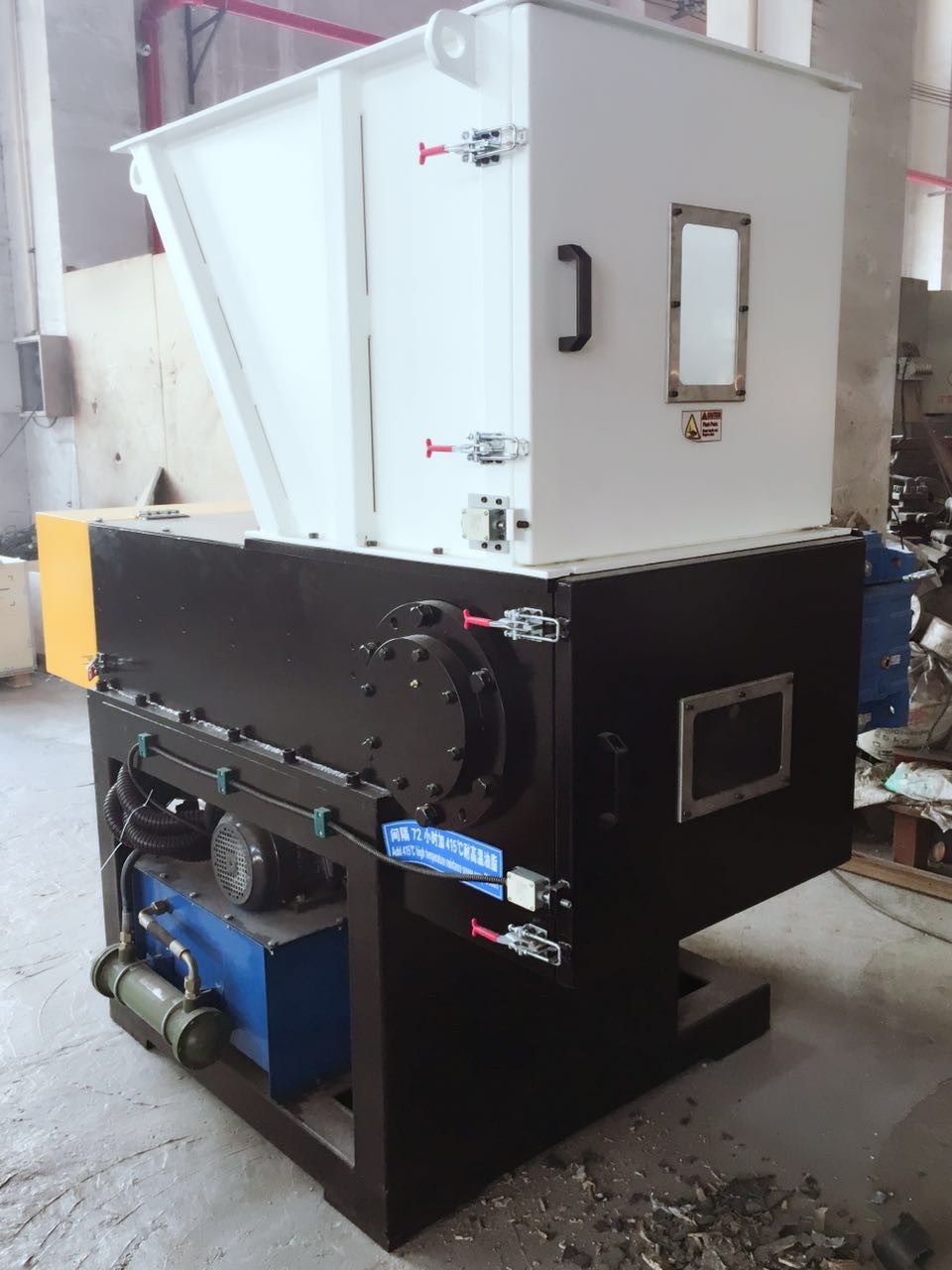

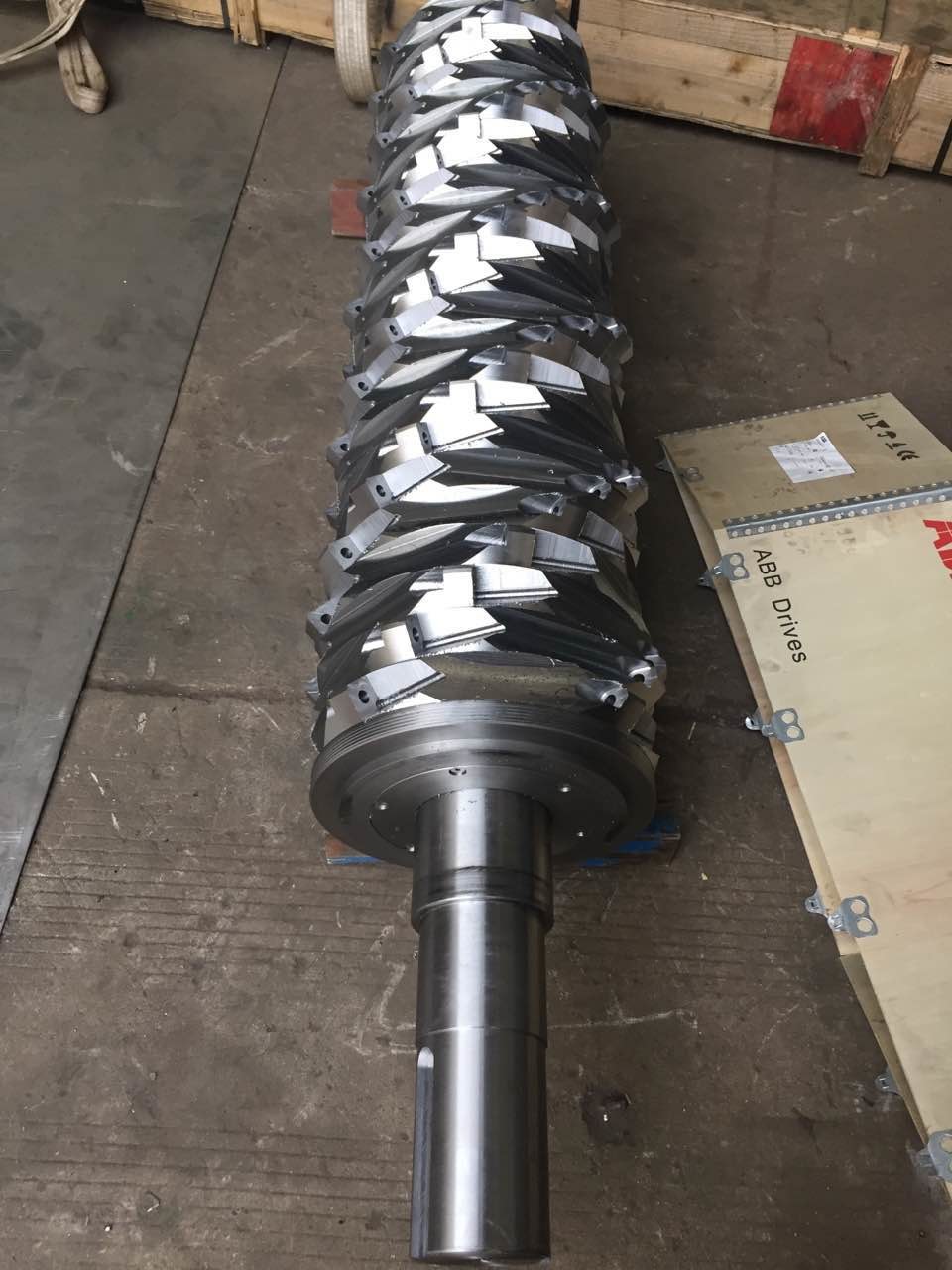

Pictures for reference:
