Energy- Efficient waste shredder for Alternative fuel production using for waste wood, Pulper ropes etc.
LIANDA Design

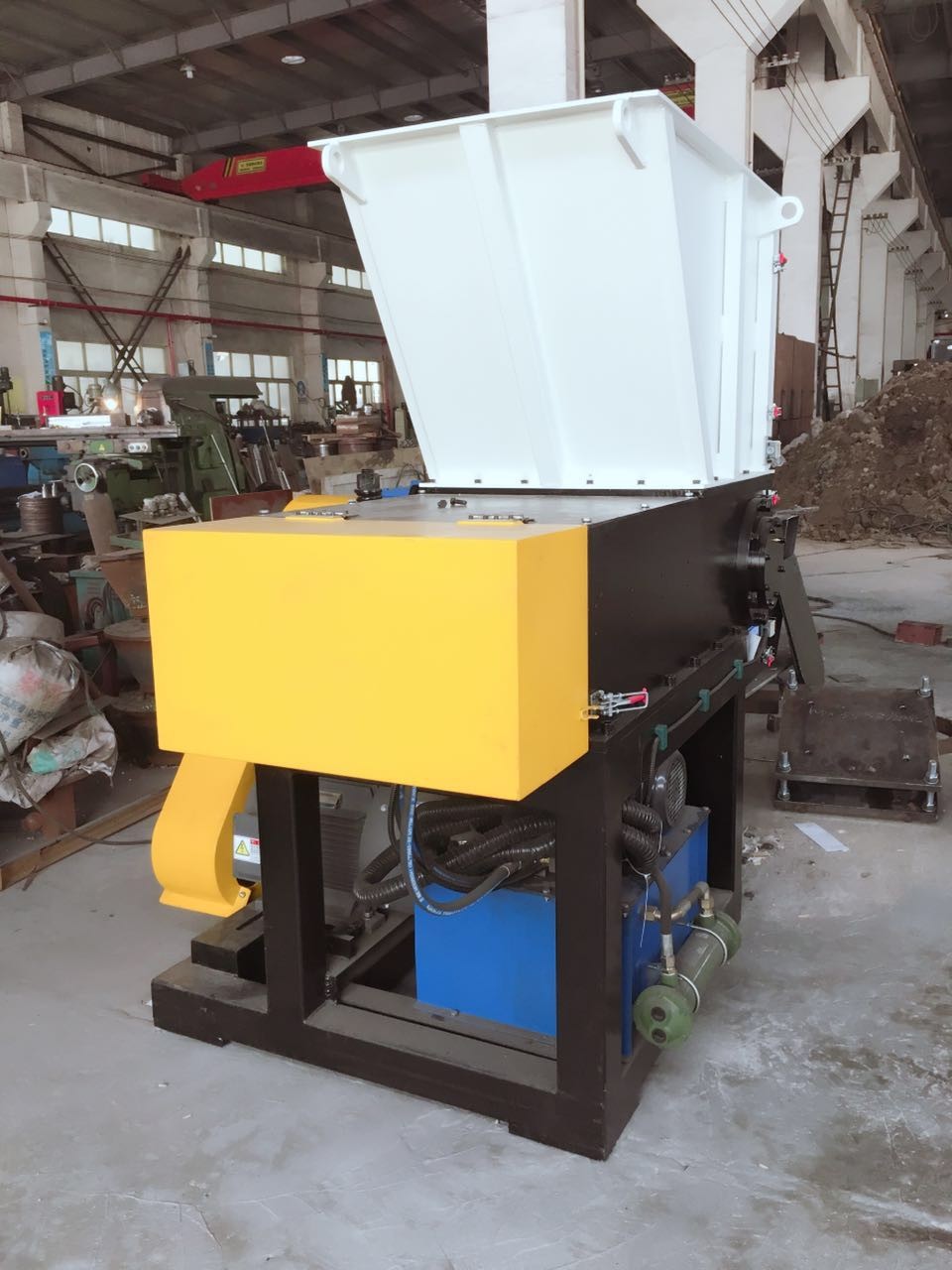

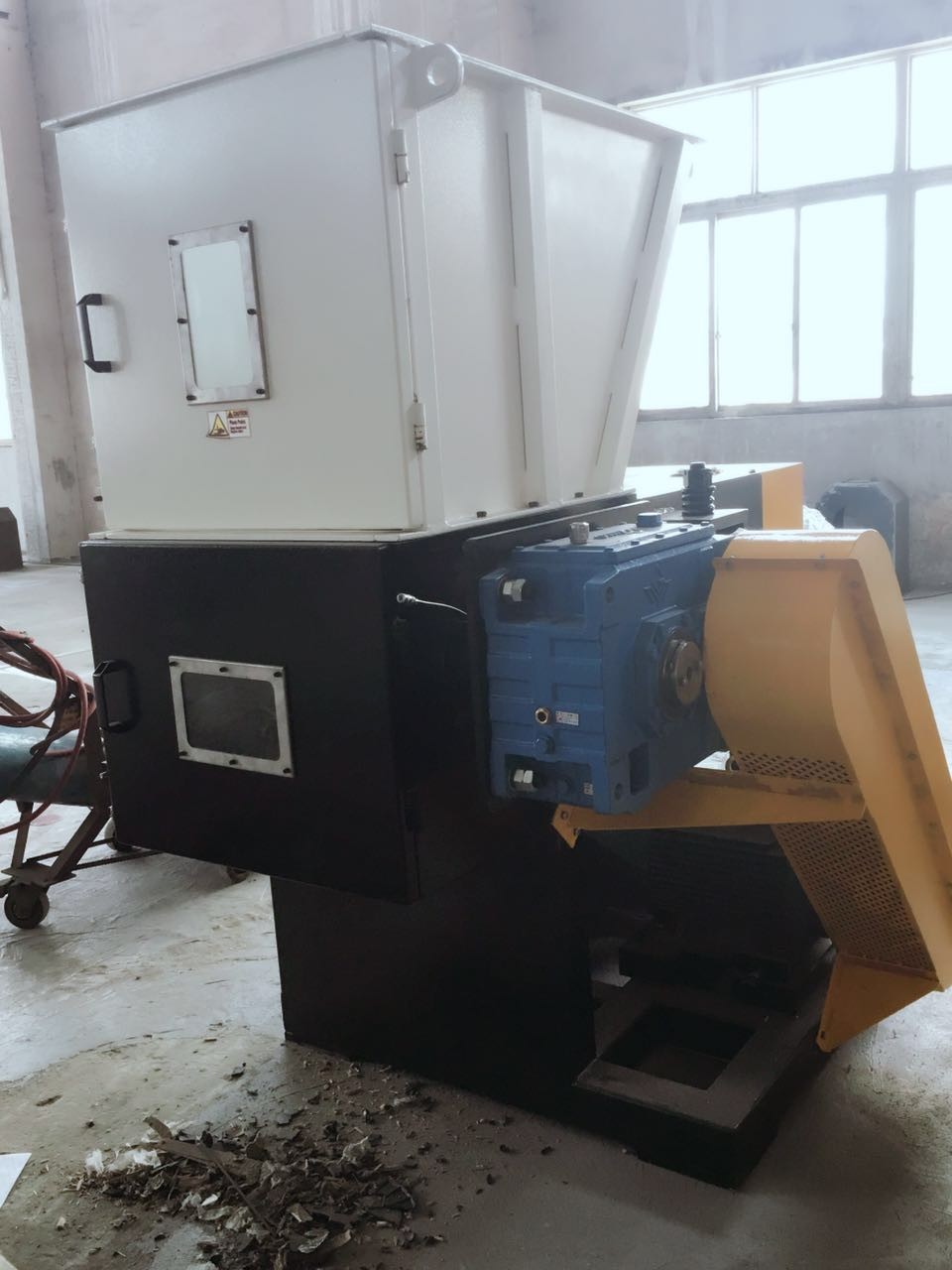

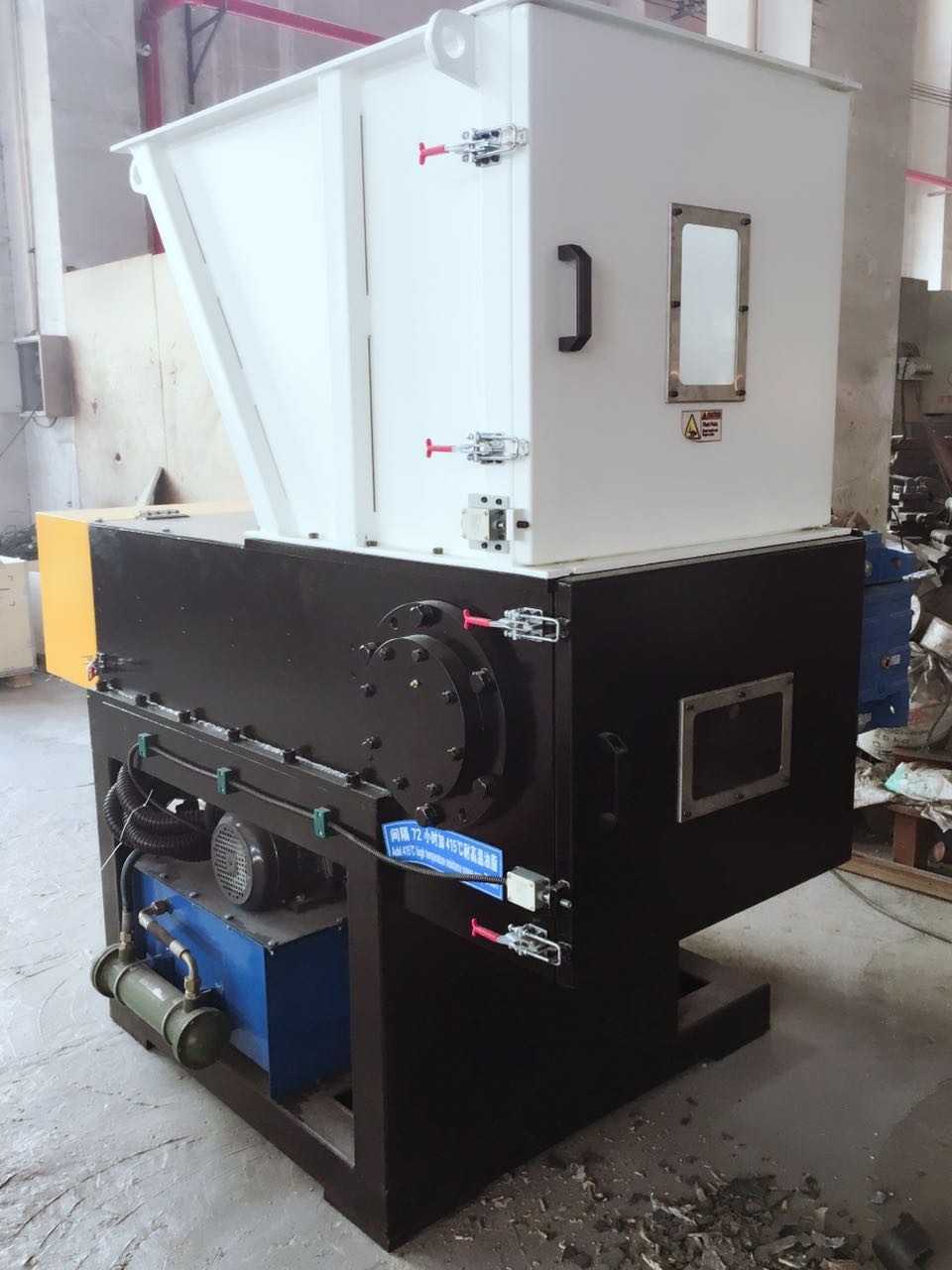

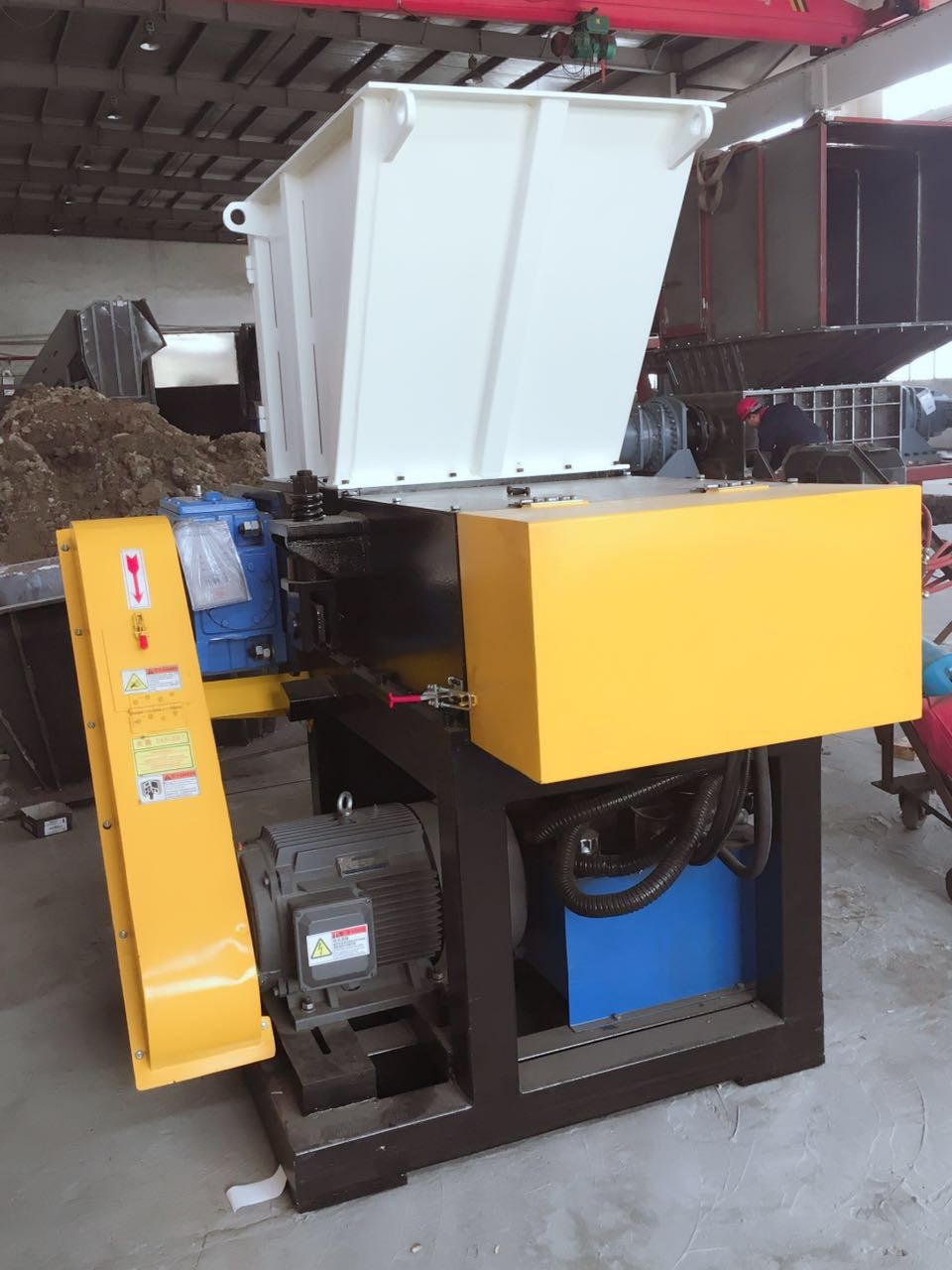

The shredder has passed the EU CE certification. It is a special tray shredder. It adopts a standardized modular design and has good interchangeability of parts. The auxiliary knife is made of die forgings. The main knife is made of special alloy steel. It is made by special craftsmanship and has good wear resistance and high strength. The driving part adopts intermediate gear transmission to form a differential speed relationship. The screen is easy to disassemble. Beautiful appearance, precise and compact structure. It is mainly suitable for crushing all kinds of wooden pallets, planks, plastic pallets, etc., with large output, low speed, large torque, and low noise.
The single-shaft shredder designed and manufactured by LIANDA has a larger knife roller, torque, power and corresponding crushing structure. It can be used to
| Model | 600 | 800 | 1200 | 1600 |
|
Motor power (KW) |
22 | 55 | 75 | 132 |
| Rotary blades Qty | 26 | 45 | 64 | 120 |
| Stable blades Qty | 2 | 4 | 4 | 4 |
| Rotating length | 600 | 800 | 1200 | 1600 |
| Blade material | SKD-11, D2 or Customized | |||
2.Machine Details
|
1
|
① Rotary blades ② Blades roller
③ Fixed blades ④ Sieve Screen
The cutting part is composed of a blade roller, rotary blades, fixed blades and sievescreen. |
|
|
The minimum installation gap between the rotary blades and the fixed blades is 0.1mm
|
||
|
Integral processing knife roller to ensure the cutting gap between the Rotary blades and the fixed blades
|
||
|
The blade can be installed detachably for easy maintenance
|
||
| The motor drives the blade roller to rotate at a high speed through the reducer, so that the rotary blades mounted on the blade roller and the fixed blade form a cut. After one cut, if the size of the material is smaller than the diameter of the sieve screen, it will be discharged from the mesh, otherwise two or more cuttings on the raw material are carried out in the cutting room, and the material can be discharged until the discharge size is reached. |
|
|
| The screen can be disassembled and replaced to change the particle size of the material | ||
| 2 |
Forced hydraulic feeding by pusher to improve production efficiency
|
|
| Adopt high-strength screws to fasten, solid structure and durable. | ||
| 3 |
Sealed bearing protection design, which can be waterproof and dustproof, and enlonger the service life of the bearing
|
|
| 4 |
External Bearing housing Effectively avoid dust entering
|
|
| 5 |
Hydraulic system Adjust pressure and flow according to different materials |
|
| 6 |
Siemens PLC monitors the motor current in real time, and the knife axis automatically reverses when the load is overloaded to protect the motor;
|
|
| 7 | Equipped with a cutter shaft cooling system for materials with low melting points to prevent the materials from being burnt due to excessive temperature. | |
| 8 | The equipment has passed CE certification and complies with EU safety standards | |
