The single shaft crusher is a medium-to-low-speed, large-torque crushing equipment with a wide range of applications in solid waste treatment equipment. The crushed materials can be sold as raw materials or processed by other equipment to produce other products.
The single-shaft shredder machine provided by LIANDA is used for processing: suitable for crushing tough or medium-hard materials that are packaged into bundles, such as film, plastic bottles, etc., large-size or high-hardness materials (thick-walled tubes, pallets, turnover Box, etc.)
The single-shaft shredder is equipped with a swing arm pushing design and a PLC automatic control system to achieve higher output. The large-capacity hopper and the crushing bin are combined with the horizontal horizontal pushing system to maximize its ability to shred high-hardness and large-size materials
|
Wood Wooden pallets, round logs, wood scraps, etc.
|
Paper Document paper, wrapping paper, cardboard, etc.
|
|
Aluminum Cans, aluminum chips, etc.
|
Cable Copper core, aluminum core cable and composite cable
|
|
Plastic General purpose plastics such as injection molding, extrusion, blown film, etc., head block materials, etc.
|
Chemical fiber Carpets, labor insurance clothing,stable fiber etc.
|
|
Sponge Industrial waste, etc.
|
Composite material Fiberglass products, automobile windshield, sealing tape, etc.
|
| Model | 600 | 800 | 1200 | 1600 |
|
Motor power (KW) |
22 | 55 | 75 | 132 |
| Rotary blades Qty | 26 | 45 | 64 | 120 |
| Stable blades Qty | 2 | 4 | 4 | 4 |
| Rotating length | 600 | 800 | 1200 | 1600 |
| Blade material | SKD-11, D2 or Customized | |||
Machine Details
|
1
|
① Rotary blades ② Blades roller
③ Fixed blades ④ Sieve Screen
The cutting part is composed of a blade roller, rotary blades, fixed blades and sievescreen. |
|
|
The minimum installation gap between the rotary blades and the fixed blades is 0.1mm
|
||
|
Integral processing knife roller to ensure the cutting gap between the Rotary blades and the fixed blades
|
||
|
The rotor knife is made of special heat-treated DC53 die steel. They can be rotated and used on four sides before replacing
|
||

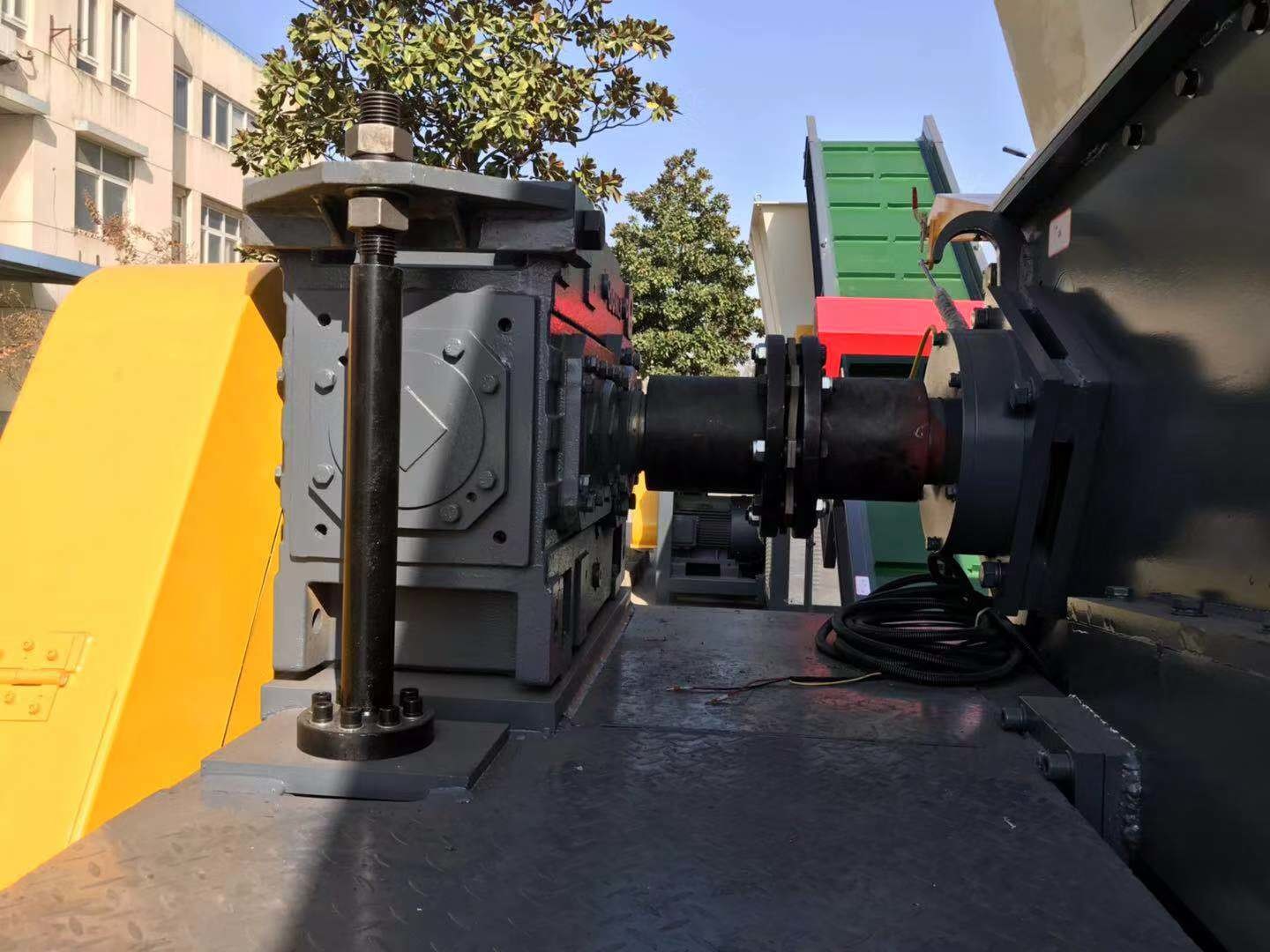

| The motor drives the blade roller to rotate at a high speed through the reducer, so that the rotary blades mounted on the blade roller and the fixed blade form a cut. After one cut, if the size of the material is smaller than the diameter of the sieve screen, it will be discharged from the mesh, otherwise two or more cuttings on the raw material will be carried out in the cutting room, and the material can be discharged until the discharge size is reached. |
|
|
|
The screen can be disassembled and replaced to change the particle size of the material
|
||
| 2 |
Forced feeding by pusher to improve production efficiency
|
|
| Adopt high-strength screws to fasten, solid structure and durable. | ||
| 3 | Sealed bearing protection design, which can be waterproof and dustproof, and enlonger the service life of the bearing |
|
| 4 |
Siemens PLC monitors the motor current in real time, and the knife axis automatically reverses when the load is overloaded to protect the motor;
|
|
| 5 | Equipped with a cutter shaft cooling system for materials with low melting points to prevent the materials from being burnt due to excessive temperature. | |
| 6 | The equipment has passed CE certification and complies with EU safety standards | |
