Waste Plastic Recycling Granulator Machine For Film

Waste Plastic Recycling Granulator Machine For Film
Features Gallery Product Description Request A Quote
Voltage: 380V 50HZ,Customized
Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support
Application: Manufacturing Plant, Machinery Repair Shops, Food & Beverage
Automatic Grade: Automatic
Screw Design: Single-screw
Plastic Processed: Compacting ---pelletizer---cutting ---drying
Warranty: 1 Year
Name: Plastic Extruding Machine,PP PE Granulator Two Stage Compactor,pp Pe Pelletizing Machine
Raw Material: Waste Plastic Film,soft Plastic, Waste Plastic Bag
Output: 250-1000kg/h
High Light:

Plastic Recycling Granulator Machine For Film


Waste Plastic Recycling Granulator Machine


Film plastic recycling granulator

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,SGS,ISO9001
Model Number: LDFR-500
Payment & Shipping Terms
Packaging Details: Factory standard package or customized package
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union
Product Description

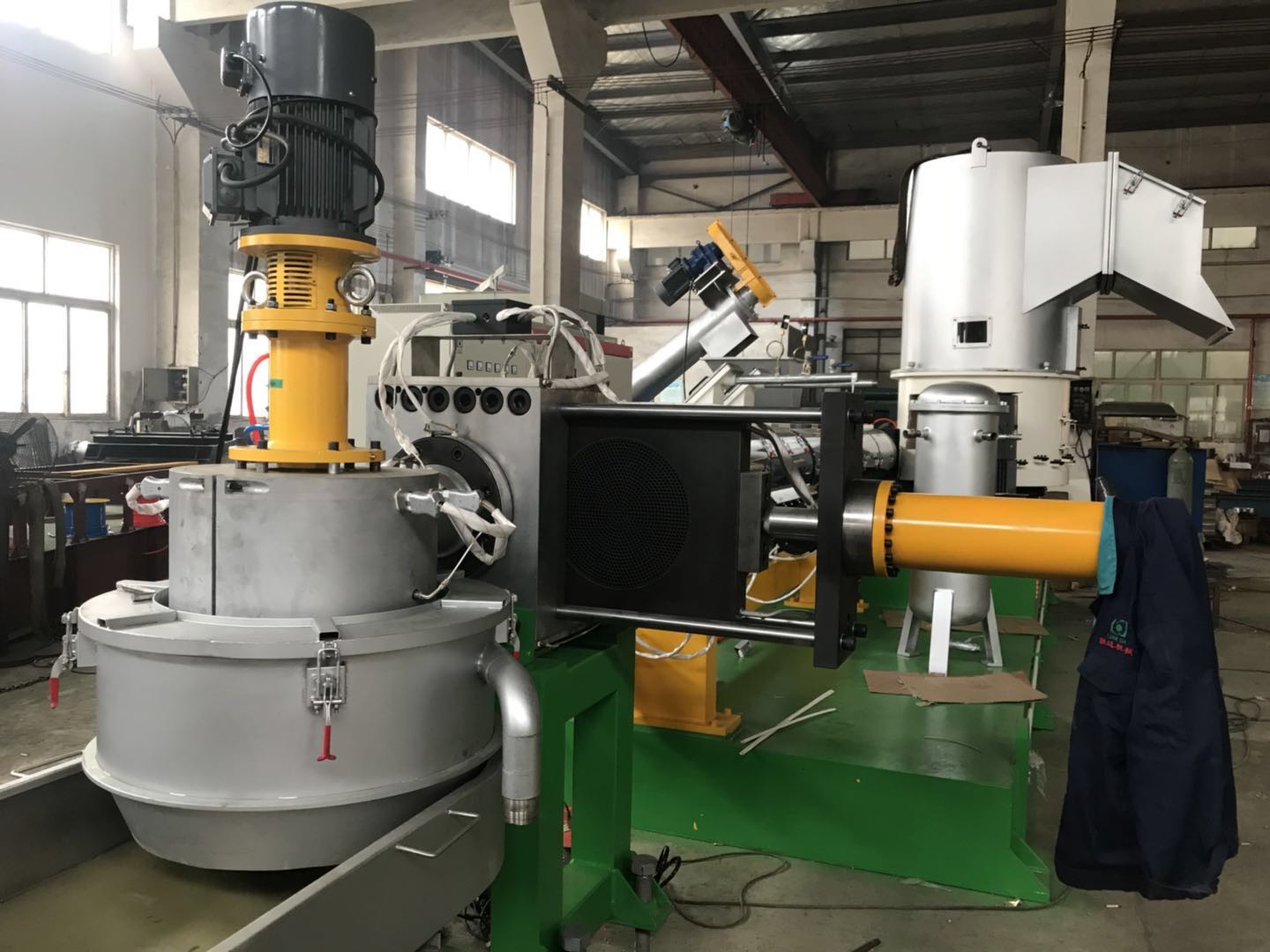

Plastic Waste Recycling Granulator Machine For Film And Bags


Waste Plastic Recycling Granulator Machine For Film 0

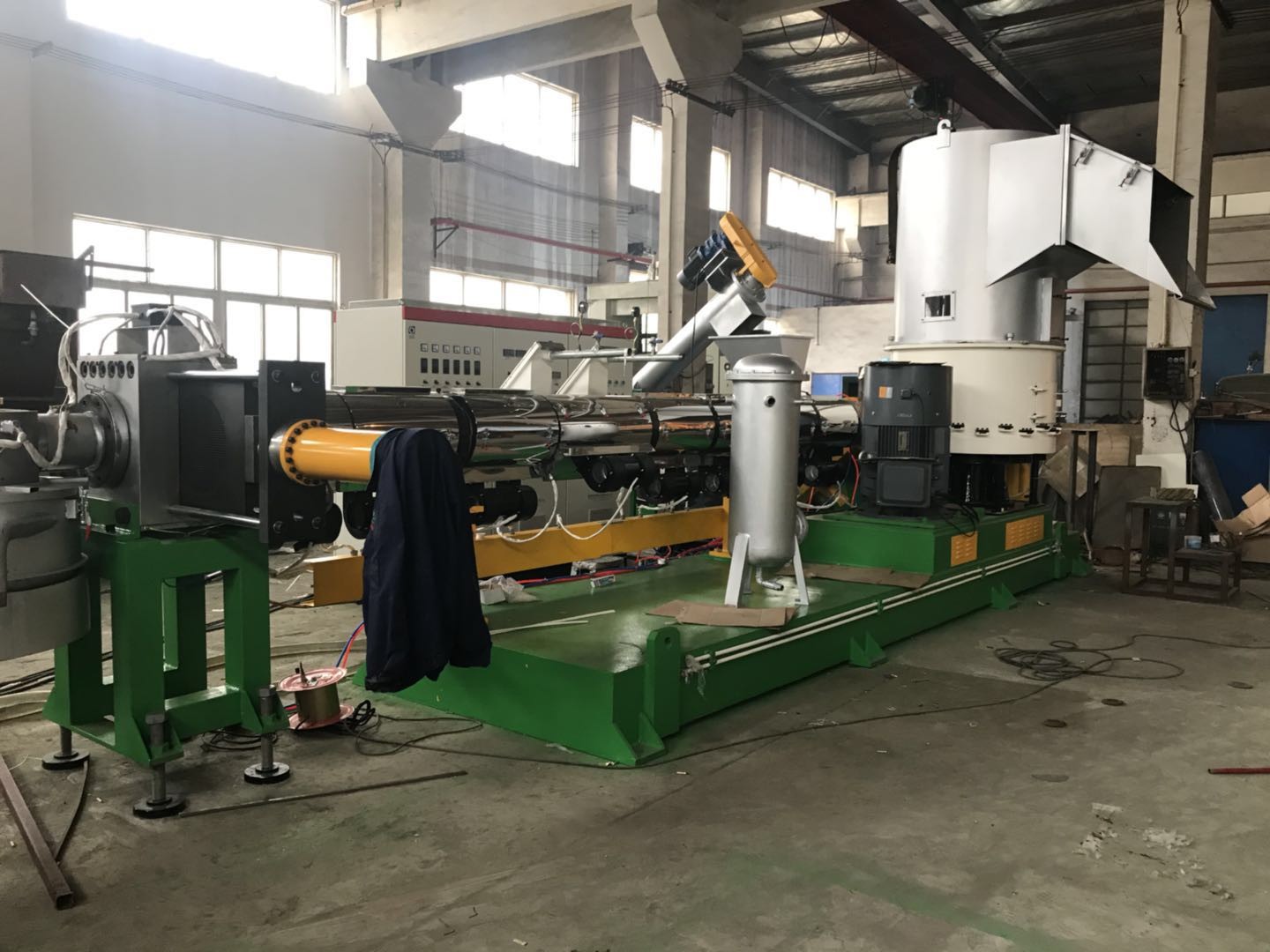

Film compacting pelletizing system, it is a three in one recycling machine designed for low density plastic articles. It will provide the excellent re-pelletizing and recycling solution for film, raffia, filament, woven bag and nonwoven fabric and other consumed / post soft or rigid plastic. Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, PPS, EPS, ABS, PA, PLA, PET waste plastic materials recycling field.



Waste Plastic Recycling Granulator Machine For Film 1


  • The production line is made up of
No Machine Name Quatity (set)
1 Belt conveyor 1
2 Film compactor/Agglomerator 1

Single Screw Extruder

(Single or Double step )

4 Vacuum degassing system 1
5 Hydraulic screen changer filteration system 1
6 Water-ring pelletizing system 1
7 Dewatering machine 1
8 Vibrating sieve 1
9 Air conveying system 1
10 Control system 1
  • Machine model

Screw diameter

First step (mm)

Screw diameter

Second step (mm)

Main motor


Second motor




85/100 85 100 45/55 22 200
100/120 100 120 75/90 37 350
130/140 130 140 132 45 600
160/180 160 180 185 55 850
180/200 180 200 220-335 75 1200



3.Working processing

1.The plastic material feed through belt conveyor get into the compactor.

Metal detector can be installed on conveyor as optional, to protect the compactor and extruder machine.

Waste Plastic Recycling Granulator Machine For Film 2

2.Film compactor/Agglomerator will cut film and compact the film by friction

The rotatory blades of compactor will cut up incoming scraps.

Frictional heating which caused by high speed rotatory blades and stationary blades will heat and let scraps shrinking just below their agglomerating point.
● Optimal designed guide structure compacts the material and directs it into extruder screw.

Waste Plastic Recycling Granulator Machine For Film 3


3.The compacted film will be fed to Extruder by special design drop guide


Waste Plastic Recycling Granulator Machine For Film 4

4.The screw extruder will have the processing of Plastified while the material fed to the extruder. And the vacuum degassing system will remove the water moisture of the material and clearance of low molecular to improve the quality of finished pellets


A specialized single screw extruder applied to gently melt the pre-compacted material.

●The plastic scraps will be well melted, plasticized in the extruder.
With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.


Waste Plastic Recycling Granulator Machine For Film 5


A screen changer can be installed before die head to remove some metal, wood, dust, paper such impurities to get high quality output plastic melt.

  • Hydraulic cyclinder Double working position non-stop Screen Changer. The impurities will be filtered by filteration screen on the Screen changer

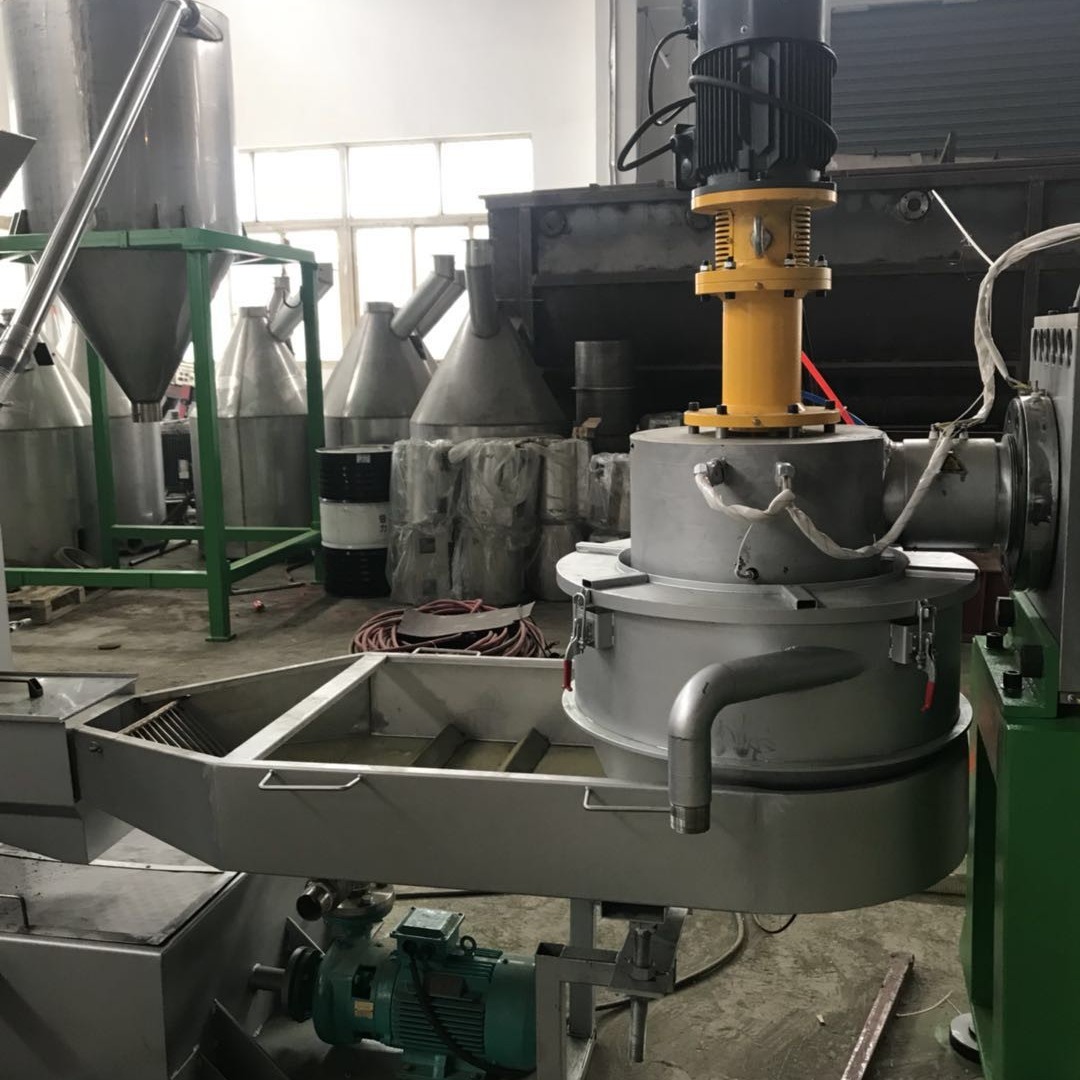

  • Watering cutting model

Waste Plastic Recycling Granulator Machine For Film 6


  • Pull strips pelletizing model

Waste Plastic Recycling Granulator Machine For Film 7

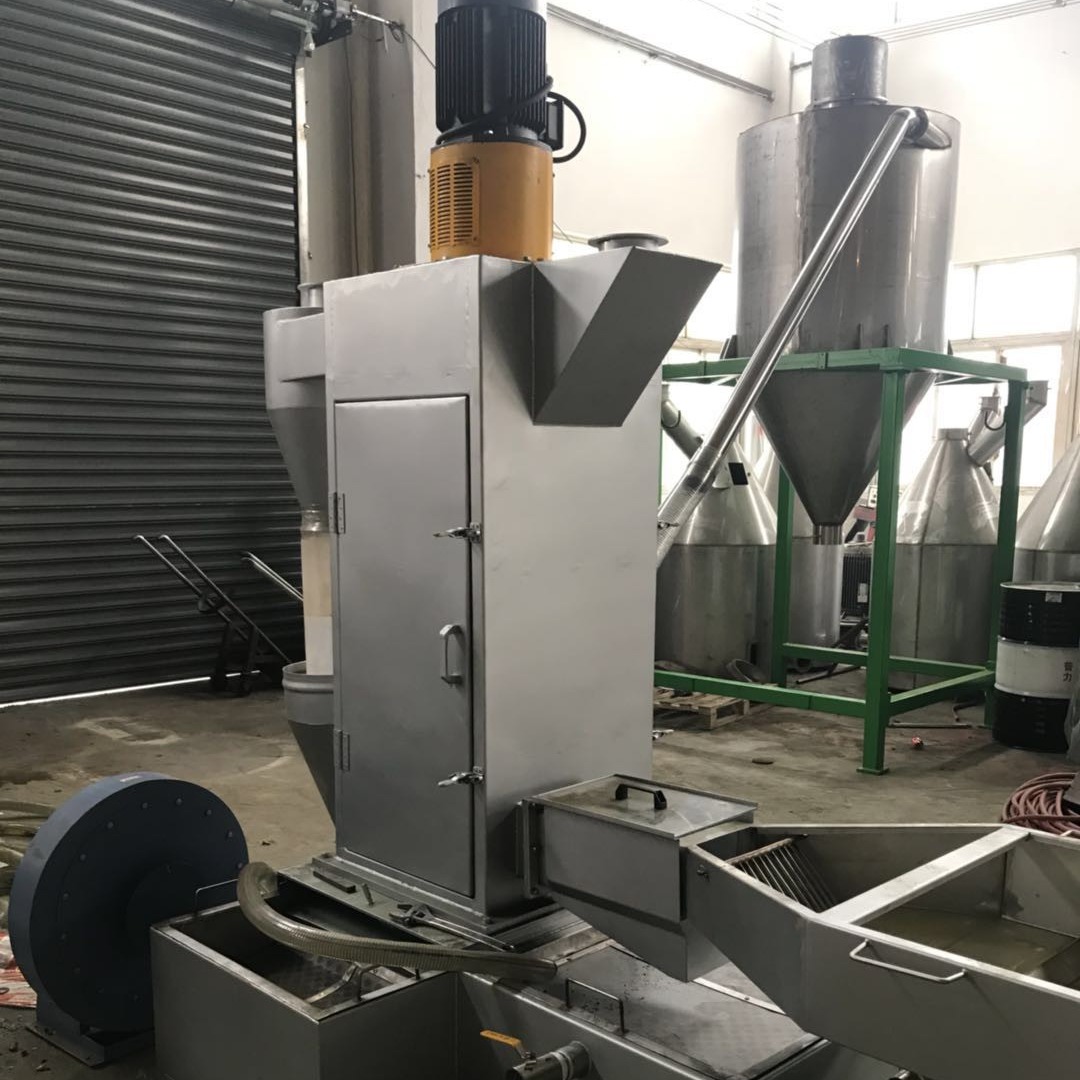

  • Dewatering machine + Air conveying system+ Storage

Waste Plastic Recycling Granulator Machine For Film 8


Controlling System


  • Feeding: Belt conveyor runs or not depends on the electric Currency of Film Compactor/Agglomerator. The Belt conveyor will stop conveying while the electric current of Film compactor/ agglomerator is over the set value.
  • Temperatur of Film Compactor/Agglomerator: The temperature generated by the friction of the material must ensure that the material is heated, curled, contracted, and enters the extruder smoothly, and has a certain bearing on the rotation speed of the compactor motor
  • Screw extruder speed can be adjustable ( According to the cituation of fed material)
  • Pelletizing speed can be adjustable (According to the material output and size )


Advantage of he machine line


1 Automatic design Siemens PLC control system

The Film compaction/ agglomerator is designed with observation window to facilitate customers to open,clean and change the blades

Waste Plastic Recycling Granulator Machine For Film 9


The speed of the cutting motor of the compaction cylinder is adjustable to realize the closed-loop control of the speed of the extruder



The specially designed valve structure on the entrance of screw extruder, which effectively controls the moisture of the material entering the extruder, ensuring the stability of the discharge and the quality of the raw material


Waste Plastic Recycling Granulator Machine For Film 10

5 Realize the continuous production of film transportation, crushing, compaction, extrusion, pelletizing, dehydration, collection and other processes, which saves electricity, improves product quality, and reduces labor intensity of workers;
6 The simultaneous recycling of leftovers and production waste saves customers storage space;



LIANDA pelletizing system with superior quality which have high productivity for PP/PE/PS/ABS/BOPP/CPP plastic could get high property output pellets.
The pelletizing system is available for 24 hours working non-stop operation.
The pelletizing system have very low consumption values for electricity, water and labor.

Intelligent automatic control of pelletizing system reduces the labor operation, makes the whole system easier and more reliable to control.
Consistently quick and careful service in pre-sales and after-sales process. Overseas installation, commissioning and training are available.
