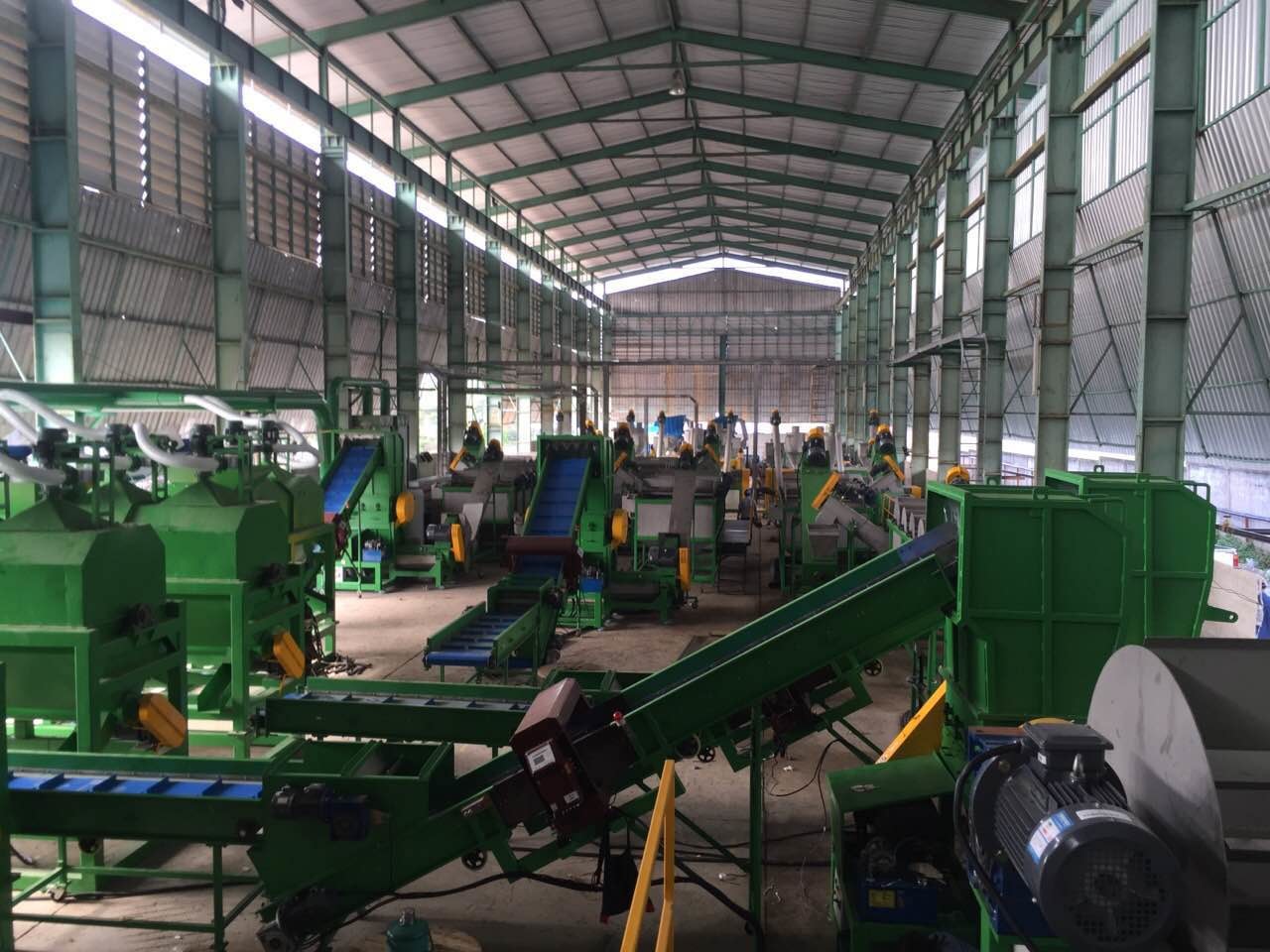

PE Film Recycling Machine For Washing Recycling Line |
|
|
|
|
| Belt conveyor | Load the plastic raw material to the Crusher |
| Crusher Machine | Cut plastic into flakes with water for pre-washing and good for crusher blades |
|
Friction washer |
Combined with Crusher.To have pre-wash and centrifugation of the flakes |
| Screw feeder | Load the film scrap |
| Floating washer |
Hot washing/cold washing for customized. |
| Screw discharger | Load the flakes |
| High speed friction washer | Remove water/glue/dirty from flakes by strong forced friction and centrifugation. |
| Floating washer | To clean again |
| Screw discharger | Load the flakes |
| Horizontal dewatering machine | To dry the flakes. Final moisture can be about 1.8% |
| Thermal dryer | Reduce humidity to be less than 1% |
| Zigzag separator | Remove dust/fines/labels |
| Silo | Storage the cleaned, dried flakes |
| Electrical cabinet | Control the full line |
Machine Photos
Crusher Machine
>> Knife holder structure adopts a hollow knife structure design, which can better cut hollow plastics during crushing.
>>The output is 2 times higher than the ordinary crusher of the same model
>>suitable for wet and dry crushing.
>>The chamber with wear-proof design
>>Conbined with low speed friction washer
High speed friction washer
>>It is mainly used for strong friction cleaning,adopting spiral blade structure, medium and low speed friction principle to reduce or remove the adhesion of contaminants to the material.
>>Centrifugal the contaminants onto the screen, and adding clear water removes the sediment on the material through the centrifugal action during the operation, and clean the materials efficiently.
Floating Washer
>> flotation washer for cleaning size reduced plastic scraps, by rotary paddles and water, which can remove most of the dust,sands, sludge, soil and other sink contaminants.
>>The main principle is to use the specific gravity of water,specializing in the initial wash and rinse of submerged and floating materials,it can effectively separate the sediment and metal in the material. The system will discharge the sink contaminants,such as sands, sludge, sink plastic, metals through the pneumatic bottom valves automatically. It will ensure the good washing condition of water.
