SGS Greenhouse PE Film Shredder Plastic Machine

1set
MOQ

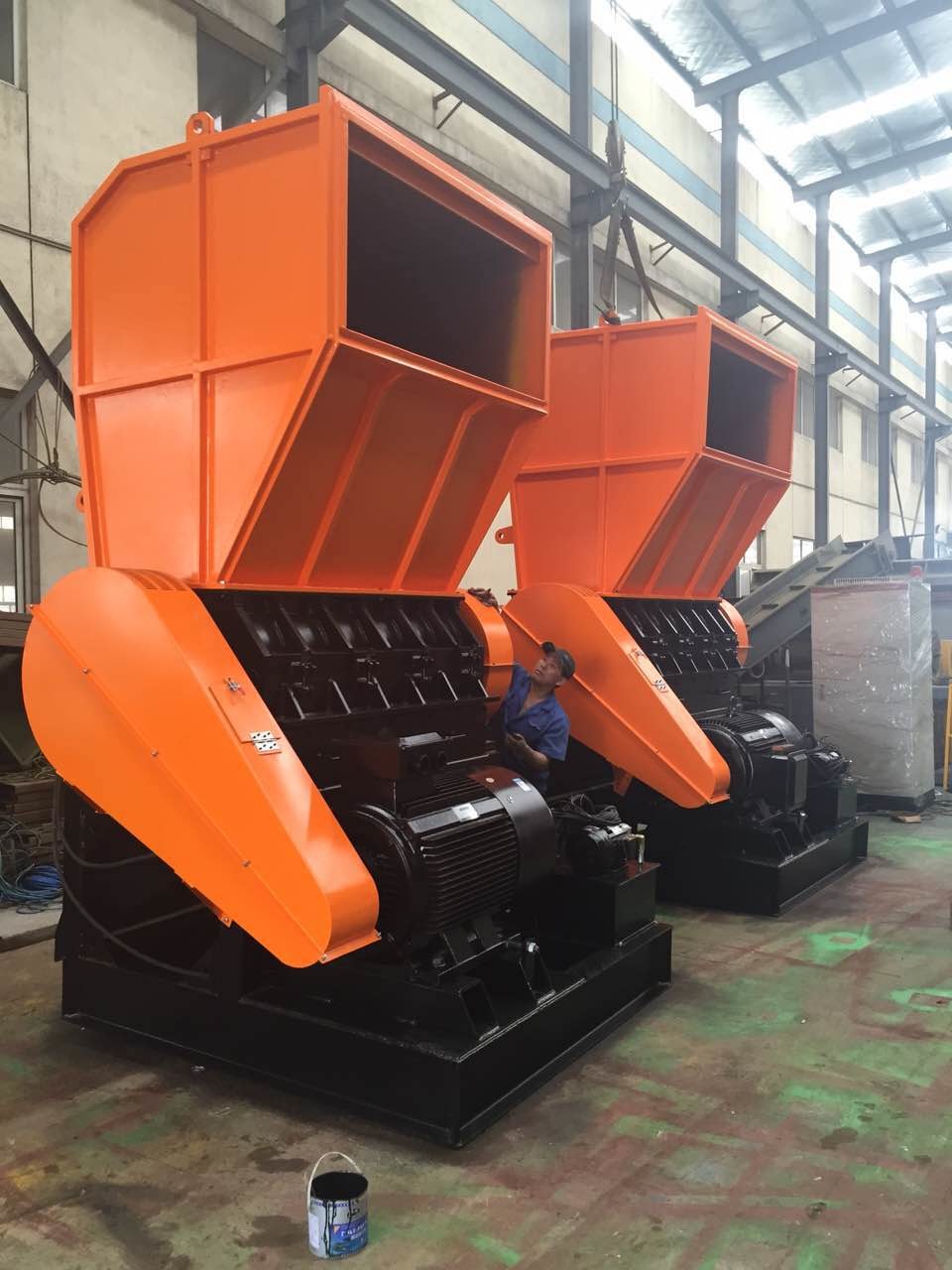

SGS Greenhouse PE Film Shredder Plastic Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity: 100-1000kg/h Plastic Crusher
Voltage: 380V/50Hz/3Phase,Customized
Use: Waste Plastic Crusher,Film Crusher
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
Certification: CE,ISO9001,CE ISO SGS
Warranty: 1 Year
Usage: Waste Plastic Cusher,Waste Recycling,plastic Industry
Type: Environment-friendly,crusher Of Plastic,plastic Crusher Machine,Plastic Material Grinding Machine,plastic Recycling Machine Hard Material Scrap Plastic Crusher Machine
Application: Recycle Waste Plastic,Scrap Crusher,Plastic Crushing Machine,PET Bottle/PP/PE/PVC Film
Name: Waste Palstic Crushing,plastic Shredder And Crusher,crusher Of Plastic
Blades Material: SKD-11,9CrSi,9CrSi/D2/SKD-11plastic Crusher
Product Name: Crushing Machine,Grinder Plastic Recycling Machine,Crusher Cleaning Machine And Plastic Crusher Machine For Sale,Shreddder Machine
High Light:

PE Film Shredder Plastic Machine

,

Greenhouse Film Shredder Plastic Machine

,

SGS crusher plastic machine

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,SGS,ISO9001
Model Number: DSPL-1000
Payment & Shipping Terms
Packaging Details: Factory standard package or customized package
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union
Product Description

Waste PE Film Recycling Machine with Plastic Crusher,crusher plastic machine,shredder plastic machine,grinder machine

SGS Greenhouse PE Film Shredder Plastic Machine 0


LIANDA Design

In the field of soft plastic crushing, to the toughness and high winding characteristics of LDPE film, Agricultural/Greenhouse film and PP woven/ Jumbo/Raffia bag materials, LIANDA has designed a special "V"-shaped crushing blade frame and a back knife type knife loading structure. On the basis of the original old equipment, the production capacity is increased by 2 times.



It is also ideal machine for the secondary cutting when positioned behind pre-shredders of recycling systems.



  • Machine model
Model-XPSA60090012001500

Motor power
(KW)

305590110
Rotary blades Qty  8
Stable blades Qty  4
Rotating diameter450550550660
Blade material9CrSi, SKD-11, D2 or Customized
Sieven screen






3.Machine Details

1

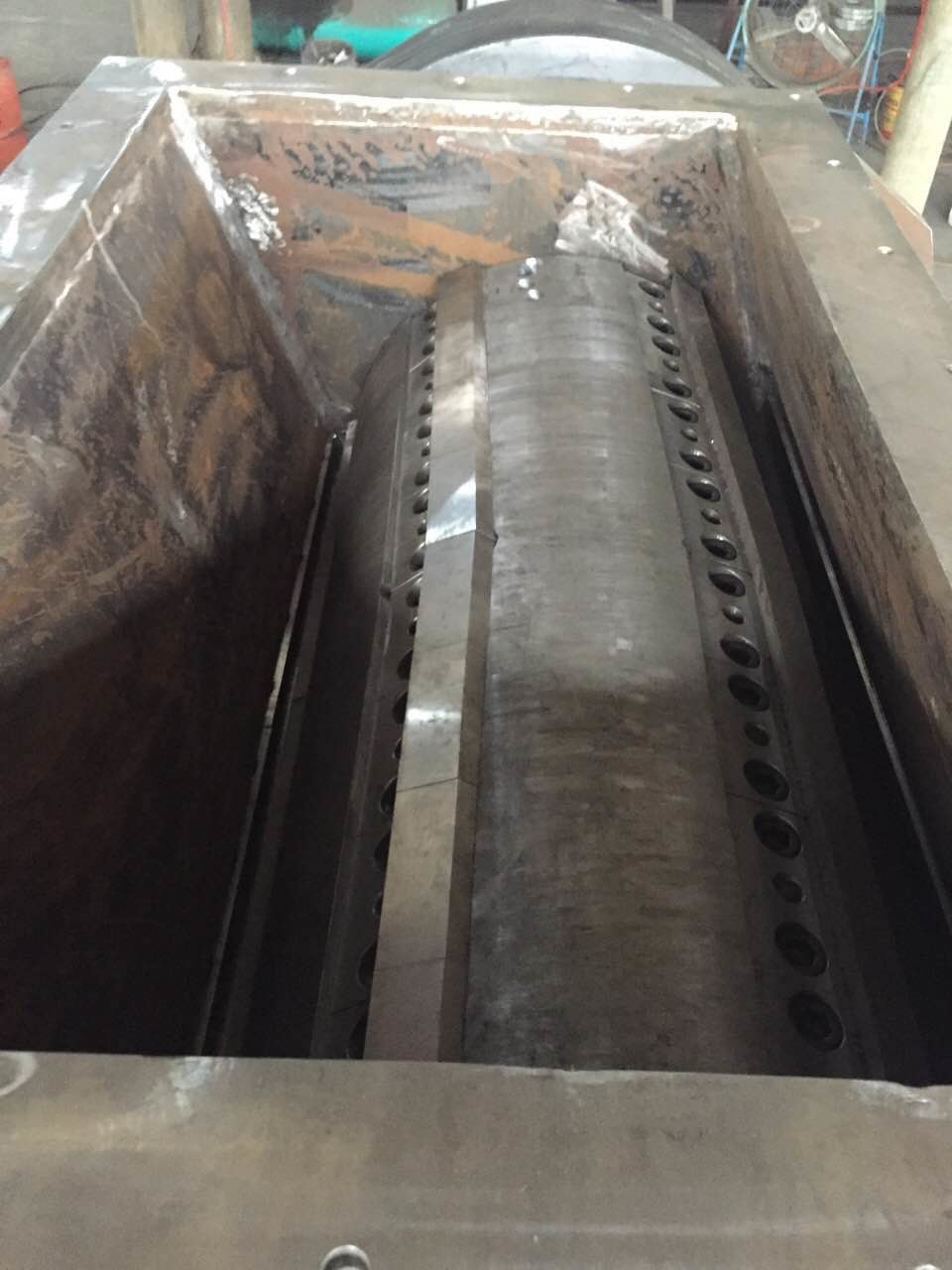

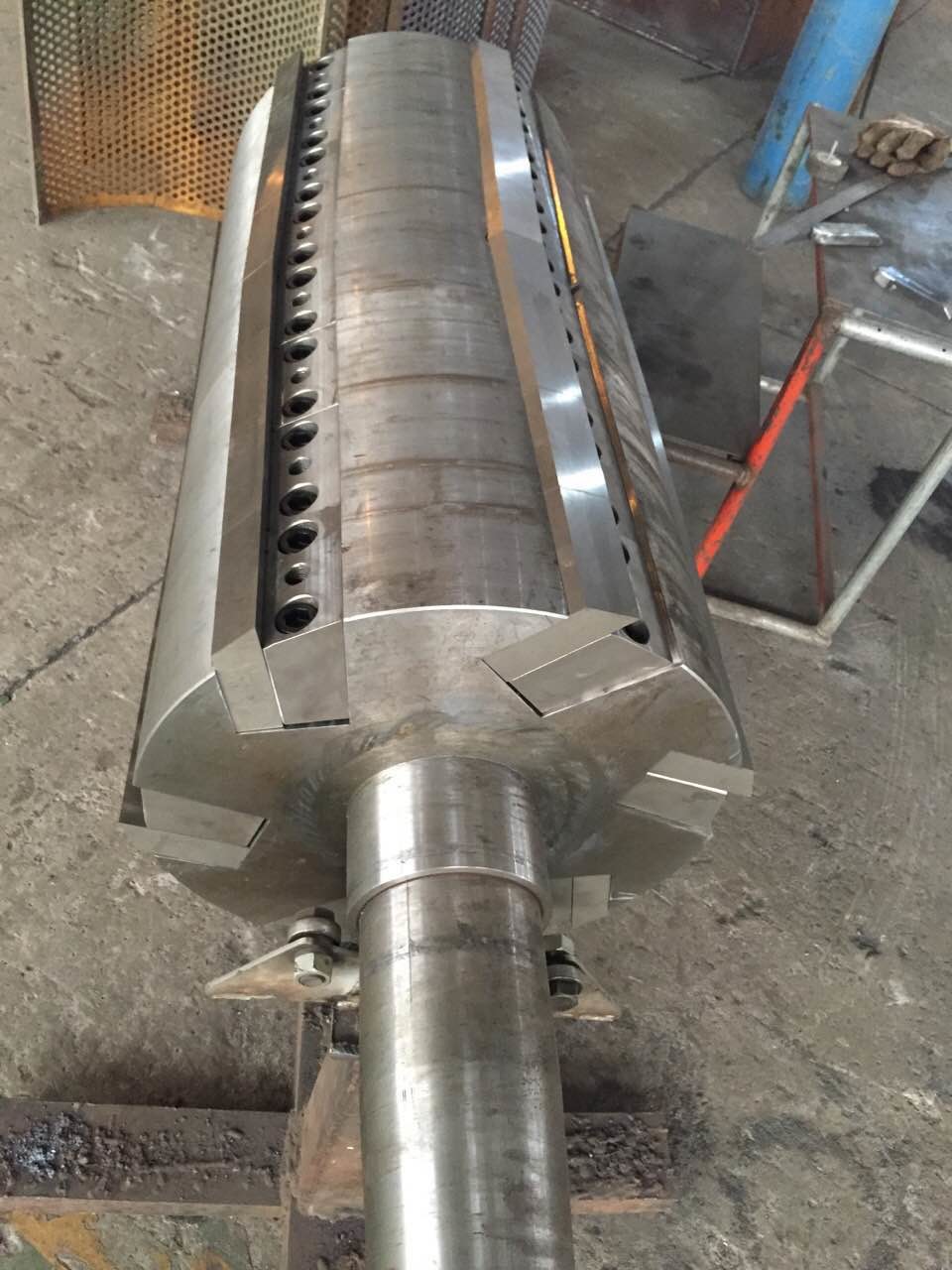

Blades frame
Using "V" structure design, professional design for soft plastics;

SGS Greenhouse PE Film Shredder Plastic Machine 1

The 1-2mm distance between the screen and the blade is the guarantee for doubling the output, and the requirements for equipment processing and manufacturing are more difficult;
2

Crusher open
Adopt Hydraulic open.
Hydraulic tipping device can efficiently, safely and quickly improve the blade sharpening work;

Special design hopper for conveyor belt feeding in heavy duty execution, withcurtains to prevent fly backs designed for the specified materials, hopper can be liftedtogether with the hinged upper housing part.






SGS Greenhouse PE Film Shredder Plastic Machine 2
3

Welded profile construction,complete frame placed on anti-vibrating rubber-metal connectors, absorbing vibrations and reducing noise, drive motor on tension rails with pulleys and V-belt casing is mounted on a flat frame, integrated suction trough with optimal geometry for easy material discharge.

SGS Greenhouse PE Film Shredder Plastic Machine 3

Adopt high-strength screws to fasten, solid structure and durable.
4

External bearing seat.
Effectively avoid the casing of the crushing of material into the bearing, improve the bearing life

SGS Greenhouse PE Film Shredder Plastic Machine 4

Suitable for wet and dry crushing.
5

Sieve Screen
Welded strip screen makes the materials with high sediment content such as broken mulch film and agricultural film more wear-resistant;



SGS Greenhouse PE Film Shredder Plastic Machine 5

6

Equipped with an enlarged pulley to increase the inertia of the crusher, which can save energy and powerfully crush.




SGS Greenhouse PE Film Shredder Plastic Machine 6

7

Using Siemens motors and Wafangdian bearings, high-quality configuration to ensure the stability of long-term work.AC-motor three phase, degree of protection IP-54, 1500 rpm including of heavy duty bearings.






SGS Greenhouse PE Film Shredder Plastic Machine 7

8

Electrical elements
Adopt Star-Delta Start











SGS Greenhouse PE Film Shredder Plastic Machine 8



Turnkey project service

1.Pre-sale: we given client the details technician offer etc
2.In-sales: we supply the details layout, installation instruction, technician support for the clients
3.After sales: we arrange engineer to install the machinery and training the workers for client
4.We have 24 hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always up date the new technology to every customer
