PLA Ir Dryer Machine

PLA Ir Dryer Machine
Features Gallery Product Description Request A Quote
Material: PLA
Color: Custom-made
Power Supply: 380V/3Phase/50Hz Or Custom-made
Warranty: 12 Months
Final Moisture Content: Less 50ppm
High Light:

PLA Ir Dryer Machine


Crystallizer Ir Dryer Machine

Basic Infomation
Place of Origin: Zhangjiagang, China
Brand Name: Lianda
Certification: CE
Model Number: IRD
Payment & Shipping Terms
Packaging Details: export standard packaging.
Delivery Time: 30 working days after get the deposit
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30 sets per quarter
Product Description

PLA dry and crystallization by Infrared crystal dryer



Materials before and after treatment:

PLA Ir Dryer Machine 0


PLA is kind of very sensitive temperature material. PLA is a hygroscopic thermoplastic that easily absorbs water from the atmosphere.


Even small amounts of moisture will hydrolyze PLA in the melt phase, reducing molecular weight and causing loss of properties. This can cause sheet brittleness, internal holes, sagging of the web at the die exit, or other process and quality problems. With PLA, proper drying is not optional. It is absolutely essential. Resin manufacturers recommend that PLA be dried less than 250 ppm before processing. In fact, moisture levels below 200 ppm may be needed in order to ensure a reasonable safety margin and, in some cases, moisture levels below 50 ppm are recommended.


Using Infrared Crystal Dryer

  • Crystallization and drying in one process step
  • Drying and crystallization time
  • Final moisture can be 200ppm or 50ppm ( by customers’ requirement)
  • Drying temperature and drying time can be adjustable by material requirement
  • Save about 40% energy consumption compared to conventional dehumidifier
  • Excellent rotating properties will prevent PLA clumping during the processing
  • Easy clean
  • Capacities can be 100kg/h to 2500kg/h

Application examples:

  • Drying and crystallizing of PLA to 50PPM
  • Drying and crystallizing of PLA
  • Drying of PLA
  • PLA Dryer
  • PLA Crystallizer
  • Crystallization of masterbatch in small batches
  • Drying and crystallizing of PET for pelletizing or sheet extrusion
  • Drying and crystallizing of PLA for pelletizing or sheet extrusion
  • Drying and crystallizing of PPS Pellets, amorphous Co-Polyester
  • Drying, crystallizing and heating of bulk materials
  • PET Dehumidifier and crystallizer

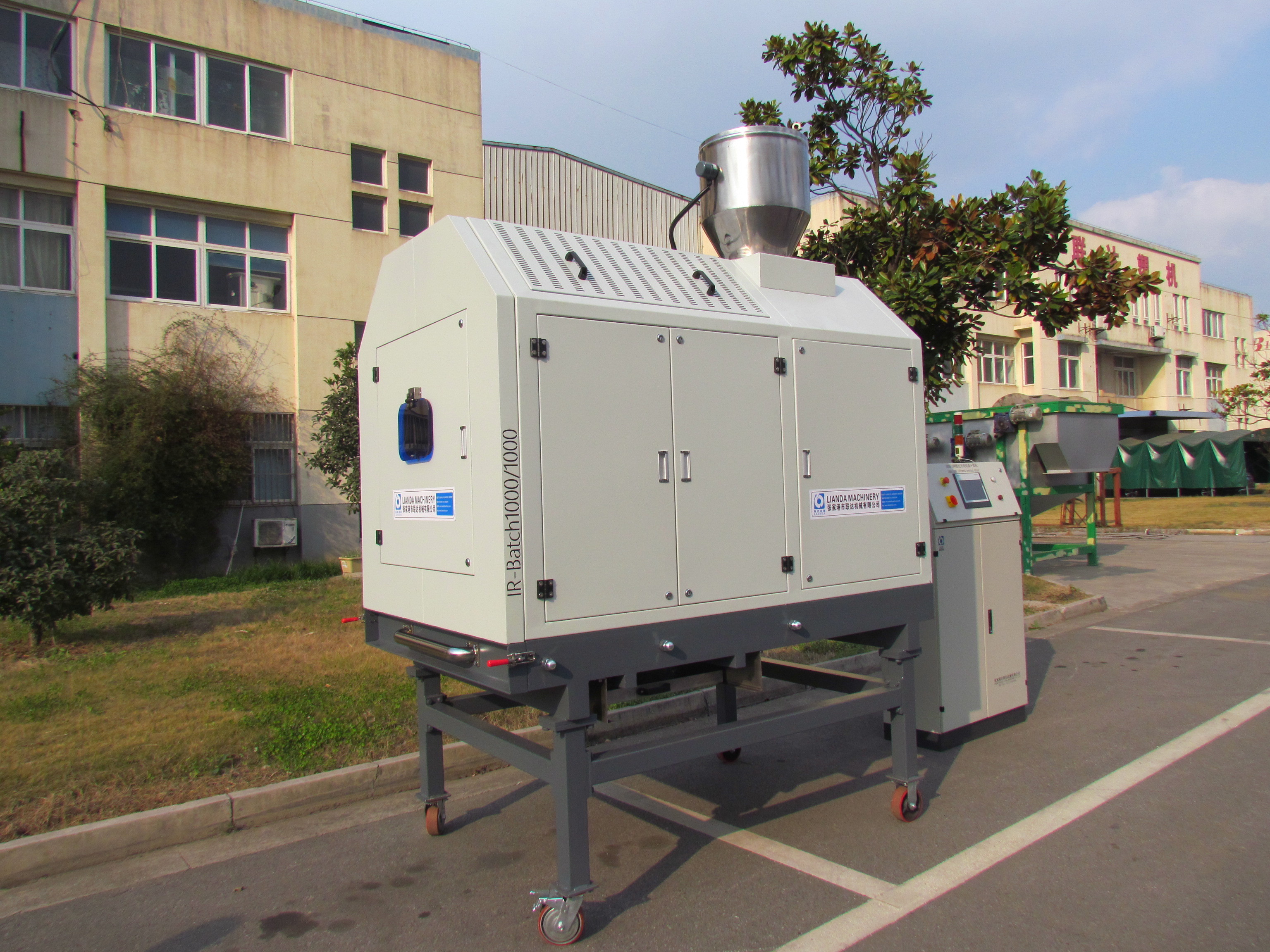

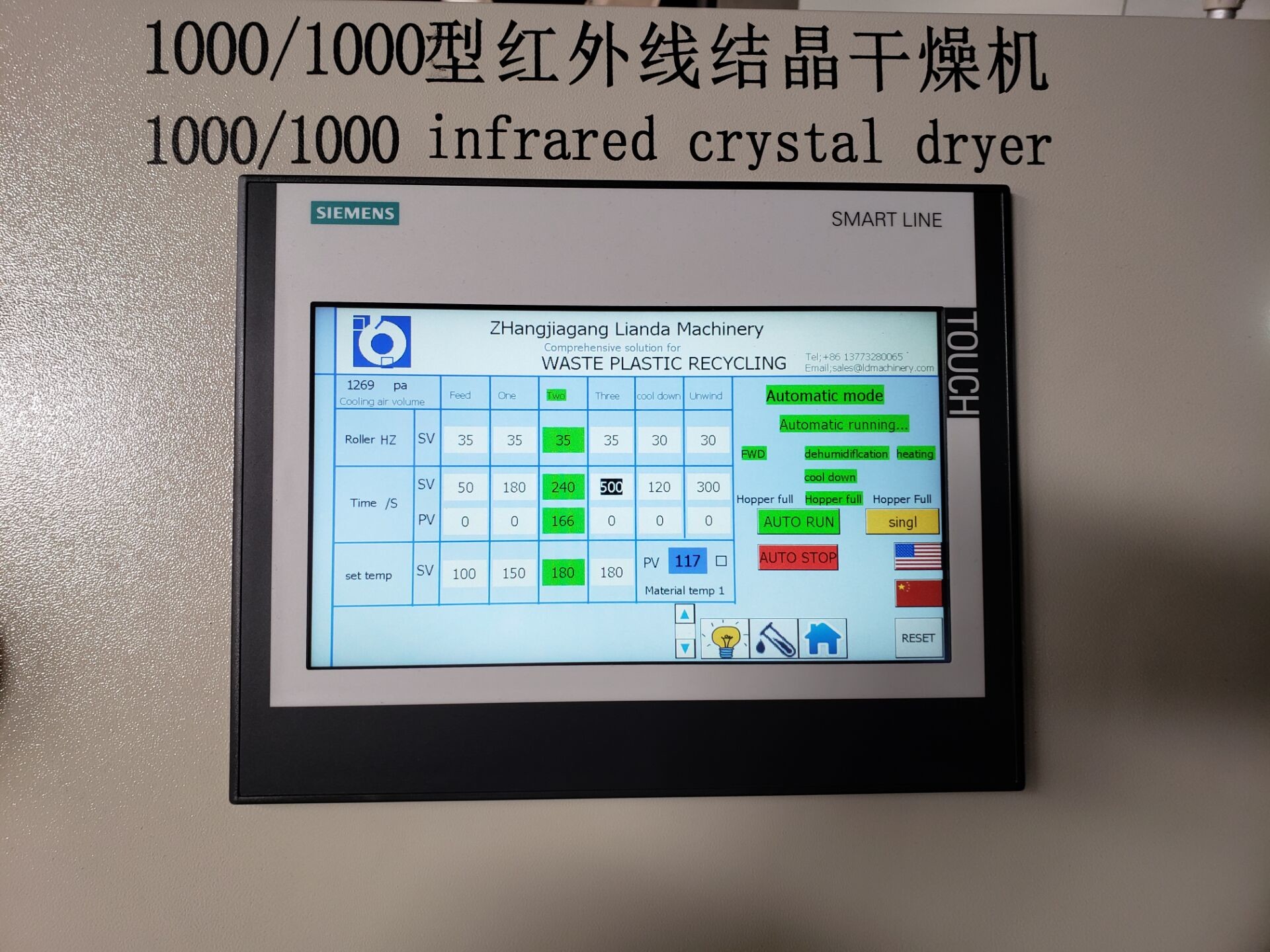

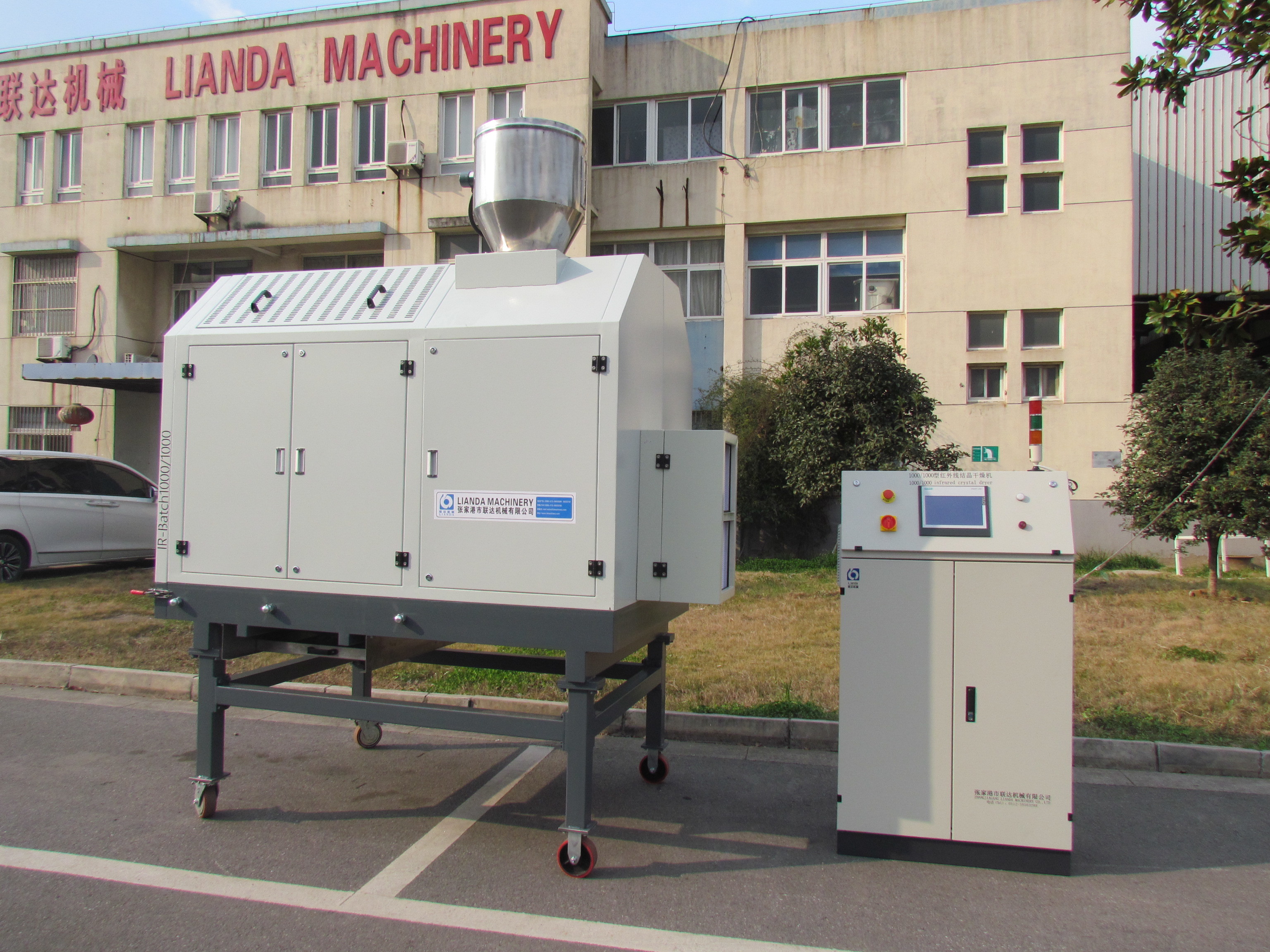

Pictures for reference:


PLA Ir Dryer Machine 1PLA Ir Dryer Machine 2PLA Ir Dryer Machine 3
