Plastic film crusher,waste plastic crusher,plastic grinding machine,plastic waste recycling machine, waste plastic crusher
LIANDA Design
In the field of soft plastic crushing, to the toughness and high winding characteristics of LDPE fil, Agricultural/Greenhouse film and PP woven/ Jumbo/Raffia bag materials, LIADNA has designed a special "V"-shaped crushing blade frame and a back knife type knife loading structure. On the basis of the original old equipment, the production capacity is increased by 2 times.
It is also ideal machine for the secondary cutting when positioned behind pre-shredders of recycling systems.
| Model-XPSA | 600 | 900 | 1200 | 1500 |
|
Motor power (KW) |
30 | 55 | 90 | 110 |
| Rotary blades Qty | 8 | |||
| Stable blades Qty | 4 | |||
| Rotating diameter | 450 | 550 | 550 | 660 |
| Blade material | 9CrSi, SKD-11, D2 or Customized | |||
| Sieven screen | ||||
3.Machine Details
|
1
|

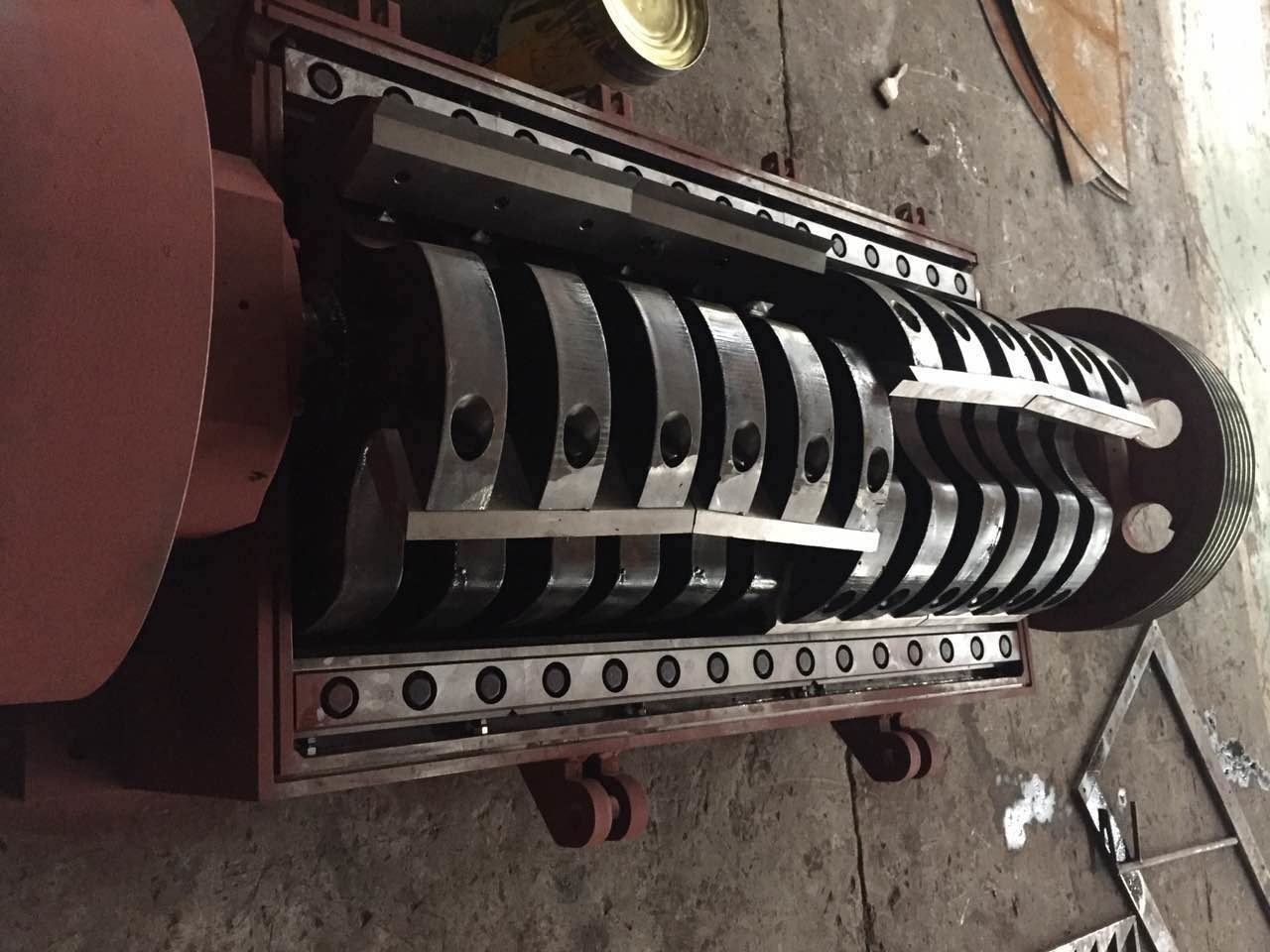

Blades frame Using "V" structure design, professional design for soft plastics; |
|
| The 1-2mm distance between the screen and the blade is the guarantee for doubling the output, and the requirements for equipment processing and manufacturing are more difficult; | ||
| 2 |
Crusher open Adopt Hydraulic open. Hydraulic tipping device can efficiently, safely and quickly improve the blade sharpening work;
|
|
| 3 |
The design of the plastic bottle crusher is reasonable, and the body is welded with high-performance steel;
|
|
| Adopt high-strength screws to fasten, solid structure and durable. | ||
| 4 |
External bearing seat. Effectively avoid the casing of the crushing of material into the bearing, improve the bearing life |
|
| Suitable for wet and dry crushing. | ||
| 5 |
Sieve Screen Welded strip screen makes the materials with high sediment content such as broken mulch film and agricultural film more wear-resistant;
|
|
| 6 |
Equipped with an enlarged pulley to increase the inertia of the crusher, which can save energy and powerfully crush.
|
|
| 7 |
Using Siemens motors and Wafangdian bearings, high-quality configuration to ensure the stability of long-term work.
|
|
| 8 |
Electrical elements Adopt Star-Delta Start
|
|
1. Pre-sale: we given client the details technician offer etc
2. In-sales: we supply the details layout, installation instruction, technician support for the clients
3. After sales: we arrange engineer to install the machinery and training the workers for client
4. We have 24 hours team to solve the after sales problem
5. We have free spare parts with the machine
6. We supply long term spare parts for every customer
7. We always up date the new technology to every customer
