LIANDA Siemens Control 50 Ppm Plastic Dryer Machine

1set
MOQ
USD 10,000-USD40,000
Price
LIANDA Siemens Control 50 Ppm Plastic Dryer Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applied For: PBAT ,PLA, PET, APET, APET, GPET, CPET, PLA, HIPS, PE, ABS, EVA ,PC, PEEK, PPS, PTFE, PEEK, TPU, TPE
Drying Temperature: Can Be Adjustable By Material Property
Drying Time: 20mins (can Be Adjustable By Moisture Need)
Power Consumpron: Only 45% Of Conventional Dehumidifier
Processing: Dry And Crystallization At A Time
Heater: Infrared Lamps
Power Source: 380V 50hz 3PHASE Or Customized

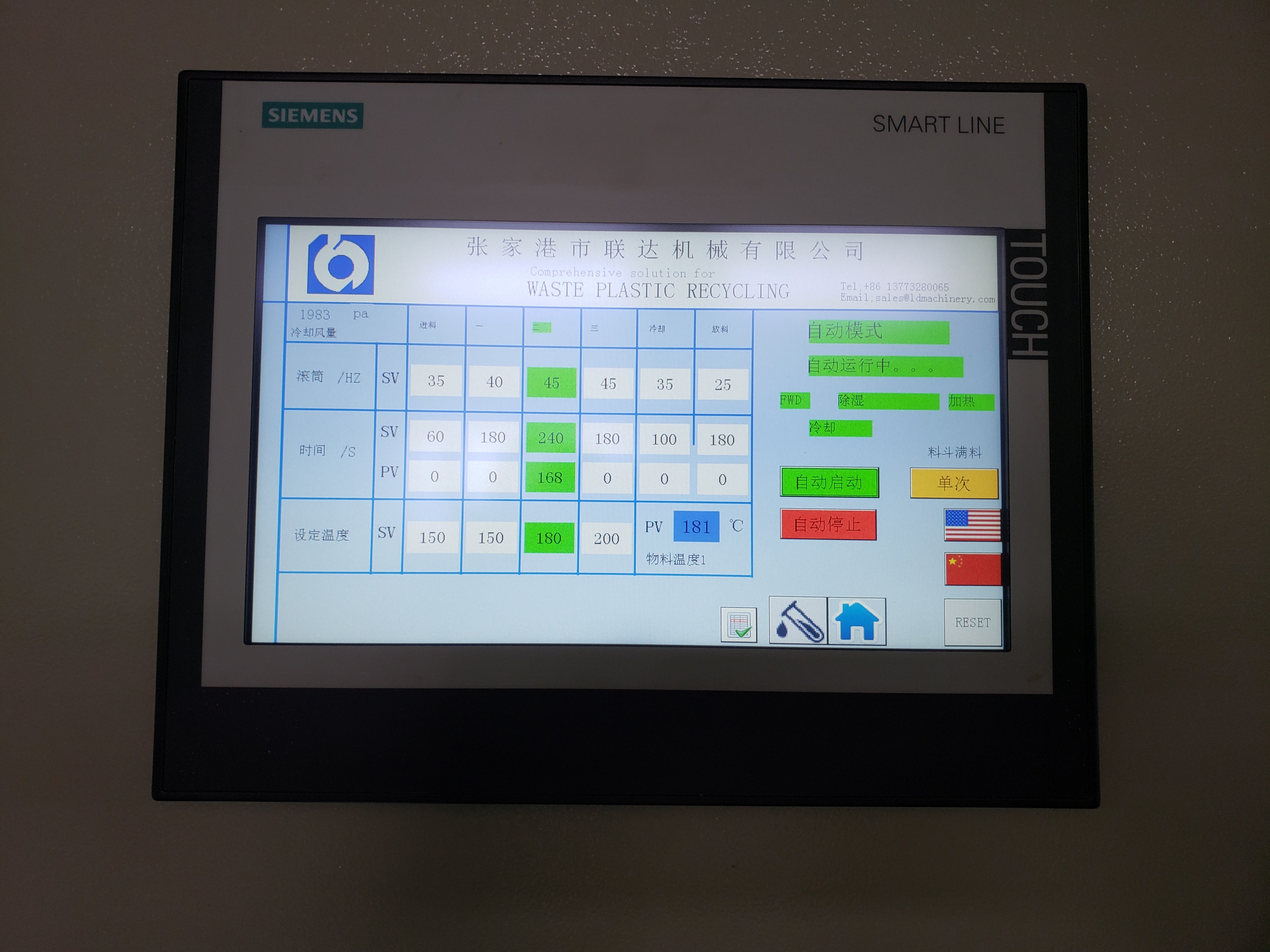

Control System: Siemens PLC
Condition: New
High Light:

50 Ppm Plastic Dryer Machine

,

LIANDA Plastic Dryer Machine

,

Siemens Control Plastic Drying Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,SGS,ISO9001
Model Number: LDHW
Payment & Shipping Terms
Packaging Details: Factory standard package or customized package
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per months
Product Description

PET infrared crystallization dryer, plastic flake dryer



Infrared crystallizer/ dryer can replace traditional molecular sieve and honeycomb dehumidifification crystal drying system. It can be widely used in dehumidifying and crystal drying of PET/PLA/TPU and other materials. It is suitable for thermoforming fifilm, sheet production, packing belt production, etc. It reduce moisture from over 3500 ppm to less than 50 ppm in about an hour, compared to 5-6 hours for conventional systems.



LIANDA Siemens Control 50 Ppm Plastic Dryer Machine 0



Infrared dryer LIANDA Made can be used for  drying a variety of plastic pellets, such as PBAT,APET, GPET, CPET, PLA, HIPS, PE, ABS, EVA ,PC, PEEK, PPS, PTFE, PEEK, TPU, TPE e.g.



We got German Patent on Infrared crystal dryer ( IRD) in 2008, and patent number is ZL201110032787.6



Infrared drying technology offers the ability to dry and crystallize materials in minutes, compared to hours with conventional drying equipment which reduces change over times significantly and reduces energy consumption at almost 45-50%, Also Infrared drying technology changes in moisture at beginning will dry pellets gently to a uniform degree within minutes, the final moisture can be 30-50ppm.



Our Advantage





Infrared Crystal Dryer



Conventional Crystallizer
1

Easy to clean and change color

The drum can be opened completely,no hidden spots and can be cleaned easily with a vacuum cleaner

Have to be completely disassembled,cleaned and fixed
2 Rotary drying system, its rotating speed can be increased as high as possible to get an excellent mixing of pellets. It is good in agitation, the masterbatch will not be clumped Poor agitation,easy to be clumped
3 Can satisfy different type of Masterbatch (Drying temperature and time can be adjustable by the property of raw material) The drying temperature is fixed
4 Crystallization time 15-20mins depends on the material kind Need 4-6 hours or more
5

Save about 40% energy consumption compared to conventional dehumidifier







How Lianda Infrared dryer to crystallize

LIANDA Siemens Control 50 Ppm Plastic Dryer Machine 1



LIANDA Siemens Control 50 Ppm Plastic Dryer Machine 2











LIANDA Siemens Control 50 Ppm Plastic Dryer Machine 3





HOW TO ENSURE THE QUALITY!

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory





Why choose us

1. We are professional manufacturer of plastic recycling and have professional technical team, focus on provide high quality equipment and good service for customer.

2. Our plant with area of 7600 square meters, 62 employees. All skill workers have professional skills certificates.

3. We have professional production QC team to ensure the machine manufacturing quality.

4. All equipment are running test before shipment.

5. During customer visit, we can take customer to our customer ‘s factory to looking machine working.

6. We imported Germany PET infraraed technology and got production patent in China on 2008. On this basis, research and development and improvement have solved the problem of material leakage in the production process.

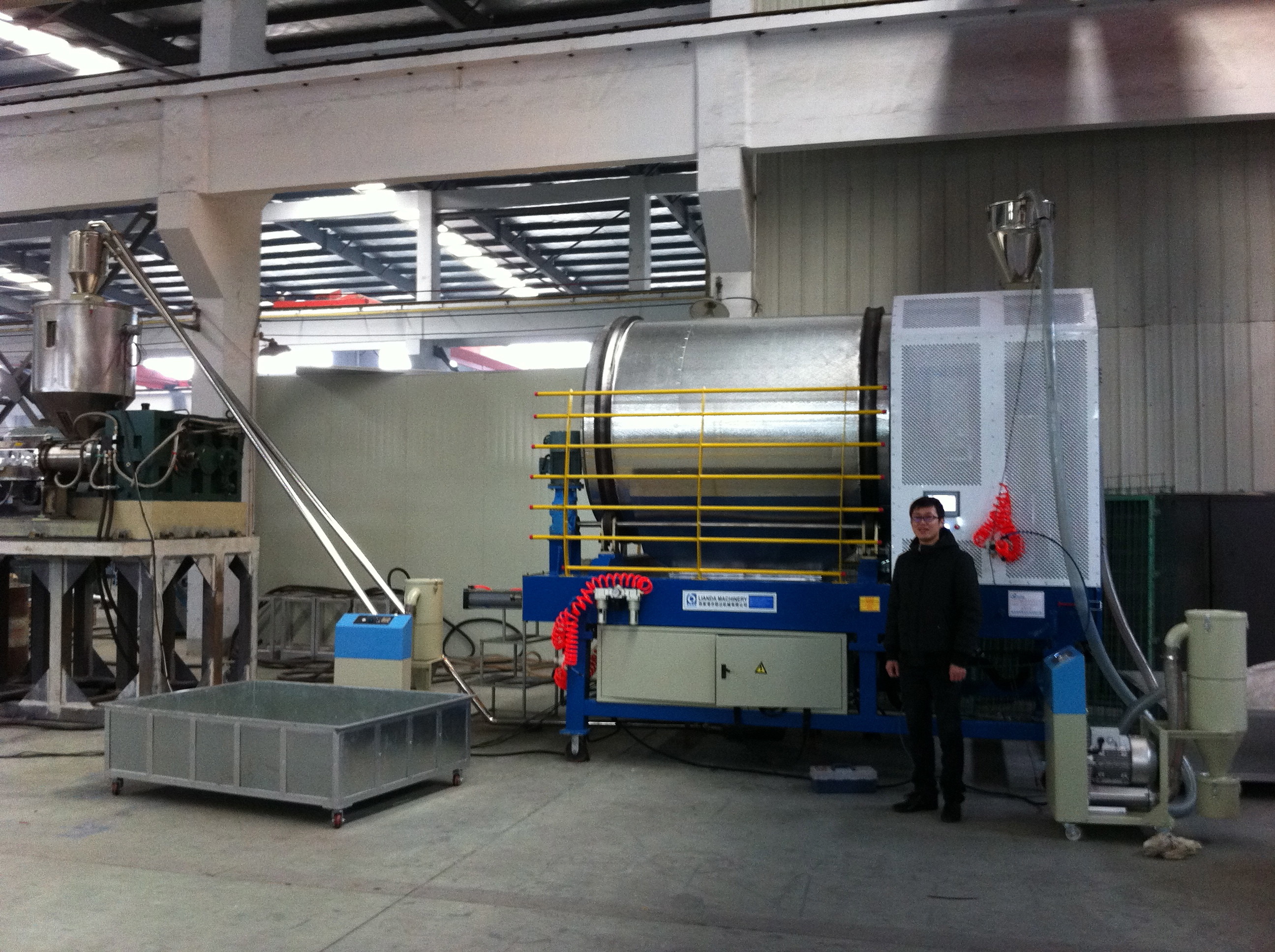

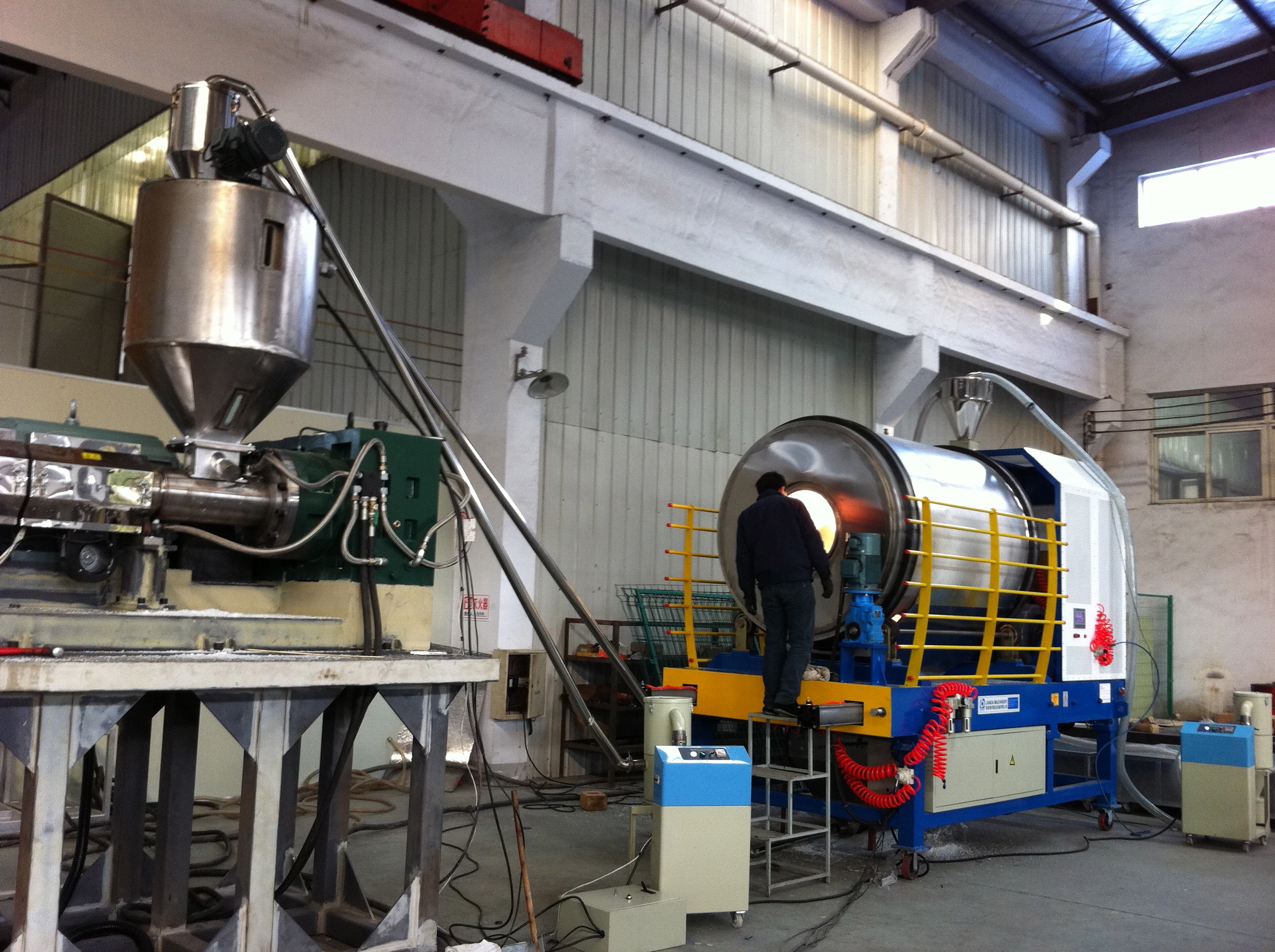

Machine pictures:

LIANDA Siemens Control 50 Ppm Plastic Dryer Machine 4LIANDA Siemens Control 50 Ppm Plastic Dryer Machine 5LIANDA Siemens Control 50 Ppm Plastic Dryer Machine 6



LIANDA Siemens Control 50 Ppm Plastic Dryer Machine 7
