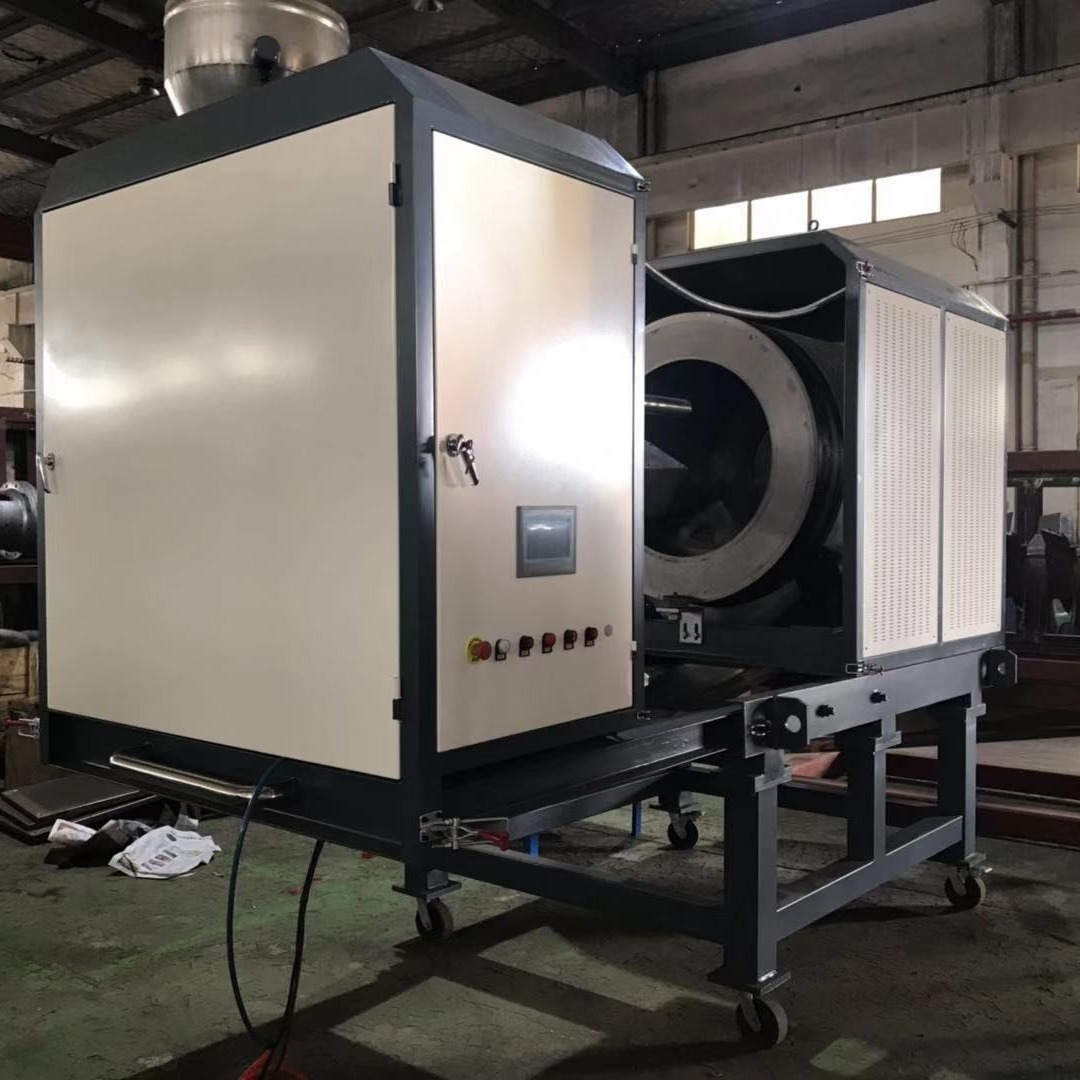

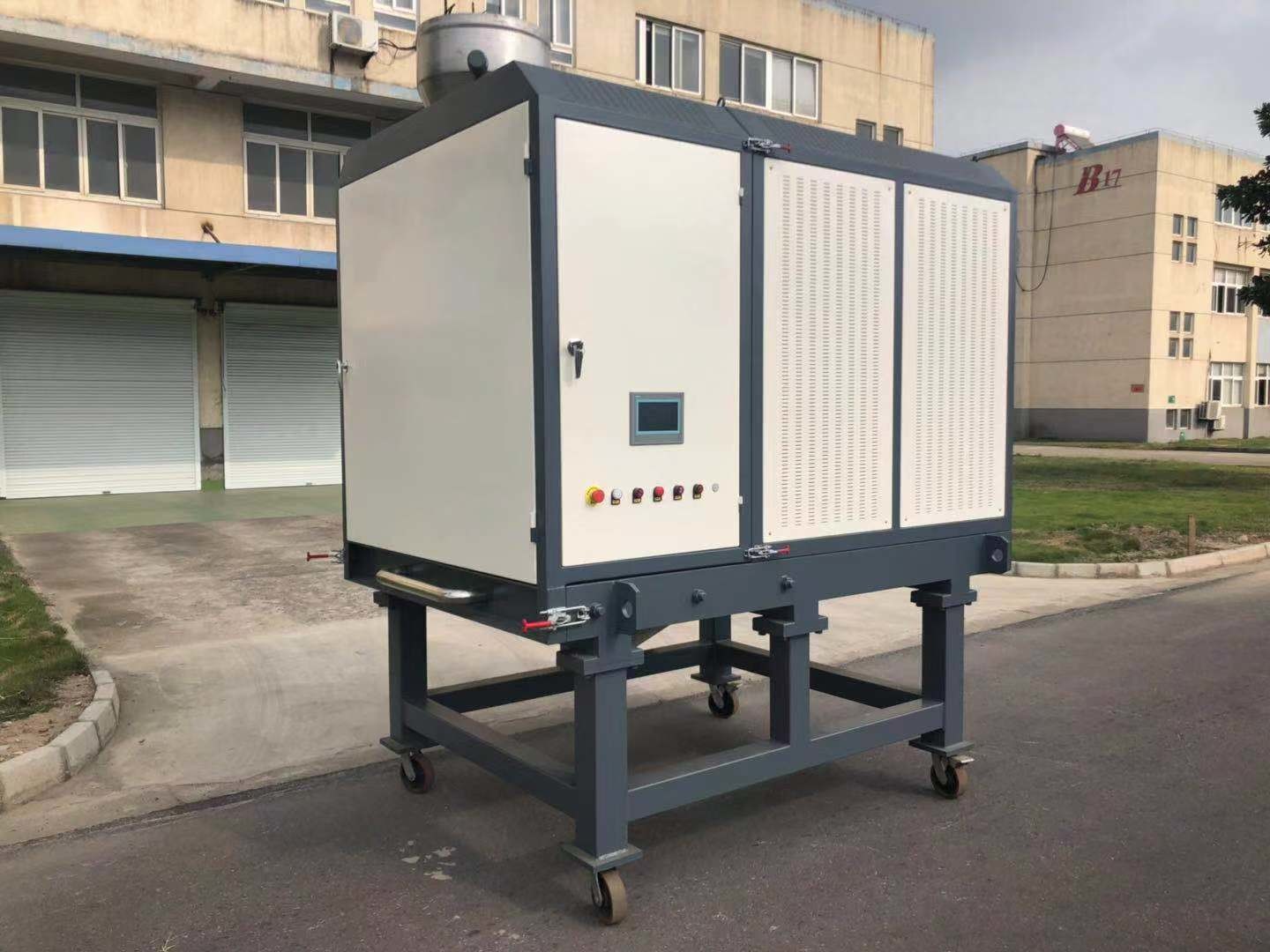

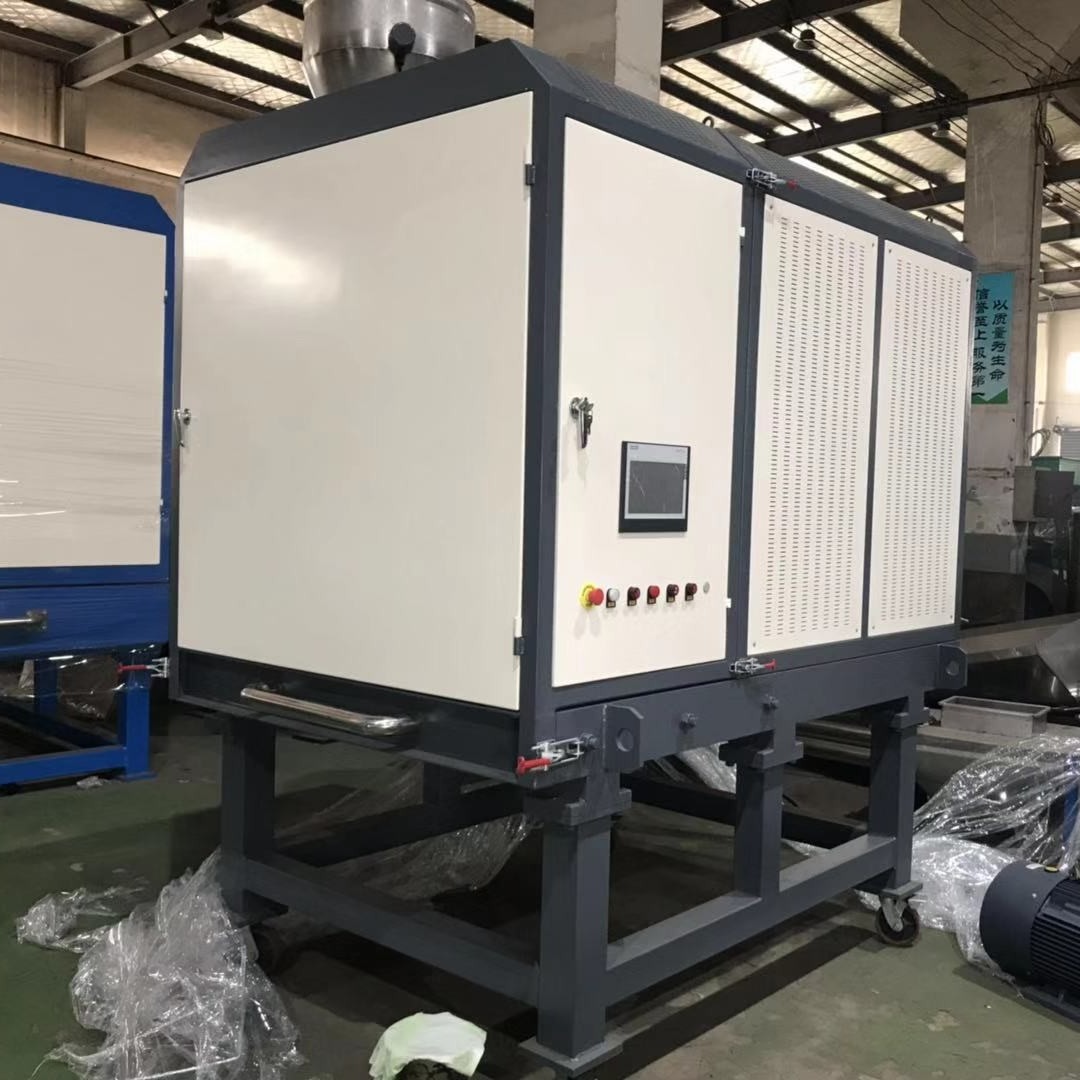

Infrared Lamps Dehumidifying Pellet Dryer Machine

USD 10,000-USD30,000
Infrared Lamps Dehumidifying Pellet Dryer Machine
Features Gallery Product Description Request A Quote
Drying Temperature: Can Be Adjustable By Material Property
Drying Time: 20mins (can Be Adjustable By Moisture Need)
Power Consumpron: Only 45% Of Conventional Dehumidifier
Processing: Dry And Crystallization At A Time
Heating Way: Infrared Lamps
Power Source: 380V 50hz 3PHASE Or Customized
Control System: Siemens PLC
Delivery Time: 30 Working Days
Certificate: CE,IS09001, SGS
Applicable Industy: Plastic Moulding
Package: Factory Standard Package Or Customized
Motor Brand: Siemens Bade Or Customized
High Light:

Infrared Lamps Pellet Dryer Machine


Dehumidifying Pellet Dryer Machine


LIANDA Infrared dehumidifying dryer

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,SGS,ISO9001
Model Number: LDHW-100
Payment & Shipping Terms
Packaging Details: Factory standard package or customized package
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union
Product Description

CO-PET Pellets Dryer machine, plastic dehumidifying dryer,PET Dessicant dryer supplier,plastic dehumidifier dryer




Infrared Lamps Dehumidifying Pellet Dryer Machine 0



Processing Explanation


  • Dry and crystallize of amorphous Co-PBT and Co-PET Pellets to 500ppm
  • Process temperature 80 °C to 135 °C
  • Cooling the pellets to 40°C

(Re-cooling the pellets to avoid the pellets re-moistured )

  • Transfer to bagging package


Our IRD ( Infrared Dryer ) will make for you

  • Infrared rotary dryer is designed with sophisticated temperature measurement. The material and exhaust air temperature are continuously monitored by sensors. If there is any deviations,PLC system will adjust automatically
  • There are flexible 5 zone heating control
  • Adopt drum rotation will make sure the constant movement of the raw material to avoid clumping/sticking and dry evenly
  • Within 15mins to get the moisture 500ppm or less ( Depends on customer’s requirement)
  • To get the crystallization level at 20%-30% of the pellets without lumping/sticking)

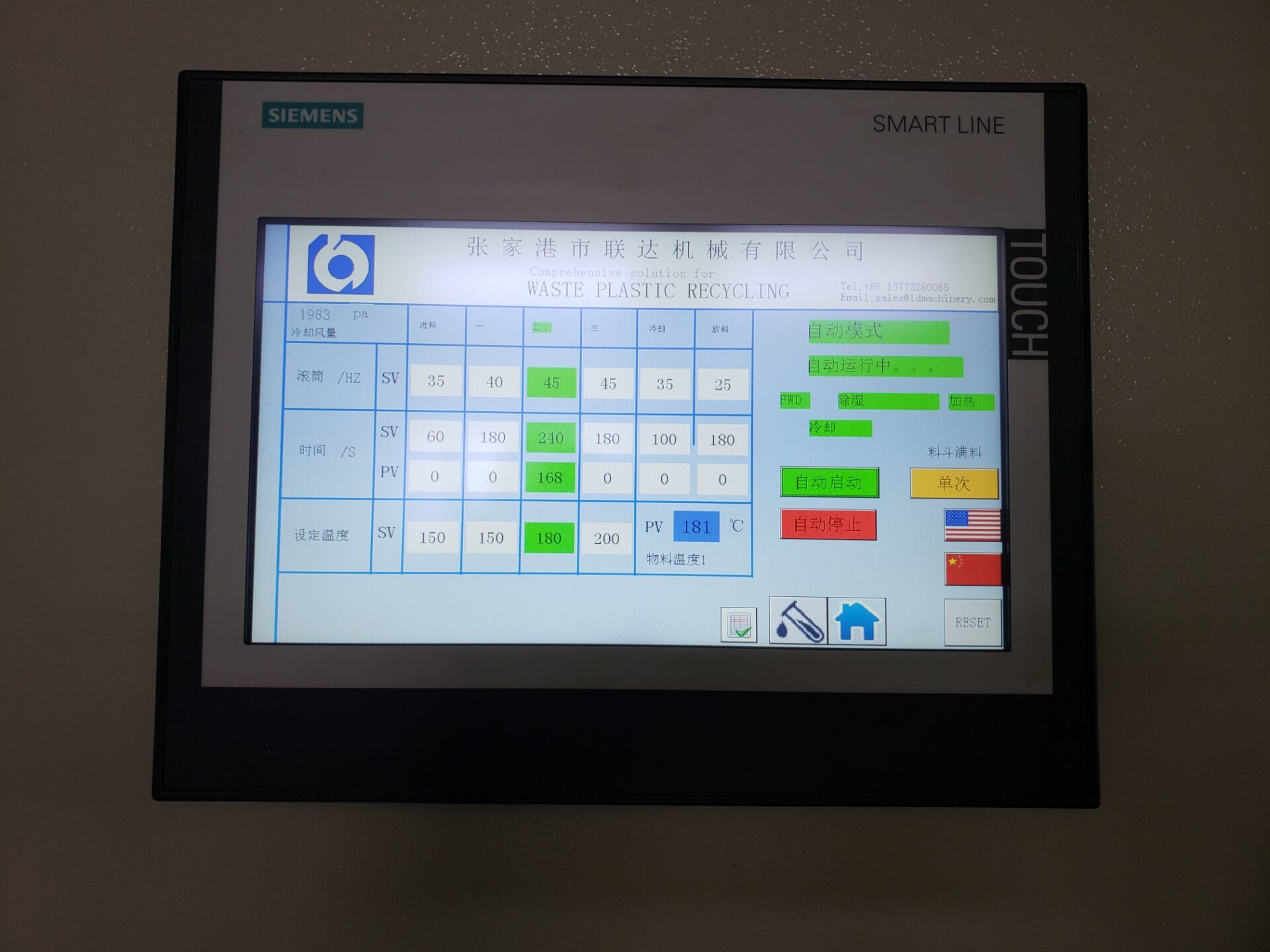

  • Comprehensive visualization of all process parameters
  • Cooling the pellets to 40°C

(Re-cooling the pellets to avoid the pellets re-moistured )



Our Advantage


Low energy consumption.Significantly lower energy consumption compared to conventional processes, through the direct introduction of infrared energy to the product.

Minutes instead of hours.The product remains for only a few minutes in the drying process and is then available for further production steps.

Instantly.The production run can start immediately upon startup. A warm-up phase of the machine is not required.

High efficiency.The energy is immediately brought into the core of the product.

Gently.The material is heated gently from the inside to the outside and not loaded from the outside for hours with heat, and thereby possibly damaged.

Easy cleaning.Good access to all components allows for easy and fast cleaning. Rapid product change-over.

In one step.Crystallization and drying in one step.

Increased throughput.Increase of plant throughput by means of reduced load on extruder.

Evenly.Ensures a constant discharge




How Lianda Infrared dryer to crystallize

Infrared Lamps Dehumidifying Pellet Dryer Machine 1


Infrared Lamps Dehumidifying Pellet Dryer Machine 2






Infrared Lamps Dehumidifying Pellet Dryer Machine 3



● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory

Our Service
Infrared Lamps Dehumidifying Pellet Dryer Machine 4
1.We will provide testing if the customer comes to visit factory to see the machine.
2.We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents which customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty time,we will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole lifetime .
