PE PP film cutting compaction two stages water-ring granulating machine
Introduction:
PE PP film cutting compaction two stages water-ring granulating line is specially designed for the leftover waste of PE edge trim from blown films, garment packing bags, industry waste films, washed agriculture films, garbage films, PP woven bags, nonwoven bags, ton bags granulating. PE PP film cutting compaction water-ring granulating line combines cutting, extrusion and pelletizing all in one. Raw material no need for pre-cutting and can send to PE PP film cutting compaction granulating line directly. The cutting compactor which generates frictional heat during the compacting process, help to dry and remove moisture from the washed films. The pellet produced by this machine with high density, great quality, high value.
Advantages of PE PP Film Cutting Compaction two stages water-ring Granulating Line:
1.Crushing, compaction, granulating all-in-one. Easy to feed material, PE films/bags can feed to PE film cutting compaction granulating line directly. No need for pre-cutting by the crusher.
2.Save manual, whole line only 1-2 workers.
3.Compared with the conventional granulator, PE film cutting compaction granulating line with high output, stable material feeding.
4.PE PP film cutting compaction water-ring granulating line with high density, beautiful appearance, high value.
Raw materials(before and after treatment):
Specification:
| Model | SJ-100 | SJ110 | SJ130 | SJ160 | SJ198 |
| Screw diameter | 100mm | 110mm | 130mm | 160mm | 198mm |
| Capacity | 200kg/h | 300kg/h | 400kg/h | 500kg/h | 800kg/h |
| Single/Double | Custom-made | ||||
| Above are the standard model of our company, if you have any special requirement, please contact us | |||||
|
Applicable plastic materials: PP, LDPE, LLDPE, HDPE, BOPP, etc. Woven bags, printed LDPE film (rolls, loose, bundled), agriculture film, foamed plastics and raffia, etc. Note: depending on material property, various downstream equipment is available. |
|||||
Why choose us:
1. We are professional manufacturer of plastic recycling and have professional technical team, focus on provide high quality equipment and good service for customer.
2. Our plant with area of 7600 square meters, 62 employees. All skill workers have professional skills certificates.
3. We have professional production QC team to ensure the machine manufacturing quality.
4. All equipment are running test before shipment.
5. During customer visit, we can take customer to our customer ‘s factory to looking machine working.
Our service:
1.We will provide testing if the customer comes to visit factory to see the machine.
2.We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents which customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty time,we will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole lifetime .

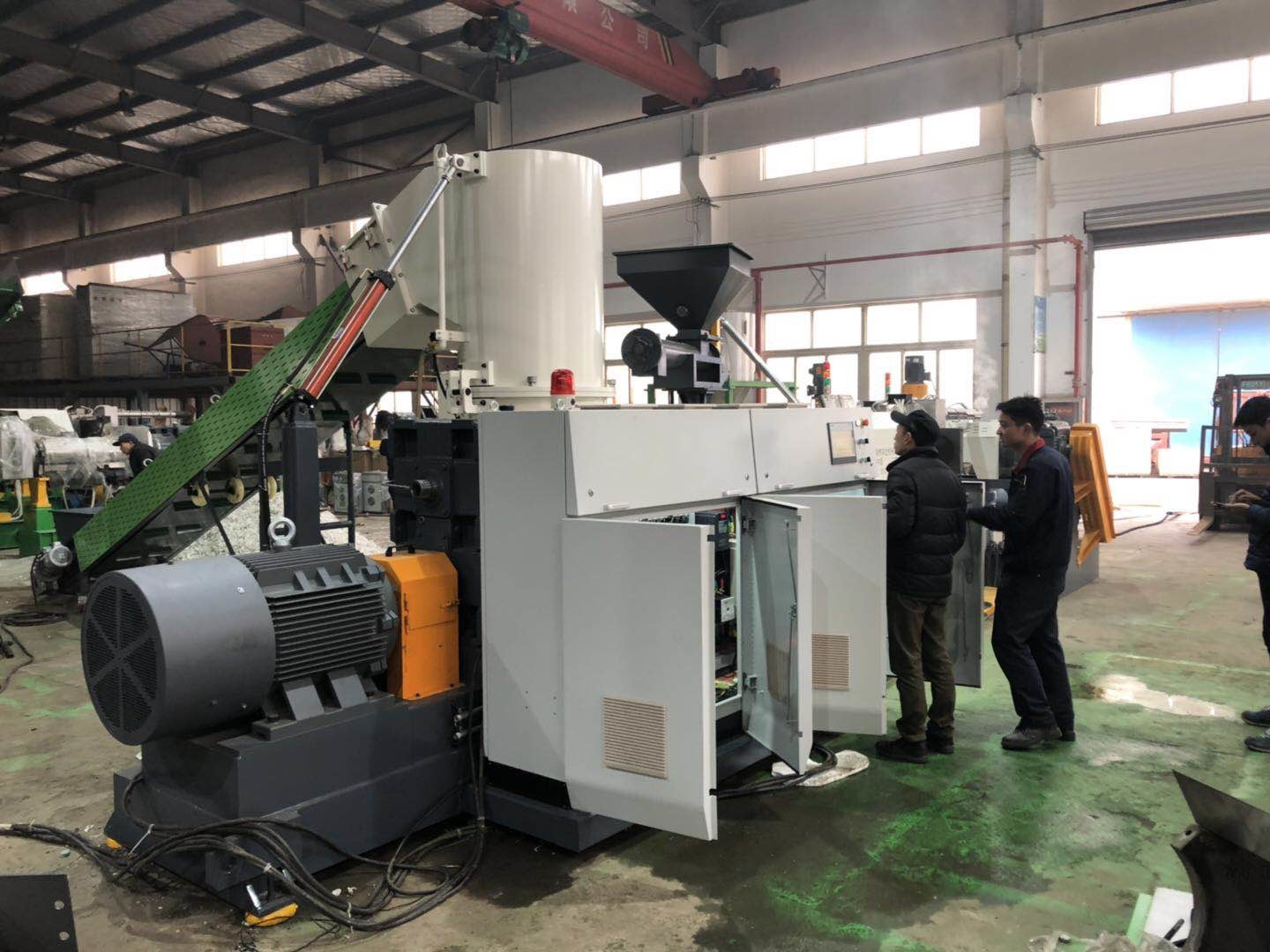

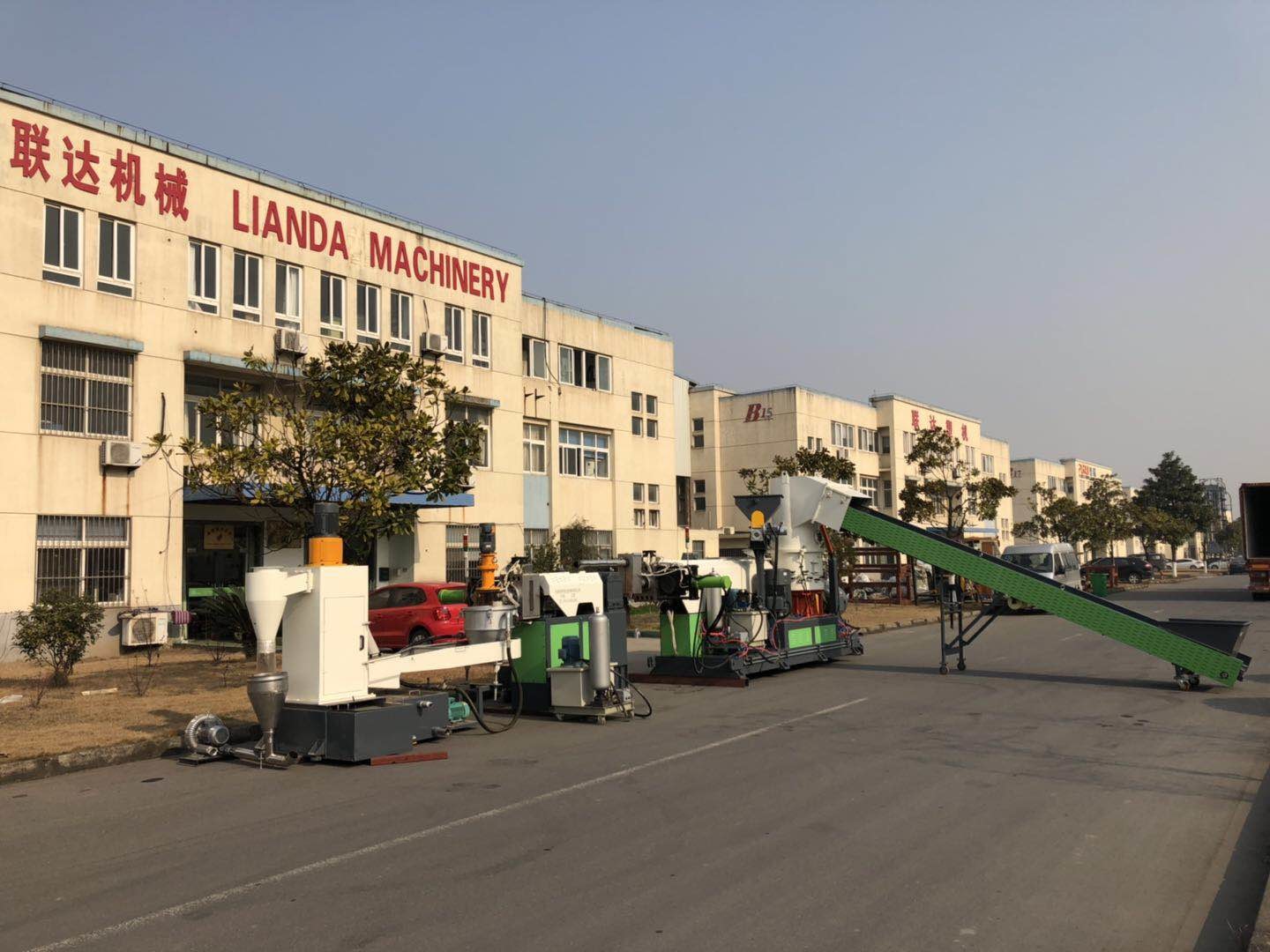

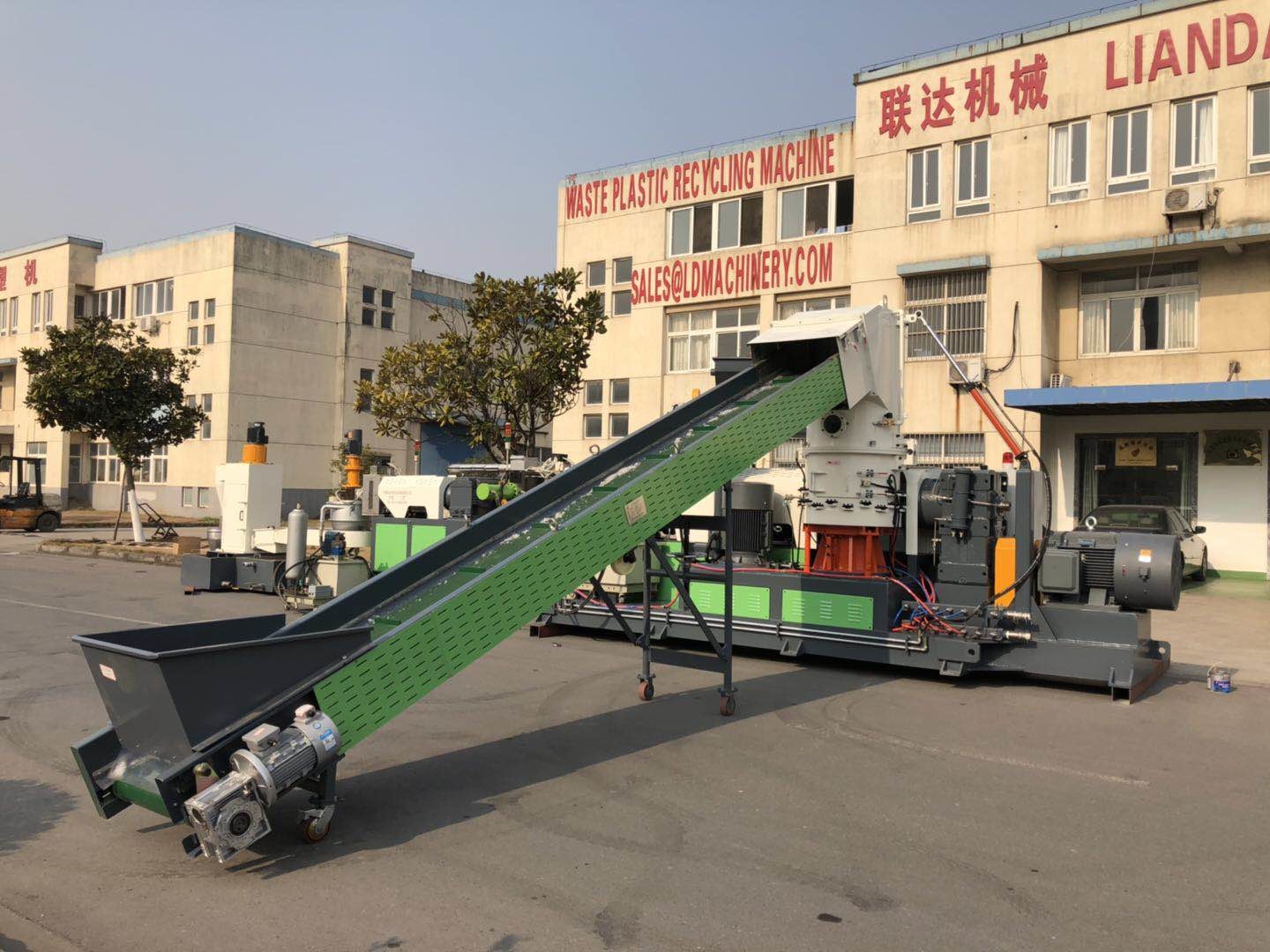

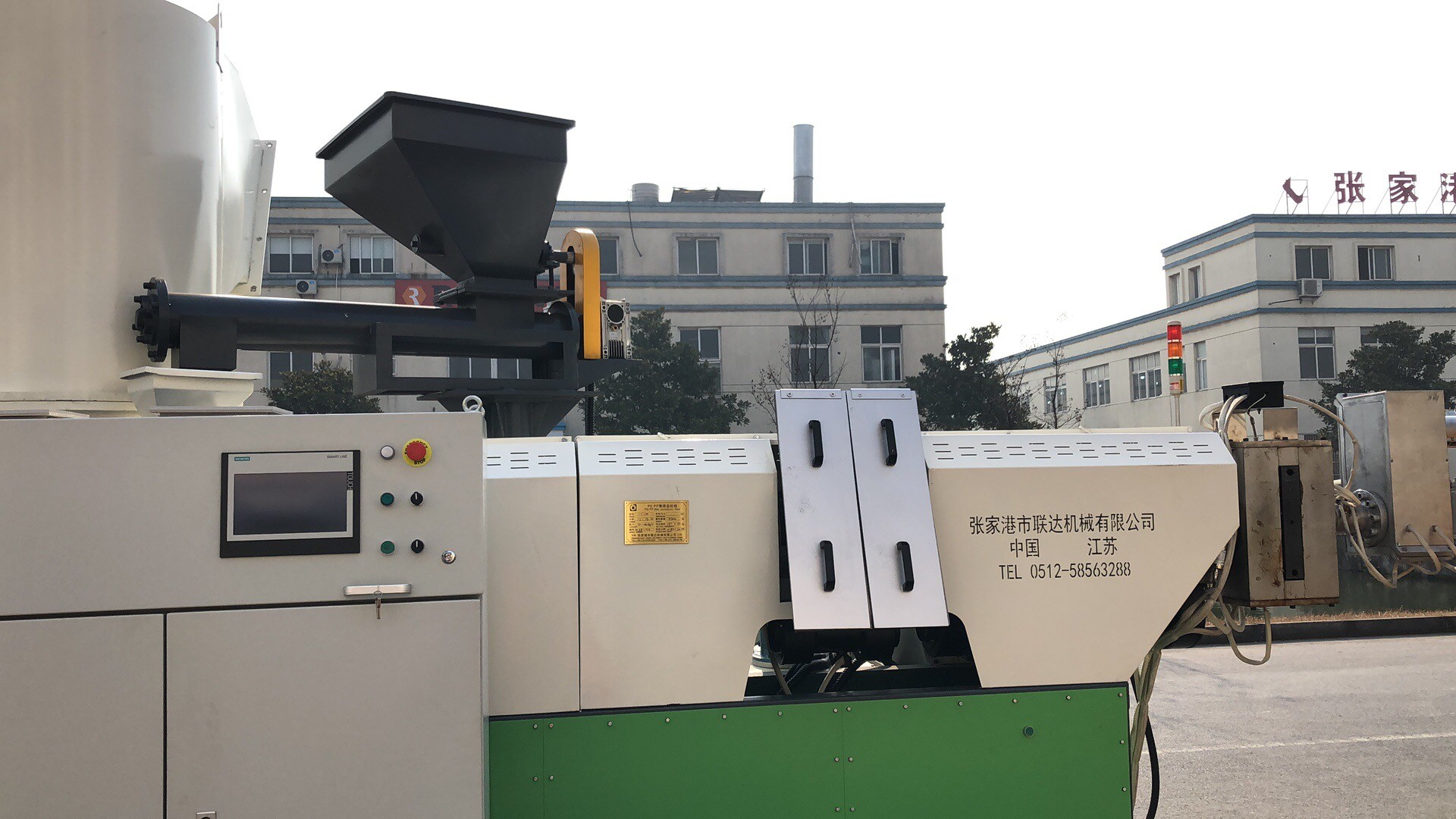

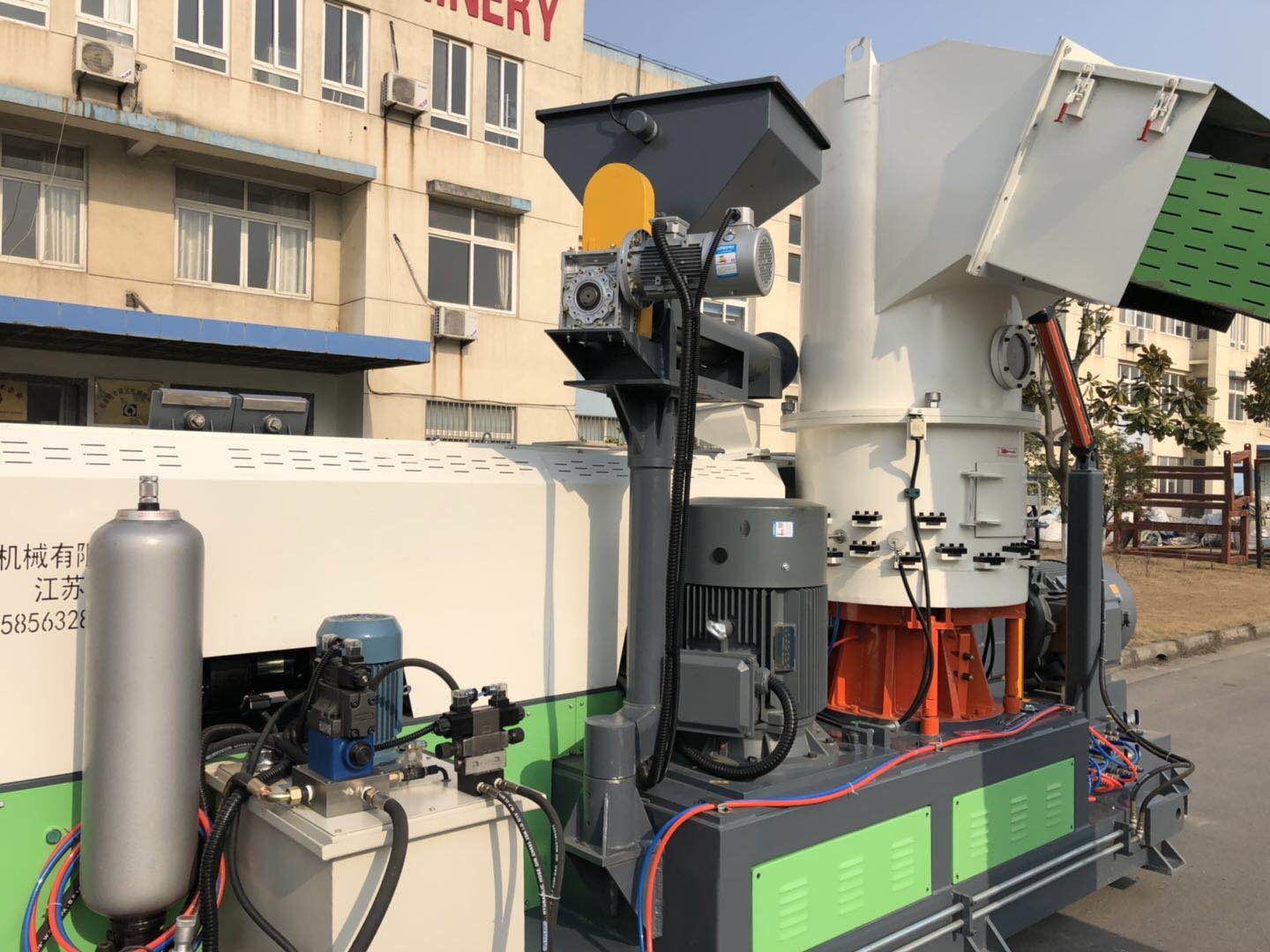

Pictures of machines:
