High quality PE Film, PP woven bags crusher with Friction Washer
The Crusher is applied for Jumbo bag, Agricultural film, Non-woven bag, PP/PE Shopping bag, industrial waste film, packing film, wrapped film etc.
PE film crusher with friction washer especially designs for Waste film Crushing, feeding smoothly, working stable, low energy cost and low noise. Wet crusher improves the efficient of Film scrap pre-washing by water wallop, water-cooling will reduce friction heat, low down the powder and strengthen the working life of Crusher blades.
Arc knife structure and strip screen design make material not winding on the blade, as well mesh screen, thus there will be no plugging during machine working.
Friction washer under crusher is for pre-washing waste PE PP films. It also with dewatering function.
Now Plastic crusher with friction washer is widely used in PE PP crushing washing recycling line.
Machine detials
Specification:
PE film, PP woven bags crusher | ||||
Model | XPS600 | XPS900 | XPS1200 | XPS1500 |
Motor power | 30kw | 55kw | 75kw | 110kw |
Stable blades | 2pcs | 4pcs | 4pcs | 6pcs |
Rotary blades | 8pcs | 8pcs | 8pcs | 16pcs |
Rotating diameter | 450mm | 550mm | 550mm | 650mm |
Inlet size | 800mm x 600mm | 1000mm x 900mm | 1000 x 1200mm | 1200mm x 1500mm |
Blade material | 9CrSi, SKD-11,D2 | |||
Friction washer | ||||
Model | LDMC1 | LDMC2 | ||
Screw diameter | 325mm | 420mm | ||
Capacity | 500kg/h | 1000kg/h |
Advantages of PE Film Crusher with Friction Washer:
1. Blade frame design: Special design for soft plastic.
2. Sieve screen: Square or bar sieve screen; Improve the cutting capacity.
3. Large diameter belt wheel: No stacking while cutting PE Wrap/ waste film by making use of strong inertia — large diameter belt wheel.
4. No water leaking: Crushing room adopts oil sealing.
5. Bearing seat: Adopt divided design, efficient in maintenance.

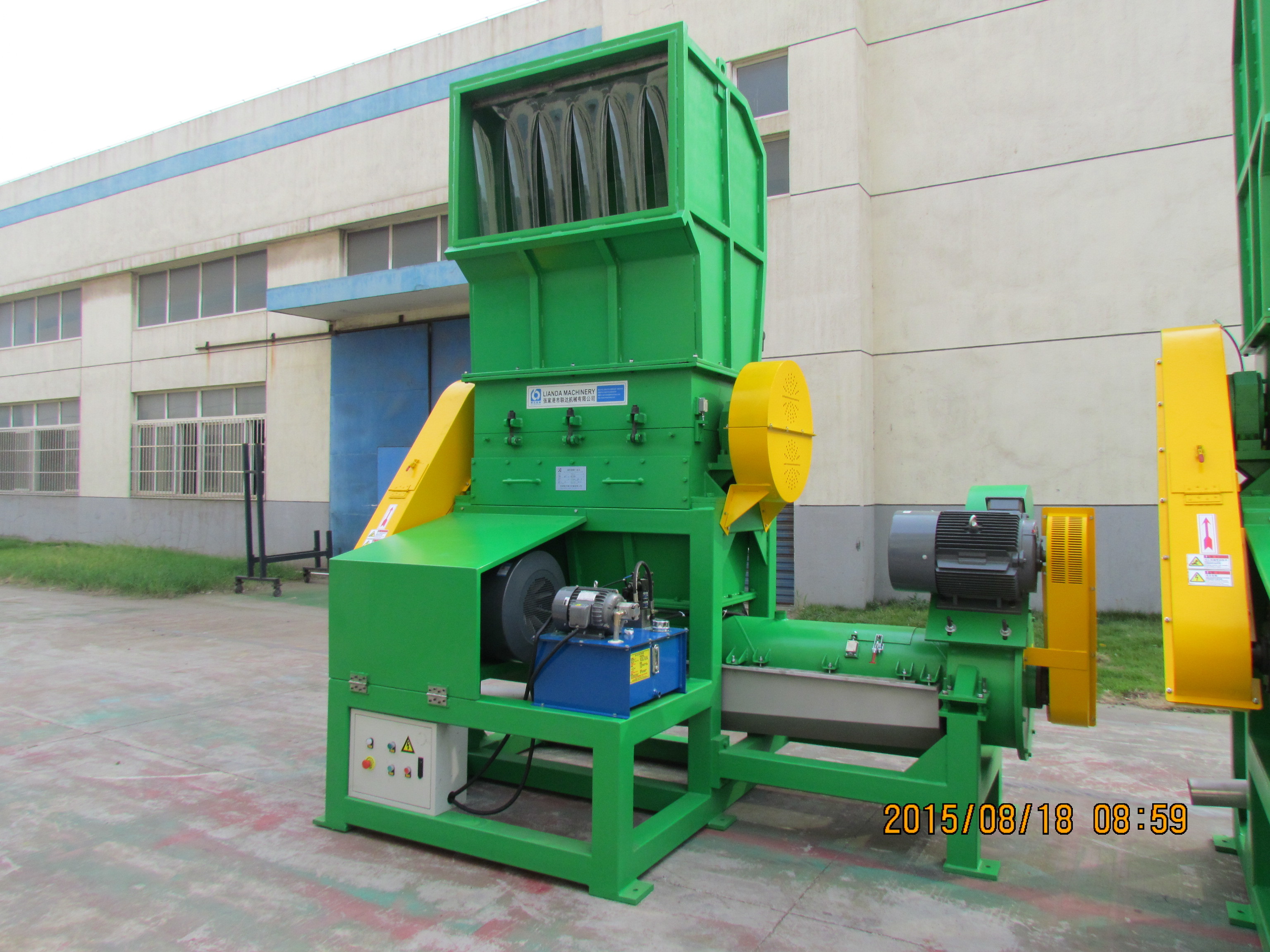

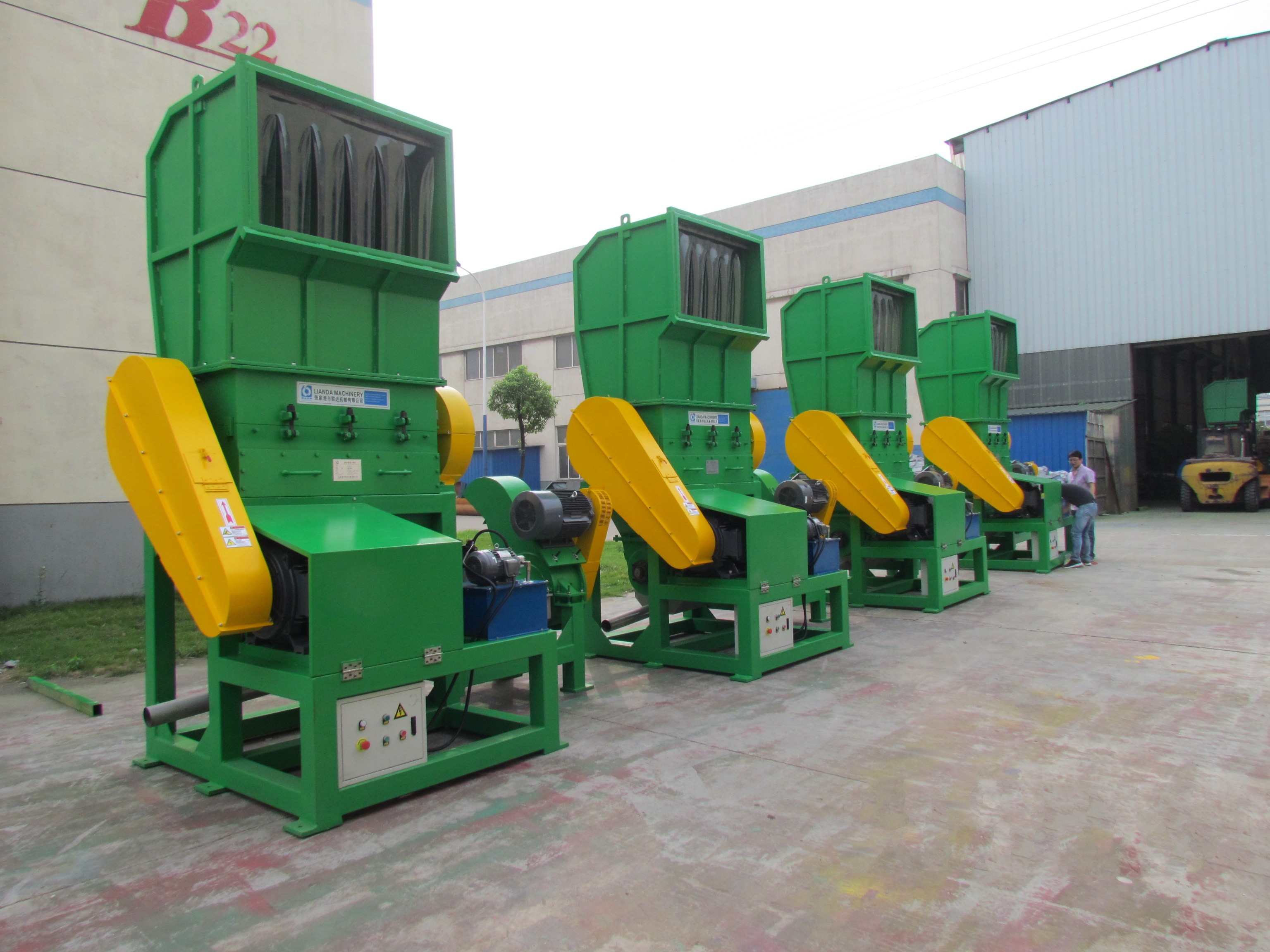

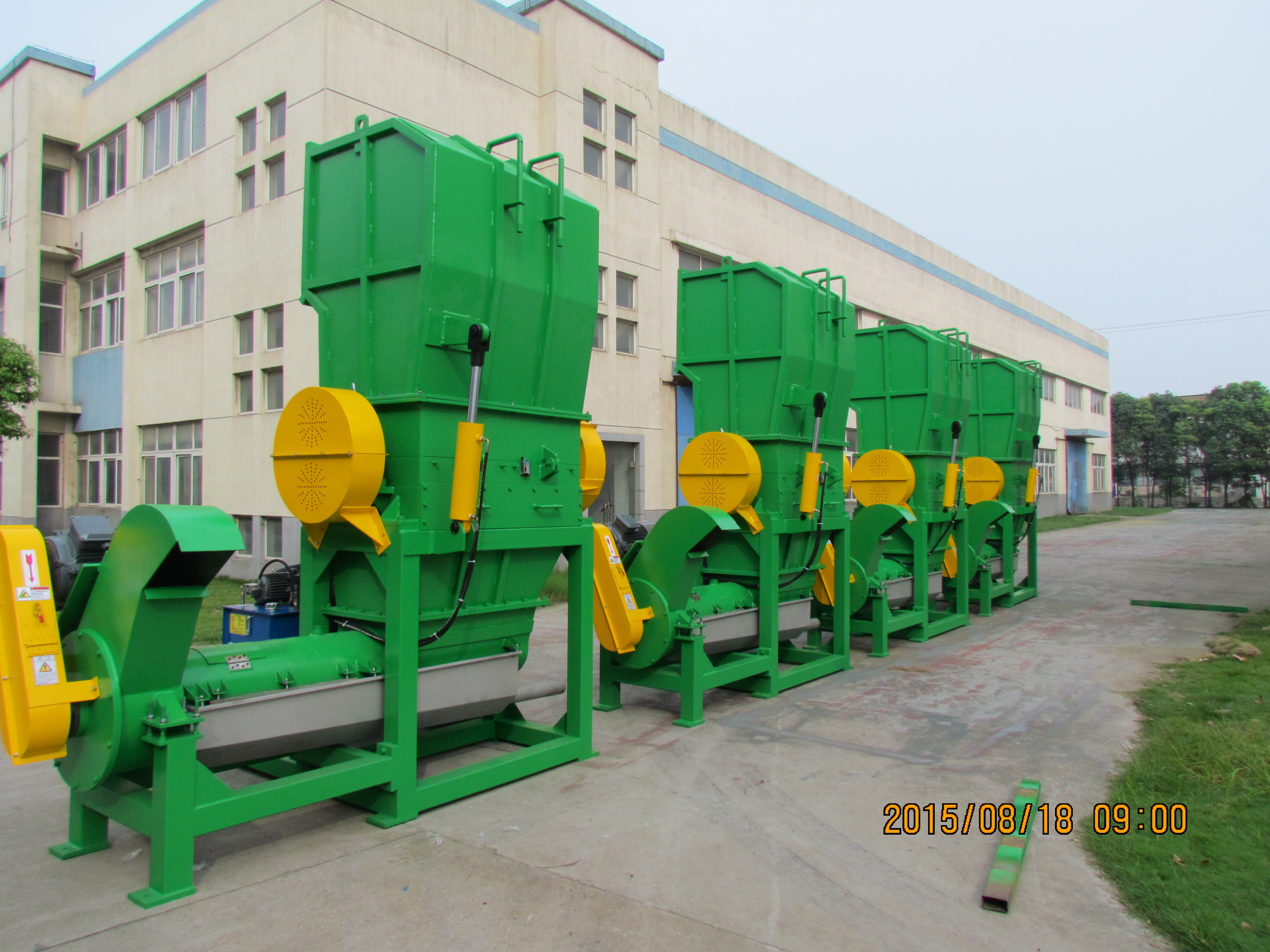

Machine pictures:
