CE Siemens Motor PLA Sheet Plastic Dryer Machine

USD 10,000-USD30,000
CE Siemens Motor PLA Sheet Plastic Dryer Machine
Features Gallery Product Description Request A Quote
Drying Temperature: Can Be Adjustable By Material Property
Drying Time: 20mins (can Be Adjustable By Moisture Need)
Power Consumpron: Only 45% Of Conventional Dehumidifier
Processing: Feeding--Drying And Crystallization---Discharging
Heater: Infrared Lamps
Power Source: 380V 50hz 3PHASE Or Customized
Control System: Siemens PLC
Delivery Time: 30 Working Days
Certificate: CE,IS09001, SGS
Motor Brand: Siemens Bade
Viscosity: Without Increasing Or Reducing
Final Moisture: 50-70ppm
High Light:

PLA Sheet Plastic Dryer Machine


Siemens Motor Plastic Dryer Machine


CE Plastic Dryer Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,SGS,ISO9001
Model Number: LDHW-100
Payment & Shipping Terms
Packaging Details: Factory standard package or customized package
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union
Product Description

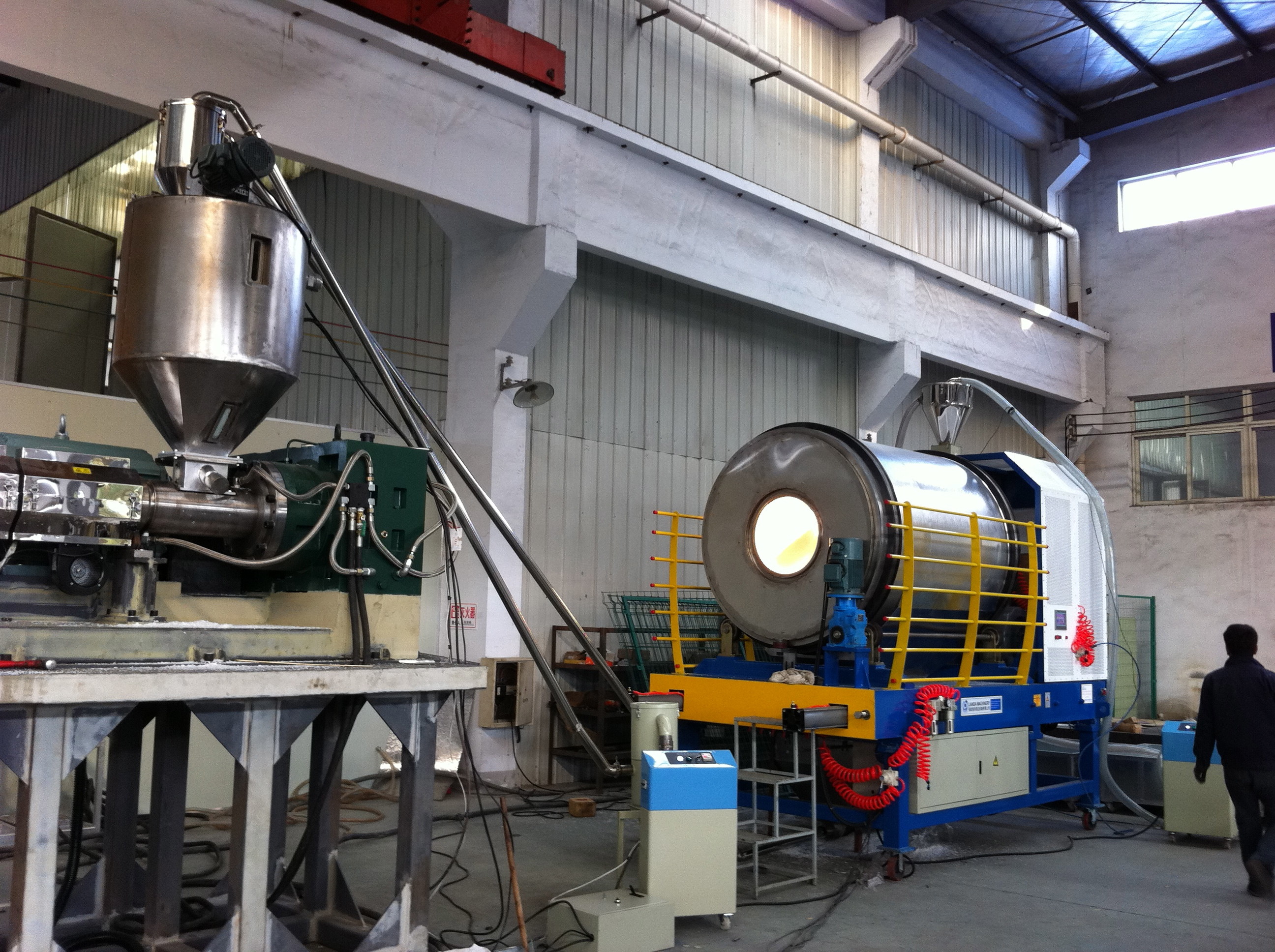

Pre-crystallization and dryer for PET chips/scraps/pellets for PET /PLA Sheet extrusion machine line


CE Siemens Motor PLA Sheet Plastic Dryer Machine 0



CE Siemens Motor PLA Sheet Plastic Dryer Machine 1


Field of applications.

Heating.Heating granules and regrind material prior to further processing (e.g. PVC, PE, PP,…) inter alia to improve the throughput in the extrusion.

Crystallization.Crystallisation of PET (Bottleflakes, granules, flakes), PET masterbatch, co-PET, PBT, PEEK, PLA, PPS, etc.

Drying.Drying of plastic granules, and –ground material (e.g. PET, PBT, ABS/PC, HDPE, LCP, PC, PP, PVB, WPC, TPE, TPU) as well as other free-flowing bulk materials.

Coating.Coating of adhesives (e.g. Hot melt, EVA+lime,…)

High input moisture.Drying processes with high input moisture >1%.

Diverse.Thermal processes for the removal of rest oligomeren and volatile components.

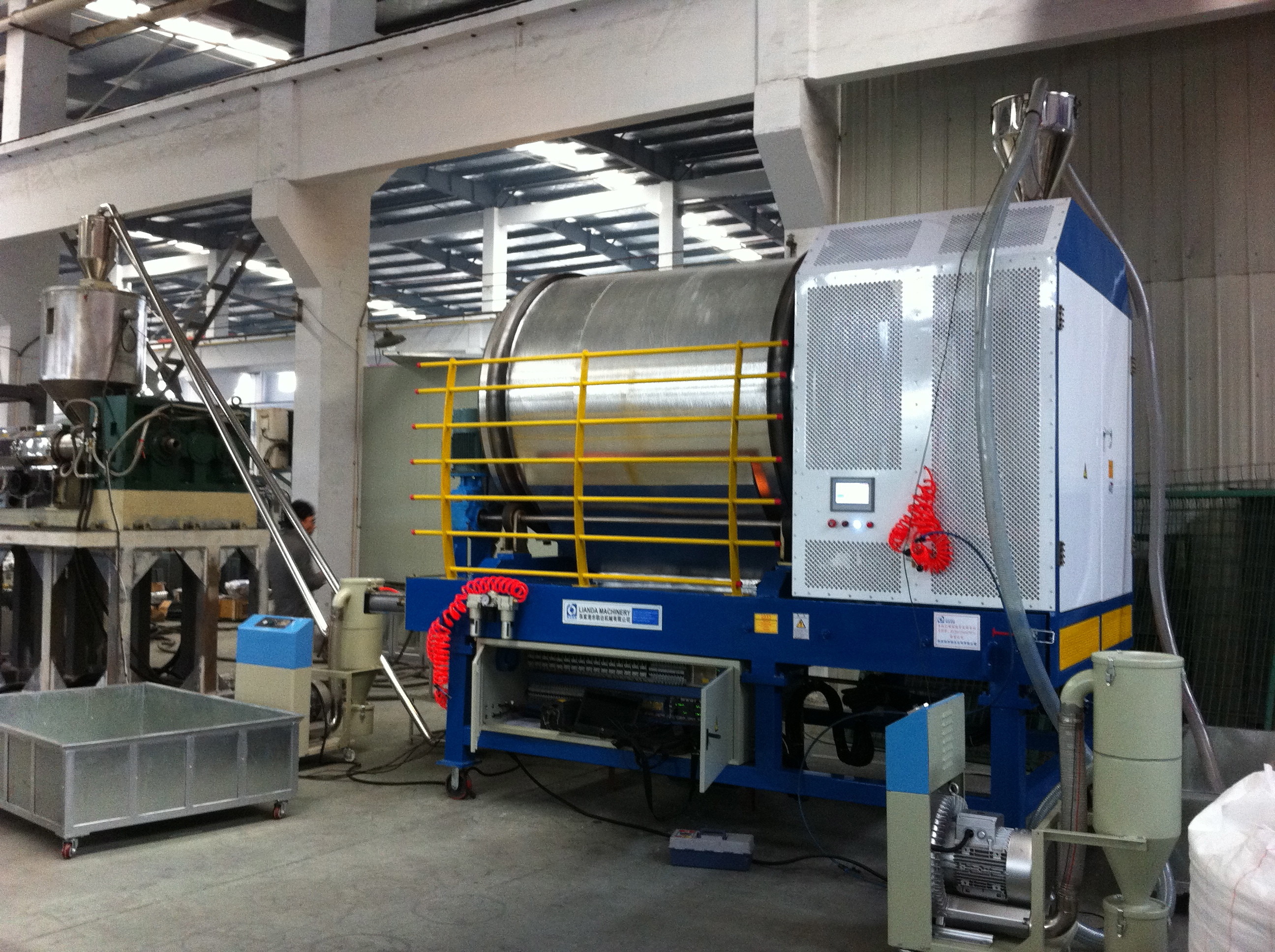

Our woking processing



CE Siemens Motor PLA Sheet Plastic Dryer Machine 2

1. Material  Filling

By vacuum dosing feeder to convey the raw material continuously to the rotating drum



2. Drying and Crystallization

Thermal treatment and mixing. There are the spirals welded into the rotary drum to ensure the well mixture of material and continuous transfer to the outlet. And the material will also be dried continuously


3. Discharging

The dried and crystallized material will be discharged after minutes drying by drum rotary. Finally the dried and crystallized material will be conveyed to the next processing.





Advantage of IRD Processing


Low energy consumption.Significantly lower energy consumption compared to conventional processes, through the direct introduction of infrared energy to the product.

Minutes instead hours.The product remains for only a few minutes in drying process and is then available for further production steps.

Instantly.An immediate start of the production run is possible immediately upon startup. A warm-up phase of the machine is not required.

High efficiency.The energy is immediately brought into the core of the product.

Gently.The material is gently from the inside to the outside heated and not loaded from the outside for hours with heat / damaged.

Easy.Good access to all components allows for easy and fast cleaning. Rapid product change-over.

In one step.Crystallization and drying in one step.

Increase throughput.Increase of throughput of the plant through relief of the extruder.

Evenly.Ensuring a constant discharge.


Advantage of IRD Processing

1 Rotary drum design To dry the material evenly
The spiral coils design of the drum ensure the good mixture of the raw material to avoid material clumping
2 Retention time Depends on the speed of Rotary drum
The speed can be adjustable by the property of drying material

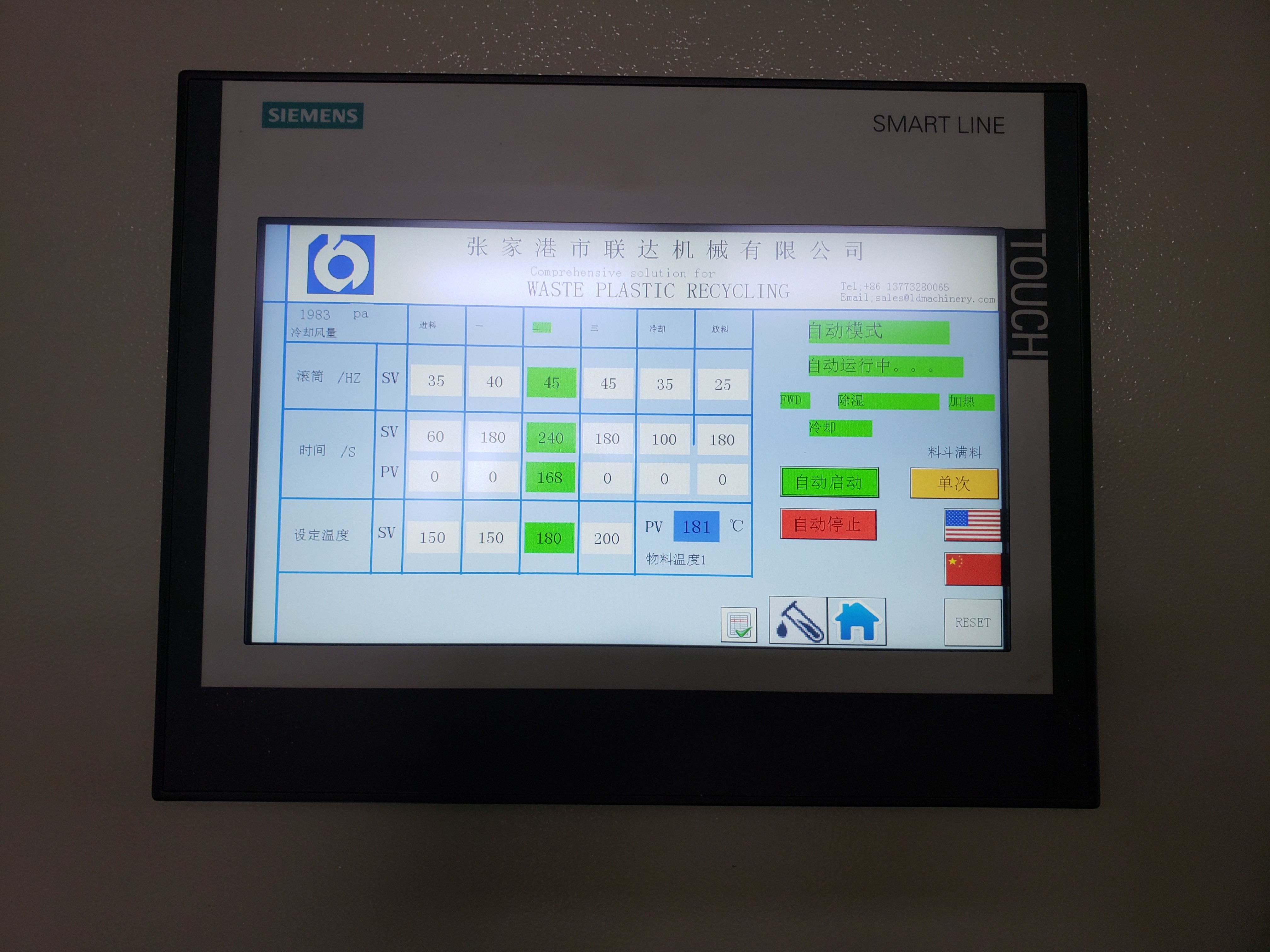

3 PLC Controlling system The material retention time,drum rotating speed
The Infrared lamps performance, drying temperature
The feeding speed of Vacuum feeder
4 Reproducibility Recipes and process parameters can be stored in the controlling system to ensure opimal and reproducible results
5 In one step Drying and crystallization in one step
6 High efficiency Minutes drying and crystallization instead of hours( Compared to conventional dehumidifier and crystallizer)
7 Fast cleaning

Allow for easy and fast cleaning.

Rapid product change-over







CE Siemens Motor PLA Sheet Plastic Dryer Machine 3

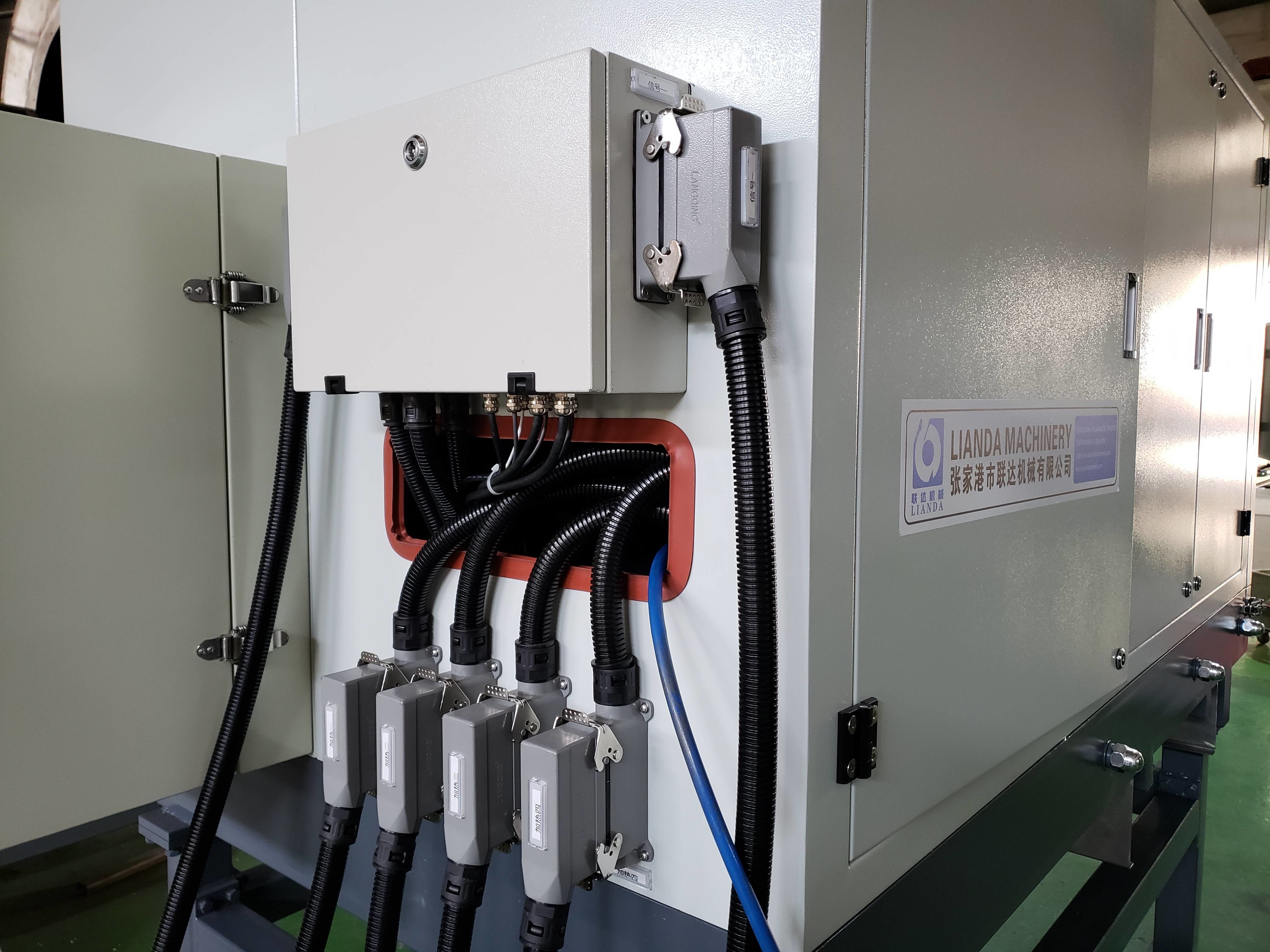

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory

Our Service
CE Siemens Motor PLA Sheet Plastic Dryer Machine 4
1.We will provide testing if the customer comes to visit factory to see the machine.
2.We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents which customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty time,we will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole lifetime .


Application examples:


  • Drying and crystallizing of PET to 50PPM


  • Drying and crystallizing of PLA


  • Drying of TPU


  • Drying and heating of PE pellets to remove volatiles


  • Crystallization of masterbatch in small batches


  • Drying and crystallizing of PET for pelletizing or sheet extrusion


  • Drying and crystallizing of PLA for pelletizing or sheet extrusion


  • Drying and crystallizing of PPS Pellets, amorphous Co-Polyester


  • Drying, crystallizing and heating of bulk materials
  • PET Masterbatch Crystallization
  • PP Masterbatch dryer
  • Co-PET Crystallization
  • PBT Crystallization
  • PEEK Crystallization
  • PPS Crystallization
  • Drying of plastic granules, and PET, PBT, ABS/PC, HDPE, LCP, PC, PP, PVB, WPC, TPE, TPU etc.( free-flowing bulk materials)
  • Removal of rest oligomeren and volatile components
