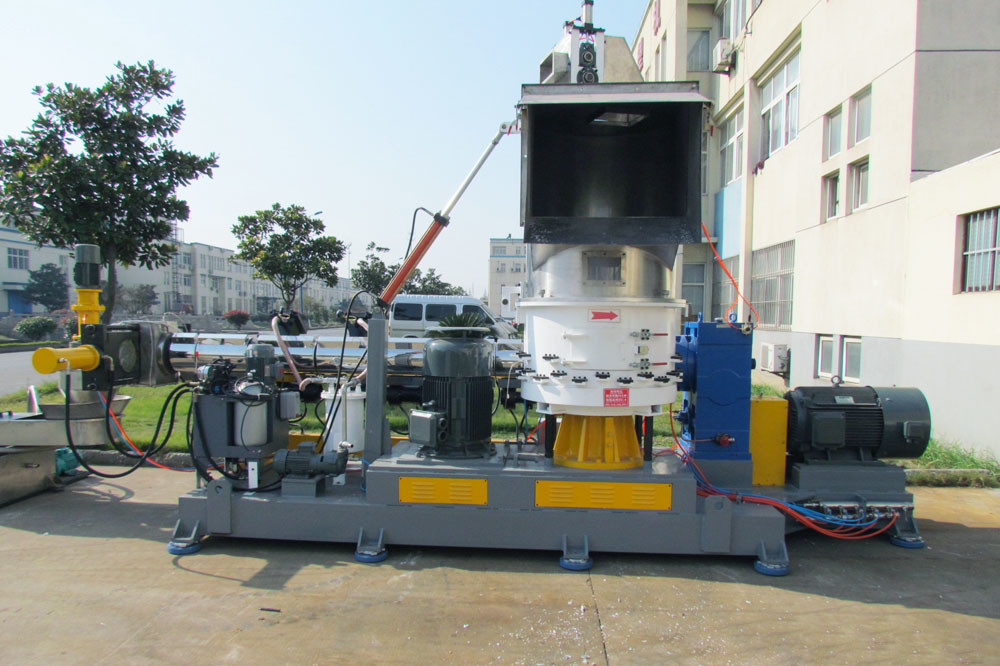

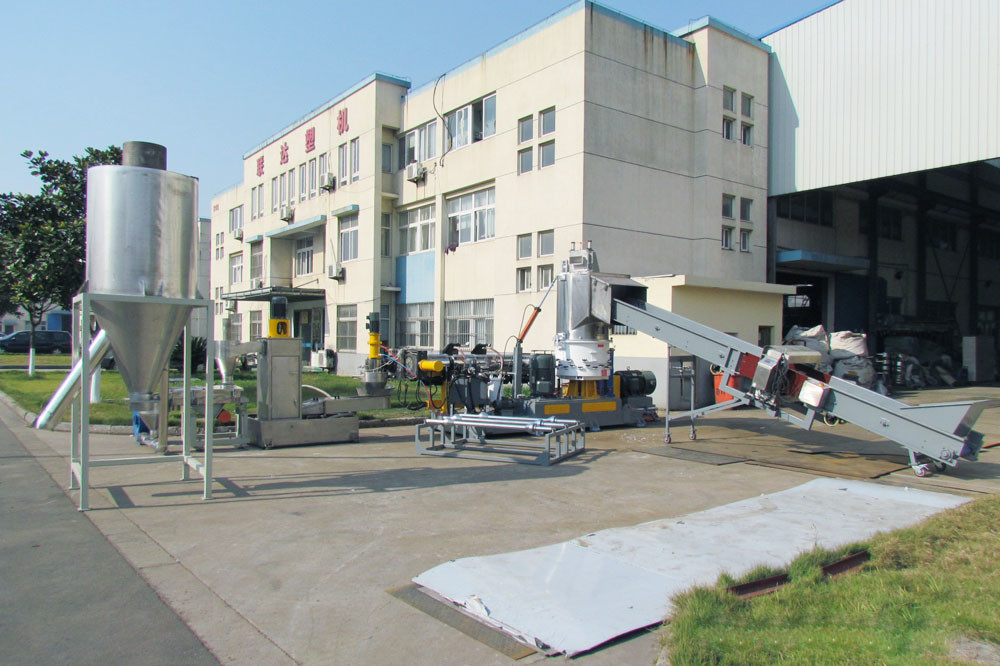

PP PE film compacting granulating line
Film Compacting& Cutting Granulating machine line: Cutting, Extruding, Pelletizing is combined into the production line --- High efficient, High output. Film Compacting &Cutting Granulating machine line is automatic working processing — Feeding ,Cutting, Conveying and Granulating, save labor cost. The machine line is matched with vacuum system to remove the moisture, waste gas and make the particle much more compressed.
Model | SJ-100 | SJ-120 | SJ-150 | SJ200 |
Screw diameter | 100mm | 120mm | 150mm | 200mm |
Capacity | 150kg/h | 300kg/h | 500kg/h | 700kg/h |
Single / Double stage | Customized | |||
Above are the standard model of our company, if you have any special requirement, please contact us | ||||
Applicable plastic materials: PP, LDPE, LLDPE, HDPE, BOPP, etc. Woven bags, printed LDPE film (rolls, loose, bundled), agriculture film, foamed plastics and raffia, etc. Note: depending on material property, various downstream equipment is available. |
