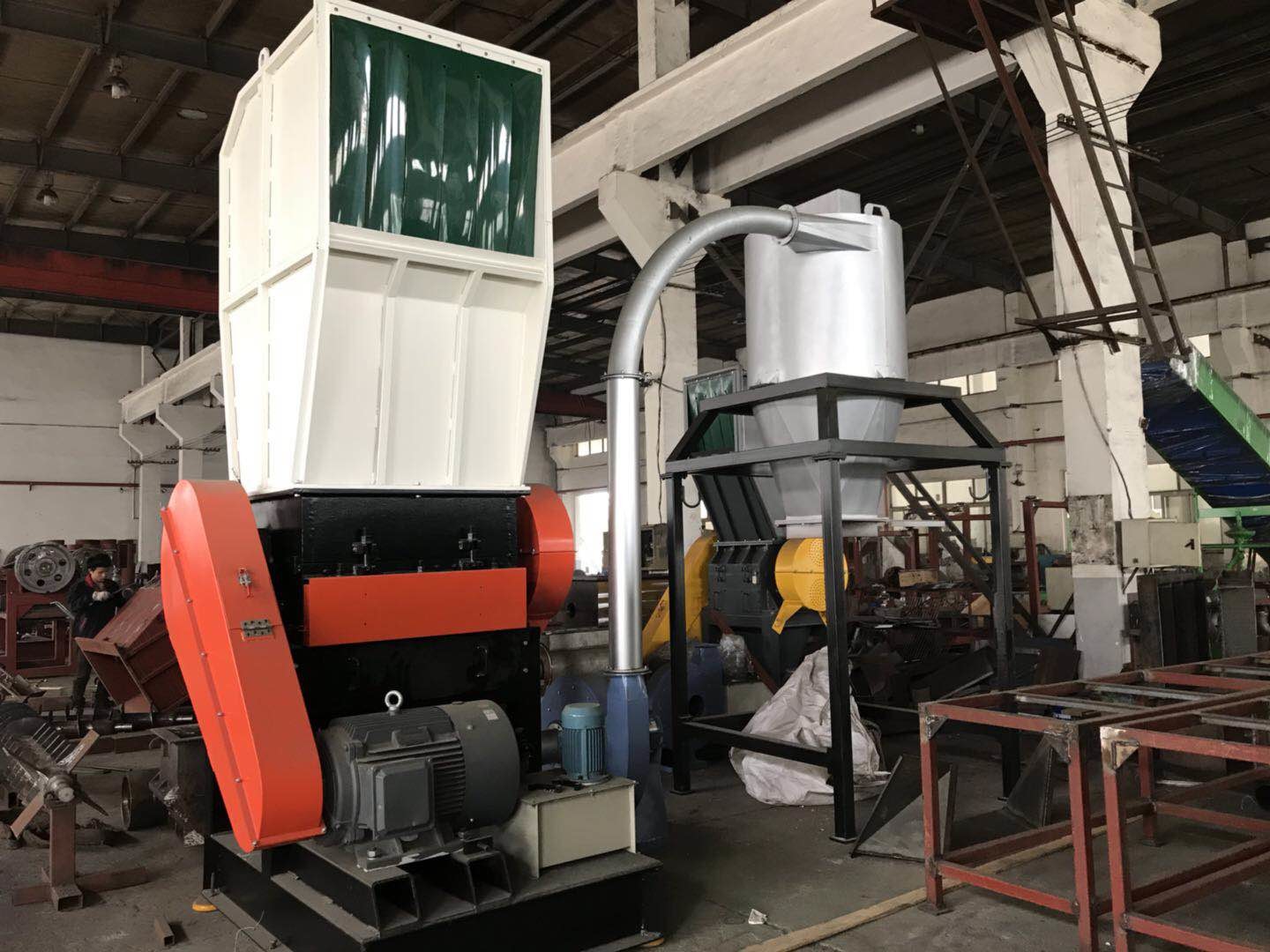

Adjustable Knives 30kw V Cutting Plastic Crushing Machine

Adjustable Knives 30kw V Cutting Plastic Crushing Machine
Features Gallery Product Description Request A Quote
Capacity: 100-1000kg/h Plastic Crusher
Voltage: 380V/50Hz/3Phase,Customized
Use: Waste Plastic Crusher,Film Crusher, PP Raffia Bag Crusher, Agricultural Film Recycling Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
Certification: CE,ISO9001,CE ISO SGS
Warranty: 1 Year
Usage: Waste Plastic Cusher,Waste Recycling,plastic Industry
Type: Environment-friendly,crusher Of Plastic,plastic Crusher Machine,Plastic Material Grinding Machine,plastic Recycling Machine Hard Material Scrap Plastic Crusher Machine
Application: Recycle Waste Plastic,Scrap Crusher,Plastic Crushing Machine,PET Bottle/PP/PE/PVC Film
Name: Waste Palstic Crushing,plastic Shredder And Crusher,crusher Of Plastic
Blades Material: SKD-11,9CrSi,9CrSi/D2/SKD-11plastic Crusher
Product Name: Crushing Machine,Grinder Plastic Recycling Machine,Crusher Cleaning Machine And Plastic Crusher Machine For Sale,Shreddder Machine
High Light:

V Cutting Plastic Crushing Machine


30kw Plastic Crushing Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,SGS,ISO9001
Model Number: DSPL-1000
Payment & Shipping Terms
Packaging Details: Factory standard package or customized package
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union
Product Description

Professional Powerful PP PE plastic agricultural film Crusher machine


Adjustable Knives 30kw V Cutting Plastic Crushing Machine 0





>>The LIANDA Film Granulator has been specially designed for the processing of flms,plastic bags, pp raffia bag, Jumbo bags, Cement bags etc soft plastic. It has a centrally hinged two-piece cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re- sharpening and adjustment of the stator knives. There is a hinged screen cradle and hinged door for easy screen access.
>>The v-cut cutting geometry offers distinct advantages over other rotor designs, including higher throughput with reduced power consumption, better quality cut, and lower noise levels. The  rotor configuration provides between 20-40% additional throughput in comparison to standard rotor configurations.

It is also ideal machine for the secondary cutting when positioned behind pre-shredders of recycling systems.



600 900
Rotor Diameter


Rotor Knives


Stator Knives
2 4 4
Motor Power



>>Anti-wear machine housing
>>Ladder blade rotor configuration for films
>>Suitable for wet and dry granulation .
>>20-40% aditional throughput
>>Heavy duty bearings
>>Oversized external bearing housings
>>Knives are externally adjustable
>>Robust welded steel construction
>>Wide choice of rotor variations
>>Electrical hydraulic control to open housing
>>Electrical hydraulic control to open screen cradle
>>Replaceable wear plates
>>Amp meter control


3.Machine Details





Blades frame

Using "V" structure design, professional design for soft plastics;

Adjustable Knives 30kw V Cutting Plastic Crushing Machine 1

The 1-2mm distance between the screen and the blade is the guarantee for doubling the output, and the requirements for equipment processing and manufacturing are more difficult;

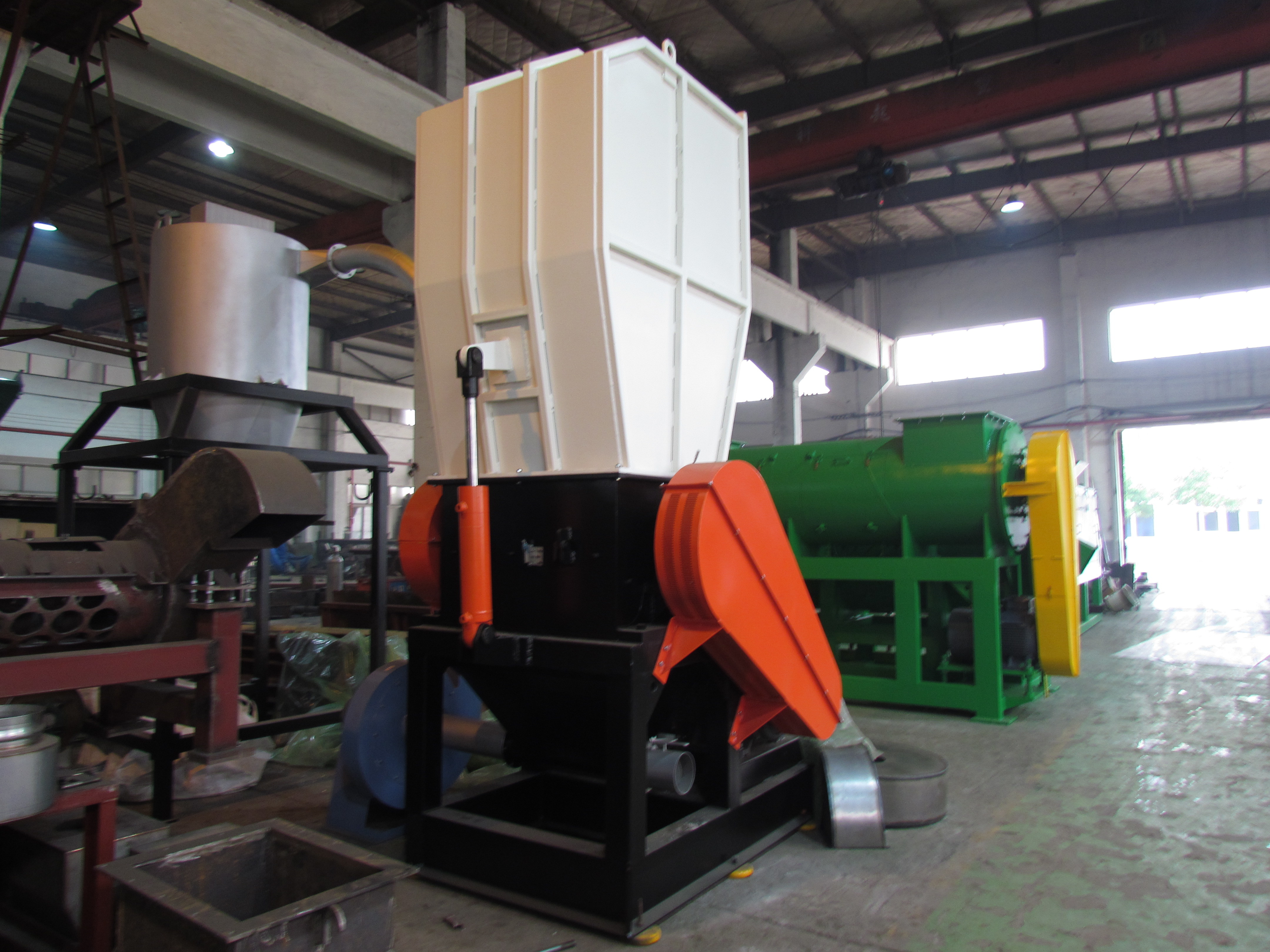

Crusher open

Adopt Hydraulic open.

Hydraulic tipping device can efficiently, safely and quickly improve the blade sharpening work;






Adjustable Knives 30kw V Cutting Plastic Crushing Machine 2

The design of the plastic bottle crusher is reasonable, and the body is welded with high-performance steel;


Adjustable Knives 30kw V Cutting Plastic Crushing Machine 3

Adopt high-strength screws to fasten, solid structure and durable.

External bearing seat.

Effectively avoid the casing of the crushing of material into the bearing, improve the bearing life

Adjustable Knives 30kw V Cutting Plastic Crushing Machine 4

Suitable for wet and dry crushing.

Sieve Screen

Welded strip screen makes the materials with high sediment content such as broken mulch film and agricultural film more wear-resistant;



Adjustable Knives 30kw V Cutting Plastic Crushing Machine 5

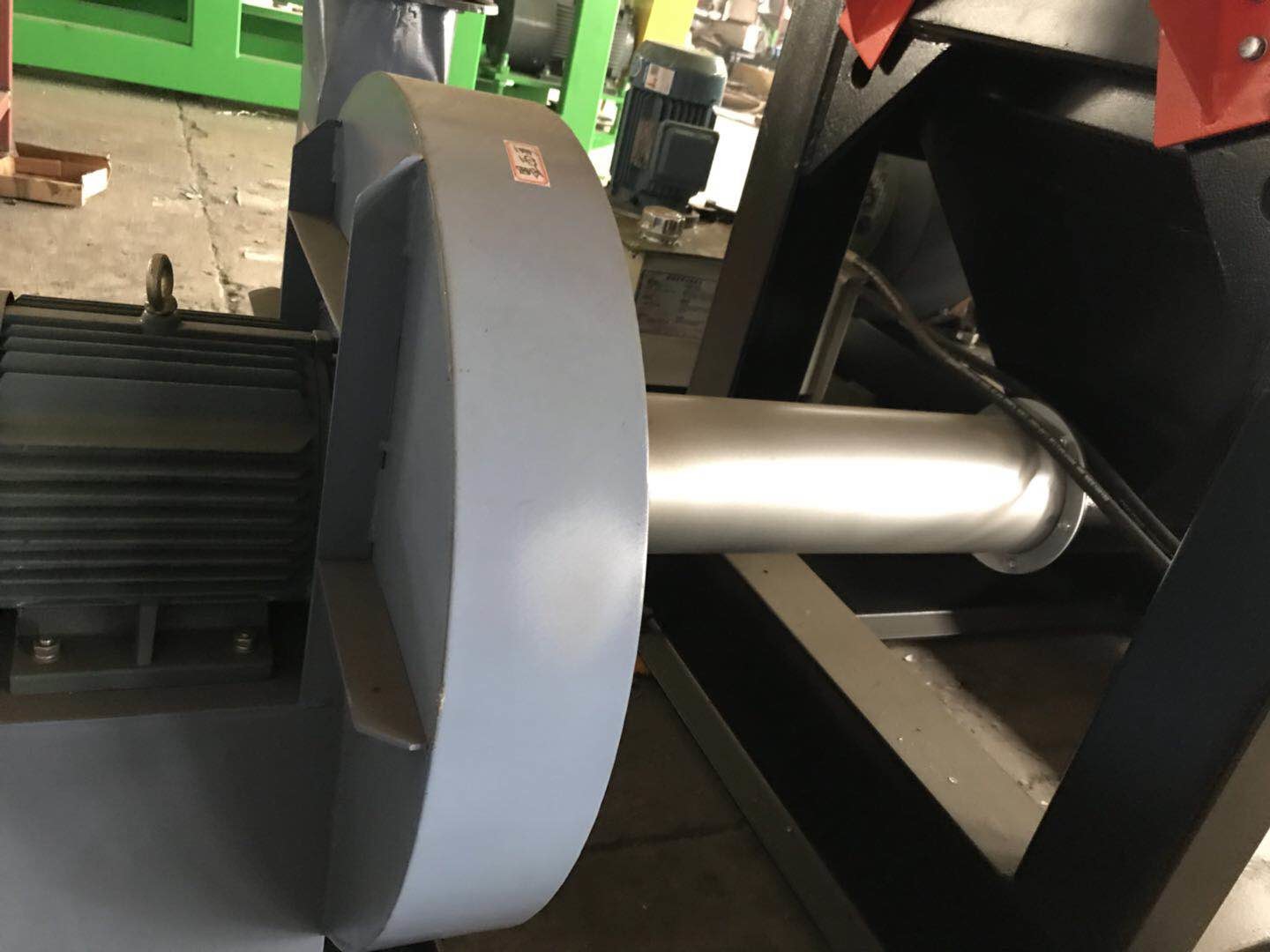

Equipped with an enlarged pulley to increase the inertia of the crusher, which can save energy and powerfully crush.




Adjustable Knives 30kw V Cutting Plastic Crushing Machine 6


Using Siemens motors and Wafangdian bearings, high-quality configuration to ensure the stability of long-term work.






Adjustable Knives 30kw V Cutting Plastic Crushing Machine 7


Electrical elements

Adopt Star-Delta Start











Adjustable Knives 30kw V Cutting Plastic Crushing Machine 8


Turnkey project service:

1.Pre-sale: we given client the details technician offer etc
2.In-sales: we supply the details layout, installation instruction, technician support for the clients
3.After sales: we arrange engineer to install the machinery and training the workers for client
4.We have 24 hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always up date the new technology to every customer
