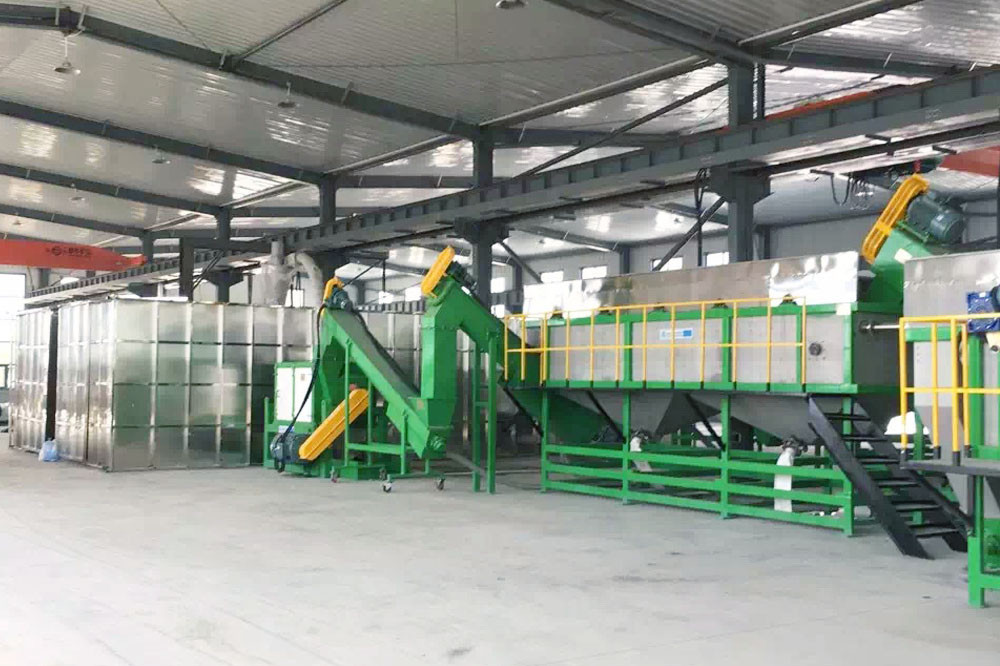

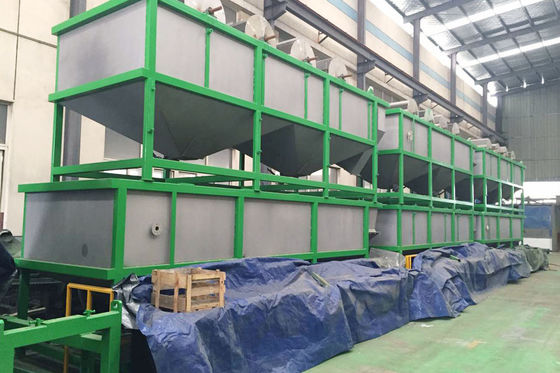

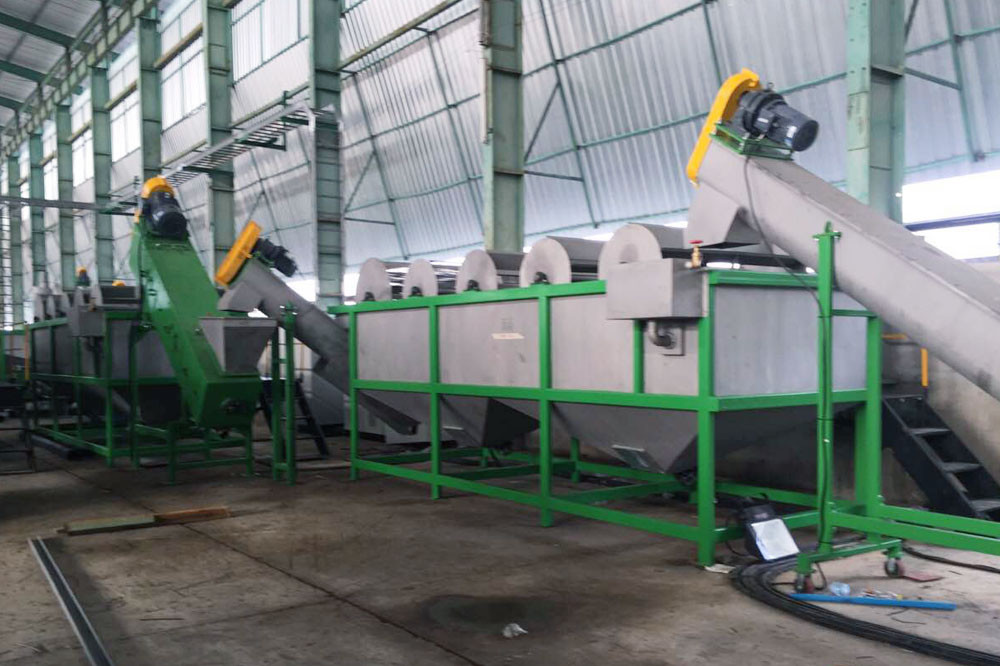

Film floating washer is used for various film washing and separating sands, impurity. It can be work separately or matched with complete production line.
Lianda Special design on Floating washer
1. The roller on the top of floating washer is controlled by inverter. The last roller – Lianda special design is for getting the washed film out of the water and convey the washed film to the next step. By that design, the film will be get out from water without water waste.
2. Bottom design—we adopt bottom tip type which is good for collecting the sediment mud/sand in the bottom tip. After washing, the sand/mud can be flushed away by water flow.
3. Customized requirement can be satisfied.
Name | Film floating washer | ||
Model | LDPX-300 | LDPX-500 | LDPX-1000 |
Material pushing motor power KW | 2.2kw*3 | 2.2*3 | 2.2*4pcs |
Film getting from water motor power KW | 3 | 3 | 4 |
Dimension L*W ( MM ) |
6000*1200 | 6000*2000 | 8000*2000 |
Material | S.S304 | S.S304 | S.S304 |
