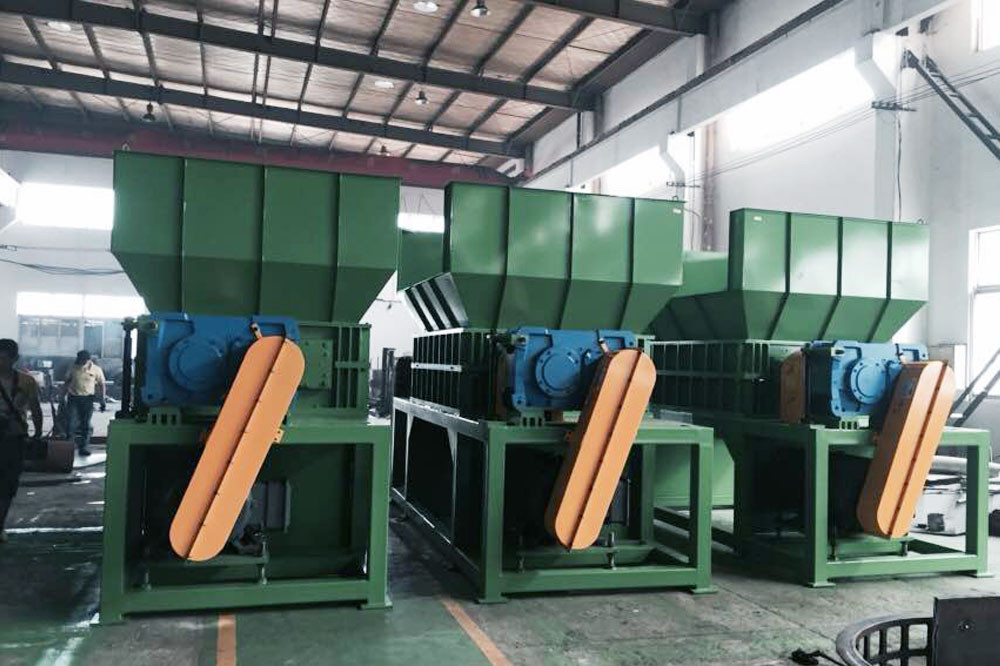

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade

1set
MOQ
45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade
Features Gallery Product Description Request A Quote
Features
Specifications
Applied: Plastic Container, Plastic Drum,etc...
Voltage: Customized
Warranty: 12 Months
Service: 24 Hours
High Light:

45*2kw Drum Shredder Machine

,

45*2kw Plastic Container Shredder

,

50mm Blade Drum Shredder Machine

Basic Infomation
Place of Origin: China
Brand Name: Lianda
Certification: CE,ISO9001
Payment & Shipping Terms
Packaging Details: film packing
Delivery Time: 5~8weeks
Payment Terms: L/C, T/T
Supply Ability: 100 sets/year
Product Description

Double shaft shredder machine,plastic container shredder,plastic drum shredder,industrial plastic shredder,solid waste

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 0



LIANDA Design





45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 1

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 2

Metal material:

Aluminum material,motor shell,oil drum, waste vehicle crust,ferrous waste, waste steel plate etc

Waste tires:

Car tire, truck tire,OTR tire etc

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 3

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 4

Electronic waste:

Waste fridge,TV, Washer etc

Plastics:

Plastic drums,packing case, plastic pallet, plastic can etc

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 5

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 6

Metal drum



Industrial waste

Machine model

Model

Rotating

diameter

(mm)

Main shaft speed

(rpm)

Blade Thickness

(mm)

Blade quantity

(pcs)

Cutting chamber

(mm)

Motor power

(kw)

LD-800 320*2 20 40 22 800*650 18.5*2
LD-1000 360*2 20 50 20 1000*650 22*2
LD-1200 420*2 20 50 29 1200*800 45*2
LD-1500 514*2 20 50 32 1500*1000 110*2



Machine Details

1









Components of double shaft shredder

  • Rotary blades: cutting materials
  • Spacer: Control the gap of rotary blades
  • Fixed blades: prevent materials from wrapping around the blade shaft

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 7

45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 8

Different material adopt different blade rotor model
German imported blade material have strong impact resistance, and broken metal knives will not break.
Both the inner hole of the tool and the spindle surface adopt a hexagonal design to realize the uniformity of the blade force.

The blades are arranged in a spiral line to realize efficient cutting.







2

The bearing is four-fold sealed, effectively waterproof and dustproof.







45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 9

Split bearing seat design to facilitate bearing and rotor maintenance
3

Adopt planetary gear reducer, smooth running and shock resistant













45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 10

4

Siemens PLC monitors the motor current in real time, and the knife axis automatically reverses when the load is overloaded to protect the motor;













45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 11

5 The equipment has passed CE certification and complies with EU safety standards



45*2kw Plastic Container Shredder , Drum Shredder Machine 50mm Blade 12
