440V Plastic Pellet Dryer , Pet Crystallizer Dryer Rotary Drum

1set
MOQ
440V Plastic Pellet Dryer , Pet Crystallizer Dryer Rotary Drum
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Certification: CE,ISO9001,SGS
Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Capacity: 80-1000KG/H
Voltage: 220V/380V/415V/440V 50Hz/60Hz (Customizable)
Name: Industrial Plastic Pellet Dehumidifier Dryer In China,Plastic Crystallizer Dryer Machine / Hopper Dryer For Plastic
Application: APET, GPET, CPET, PLA, HIPS, PE, ABS, EVA ,PC, PEEK, PPS, PTFE, PEEK, TPU, TPE E.g
Suitable For: Plastic Raw Material
Usage: PET/PLA Sheet Extrusion Line, PET Monofiber, PET Masterbatch , PET Pellets/granulating Line Etc
High Light:

440V Plastic Pellet Dryer

,

440V Pet Crystallizer Dryer

,

Rotary Drum Pet Crystallizer Dryer

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,ISO9000,SGS
Model Number: LDHW-100
Payment & Shipping Terms
Packaging Details: Standard factory package / customized package
Delivery Time: 30 working days
Payment Terms: T/T, L/C, Western Union
Product Description

Drying and Crystallization of PET chips/scraps/pellets for Sheet extrusion



If you use Twin-screw or Multi screw extruder with vacuum degassing system, why still need to use Infrared crystal dryer to work together?

  • Continuous material feeding into Sheet extruder
  • Increased output: up to 50% higher
  • Increased bulk density of material: normally 20-50% depends on material type
  • Reducing the complexity of vacuum system
  • Increased stability of the operation of extruding line and product quality
  • Lower requirement for raw material used
  • Low down the operation cost up to 20% compared to the systems without IRD (Infrared crystal dryer )

Our processing

Normally the PET Bottle flakes or sheet scrap with initial moisture level of up to 10000-13000ppm. The PET Bottle flakes or sheet scrap (Virgin or mixed ) will be recrystallized in a continuous IRD in 10-15mins, the drying temperature will be 150-180℃and dried to 1000ppm,then fed to Double screw extruding system for further processing

l Limiting the hydrolytic degradation of the viscosity.

l Prevent increasing AA levels for materials with food contact

l Increasing the capacity of the production line up to 50%

l Improvement and make the product quality stable-- Equal and repeatable input moisture content of the material



Processing explanation

Continuously processing ( Production without interruption with PET Sheet production line )

1. Filling

By vacuum dosing feeder to convey the raw material continuously to the rotating drum

2. Drying and Crystallization

Thermal treatment and mixing. There are the spirals welded into the rotary drum to ensure the well mixture of material and continuous transfer to the outlet. And the material will also be dried continuously

3. Discharging

The dried and crystallized material will be discharged after minutes drying by drum rotary. Finally the dried and crystallized material will be conveyed to the next processing.

440V Plastic Pellet Dryer , Pet Crystallizer Dryer Rotary Drum 0



Advantage of IRD Processing

1 Rotary drum design To dry the material evenly
The spiral coils design of the drum ensure the good mixture of the raw material to avoid material clumping
2 Retention time Depends on the speed of Rotary drum
The speed can be adjustable by the property of drying material
3 PLC Controlling system The material retention time,drum rotating speed
The Infrared lamps performance, drying temperature
The feeding speed of Vacuum feeder
4 Reproducibility Recipes and process parameters can be stored in the controlling system to ensure opimal and reproducible results
5 In one step Drying and crystallization in one step
6 High efficiency Minutes drying and crystallization instead of hours( Compared to conventional dehumidifier and crystallizer)
7 Fast cleaning

Allow for easy and fast cleaning.

Rapid product change-over











Machine photos

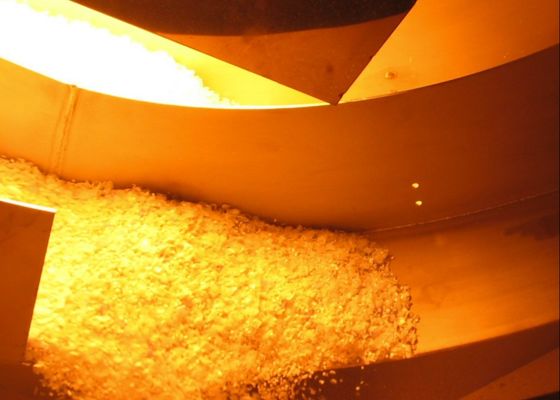

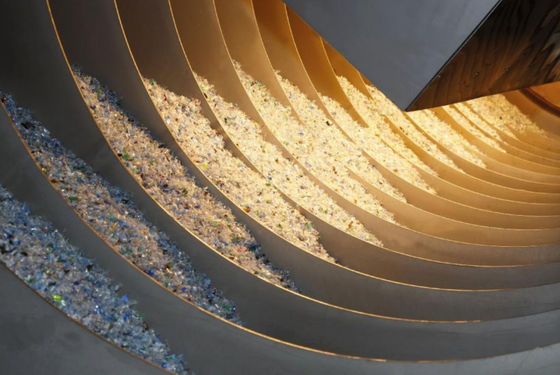

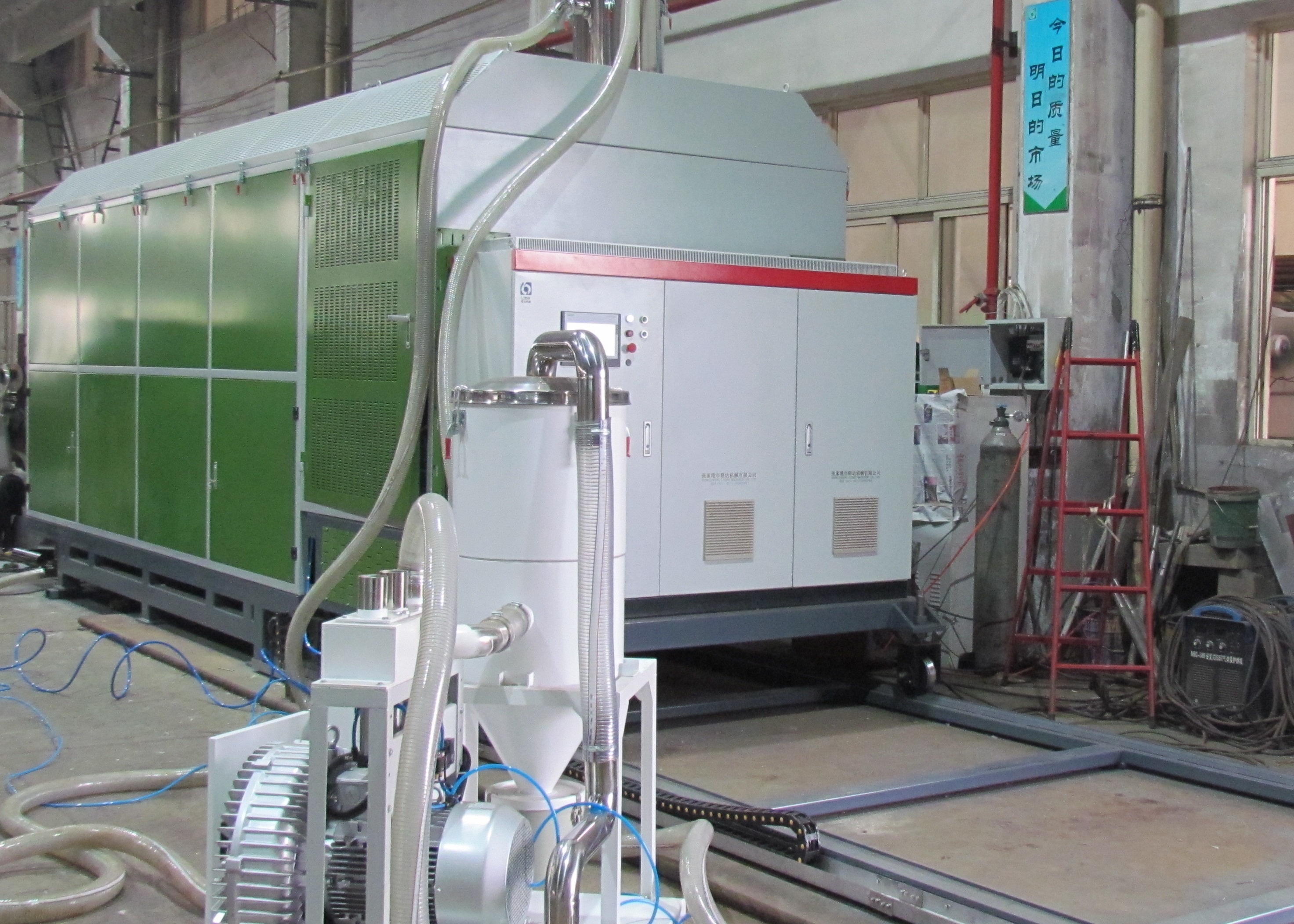

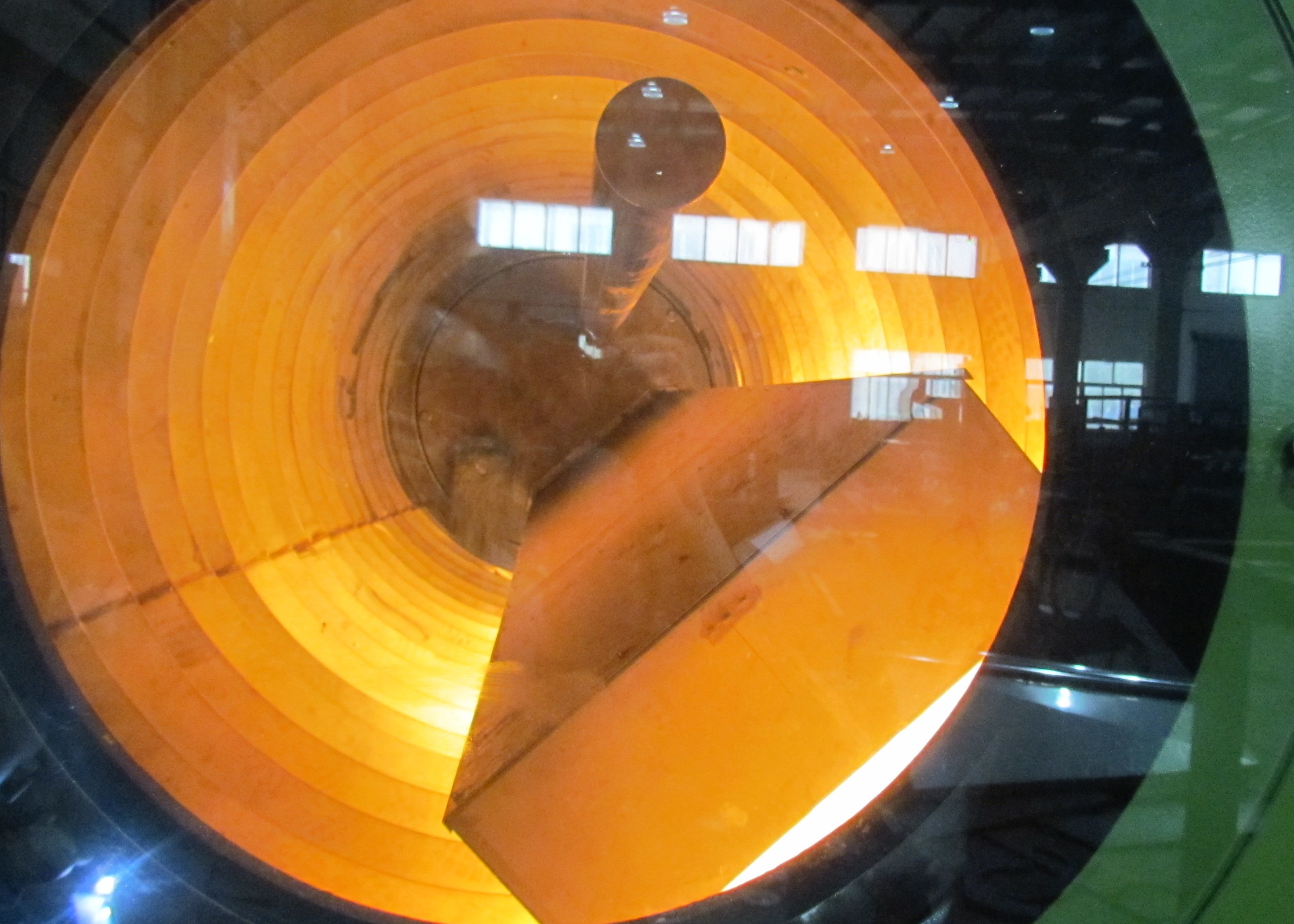

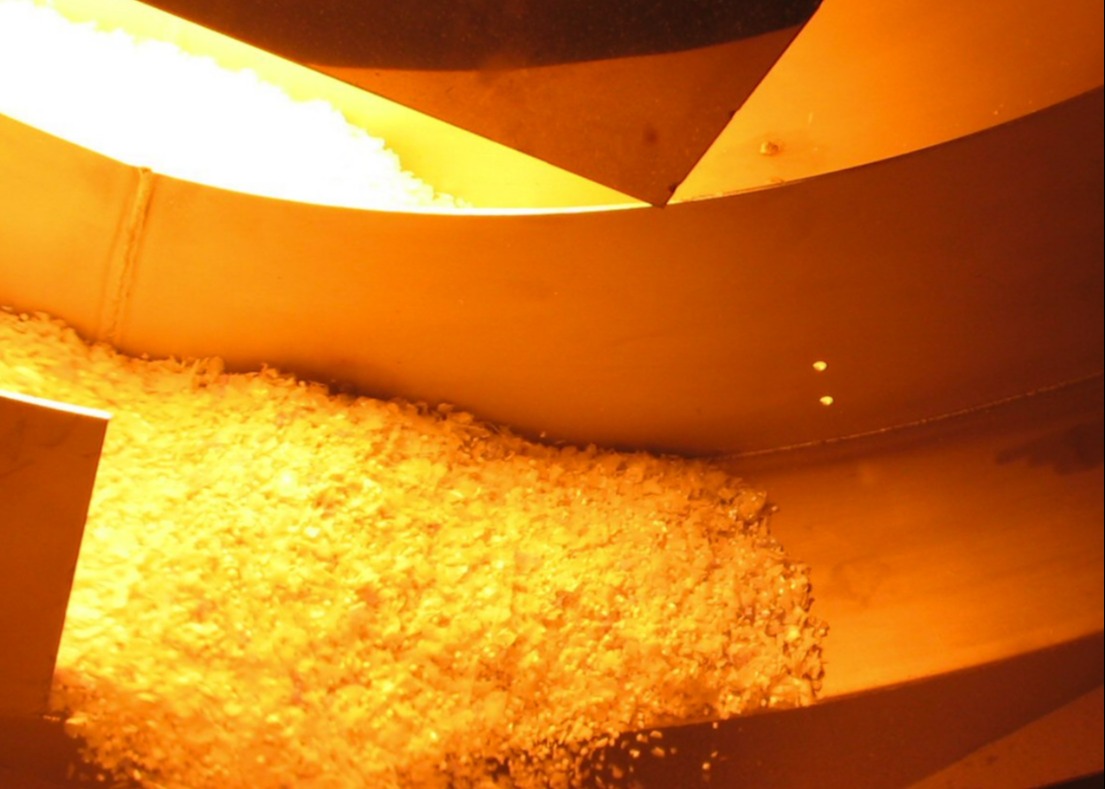

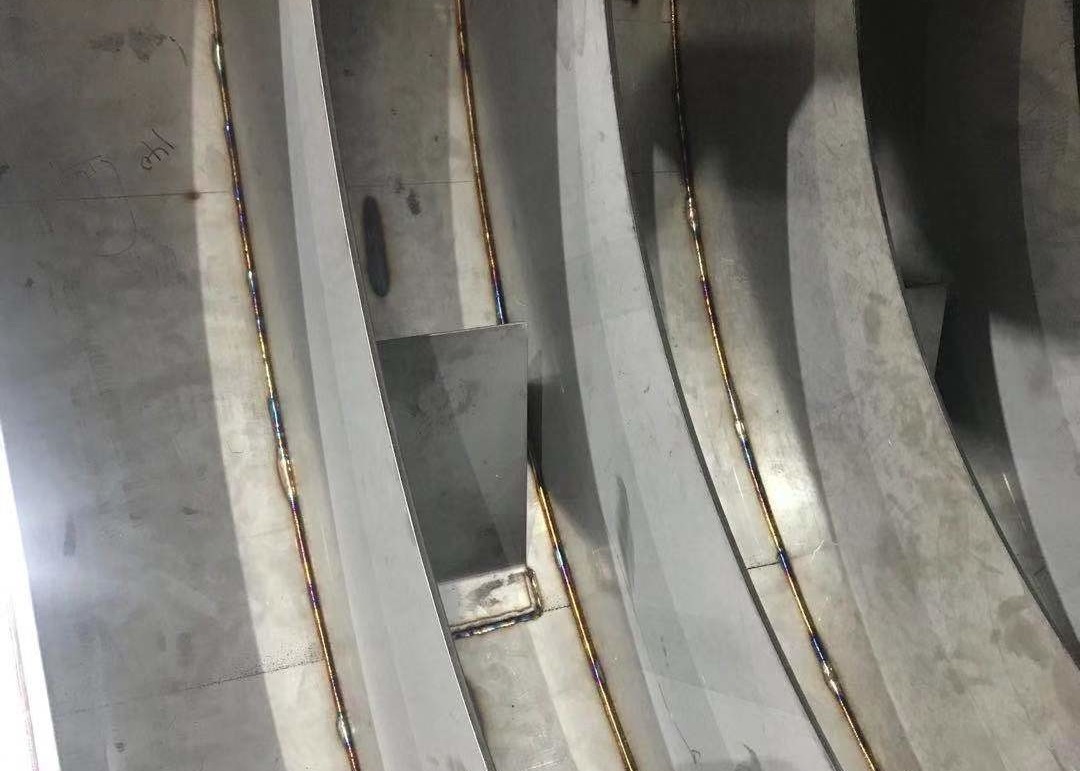

440V Plastic Pellet Dryer , Pet Crystallizer Dryer Rotary Drum 1



440V Plastic Pellet Dryer , Pet Crystallizer Dryer Rotary Drum 2



440V Plastic Pellet Dryer , Pet Crystallizer Dryer Rotary Drum 3



440V Plastic Pellet Dryer , Pet Crystallizer Dryer Rotary Drum 4



440V Plastic Pellet Dryer , Pet Crystallizer Dryer Rotary Drum 5



440V Plastic Pellet Dryer , Pet Crystallizer Dryer Rotary Drum 6

Application examples:



  • Drying and crystallizing of PET to 50PPM



  • Drying and crystallizing of PLA



  • Drying of TPU



  • Drying and heating of PE pellets to remove volatiles



  • Crystallization of masterbatch in small batches



  • Drying and crystallizing of PET for pelletizing or sheet extrusion



  • Drying and crystallizing of PLA for pelletizing or sheet extrusion



  • Drying and crystallizing of PPS Pellets, amorphous Co-Polyester



  • Drying, crystallizing and heating of bulk materials
  • PET Masterbatch Crystallization
  • PP Masterbatch dryer
  • Co-PET Crystallization
  • PBT Crystallization
  • PEEK Crystallization
  • PPS Crystallization
  • Drying of plastic granules, and PET, PBT, ABS/PC, HDPE, LCP, PC, PP, PVB, WPC, TPE, TPU etc.( free-flowing bulk materials)
  • Removal of rest oligomeren and volatile components
