High Technology Plastic PE PP Film Bag Bottle Barrel Crate Container Washing Line
>>WASTE PLASTIC PE PP HDPE LDPE FILM/BAGS RECYCLING MACHINE is designed and manufactured by LIANDA MACHINE, which is widely used for waste plastic PE / LDPE / LLDPE /PVB film, Stretch film, Agricultural film, PP woven bag, PP Jumbo bag, Cement bag, etc. The waste dirty material go through crushing, friction washer, washing, dewatering, hot air drying process will turn to be clean flakes for pelletizing. The line can be displayed "L" or "U" shape according to clients' workshop. We can also customize the washing line components according to client's material and product requirement.
>>Including metal detector, crusher, high speed friction washing,hot/cold washing and drying machine.
You can get a different module combinations design from Lianda according to your requirements. In range of different raw materials, Lianda provides 300-1000kg/h economy and high-level production lines.
Machine List and working processing
>>After getting waste plastic raw material, LIANDA Technicians will study and analysis the main contaminants , then provide a proper solution to remove most of the impurities by the idea of mechanical, chemical, physical.
|
PE Film Recycling Machine For Washing Recycling Line |
|
|
|
|

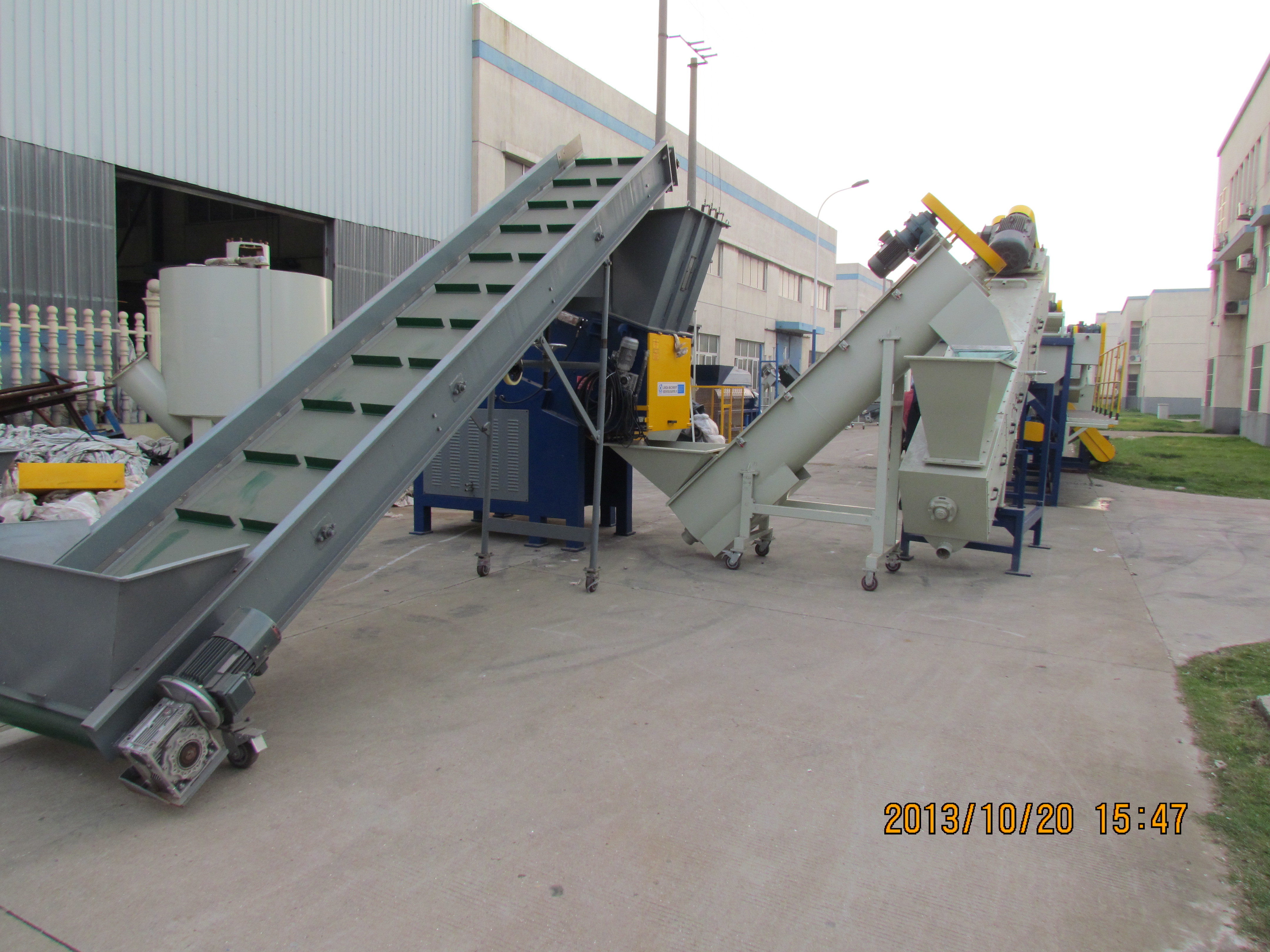

| Belt conveyor | Load the plastic raw material to the Crusher |
| Crusher Machine | Cut plastic into flakes with water for pre-washing and good for crusher blades |
|
Friction washer |
Combined with Crusher.To have pre-wash and centrifugation of the flakes |
| Screw feeder | Load the film scrap |
| Floating washer |
Hot washing/cold washing for customized. |

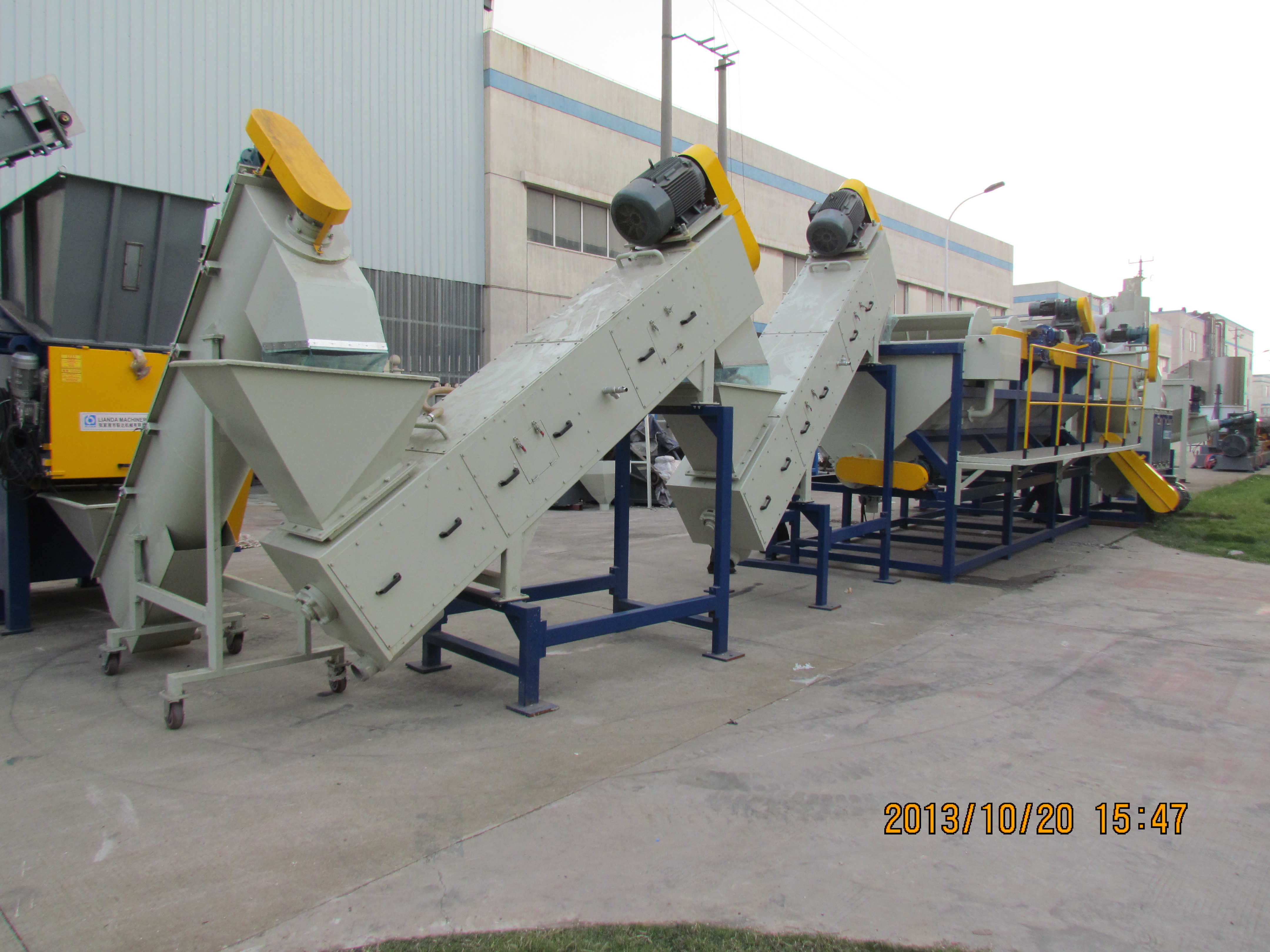

| Screw discharger | Load the flakes |
| High speed friction washer | Remove water/glue/dirty from flakes by strong forced friction and centrifugation. |
| Floating washer | To clean again |
| Screw discharger | Load the flakes |
| Horizontal dewatering machine | To dry the flakes. Final moisture can be about 1.8% |
| Thermal dryer | Reduce humidity to be less than 1% |
| Zigzag separator | Remove dust/fines/labels |
| Silo | Storage the cleaned, dried flakes |
| Electrical cabinet | Control the full line |
Machine Photos
|
|
Crusher Machine >>In the field of soft plastic crushing, to the toughness and high winding characteristics of LDPE film and PP woven/ Jumbo/Raffia bag materials, LIANDA has designed a special "V"-shaped crushing blade frame and a back knife type knife loading structure. On the basis of the original old equipment, the production capacity is increased by 2 times.
It is also ideal machine for the secondary cutting when positioned behind pre-shredders of recycling systems. |
|
|
High speed friction washer >> Strongly friction to clean the materials mechanically >>With the function of dewatering
|
|

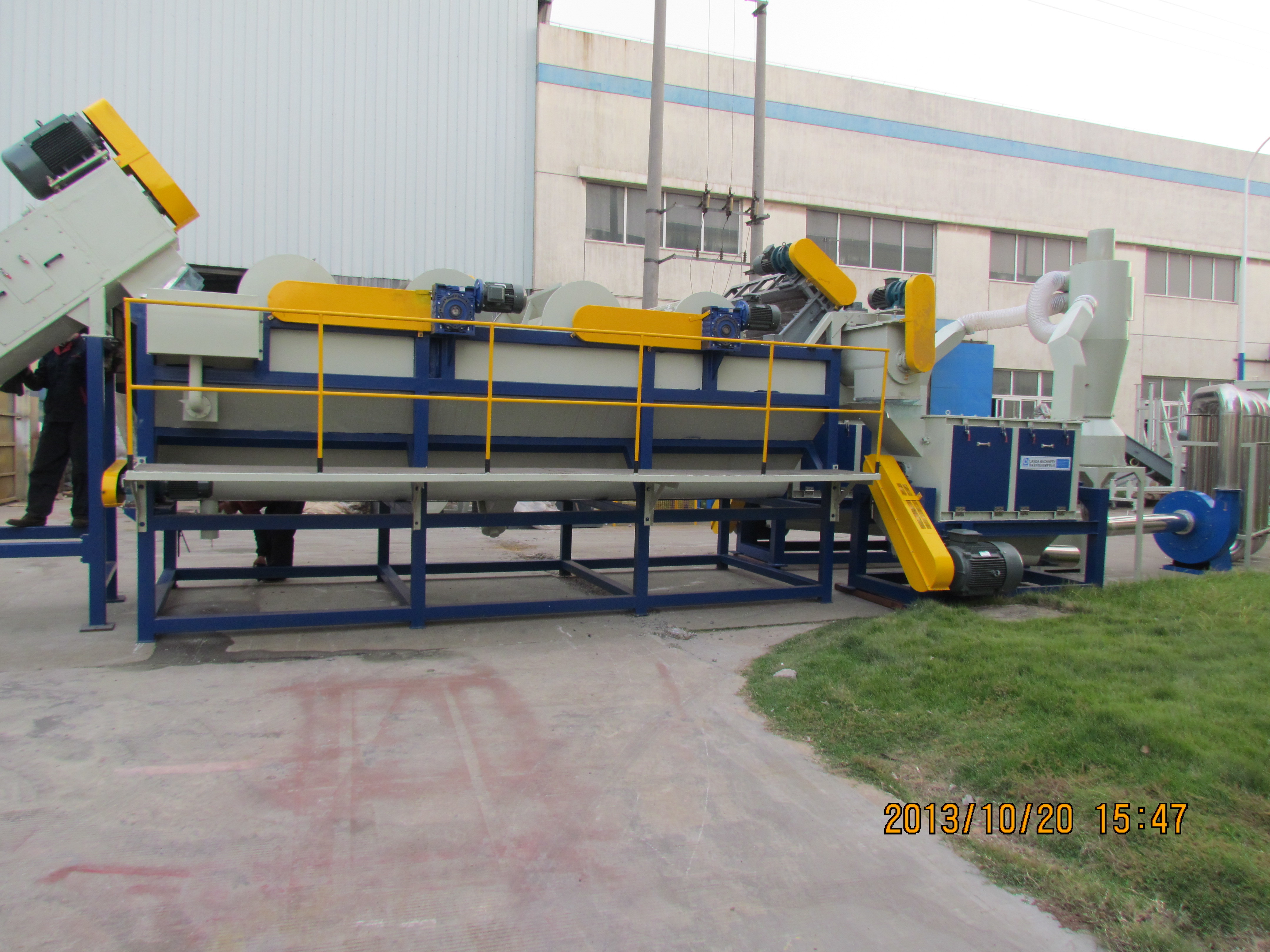

>>Flotation washer for cleaning size reduced plastic scraps, by rotary paddles and water, which can remove most of the dust,sands, sludge, soil and other sink contaminants. >>The main principle is to use the specific gravity of water,specializing in the initial wash and rinse of submerged and floating materials,it can effectively separate the sediment and metal in the material. The system will discharge the sink contaminants,such as sands, sludge, sink plastic, metals through the pneumatic bottom valves automatically. It will ensure the good washing condition of water. |
|
|

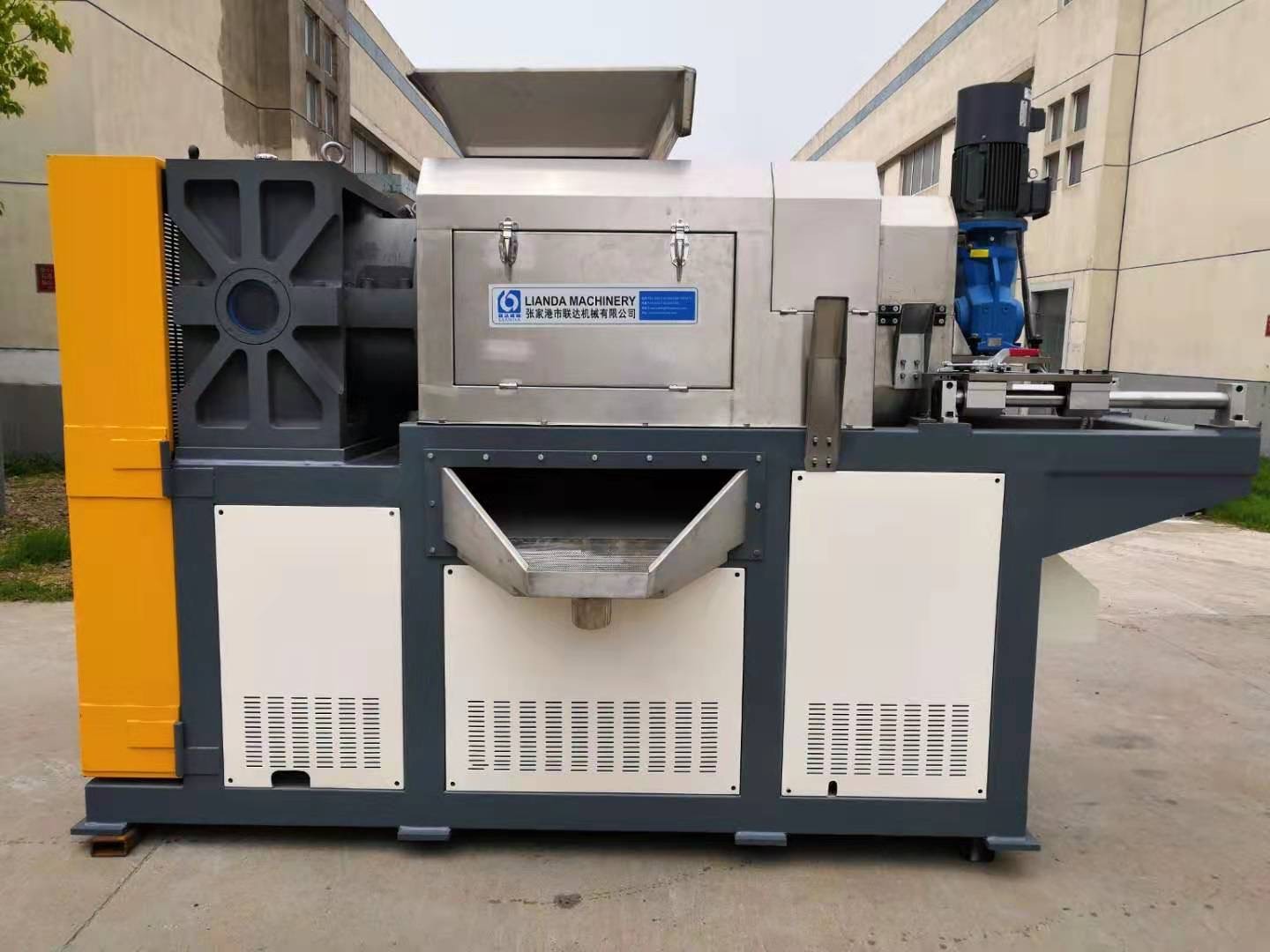

>>It is mainly used for removing moisture from the film/bags and other soft material. It can efficiently remove the humidity from soft plastic materials. |
What can our machines do for you?
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory
Our Service
1.We will provide testing if the customer comes to visit factory to see the machine.
2.We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents which customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty time,we will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole lifetime .
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
