380V 22kw Industrial Single Shaft Shredder Machine

1set
MOQ
380V 22kw Industrial Single Shaft Shredder Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Shaft Design: Single
Use: Waste Plastic Crusher,Plastic Pipe Crusher,Tyres
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Voltage: 380V50HZ3phase Or Customzed
Plastic Type: PP/PE
Warranty: 1 Year
Application: Recycle Waste Plastic,used For Shred Plastic,tire,Waste Paper,Waste Plastic Products
Name: Waste Palstic Crushing,Waste Recycling Shredder Machine,plastic Crushing Machine,waste Plastic Shredder
Type: Plastic Single Shaft Shredder Shredder Parts,environment-friendly,shredder
Keyword: One Shaft Plastic Shredder,Strong Claw Plastic Crushers,Waste Recycling Machine,shredder
Usage: PP,Rubber ShreddingWaste Plastic Shredding,Wide Usage,Waste Plastic Cusher
Product Name: PP PE Film Waste Recycling Plastic Crusher,Metal Shredder,Double Shaft Waste Plastic Recycling Tire Shredder For Sale,plastic Waste Shredder Machine,Grinder Plastic Recycling Machine
High Light:

22kw Industrial Shaft Shredder Machine

,

380V 22kw Single Shaft Shredder Machine

,

380V Industrial Shredder Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,SGS,ISO9001
Payment & Shipping Terms
Packaging Details: Factory standard package or customized package
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union
Product Description

Industrial Paper single shaft shredder,plastic waste shredder,plastic recycling shredder,plastic bag shredder machine





  • Machine model
Model 600 800 1200 1600

Motor power

(KW)

22 55 75 132
Rotary blades Qty 26 45 64 120
Stable blades Qty 2 4 4 4
Rotating length 600 800 1200 1600
Blade material SKD-11, D2 or Customized




LIANDA Design



The single-shaft shredder is mainly used to break materials into smaller and uniform pieces. LIANDA single-shaft shredder is equipped with a large inertia blade roller and a hydraulic pusher, which can ensure high output; the moving knife and the fixed knife have high-efficiency and regular cutting actions, and coordinate with the control of the sieve screen,the crushed material can be cut into the expected size.



The single-shaft shredder designed and manufactured by LIANDA MACHINE has a larger knife roller, torque, power and corresponding crushing structure. It can be used to crush large bundles of plastic bottles, cans, barrels, boxes, leftovers, glass steel, Environmentally friendly shredding and recycling of waste rubber, waste paper, old carpets, wooden pallets, domestic garbage, scrap metal, large-caliber iron boxes, etc.

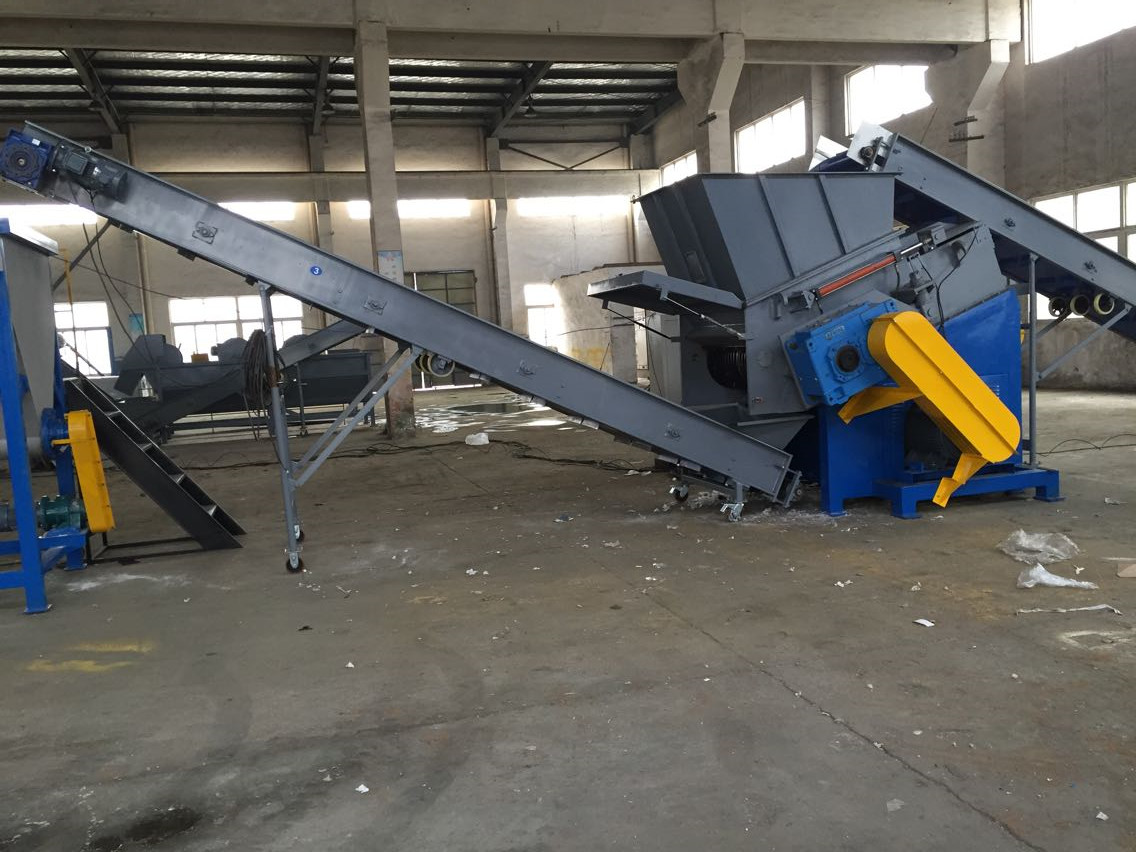

380V 22kw Industrial Single Shaft Shredder Machine 0



Machine Details

1

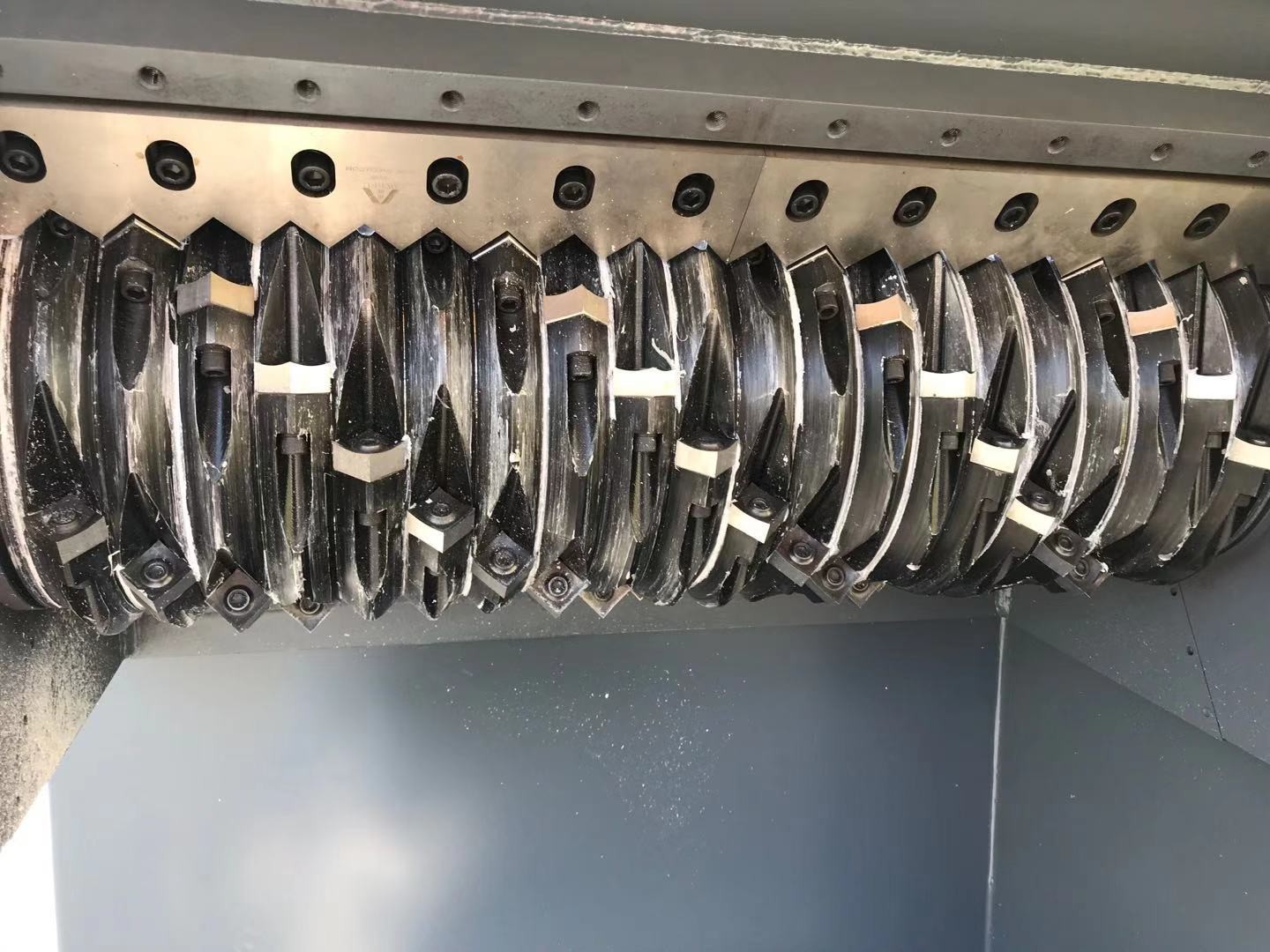

① Rotary blades ② Blades roller



③ Fixed blades ④ Sieve Screen



The cutting part is composed of a blade roller, rotary blades, fixed blades and sievescreen.

380V 22kw Industrial Single Shaft Shredder Machine 1

380V 22kw Industrial Single Shaft Shredder Machine 2

The minimum installation gap between the rotary blades and the fixed blades is 0.1mm



Integral processing knife roller to ensure the cutting gap between the Rotary blades and the fixed blades



The blade can be installed detachably for easy maintenance



The motor drives the blade roller to rotate at a high speed through the reducer, so that the rotary blades mounted on the blade roller and the fixed blade form a cut. After one cut, if the size of the material is smaller than the diameter of the sieve screen, it will be discharged from the mesh, otherwise two or more cuttings on the raw material are carried out in the cutting room, and the material can be discharged until the discharge size is reached.

380V 22kw Industrial Single Shaft Shredder Machine 3

380V 22kw Industrial Single Shaft Shredder Machine 4

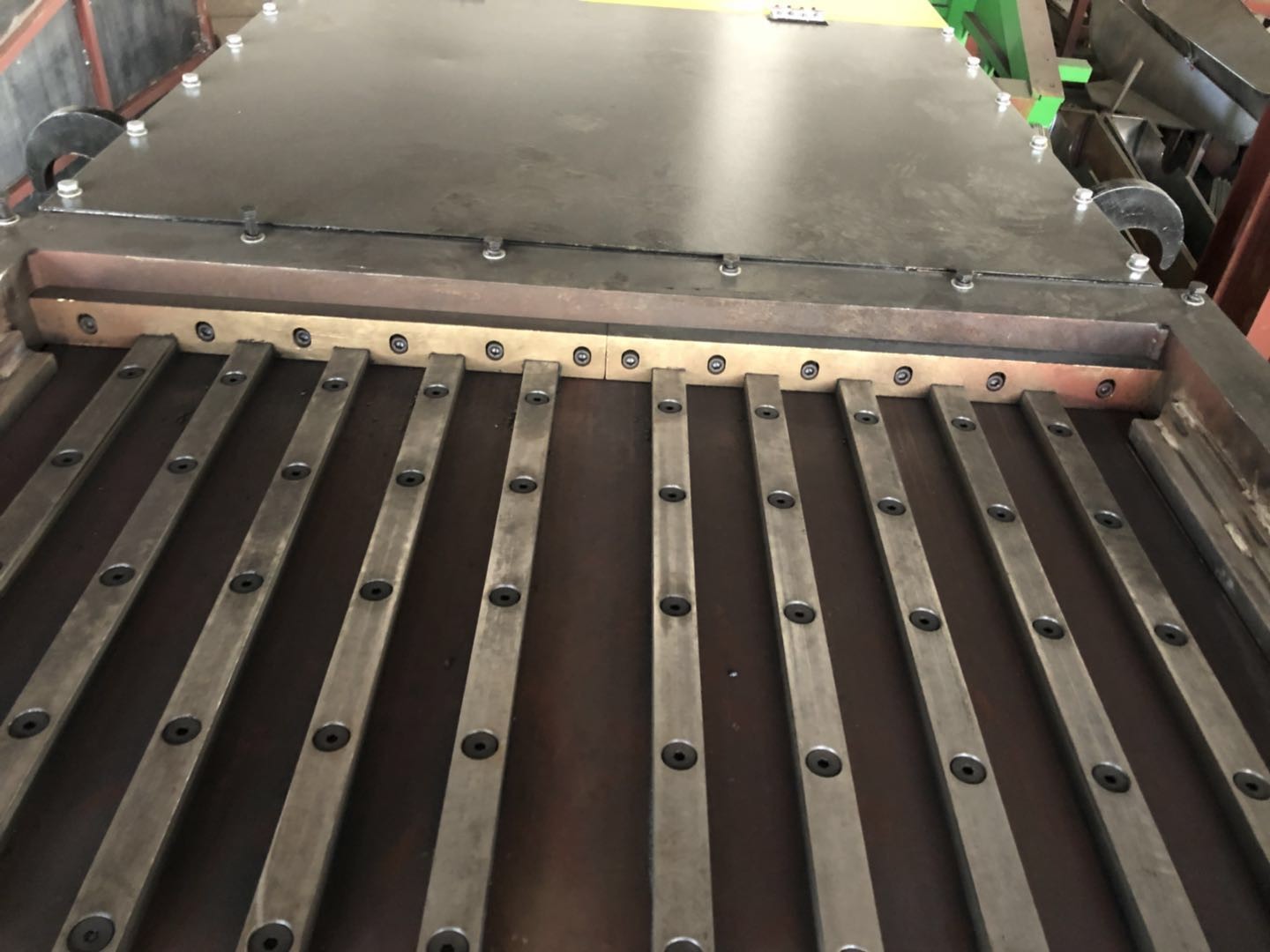

The screen can be disassembled and replaced to change the particle size of the material



2

Forced feeding by pusher to improve production efficiency



380V 22kw Industrial Single Shaft Shredder Machine 5

Adopt high-strength screws to fasten, solid structure and durable.
3 Sealed bearing protection design, which can be waterproof and dustproof, and enlonger the service life of the bearing

380V 22kw Industrial Single Shaft Shredder Machine 6

4

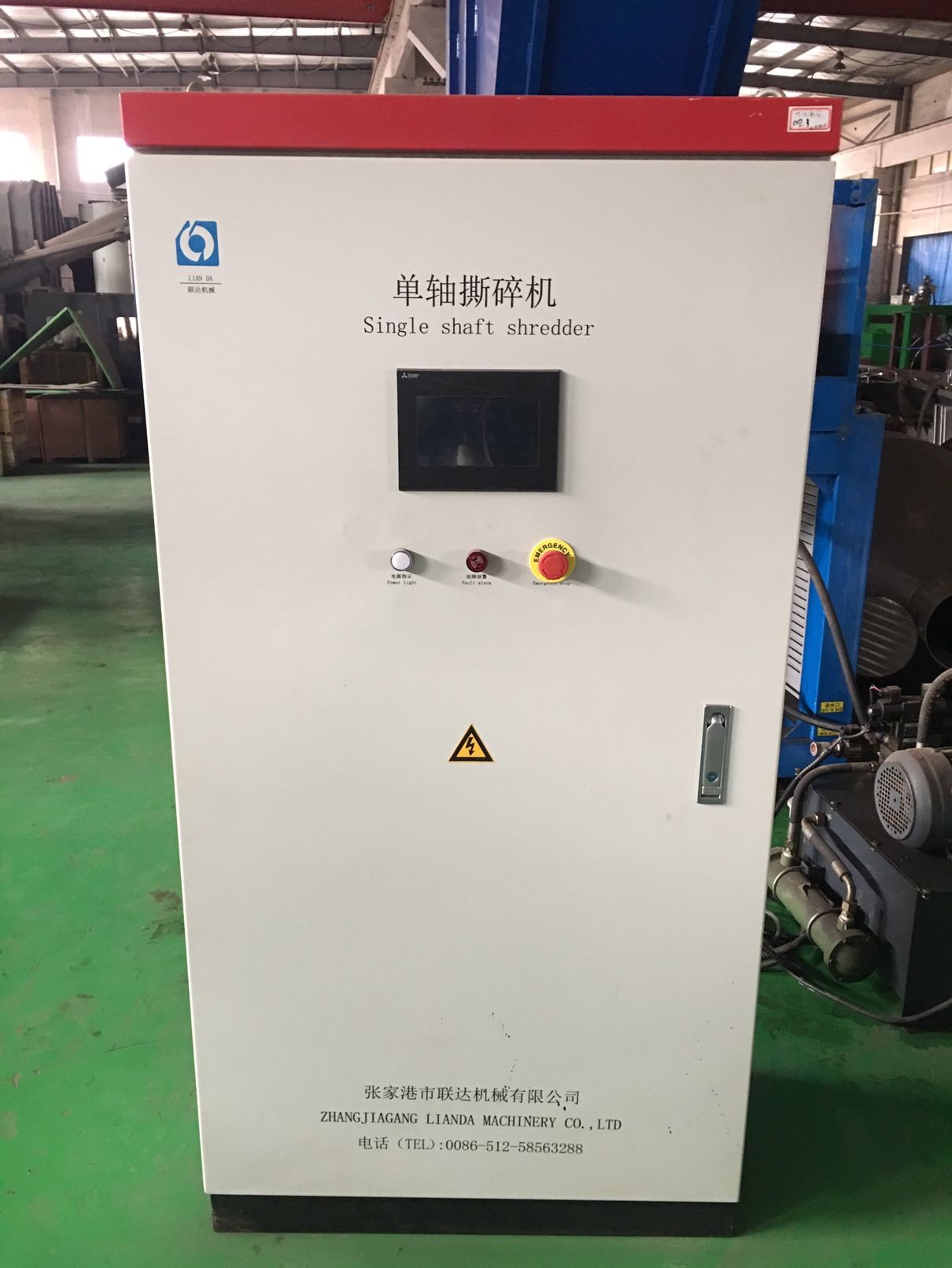

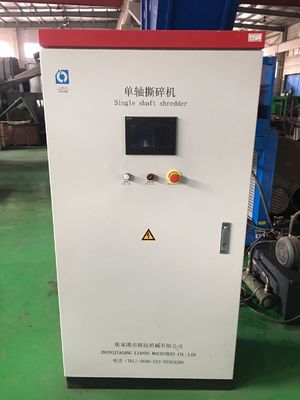

Siemens PLC monitors the motor current in real time, and the knife axis automatically reverses when the load is overloaded to protect the motor;













380V 22kw Industrial Single Shaft Shredder Machine 7

5 Equipped with a cutter shaft cooling system for materials with low melting points to prevent the materials from being burnt due to excessive temperature.
6 The equipment has passed CE certification and complies with EU safety standards
