1000kg/h agricultural Mulching (LDPE) Film Washing Recycling Machine Line
Agriculture mulching (LDPE) film washing recycling machine line is designed for recycling agricultural mulching film with lot of sand/grass impurities.
Process flow of agriculture mulching film washing line:
If agriculture mulching film is packed in big bale, film bale cutter is help to open. Please see follow drawing.
Techincal parameter
Model | Capacity | Power | Water consuption |
LD-NMQX | 1000kg/h | 320kw | 12m3/hour |
Agriculture Mulching (LDPE) Film Washing Recycling Machine Line Advantages:
1. Mulching film is to be removed sand/grass by sand/grass remover before crushing.
-It protect blades of crusher
-It reduces the most of silt/sand/impurities send to the washing system and makes clean work easier.
2. Friction washing dewater removes most dirty from crusher and reduce dirty water flow to next machine with material.
3. High speed friction washer not only for cleaning, but also with dewater function. It with three working zones, first zone to sewage water removing, second zone to friction washing material with clean dewater, third zone to friction dewater material. Working length 3500mm, high efficiency.
4. Floating washer(double V bottom design), more deep than old one, easy to drain sewage, no need screw discharger to discharging sewage in bottom. It washes material more clean.

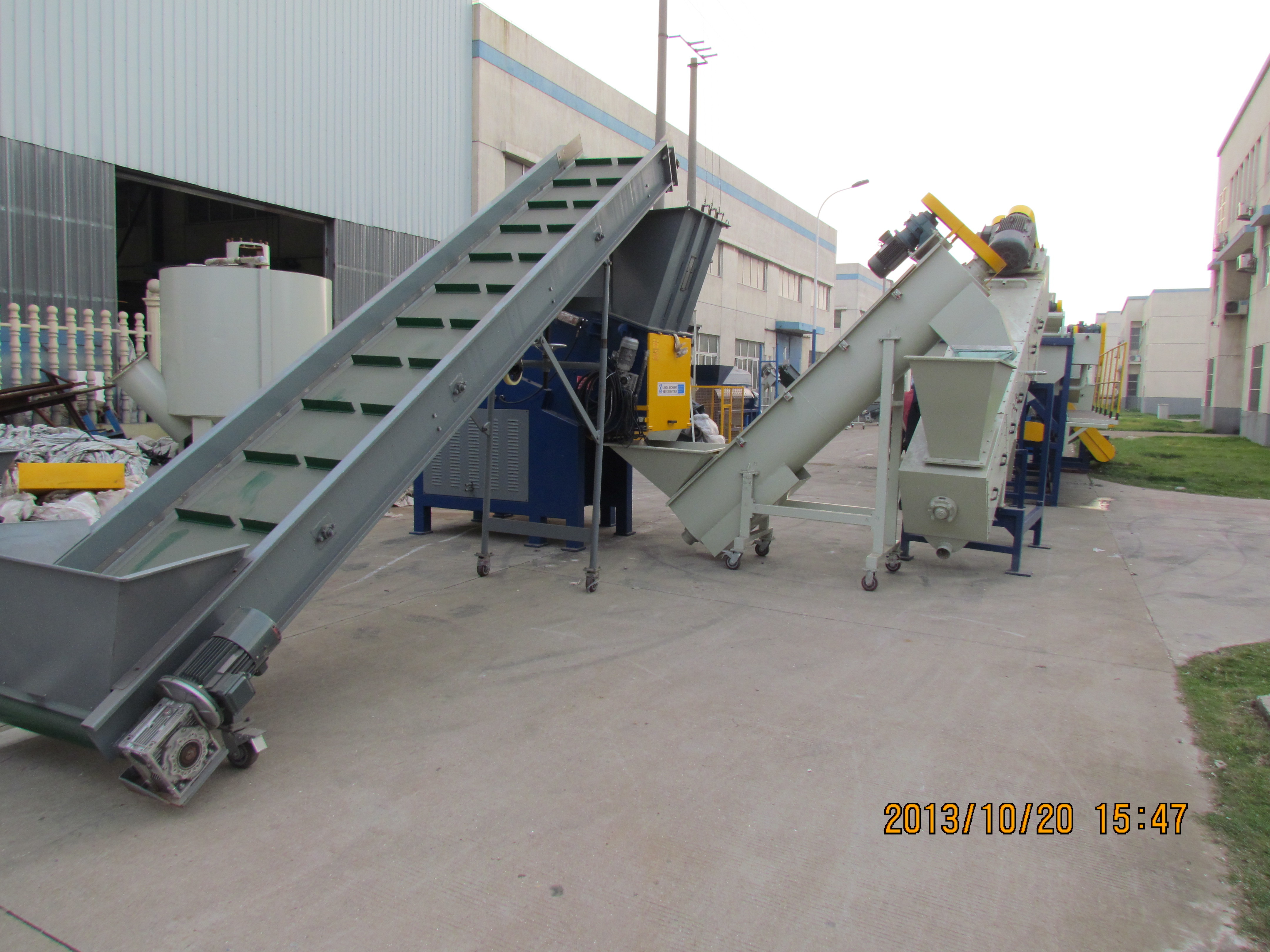

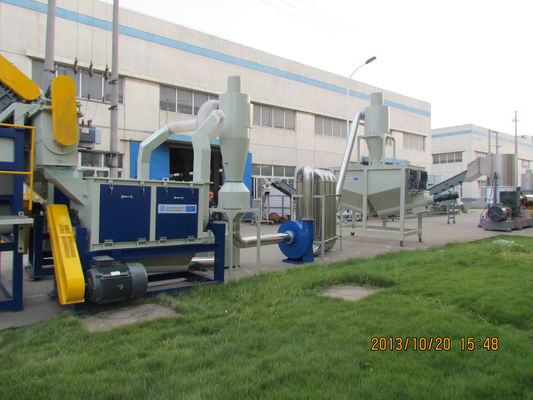

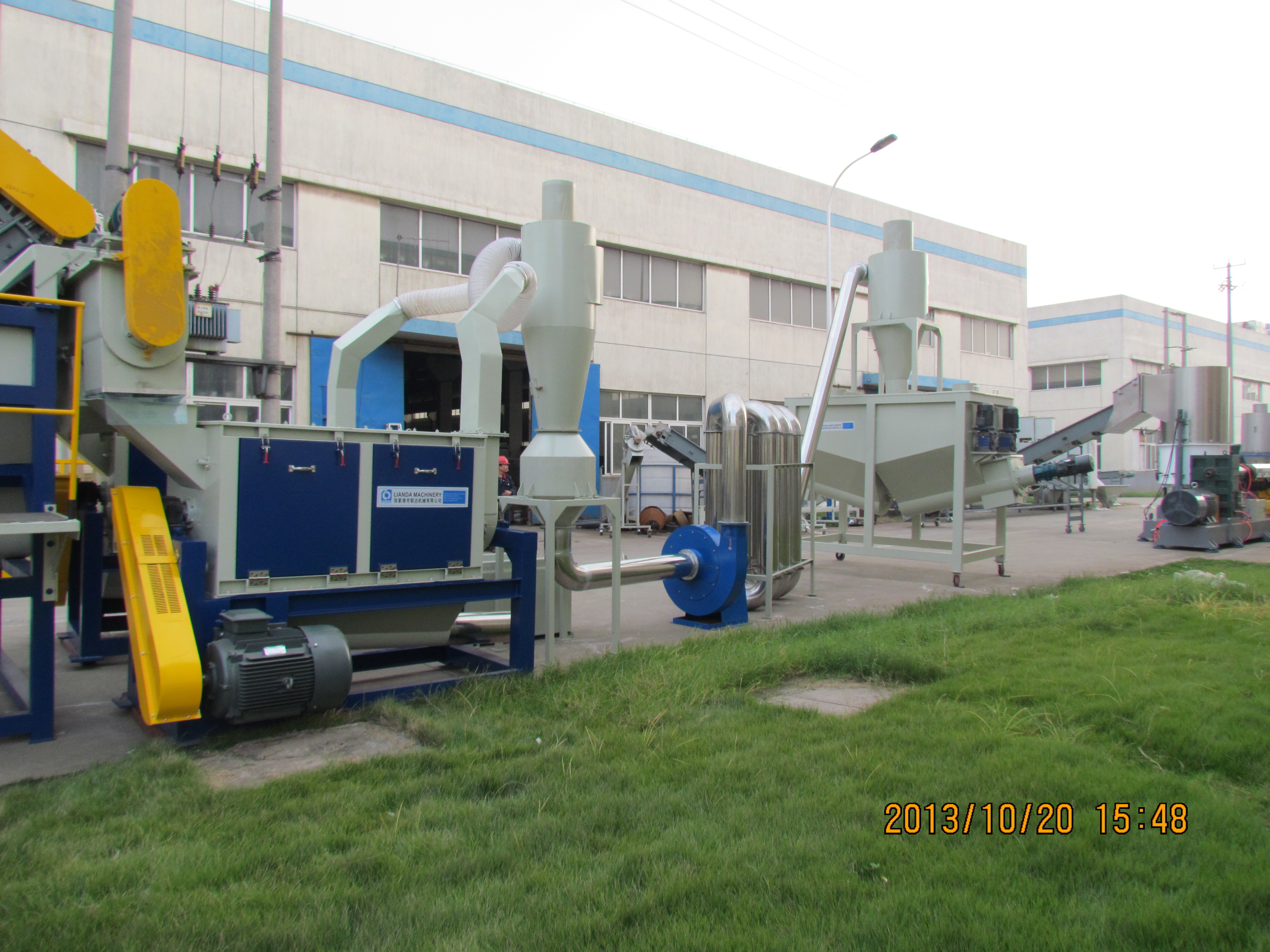

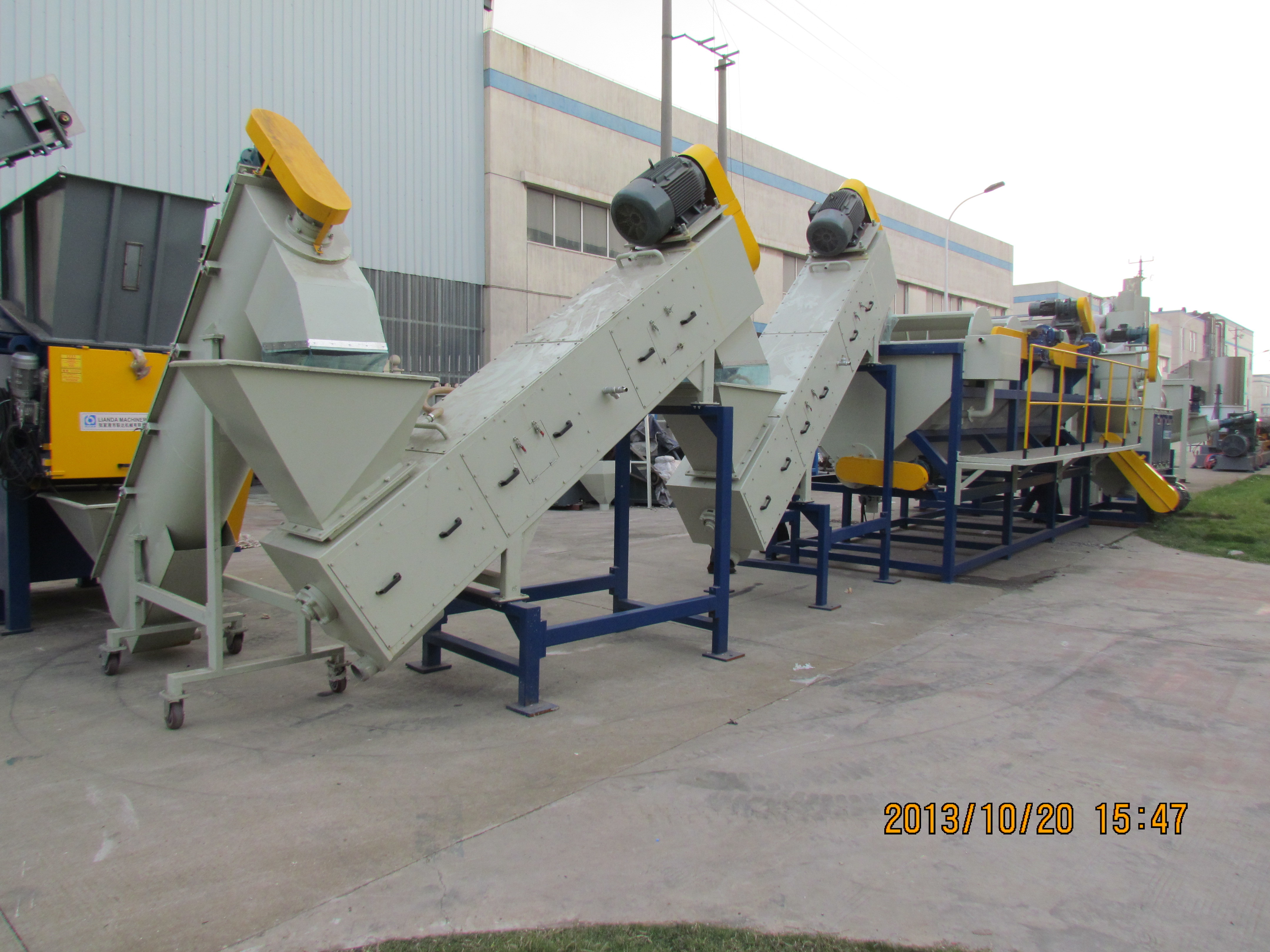

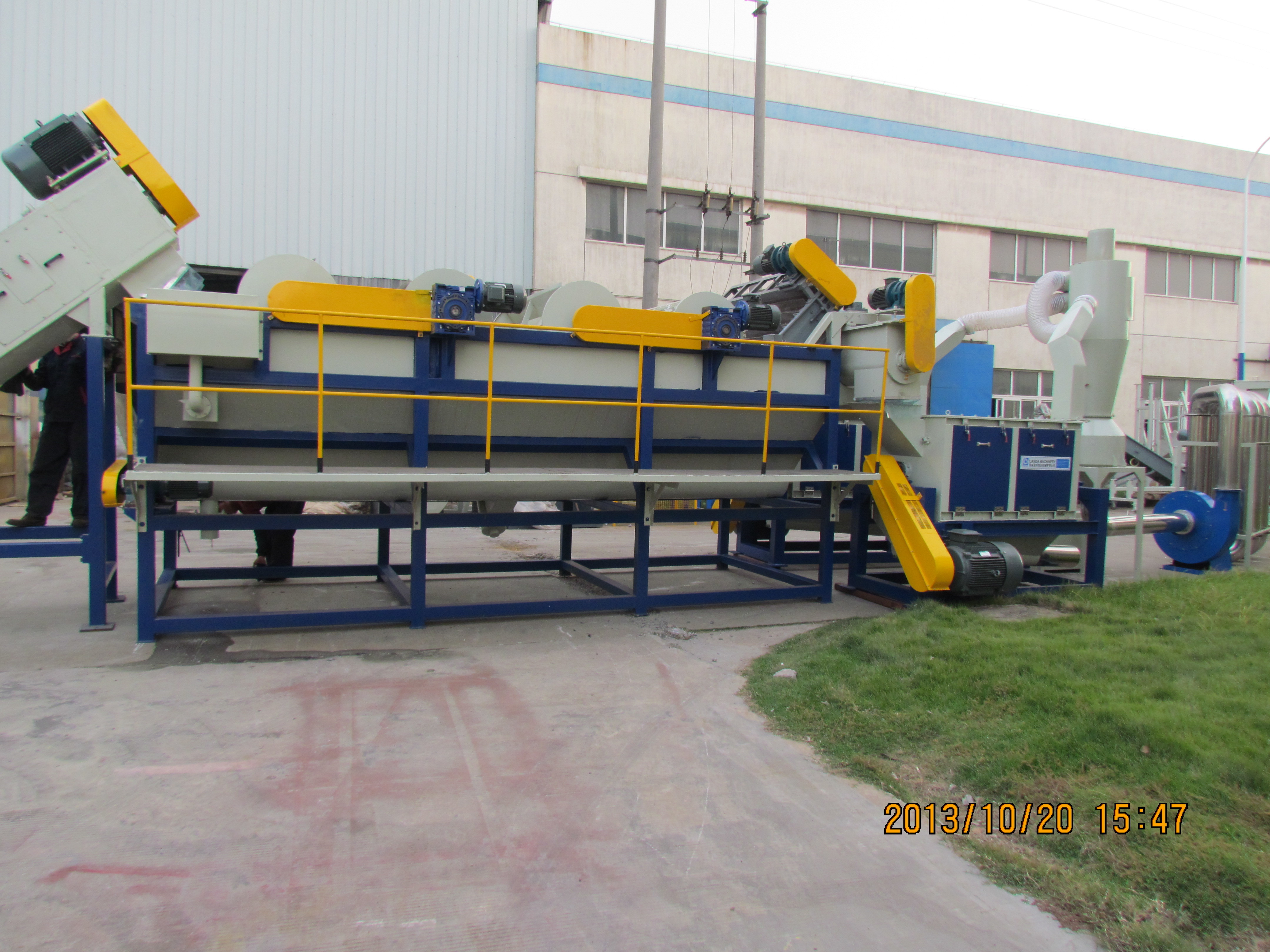

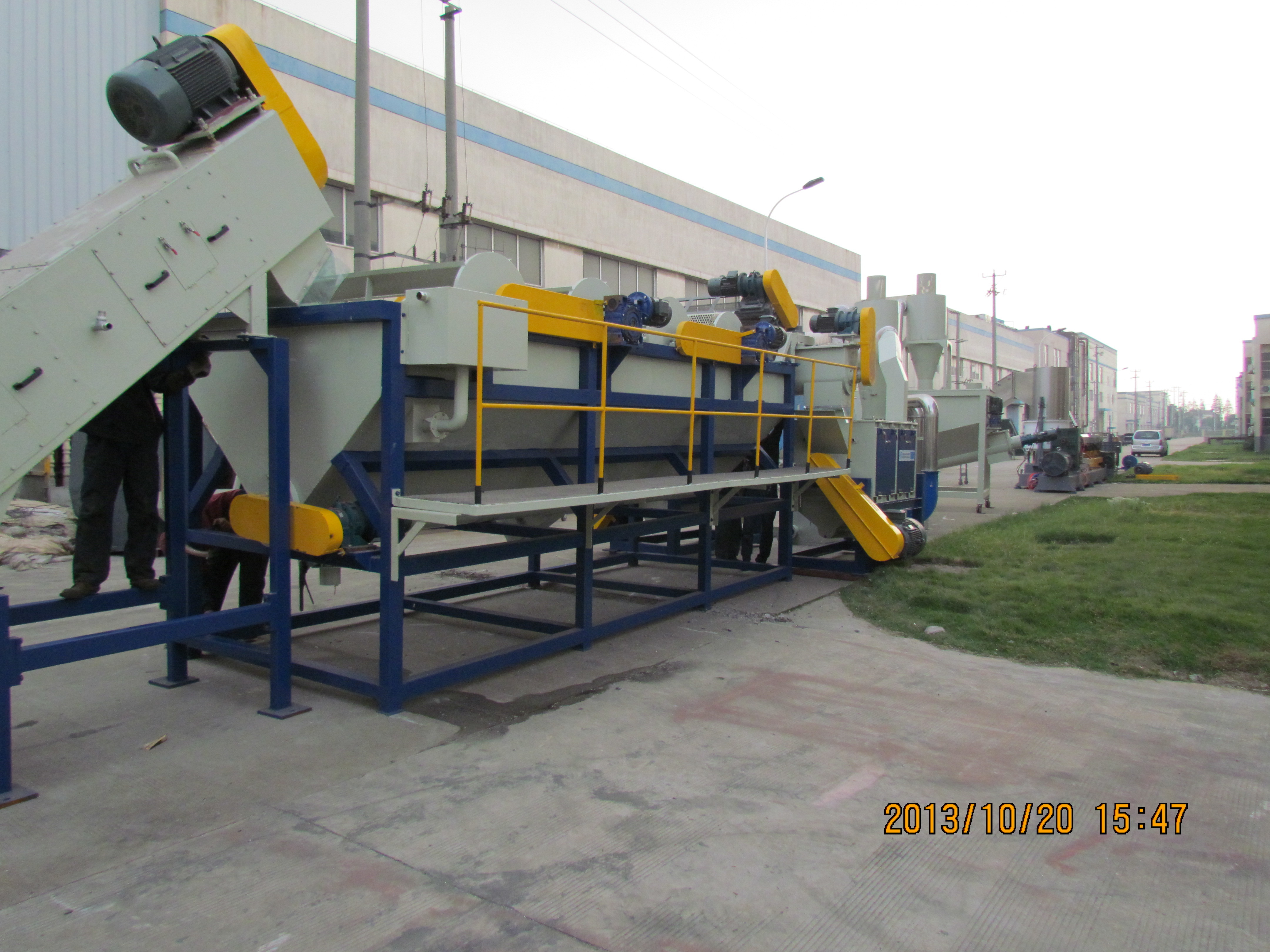

Machine pictures:
