300KG/H 55kw Plastic Dryer Machine For Washed Films

300KG/H 55kw Plastic Dryer Machine For Washed Films
Features Gallery Product Description Request A Quote
Applied For: HDPE LDPE LLDPE PP Film,PP Raffia Bag, Agricultural Film,
Production Capacity: 300-1000kg/h
Voltage: 380V 50HZ 3PHASE Or Customized
Warranty: 1 Year
After-sales Service: Video Technical Support, Free Spare Parts, Field Installation
Product Name: Plastic Squeezer Pelletizing Machine
Processing: Squeezing, Extruding, Cutting
Raw Material: PP Raffia Bagwet Film Scarp
Final Material: PP PE Granules
Related Product: Plastic Recycling Machine,PP Jumbo Bag Recycling Machine
High Light:

55kw Plastic Dryer Machine


300KG/H Plastic Dryer Machine


55kw Films Dryer Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,SGS,ISO9001
Model Number: LDJG-300
Payment & Shipping Terms
Packaging Details: Factory standard package or customized package
Delivery Time: 40 working days
Payment Terms: T/T, L/C, Western Union
Product Description

Agricultural film squeezing pelletizing dryer

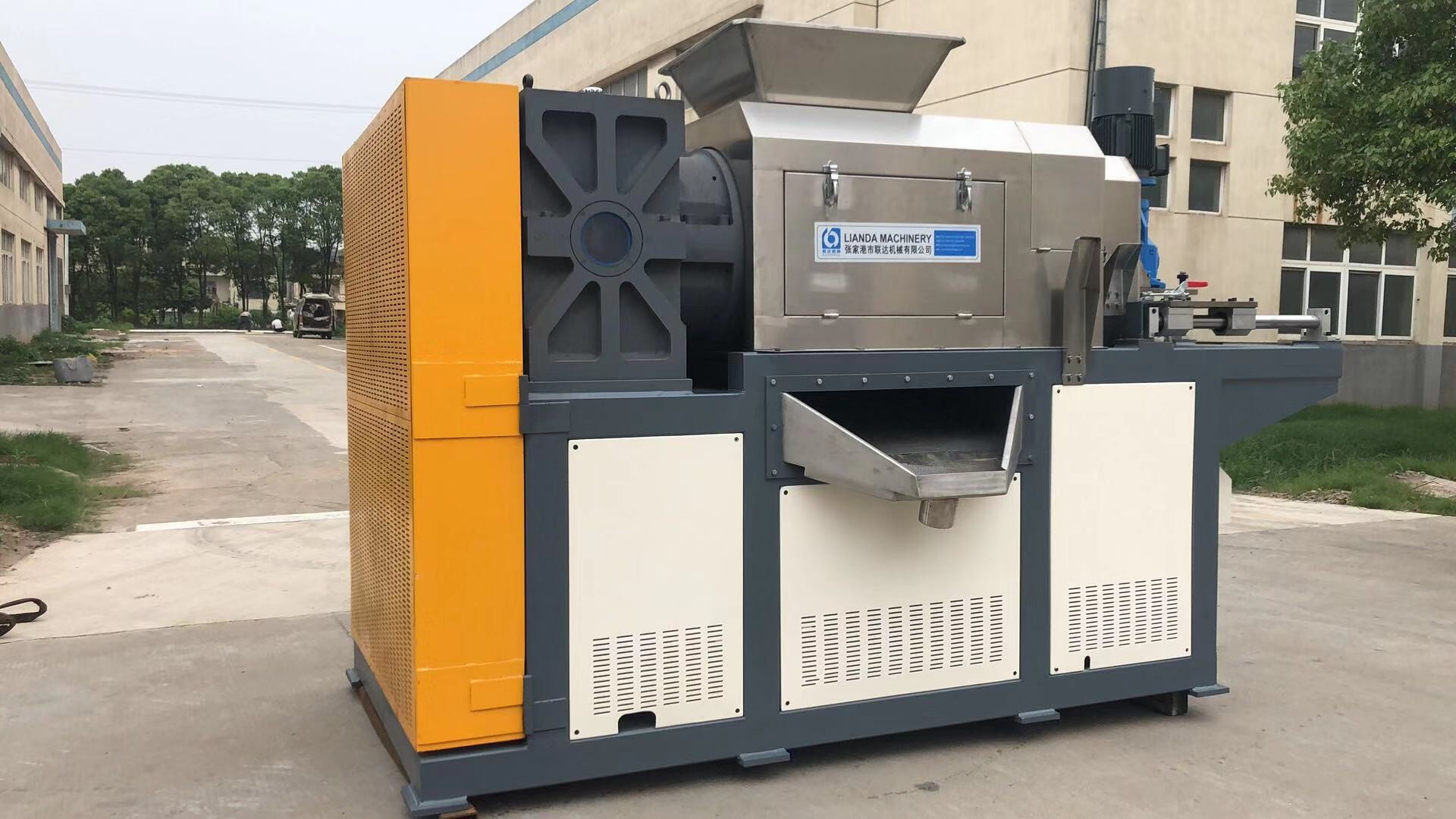

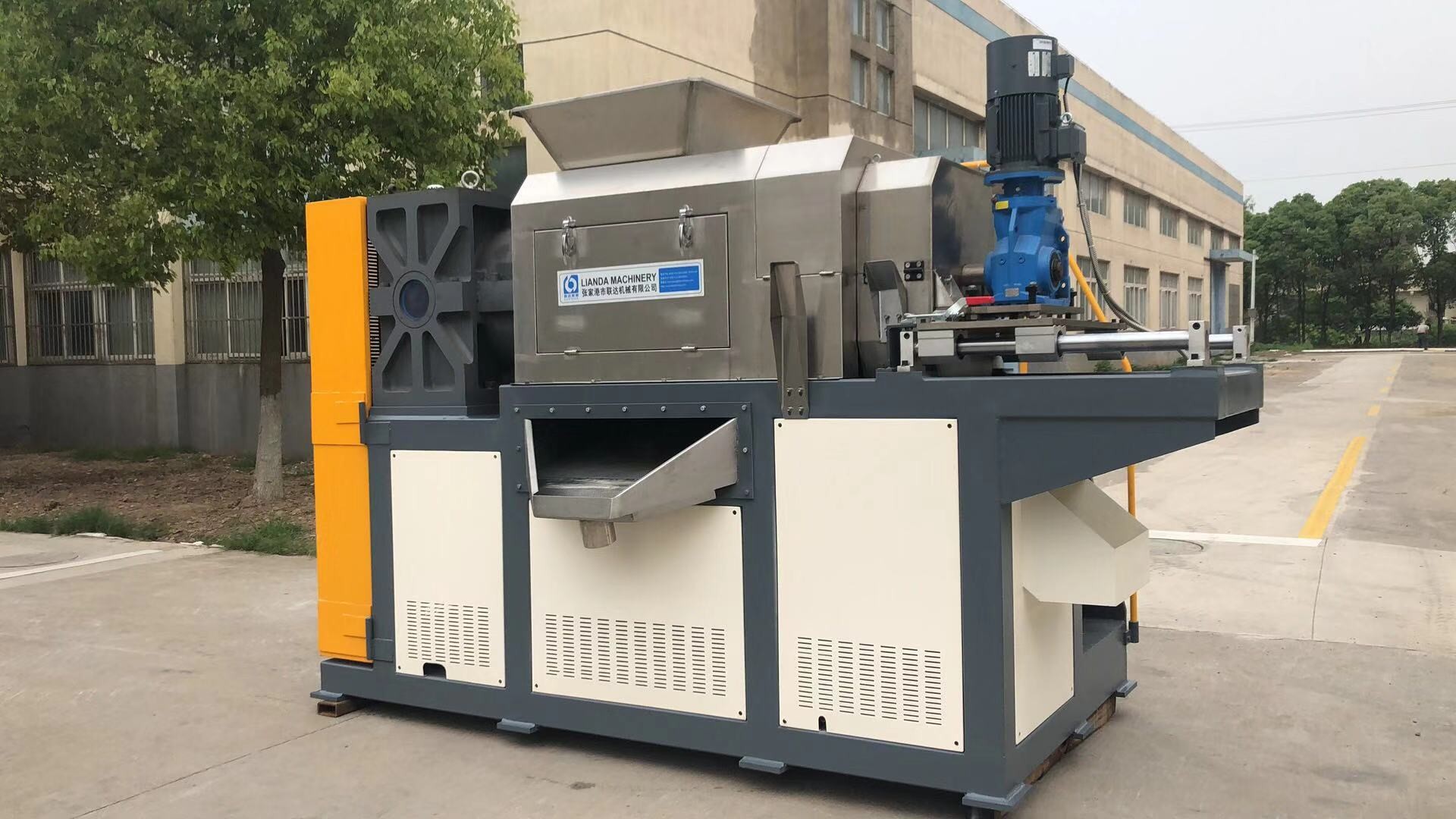

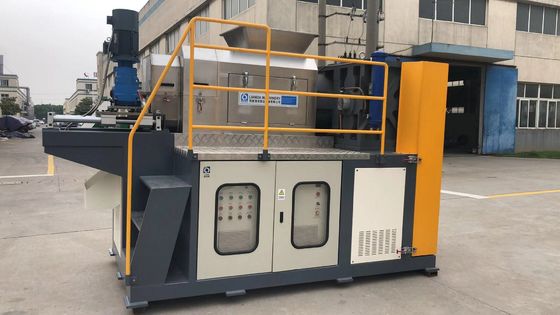

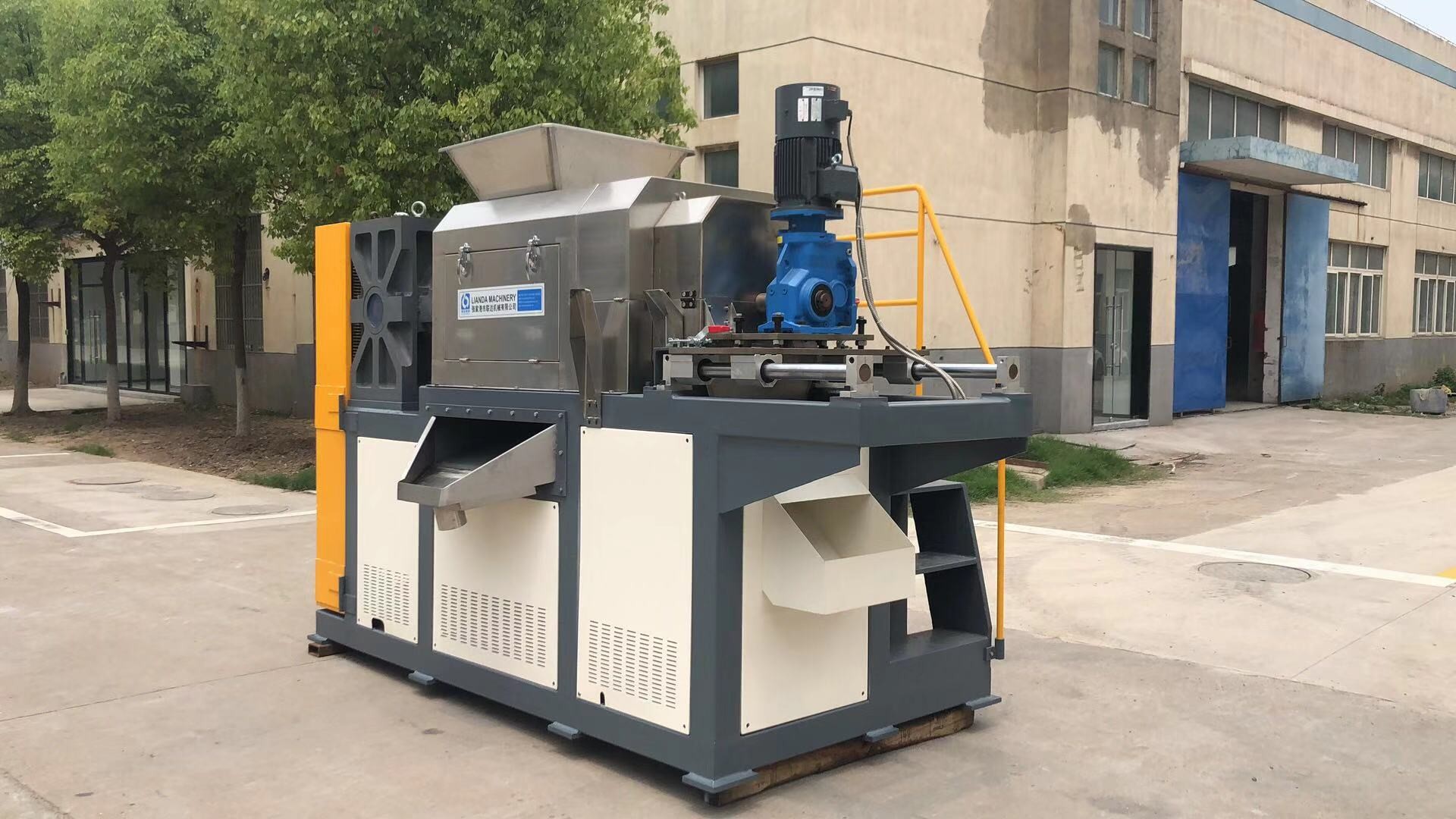

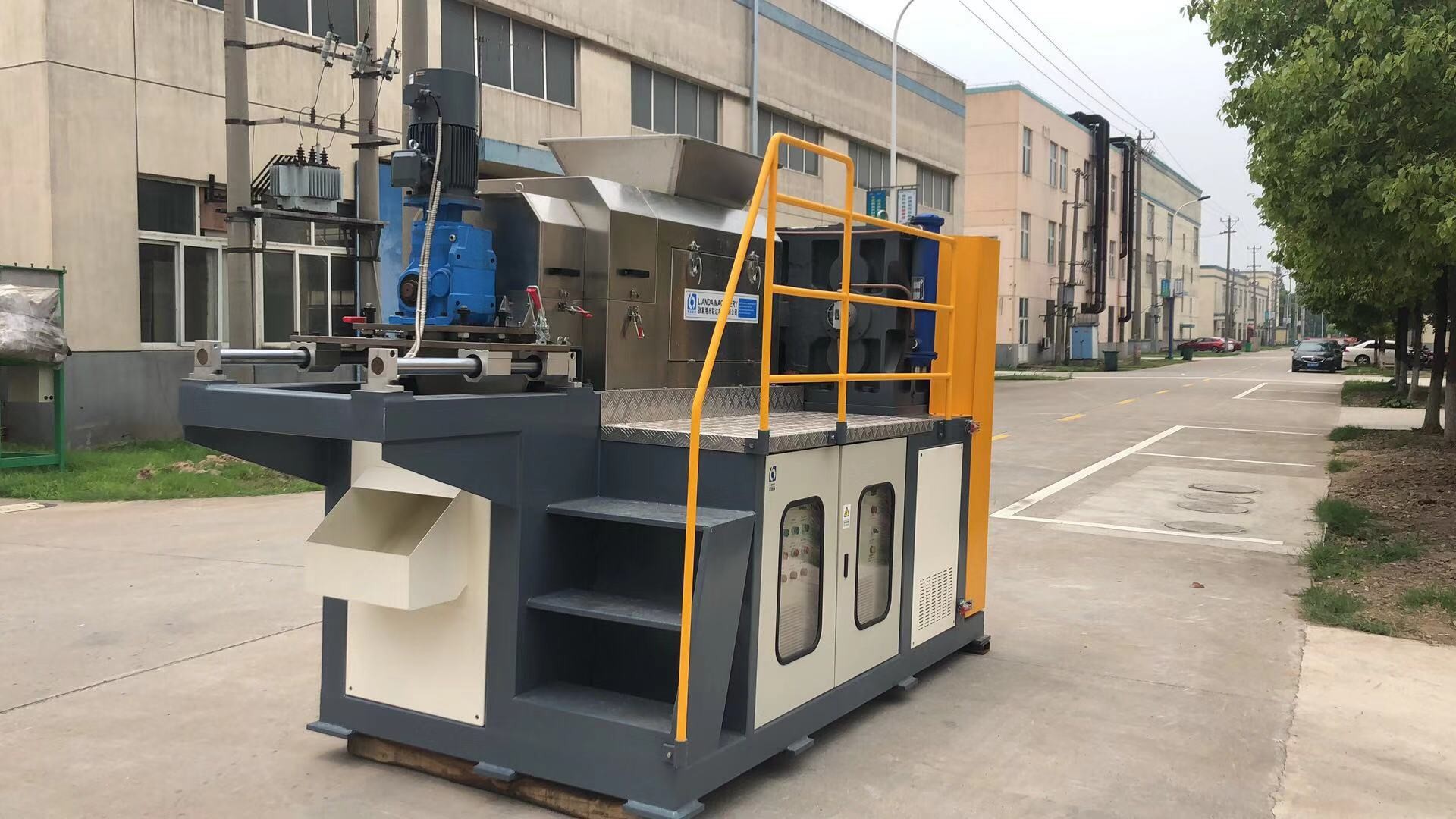

300KG/H 55kw Plastic Dryer Machine For Washed Films 0

The plastic film squeezing pelletizing machine is used for drying washed films , woven bags,PP Raffia bags, PE film etc and make the washed films to be like granulates. The plastic film squeezer can work on the accordance with washing and pelletizing line with stable capacity and whole process automation to save labor cost. The plastic film squeezer can be applied for:

1. LDPE waste film recycling and washing line

2. PE Agricultral film crushing and washing line

3. Waste PE Film recyling line

4. Ethylene ground film washing, drying and regranulating line

5. PP Woven bag/raffia bag recycling and washing line


How the machine work: Film Squeezing Pelletizing dryer remove the water of the washed film by screw pushing and electrical magnetic heating. with the screw squeezing and electrical heating, the washed films will be had high degree of drying and full plasticized, low power consumption, high output. The final moisture is only 3-5%.


The screw barrel is made of material feeding barrel, compressing barrel and plasticized barrel. After feeding, squeezing , the film will be plasticized and cut to particle by the pelletizer which is installed besides the mold.



Film Squeezing pelletizing dryer




300 500 1000

Motor power


55 90 132

Screw diameter


270 300 320



300 500-600 800-1000

Pelletizing motor


3 4 5.5



Advantages: Since Film is easily to be wrapped and difficult to be dewatering, we adopt the design of variable screw distance to get
1 Uniform feeding without stuck
2 Make water removing more than 98%
3 Less energy cost
4 Easily for feeding the particle to the extruder and enlarge the capacity of the extruder
5 Stable the quality of finished particle


300KG/H 55kw Plastic Dryer Machine For Washed Films 1

Raw Material                                                                     Final Material

300KG/H 55kw Plastic Dryer Machine For Washed Films 2


Turnkey project service(LDPE LLDPE PP plastic squeezing pelletizing machine):

1.Pre-sale: we given client the details technician offer etc
2.In-sales: we supply the details layout, installation instruction, technician support for the clients
3.After sales: we arrange engineer to install the machinery and training the workers for client
4.We have 24 hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always up date the new technology to every customer
