300kg/h, 500kg/h, 1000kg/h HDPE bottles crushing and washing machine

1set
MOQ
USD31000-USD185000
Price
300kg/h, 500kg/h, 1000kg/h HDPE bottles crushing and washing machine
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Custom Made
Material: Stainless Steel
Volt: 380V 3Phase 50Hz
Function: Crushing, Washing And Drying
Warranty: 12 Months
Basic Infomation
Place of Origin: Zhangjiagang, China
Brand Name: Lianda
Certification: CE
Model Number: LDQX
Payment & Shipping Terms
Packaging Details: Export standard packaging.
Delivery Time: 30 working days after get the deposit
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Product Description

300kg/h, 500kg/h, 1000kg/h HDPE bottles crushing and washing machine



Description:

HDPE bottle washing recycling line is specially designed for recycling HDPE milk bottles. HDPE milk bottle washing recycling line process: Belt conveyor- crusher- screw feeder- high speed friction washer - hot rinsing washing tank- screw discharger - high speed friction washer-  rinsing washer- dewater- hopper. Capacity of HDPE milk bottle washing recycling line is 300kg/h, 500kg/h, 1000kg/h. We can produce HDPE milk bottle washing recycling line according to customer’s requirement.



Specification:

Model Capacity Power
LDQX-300 300kg/h 75kw
LDQX-500 500kg/h 90kw
LDQX-1000 1000kg/h 120kw
Above data is only for reference. If you want to know more information, pls feel free to contact us!



Drawings:

300kg/h, 500kg/h, 1000kg/h HDPE bottles crushing and washing machine 0



Advantages:

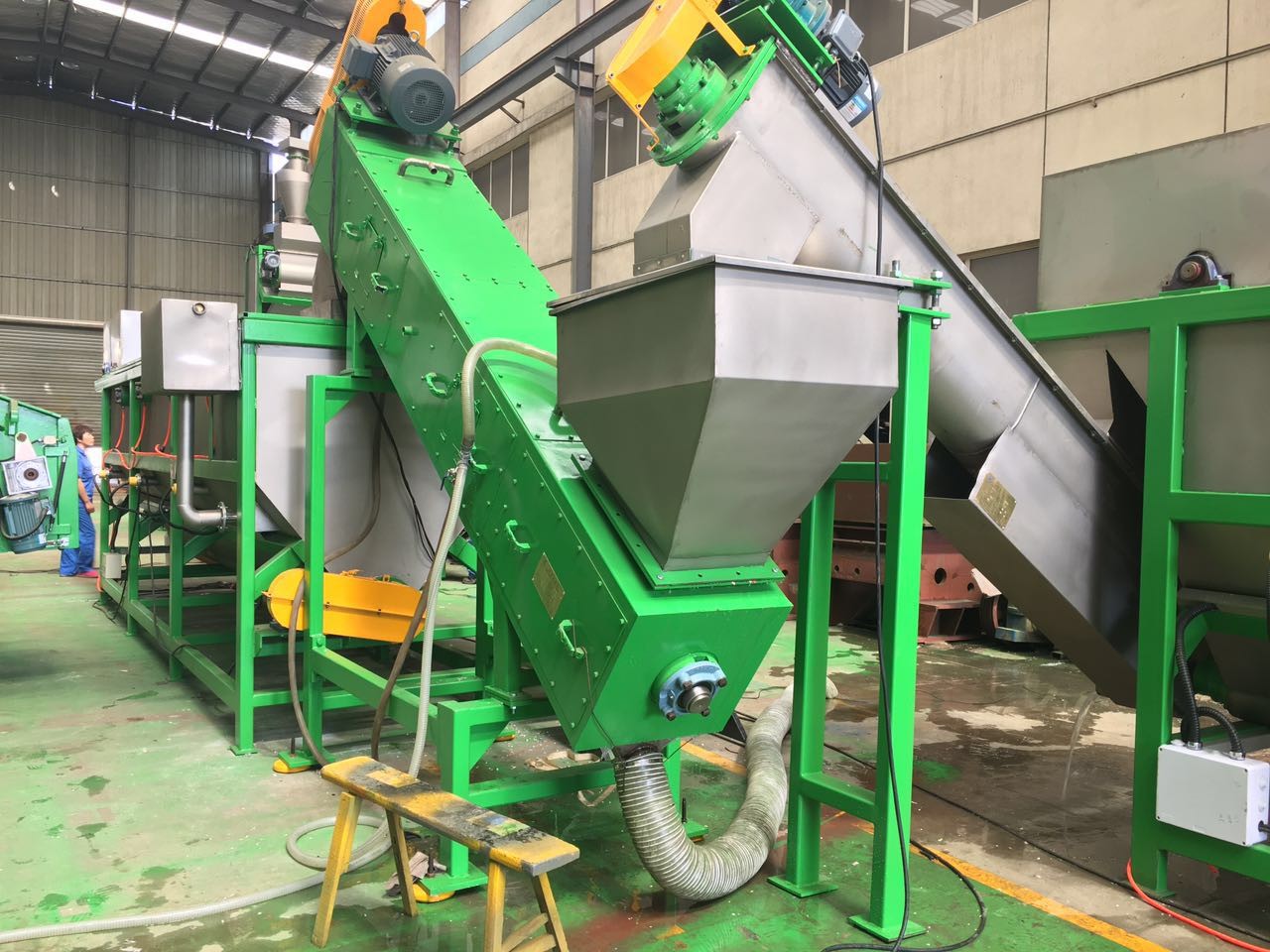

New model high speed friction washer: This model friction washer with three zones. First zone is swage water dewatering, second zone is clean water friction washing, third zone is friction dewatering. It with screen cleaning device and big maintain door.

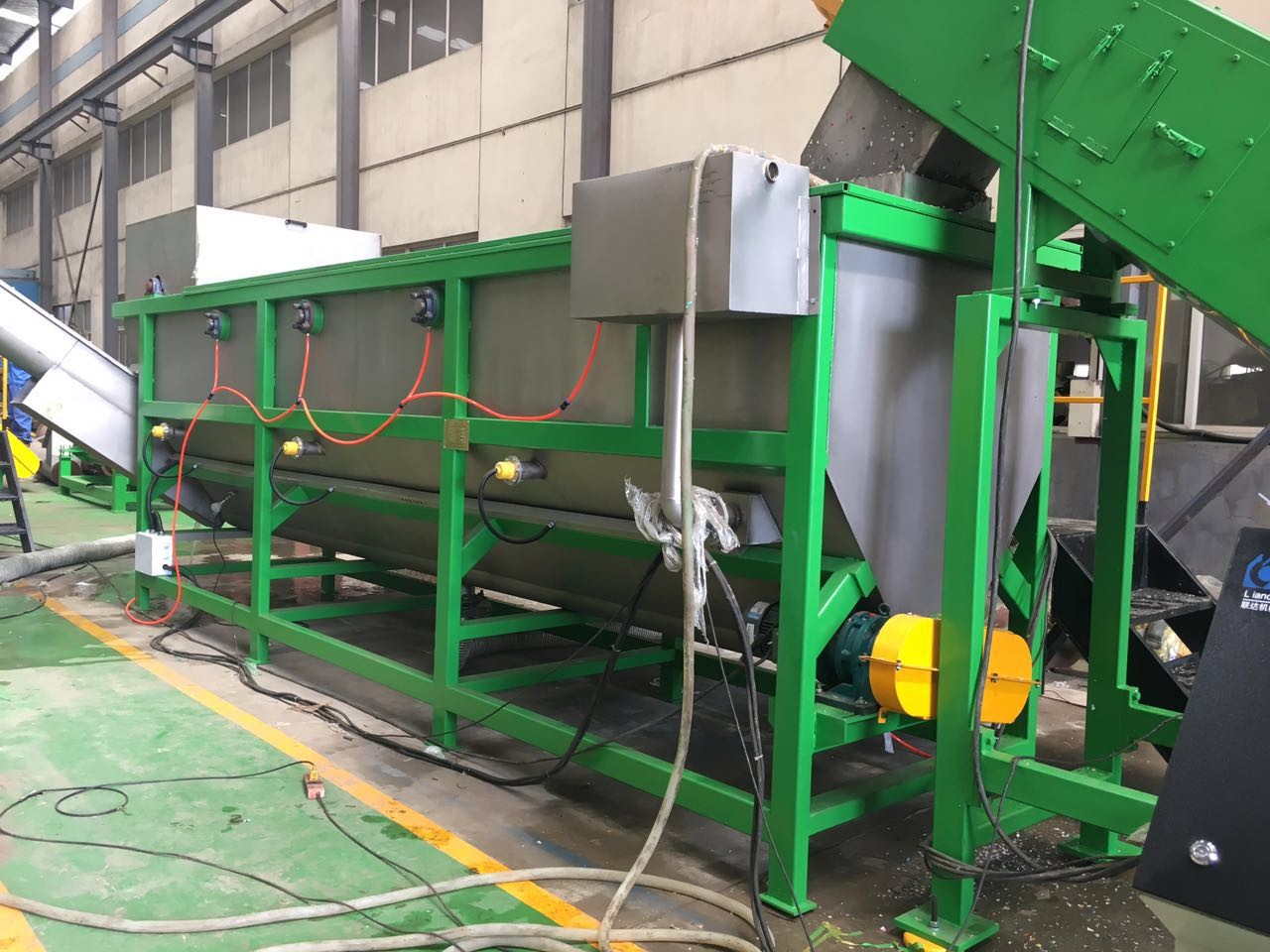

Hot rinsing washing tank: it adopts electricity or steam heating and water temperature is about 70-80 degree. The temperature is controlled automatically. Double V bottom design, fill more water and with excellent effect on remove milk and oil.

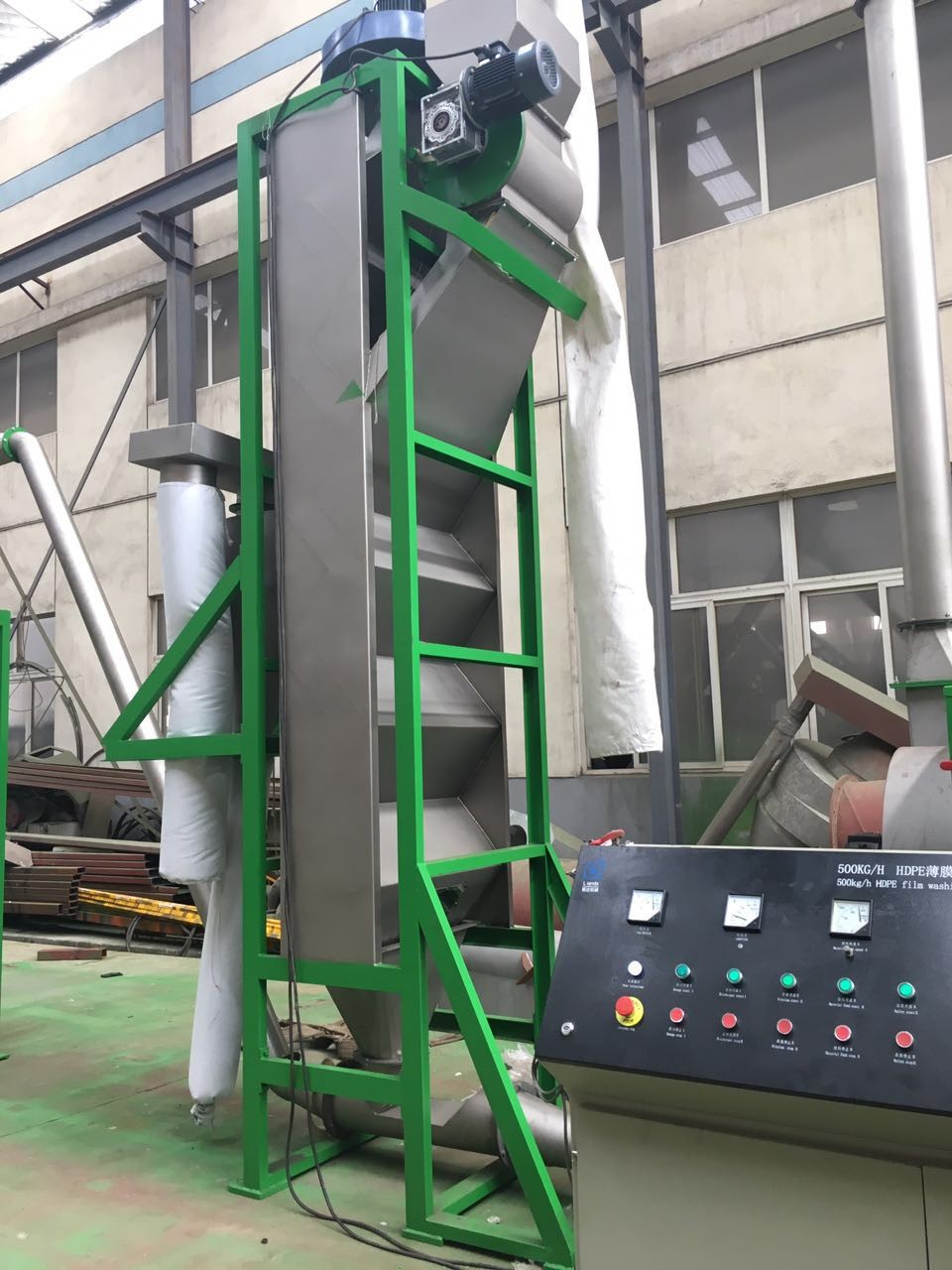

High speed dewater machine: rotating speed is 2100rpm, final moisture content is 1.8%. Low power consumption, high efficiency.



Pictures for recycling line:

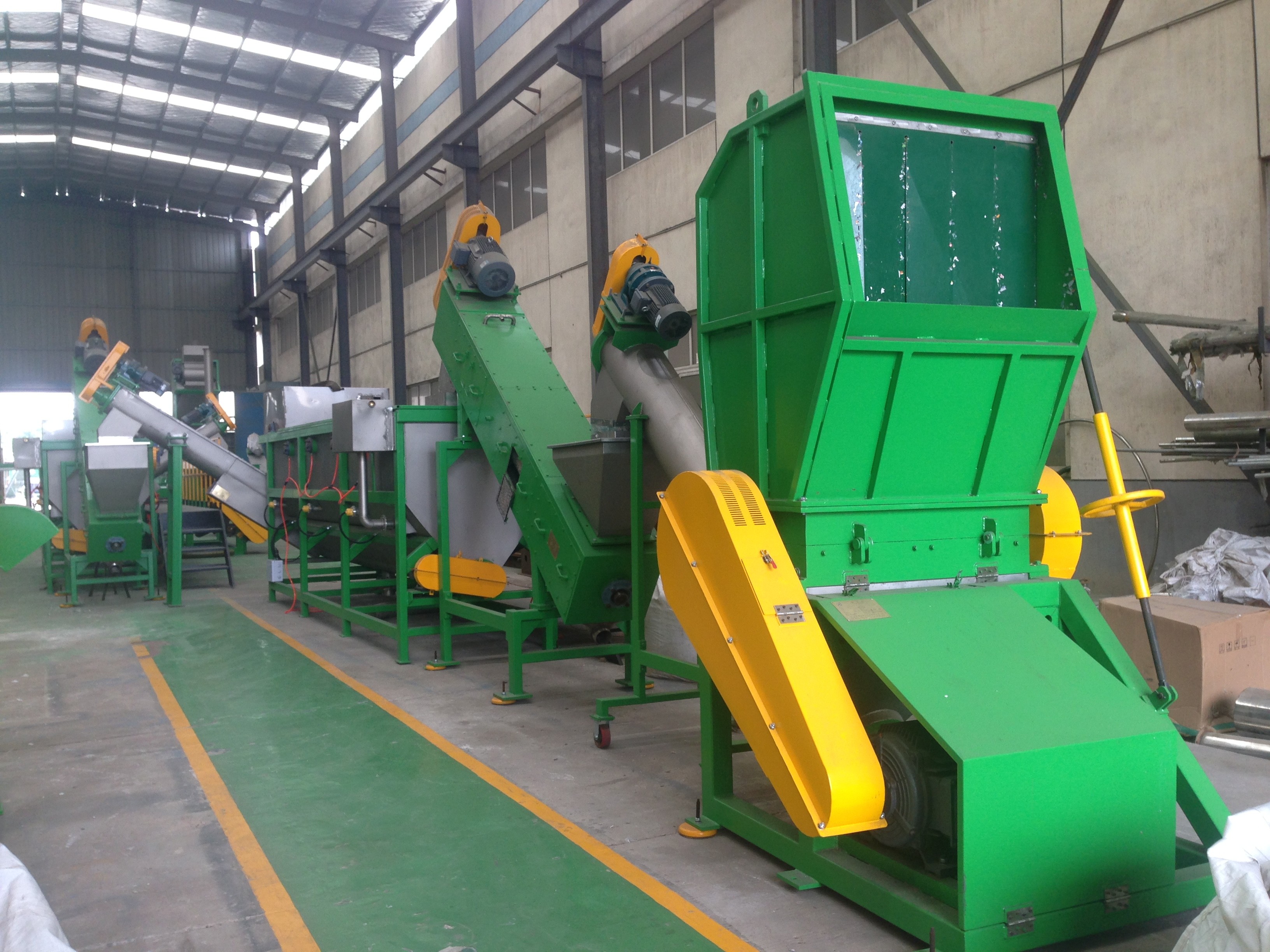

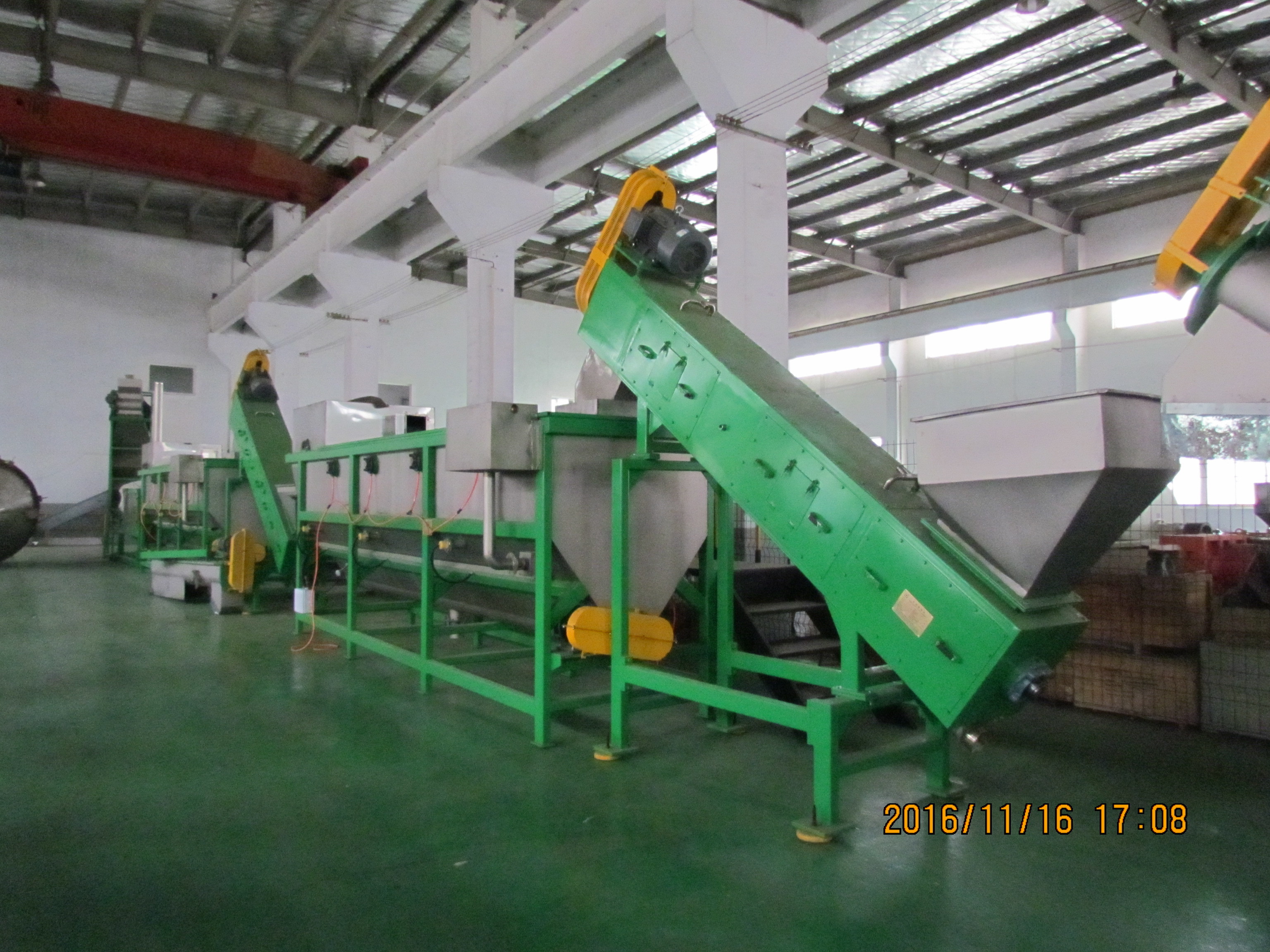

300kg/h, 500kg/h, 1000kg/h HDPE bottles crushing and washing machine 1

300kg/h, 500kg/h, 1000kg/h HDPE bottles crushing and washing machine 2

300kg/h, 500kg/h, 1000kg/h HDPE bottles crushing and washing machine 3

300kg/h, 500kg/h, 1000kg/h HDPE bottles crushing and washing machine 4
