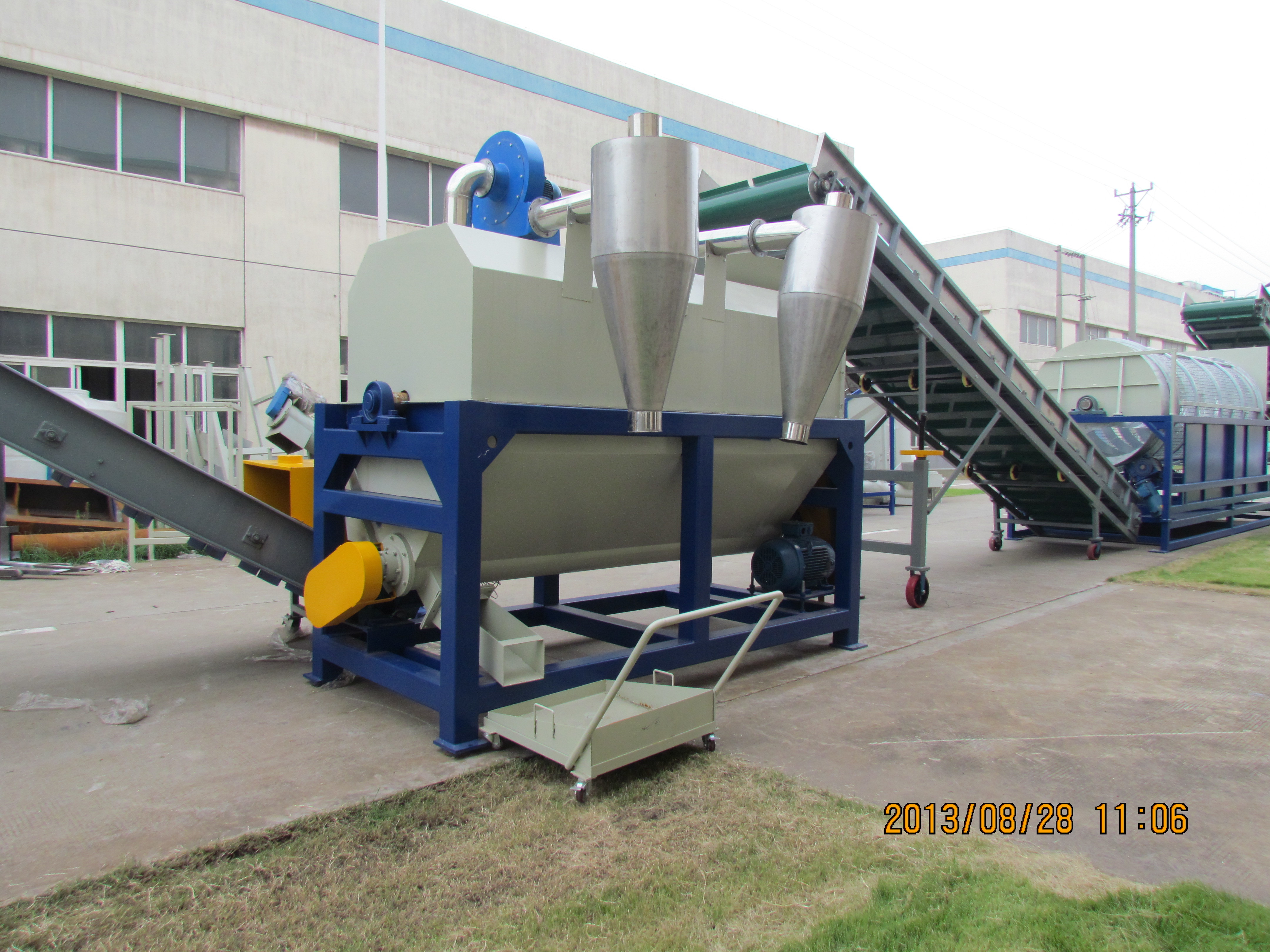

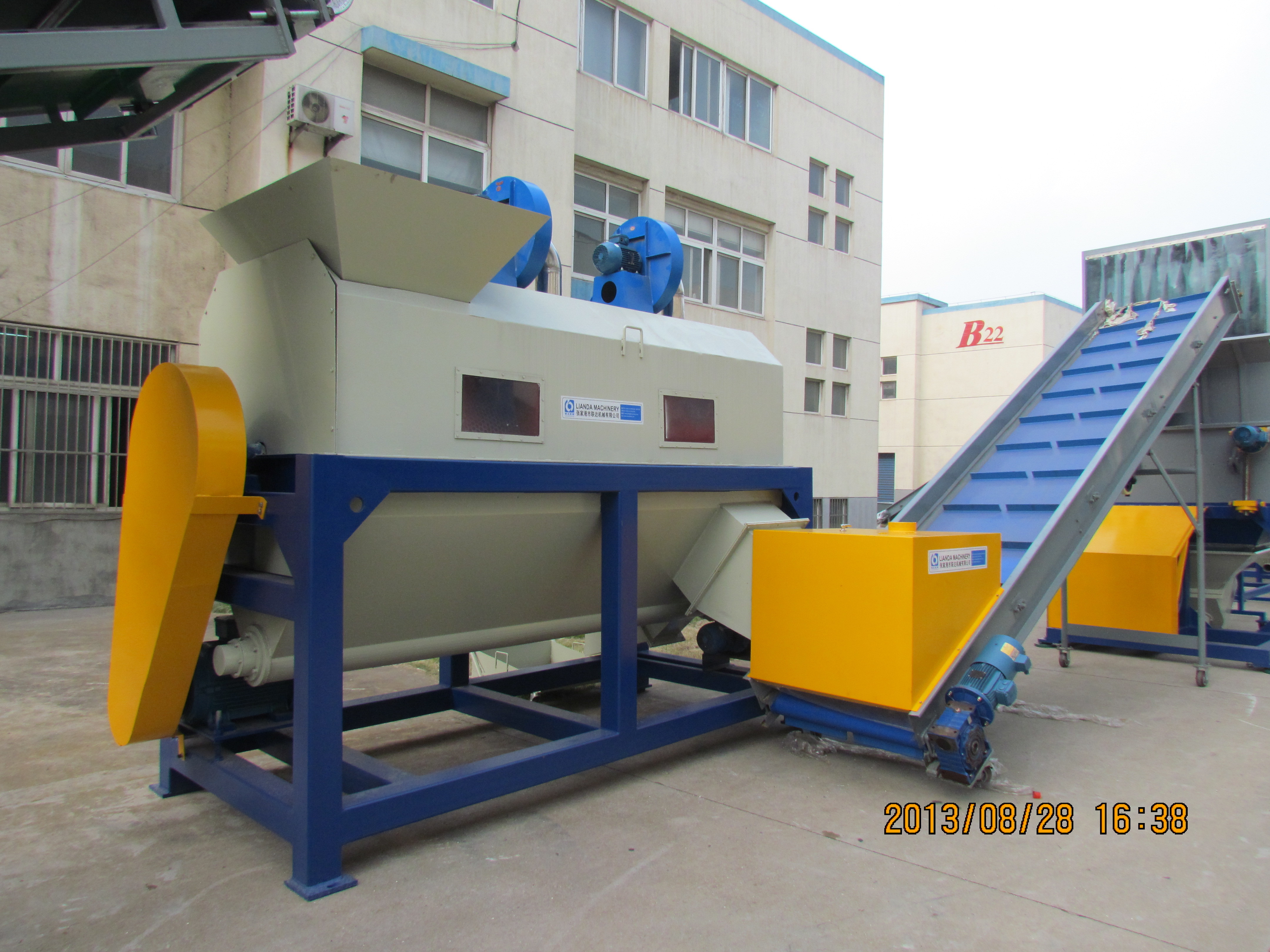

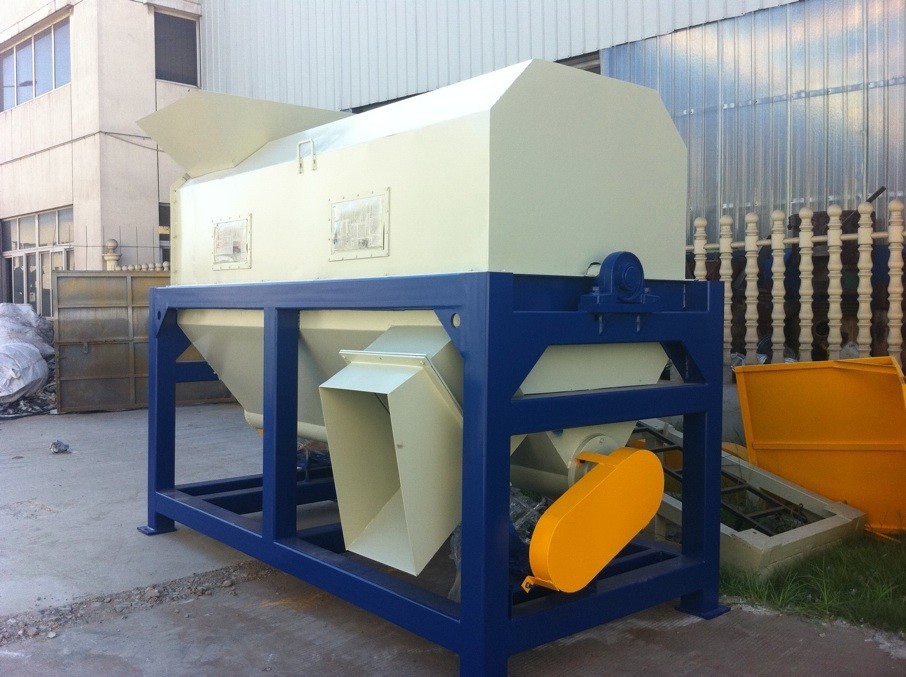

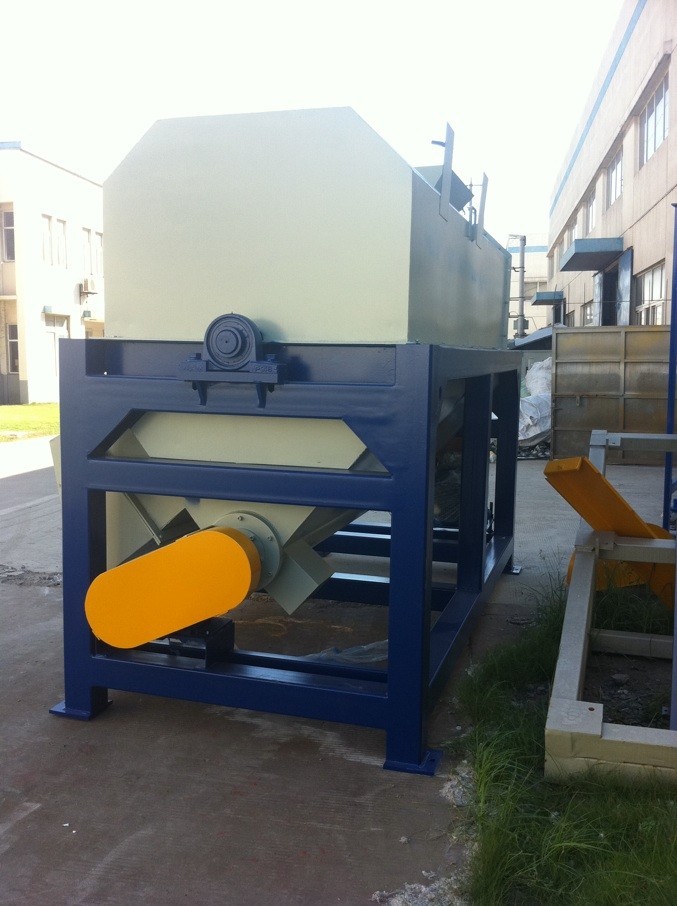

Sand /grass remover for Mulching film
>>Product introduction: PE agricultural film (mulch film, greenhouse film, tobacco film) and urban domestic waste are the most difficult projects in the recycling process of renewable resources.
>>The sand remover machine can quickly and effectively remove residual impurities in urban domestic garbage and agricultural film, such as mud, sand, small stones, glass, metal, wood chips, etc.
>>After the material enters through the feed port, the material is rubbed with the thread steel under the barrel through the high-speed rotation of the main shaft, so that the impurities on the material are separated and filtered through the thread steel gap, and then transported out through the belt conveyor, and the film material will be discharged by the spiral and the discharge screw.
Advantage
|
High output: processing capacity (raw material) 2-3T/H
|
|
| 1 | Good effect: It can effectively remove 55%-75% of impurities, such as sand, stones, broken cloth, paper materials, etc. (paper materials are more difficult to handle in subsequent recycling equipment) |
| 2 | Water saving: Pre-treatment of impurities, such as sand, stones etc which will protect the crusher blades and save water on the after processing. |
| 3 | Reduced cost: Effectively remove impurities in the front stage, reduce subsequent equipment pressure, reduce the wear rate of tools and other accessories, improve equipment efficiency and recycling purity, and save customer costs. |
| 4 | Labor saving: the impurities are screened out from below, and can be directly transported to a fixed place for storage by connecting the conveyor without manual cleaning |
| 5 | No jamming: At the same time that the output is high and efficient, the second-generation sand remover has also upgraded and improved the main shaft, blade spacing, screw and barrel gap, and is aimed at more miscellaneous materials (such as waste clothes in municipal garbage or relatively Long agricultural film) will not appear winding, jamming, etc. |
| Model | LD-CZJ1000 | Note |
| Capacity | 1000-3000kg/h | |
| Drum diameter | 1000mm | |
| Length | 4000mm | |
| High speed friction motor power | 22kw | |
| Impurity removing screw motor | 3kw | |
| Impurity removing blower power | 5.5kw x 2 |
1.Pre-sale: we given client the details technician offer etc
2.In-sales: we supply the details layout, installation instruction, technician support for the clients
3.After sales: we arrange engineer to install the machinery and training the workers for client
4.We have 24 hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always up date the new technology to every customer
HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory
AFTER-SALE SERVICE OF LIANDA MACHINERY!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
