Double shaft shredder machine,plastic container shredder,plastic drum shredder,industrial plastic shredder,solid waste
LIANDA Design
The double shaft shredder is a highly versatile machine. The high-torque shearing technology design can meet the waste recycling requirements and is suitable for shredding large volume materials, such as car shells, tires, metal barrels, scrap aluminum, scrap steel, household garbage, hazardous waste, industrial garbage, etc. It can be designed according to customer needs and processed materials to maximize users’benefits.
The reducer and rotor adopt DIN5480 (German standard) standard. The machine has the characteristics of large transmission torque, reliable connection, low speed, low noise, and low maintenance cost. The electrical part is controlled by Siemens PLC program, with automatic detection of overload protection. The main electrical The components adopt well-known brands such as Schneider, Siemens, ABB, etc.
Applied for
|
|
|
|
Metal material: Aluminum material,motor shell,oil drum, waste vehicle crust,ferrous waste, waste steel plate etc |
Waste tires: Car tire, truck tire,OTR tire etc |
|
|
|
|
Electronic waste: Waste fridge,TV, Washer etc |
Plastics: Plastic drums,packing case, plastic pallet, plastic can etc |
|
|
|
|
Metal drum
|
Industrial waste |
Machine model
| Model |
Rotating diameter (mm) |
Main shaft speed (rpm) |
Blade Thickness (mm) |
Blade quantity (pcs) |
Cutting chamber (mm) |
Motor power (kw) |
| LD-800 | 320*2 | 20 | 40 | 22 | 800*650 | 18.5*2 |
| LD-1000 | 360*2 | 20 | 50 | 20 | 1000*650 | 22*2 |
| LD-1200 | 420*2 | 20 | 50 | 29 | 1200*800 | 45*2 |
| LD-1500 | 514*2 | 20 | 50 | 32 | 1500*1000 | 110*2 |
Machine Details
|
1
|

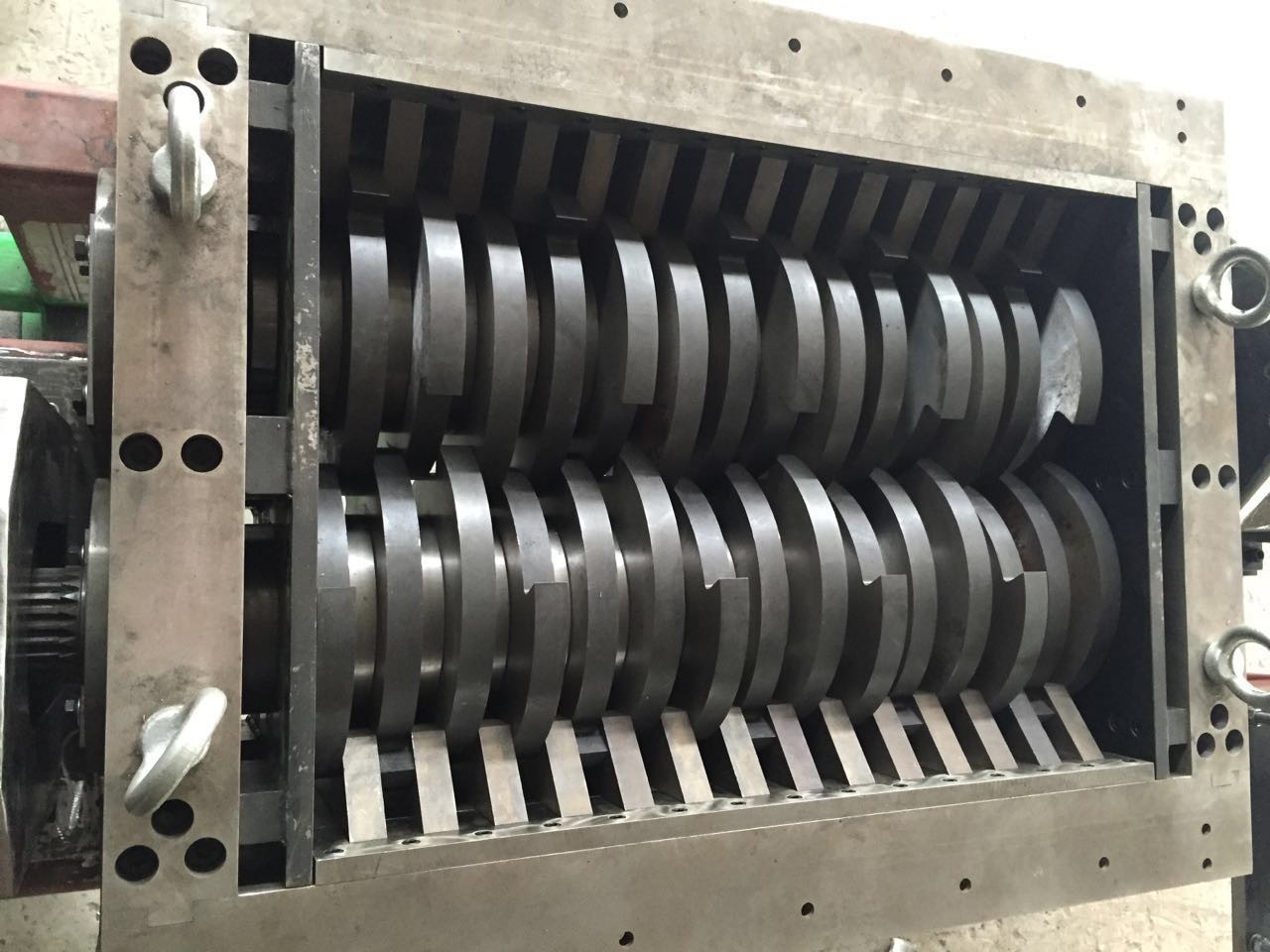

Components of double shaft shredder
|
|
| Different material adopt different blade rotor model | ||
| German imported blade material have strong impact resistance, and broken metal knives will not break. | ||
| Both the inner hole of the tool and the spindle surface adopt a hexagonal design to realize the uniformity of the blade force. | ||
|
The blades are arranged in a spiral line to realize efficient cutting.
|
|
|
| 2 |
The bearing is four-fold sealed, effectively waterproof and dustproof.
|
|
| Split bearing seat design to facilitate bearing and rotor maintenance | ||
| 3 |

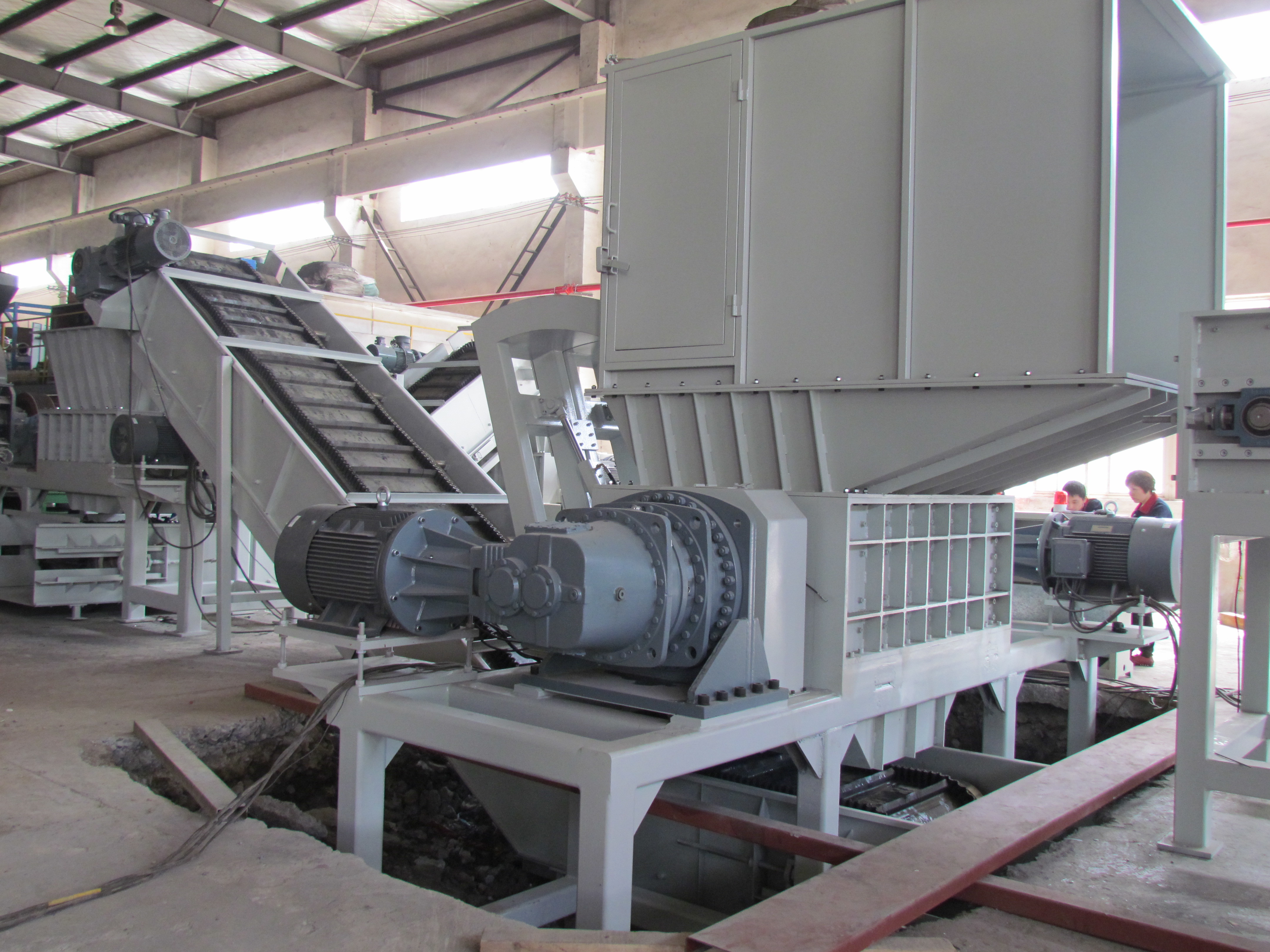

Adopt planetary gear reducer, smooth running and shock resistant
|
|
| 4 |

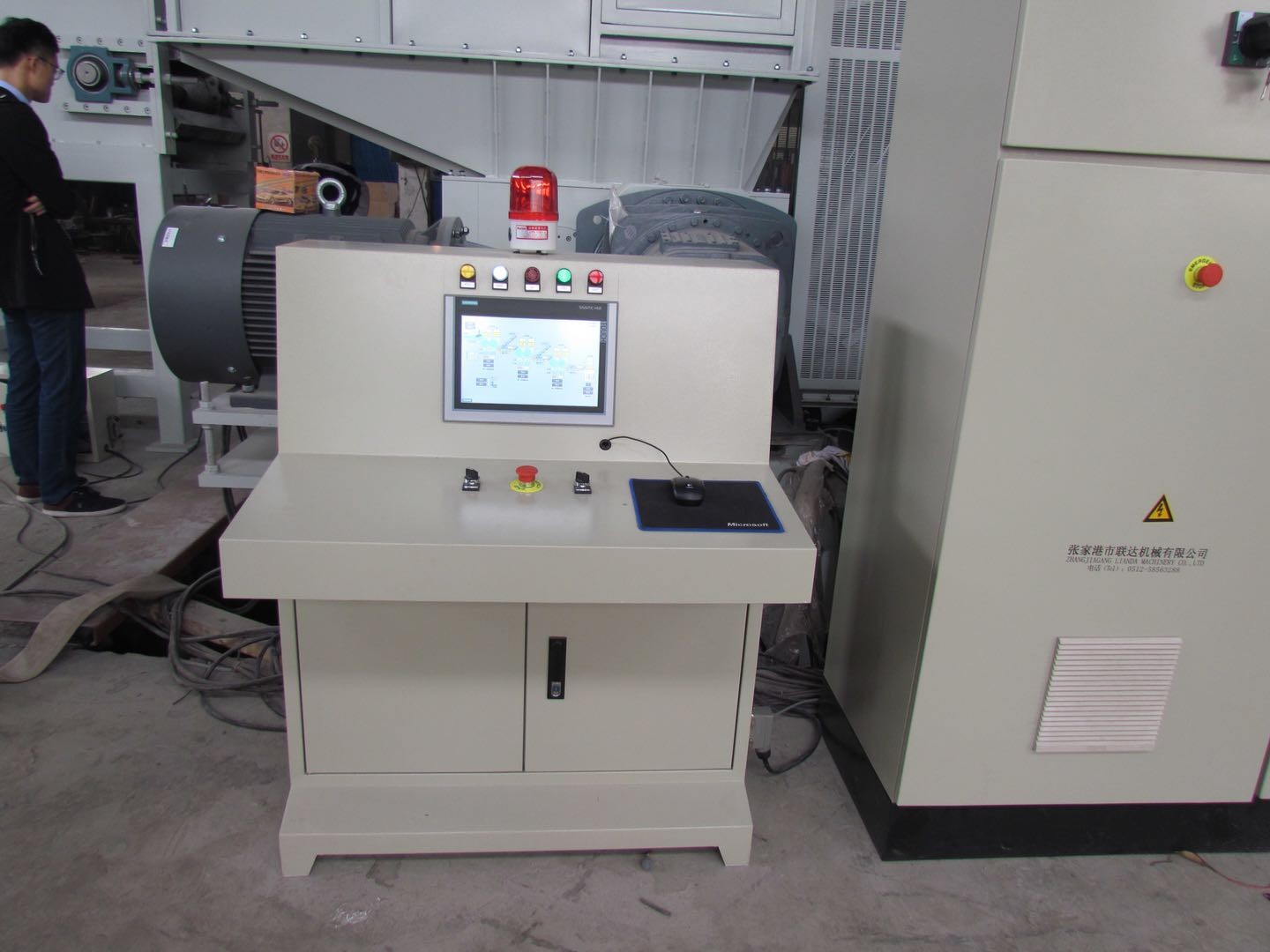

Siemens PLC monitors the motor current in real time, and the knife axis automatically reverses when the load is overloaded to protect the motor;
|
|
| 5 | The equipment has passed CE certification and complies with EU safety standards | |
