20 Mins Siemens PLC Infrared Plastic Dryer Machine

USD 10,000-USD30,000
20 Mins Siemens PLC Infrared Plastic Dryer Machine
Features Gallery Product Description Request A Quote
Drying Temperature: Can Be Adjustable By Material Property
Drying Time: 20mins (can Be Adjustable By Moisture Need)
Power Consumpron: Only 45% Of Conventional Dehumidifier
Processing: Dry And Crystallization At A Time
Heater: Infrared Lamps
Power Source: 380V 50hz 3PHASE Or Customized
Control System: Siemens PLC
Delivery Time: 30 Working Days
Certificate: CE,IS09001, SGS
High Light:

Siemens PLC Plastic Dryer Machine


Infrared Plastic Dryer Machine


20 Mins plastic drying machine

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,SGS,ISO9001
Model Number: LDHW-100
Payment & Shipping Terms
Packaging Details: Factory standard package or customized package
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union
Product Description

Infrared dryer for PET Sheet making machine,PET Sheet,PET Plastic sheet production making machine extrusion line


If you use Twin-screw or Multi screw extruder with vacuum degassing system, why still need to use Infrared crystal dryer to work together?

  • Continuous material feeding into Sheet extruder
  • Increased output: up to 50% higher
  • Increased bulk density of material: normally 20-50% depends on material type
  • Reducing the complexity of vacuum system
  • Increased stability of the operation of extruding line and product quality
  • Lower requirement for raw material used
  • Low down the operation cost up to 20% compared to the systems without IRD (Infrared crystal dryer )

Our processing


Normally the PET Bottle flakes or sheet scrap with initial moisture level of up to 10000-13000ppm. The PET Bottle flakes or sheet scrap (Virgin or mixed ) will be recrystallized in a continuous IRD in 10-15mins, the drying temperature will be 150-180℃ and dried to 1000ppm,then fed to Double screw extruding system for further processing

l Limiting the hydrolytic degradation of the viscosity.

l Prevent increasing AA levels for materials with food contact

l Increasing the capacity of the production line up to 50%

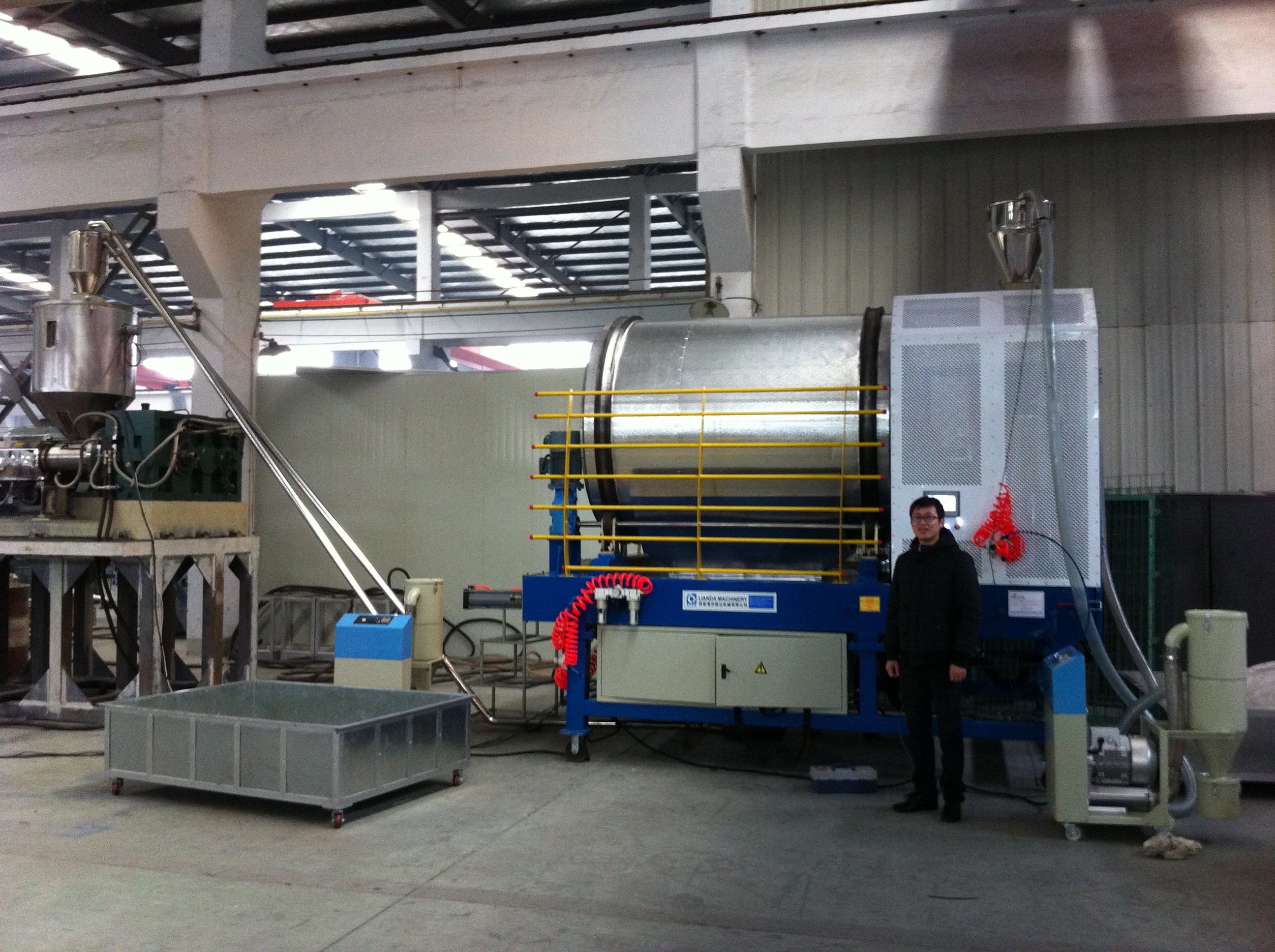

20 Mins Siemens PLC Infrared Plastic Dryer Machine 0

1. Material  Filling

By vacuum dosing feeder to convey the raw material continuously to the rotating drum



2. Drying and Crystallization

Thermal treatment and mixing. There are the spirals welded into the rotary drum to ensure the well mixture of material and continuous transfer to the outlet. And the material will also be dried continuously


3. Discharging

The dried and crystallized material will be discharged after minutes drying by drum rotary. Finally the dried and crystallized material will be conveyed to the next processing.

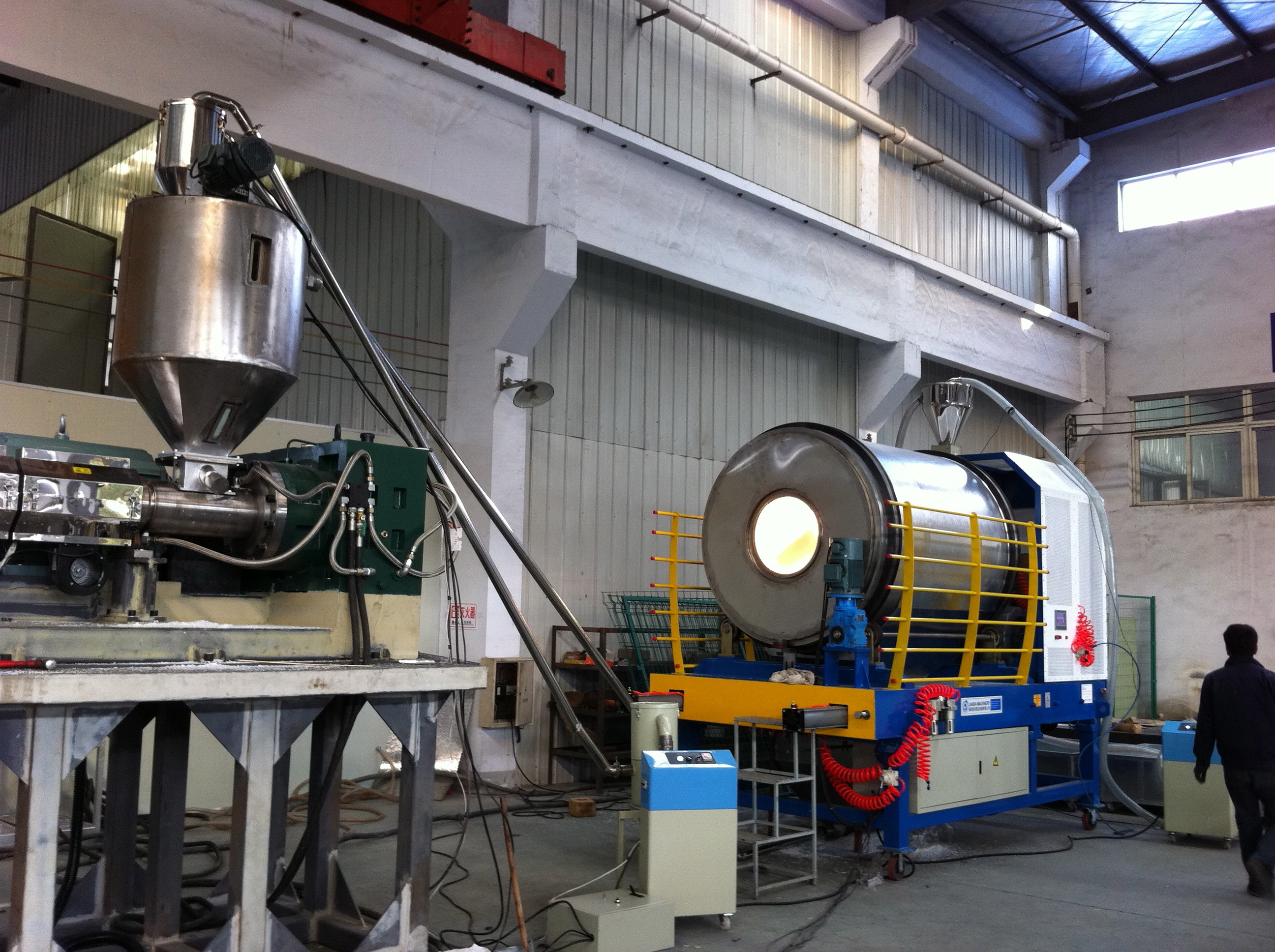

20 Mins Siemens PLC Infrared Plastic Dryer Machine 1


l Improvement and make the product quality stable-- Equal and repeatable input moisture content of the material



Advantage of IRD Processing


1 Rotary drum design To dry the material evenly
The spiral coils design of the drum ensure the good mixture of the raw material to avoid material clumping
2 Retention time Depends on the speed of Rotary drum
The speed can be adjustable by the property of drying material
3 PLC Controlling system The material retention time,drum rotating speed
The Infrared lamps performance, drying temperature
The feeding speed of Vacuum feeder
4 Reproducibility Recipes and process parameters can be stored in the controlling system to ensure opimal and reproducible results
5 In one step Drying and crystallization in one step
6 High efficiency Minutes drying and crystallization instead of hours( Compared to conventional dehumidifier and crystallizer)
7 Fast cleaning

Allow for easy and fast cleaning.

Rapid product change-over

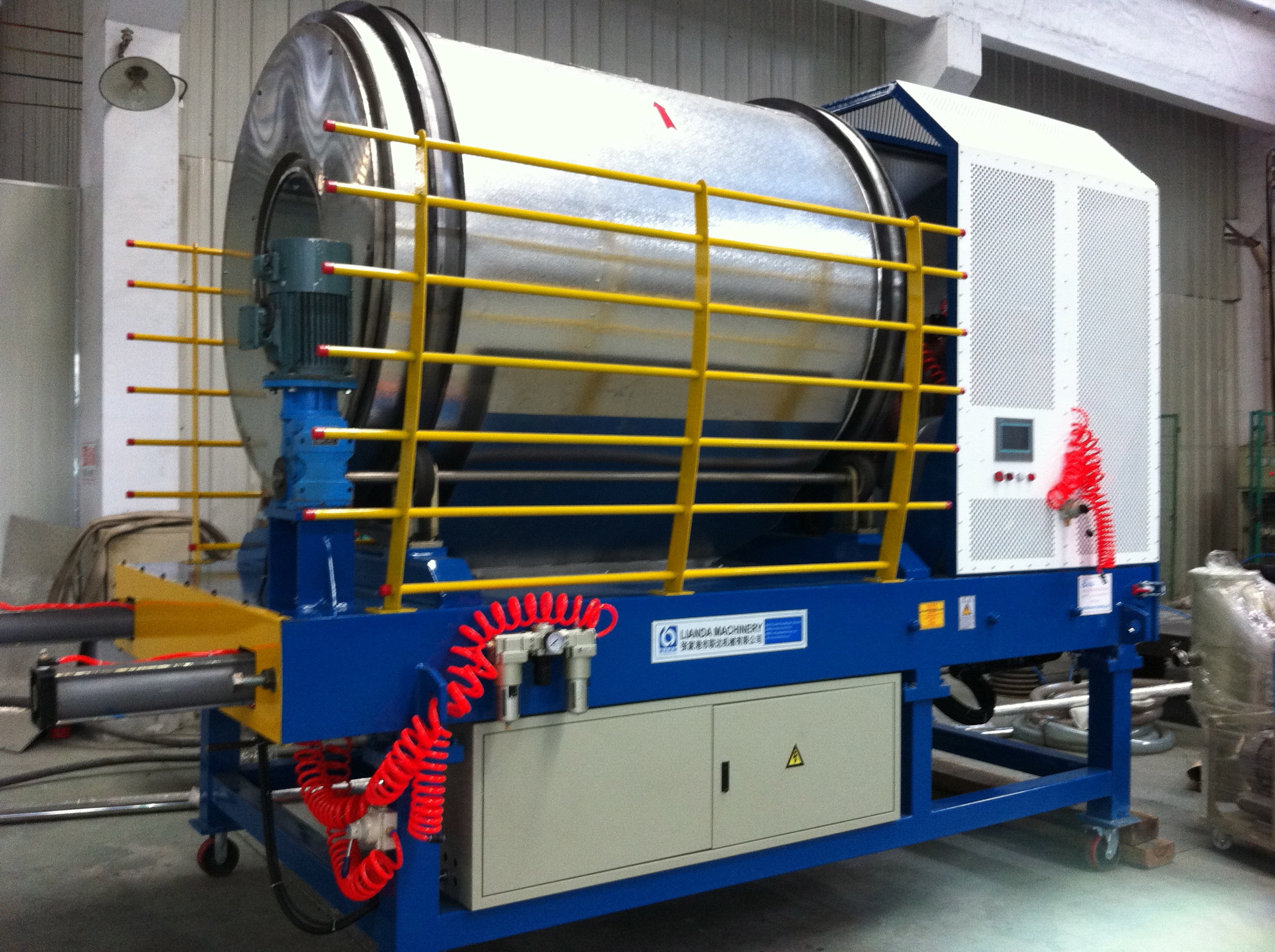

20 Mins Siemens PLC Infrared Plastic Dryer Machine 2



● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory

Our Service

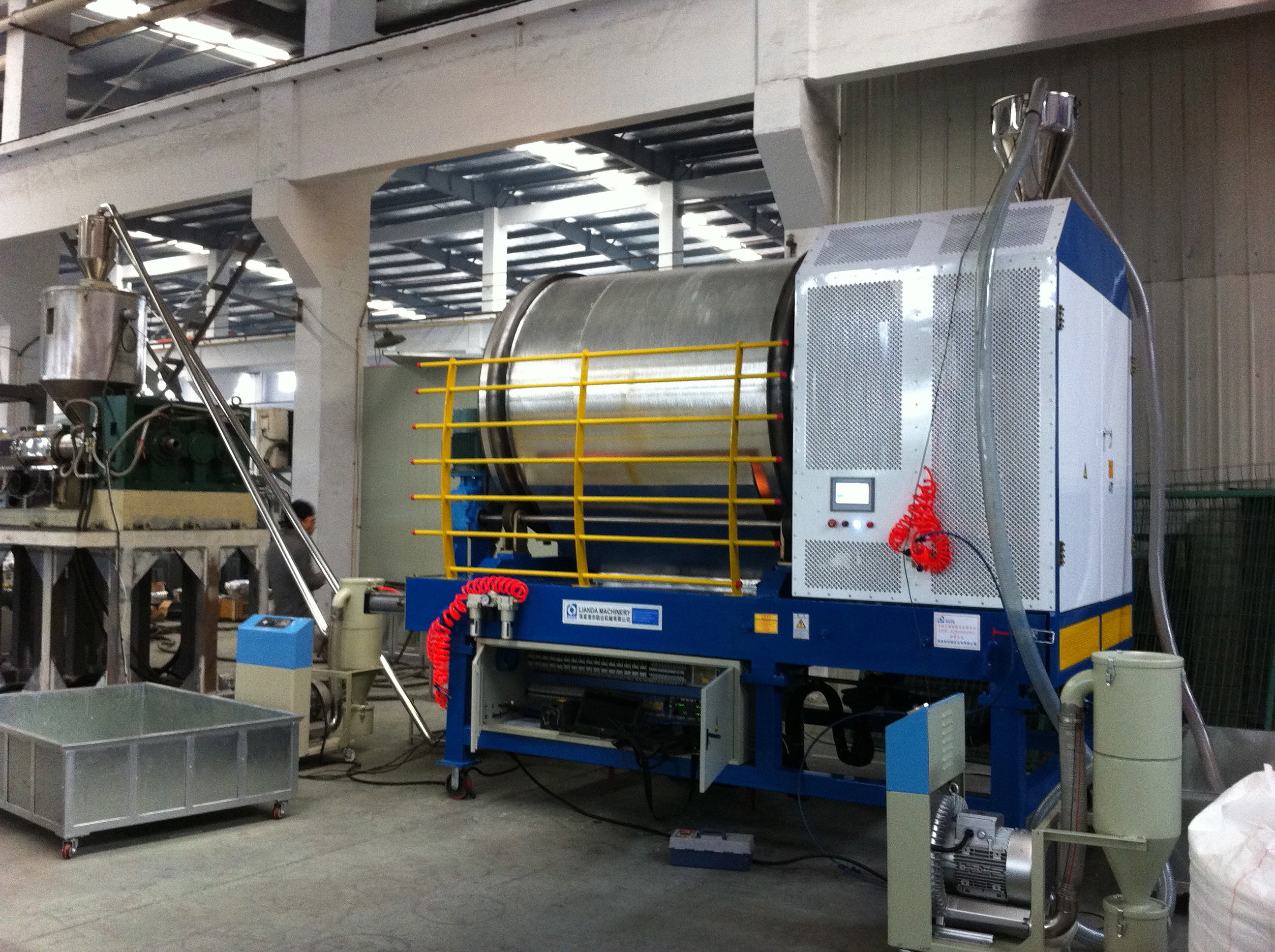

20 Mins Siemens PLC Infrared Plastic Dryer Machine 3
1.We will provide testing if the customer comes to visit factory to see the machine.
2.We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents which customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty time,we will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole lifetime .
