2000kg/H 380V Waste Polystar Plastic Recycling Machine

2000kg/H 380V Waste Polystar Plastic Recycling Machine
Features Gallery Product Description Request A Quote
Voltage: 380V,Customized
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support
Warranty: 1 Year
Application: Plastic Recycling,Waste Film Washing Line,drying
Automatic Grade: Automatic
Production Capacity: 300-2000kg/h
Type: PP PE Film Washing Machine,Hot Washer
Material Processed: Crushing-washing-drying,PP,Bottle Flakes,Plastic Bottles/flakes
Plastic Type: PP PE HDPE Film(bottle),MSW,waste LDPE/LLDPE/HDPE Film, PP Raffia Bags, Fiber, PP Woven Bags
Name: Plastic Recycling Equipment
Final Product: Clean Plastic Scraps
Keywords: Polystar Plastic Recycling Machine
High Light:

Waste Polystar Plastic Recycling Machine


380V Polystar Plastic Recycling Machine


2000kg/H polystar recycling machine

Basic Infomation
Place of Origin: CHINA
Brand Name: LIANDA
Certification: CE,SGS,ISO9001
Model Number: LD-500/1000
Payment & Shipping Terms
Packaging Details: Factory standard package or customized package
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union
Product Description

Fully Automatic Waste Polystar PP PE Plastic Recycling Machine
2000kg/H 380V Waste Polystar Plastic Recycling Machine 0
>>>>Soft Plastic (Film/woven bag/fiber/rope) Washing Line has smart modular design aiming at agricultural film, industrial packaging film, bag, blowing molding packaging bottle/box, injection and electronic waste recycling. It is including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular. Which can remove most of contaminants such as ferrous and nonferrous metals, sand, oil, glue, paper label and many other different contaminants efficiently. Moreover, turn key solution can be provided with all water treatment, processing of sludge, paper stick, labels and etc.
>>Including metal detector, crusher, high speed friction washing,hot/cold washing and drying machine.
You can get a different module combinations design from Lianda according to your requirements. In range of different raw materials, Lianda provides 300-1000kg/h economy and high-level production lines.
Machine List and working processing
2000kg/H 380V Waste Polystar Plastic Recycling Machine 1
>>After getting waste plastic raw material, LIANDA Technicians will study and analysis the main contaminants , then provide a proper solution to remove most of the impurities by the idea of mechanical, chemical, physical.

PE Film Recycling Machine For Washing Recycling Line
(You can get a different module combinations design from Lianda according to your requirements)

2000kg/H 380V Waste Polystar Plastic Recycling Machine 2

Belt conveyor Load the plastic raw material to the Crusher
Crusher Machine Cut  plastic into flakes with water for pre-washing and good for crusher blades

Friction washer
(Low speed)

Combined with Crusher.To have pre-wash and centrifugation of the flakes
Screw feeder Load the film scrap
Floating washer

Hot washing/cold washing for customized.
Remove oil ,chemicals, dust, sands, sludge, soil and other sink contaminants

Screw discharger Load the flakes
High speed friction washer Remove water/glue/dirty from flakes by strong forced friction and centrifugation.
Floating washer To clean again
Screw discharger Load the flakes
Horizontal dewatering machine To dry the flakes. Final moisture can be about 1.8%
Thermal dryer Reduce humidity to be less than 1%
Zigzag separator Remove dust/fines/labels
Silo Storage the cleaned, dried flakes
Electrical cabinet Control the full line

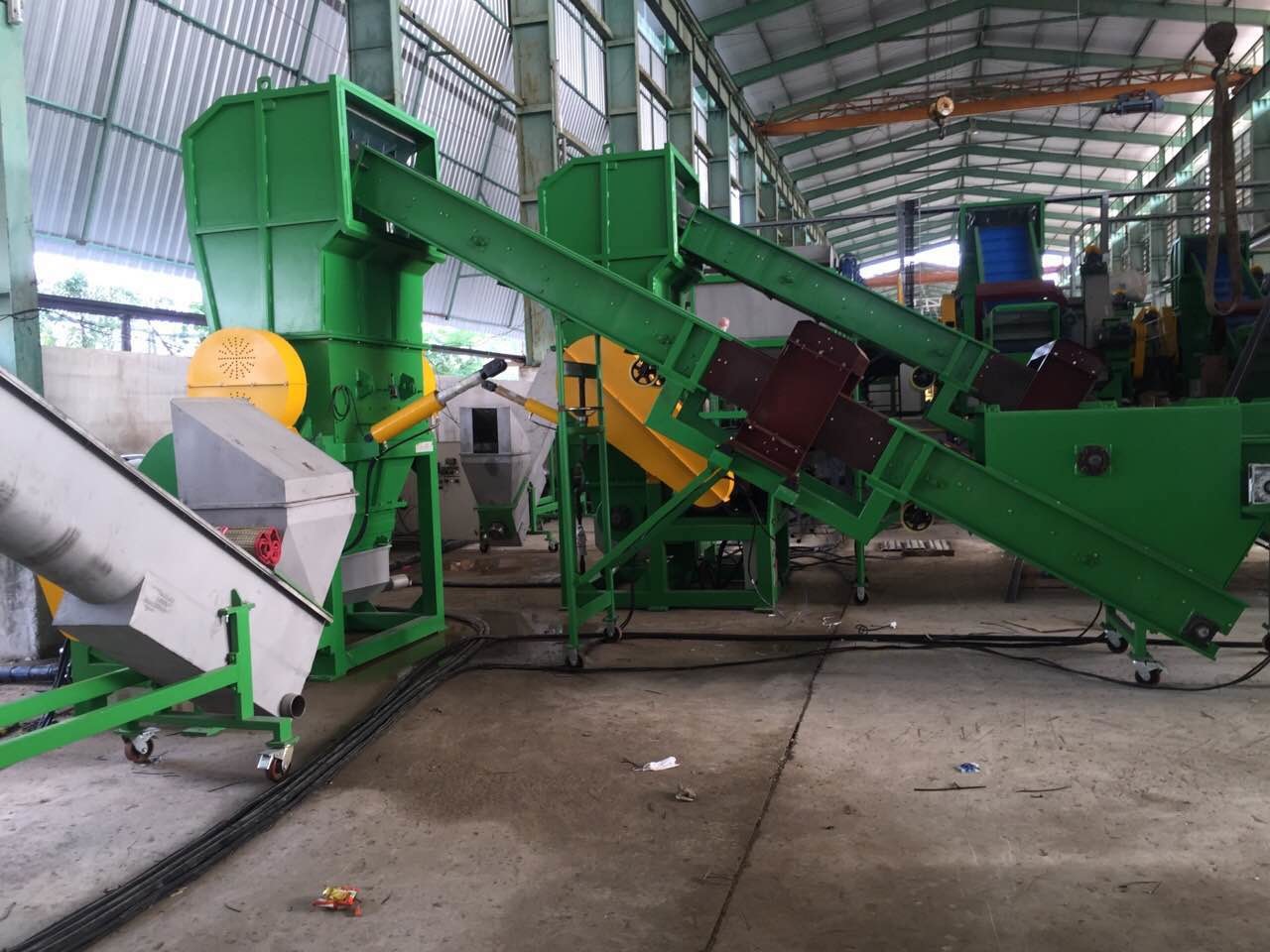

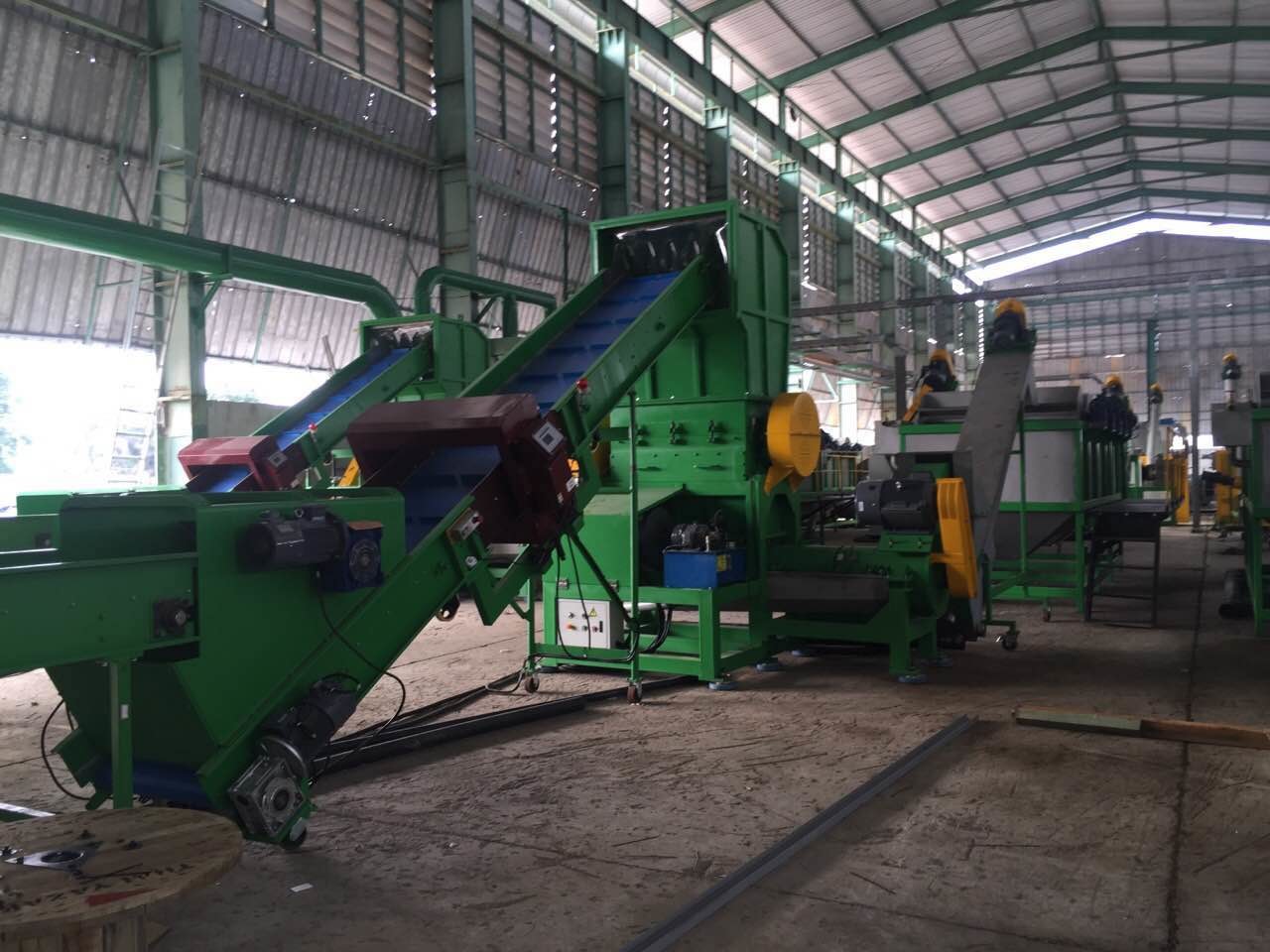

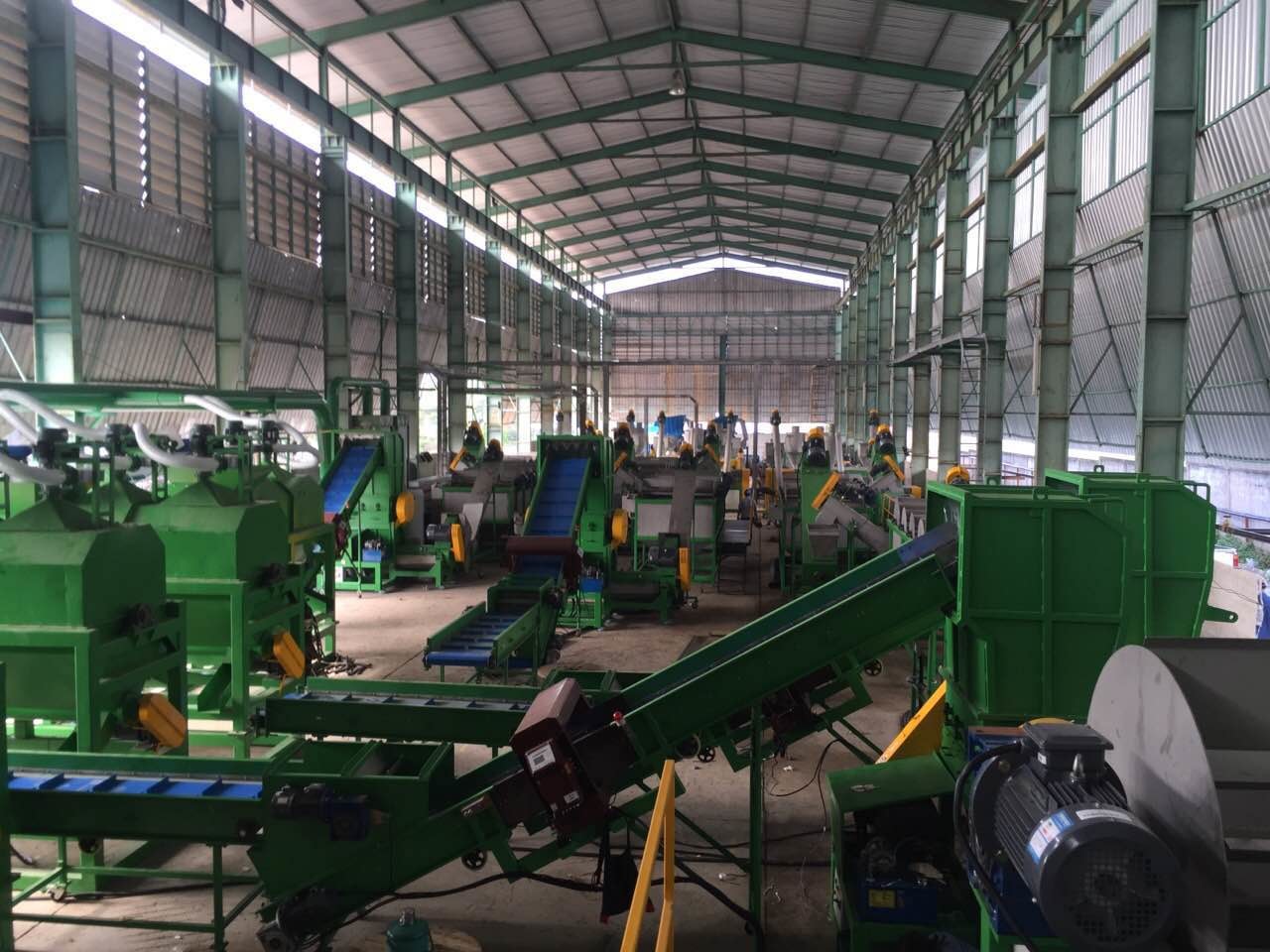

Machine Photos
2000kg/H 380V Waste Polystar Plastic Recycling Machine 3
2000kg/H 380V Waste Polystar Plastic Recycling Machine 4
2000kg/H 380V Waste Polystar Plastic Recycling Machine 5
Crusher Machine
>> Knife holder structure adopts a hollow knife structure design, which can better cut hollow plastics during crushing.
>>The output is 2 times higher than the ordinary crusher of the same model
>>suitable for wet and dry crushing.
>>The chamber with wear-proof design
>>Conbined with low speed friction washer
2000kg/H 380V Waste Polystar Plastic Recycling Machine 6
High speed friction washer
>>It is mainly used for strong friction cleaning,adopting spiral blade structure, medium and low speed friction principle to reduce or remove the adhesion of contaminants to the material.
>>Centrifugal the contaminants onto the screen, and adding clear water removes the sediment on the material through the centrifugal action during the operation, and clean the materials efficiently.
2000kg/H 380V Waste Polystar Plastic Recycling Machine 7
Floating Washer
>> flotation washer for cleaning size reduced plastic scraps, by rotary paddles and water, which can remove most of the dust,sands, sludge, soil and other sink contaminants.
>>The main principle is to use the specific gravity of water,specializing in the initial wash and rinse of submerged and floating materials,it can effectively separate the sediment and metal in the material. The system will discharge the sink contaminants,such as sands, sludge, sink plastic, metals through the pneumatic bottom valves automatically. It will ensure the good washing condition of water.
2000kg/H 380V Waste Polystar Plastic Recycling Machine 8
>>It is mainly used for removing moisture from the film/bags and other soft material. It can efficiently remove the humidity from soft plastic materials.
>>The equipment adopts centrifugal force to dry materials.To reduce the moisture content of the material to below 10% without melting.


What can our machines do for you?


>>High automation, only 2 workers are required to operate
>>High production capacity (more than 30% higher than the same equipment in the same industry), low energy consumption (water, electricity, gas, chemical cleaning agent consumption is 20% lower)
>>Reasonable process design and good cleaning effect
>>Reliable components, internationally renowned brands, reliable quality, low maintenance costs
>>Cost-effective, high profit return


● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory

Our Service
2000kg/H 380V Waste Polystar Plastic Recycling Machine 9
1.We will provide testing if the customer comes to visit factory to see the machine.
2.We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents which customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty time,we will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole lifetime .
