Wet PP Pelletizing Extruder/PP Plastic Woven Bag Dryer
This Plastic Film Squeezing Machine is a full automatic machine for the film and woven bags, with the screw squeezing and electrical heating, make the materials have high degree of drying and full plasticizing, low power consumption, high output. The final moisture is only 3-5%. The capacity would be customized according to the requests of clients.
The plastic film squeezing pelletizing machine is used for drying washed films , woven bags,PP Raffia bags, PE film etc and make the washed films to be like granulates. The plastic film squeezer can work on the accordance with washing and pelletizing line with stable capacity and whole process automation to save labor cost. The plastic film squeezer can be applied for:
1. LDPE waste film recycling and washing line
2. PE Agricultral film crushing and washing line
3. Waste PE Film recyling line
4. Ethylene ground film washing, drying and regranulating line
5. PP Woven bag/raffia bag recycling and washing line
How the machine work: Film Squeezing Pelletizing dryer remove the water of the washed film by screw pushing and electrical magnetic heating. with the screw squeezing and electrical heating, the washed films will be had high degree of drying and full plasticized, low power consumption, high output. The final moisture is only 3-5%.
The screw barrel is made of material feeding barrel, compressing barrel and plasticized barrel. After feeding, squeezing , the film will be plasticized and cut to particle by the pelletizer which is installed besides the mold.

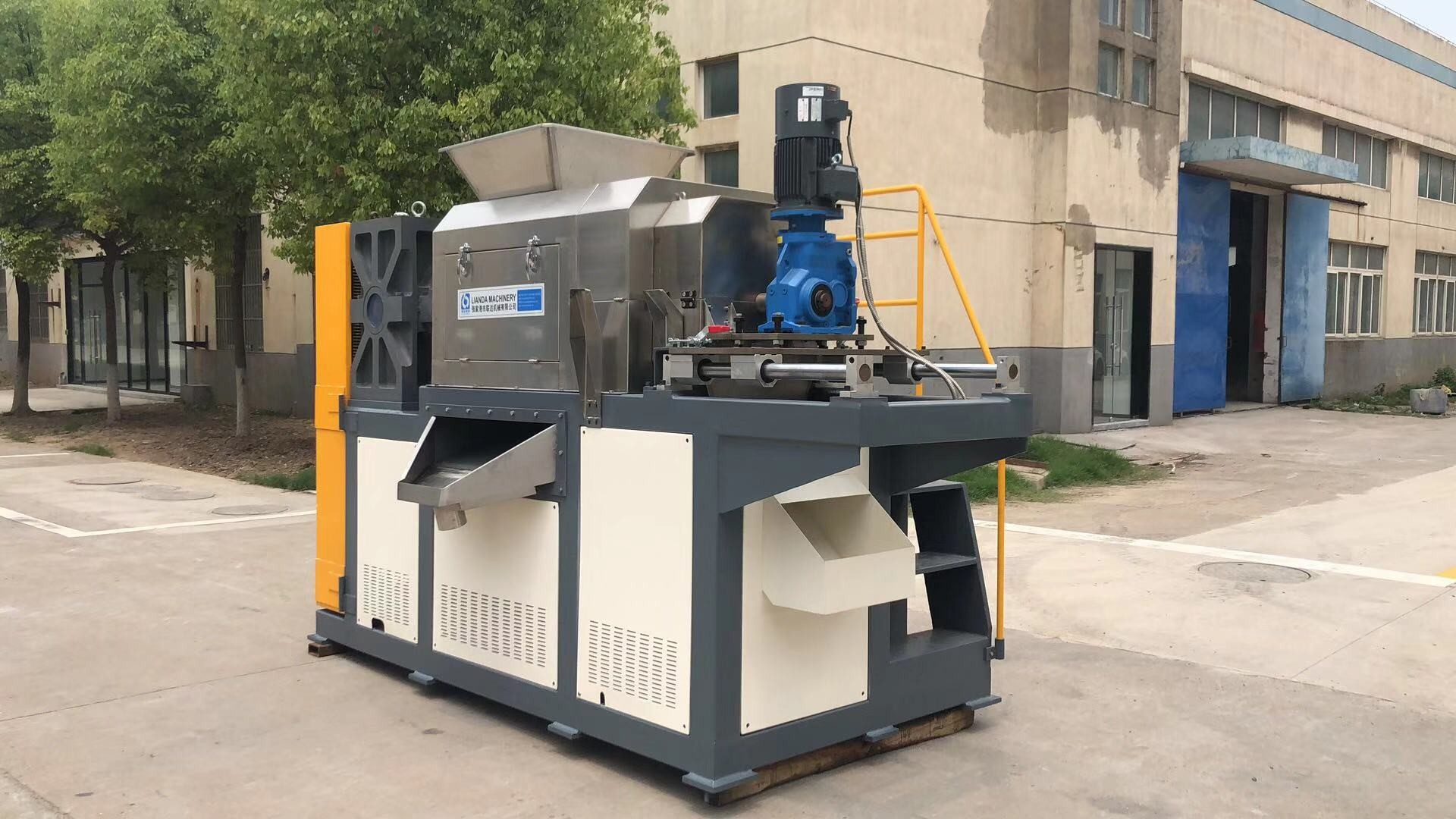

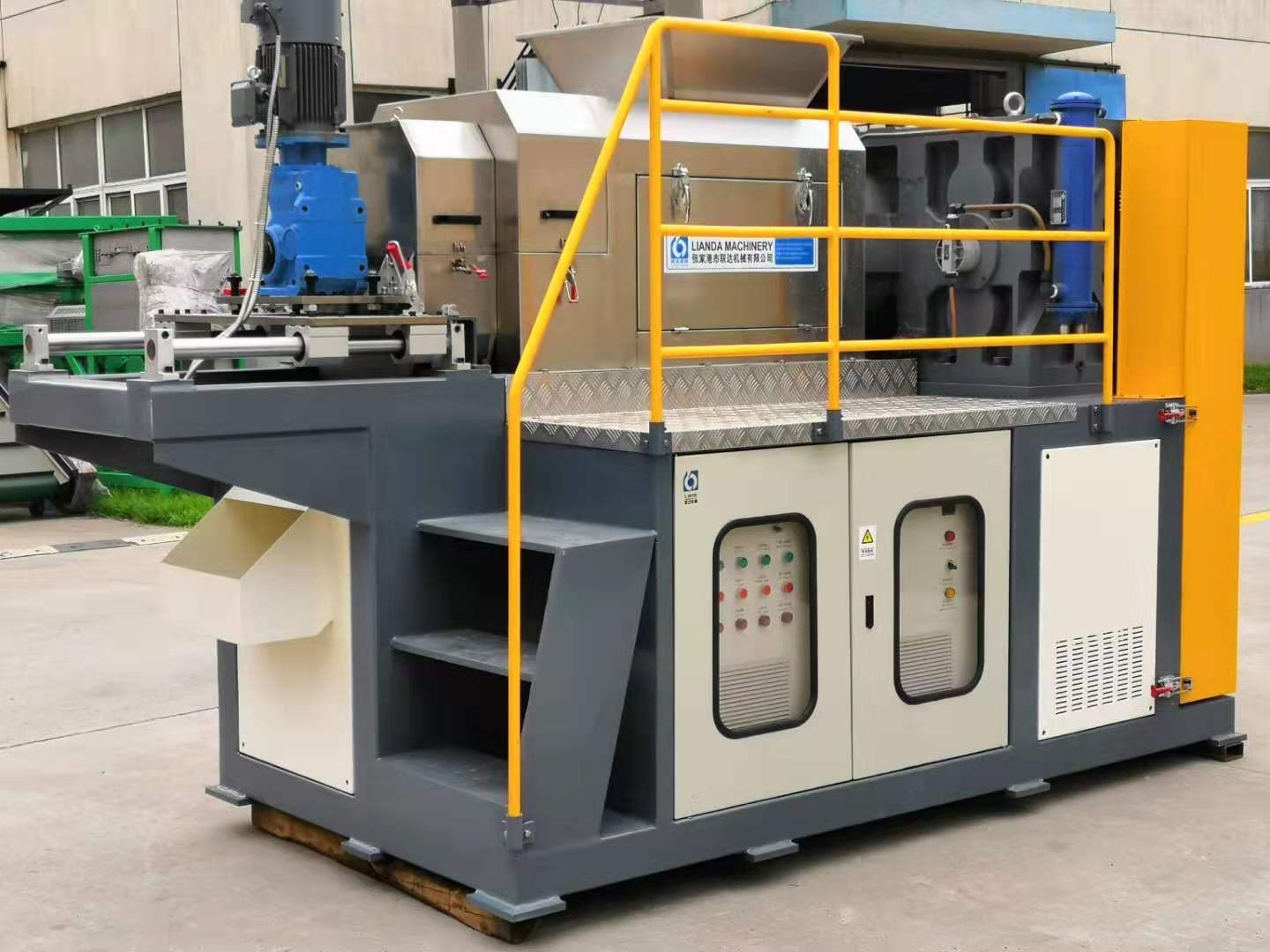

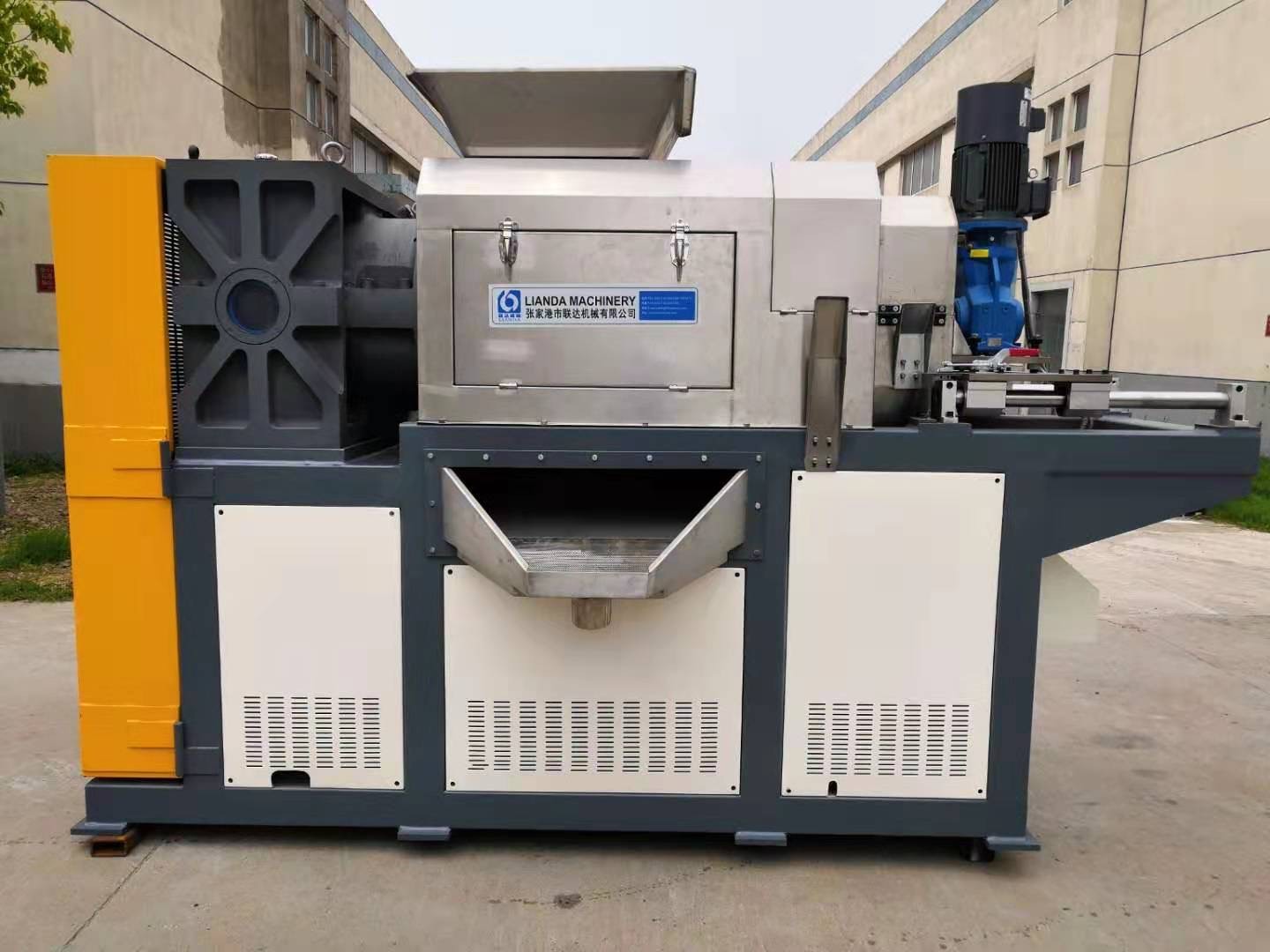

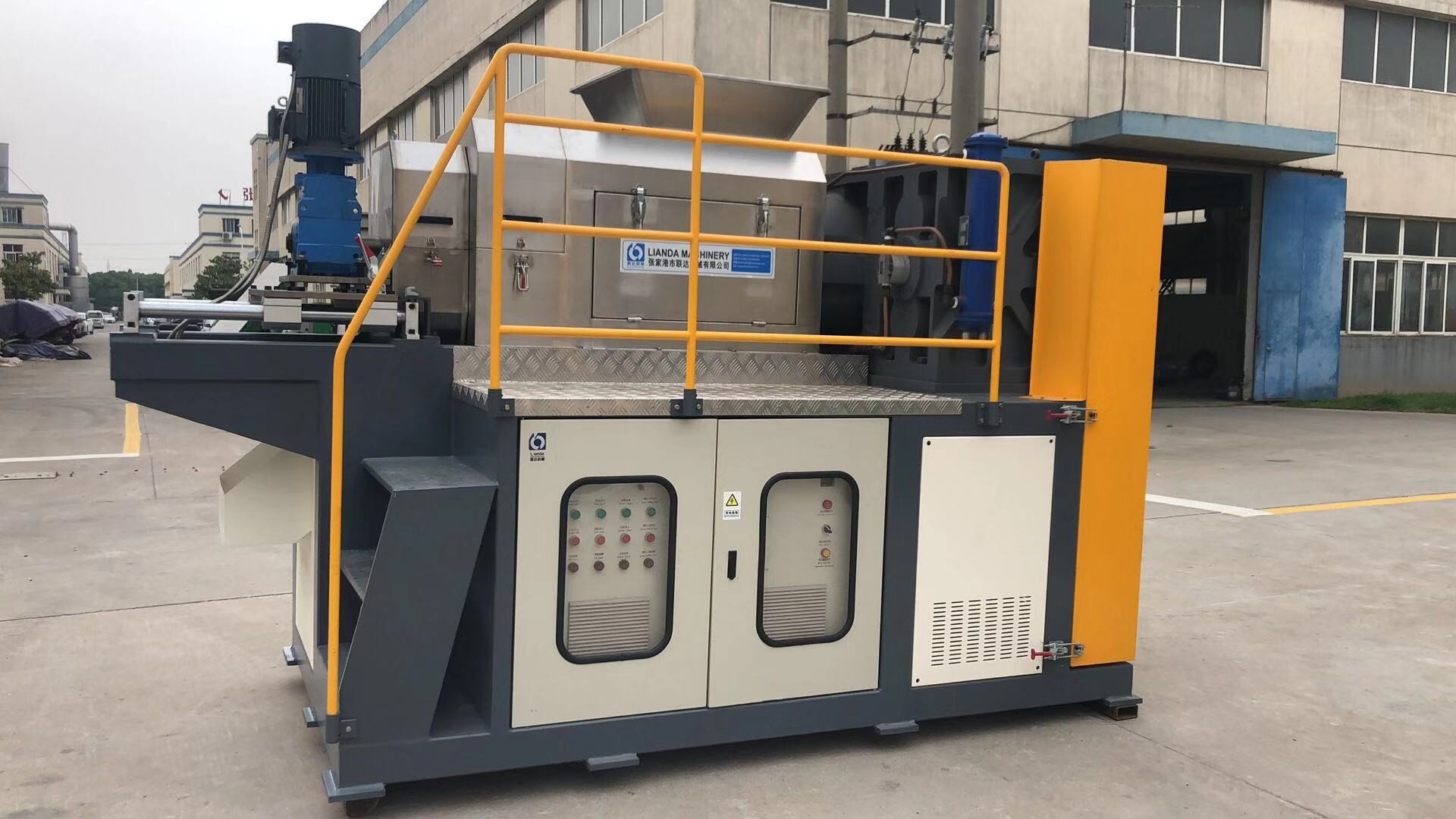

Film Squeezing pelletizing dryer
|
|||
Model
|
300 | 500 | 1000 |
Motor power (KW) |
55 | 90 | 132 |
Screw diameter (MM) |
270 | 300 | 320 |
Output (KG/H) |
300 | 500-600 | 800-1000 |
Pelletizing motor (KW) |
3 | 4 | 5.5 |
Advantages: Since Film is easily to be wrapped and difficult to be dewatering, we adopt the design of variable screw distance to get | |
1 | Uniform feeding without stuck |
2 | Make water removing more than 98% |
3 | Less energy cost |
4 | Easily for feeding the particle to the extruder and enlarge the capacity of the extruder |
5 | Stable the quality of finished particle |
1.Pre-sale: we given client the details technician offer etc
2.In-sales: we supply the details layout, installation instruction, technician support for the clients
3.After sales: we arrange engineer to install the machinery and training the workers for client
4.We have 24 hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always up date the new technology to every customer
HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory
AFTER-SALE SERVICE OF LIANDA MACHINERY!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
